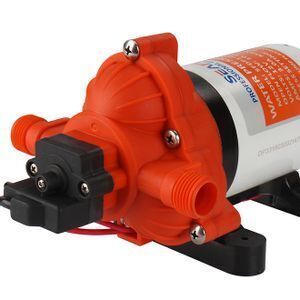

SEAFLO 33 series 11.6LPM/3GPM 12V electric 3 diaphragm pressure switch water pump with Boat and RV

Supplier: Fujian Aidi Electric Co., Ltd.
Region: Fujian, China
Contact: Ms Patty Wu
Price: $31.00 / >=6 pieces
Min. Order: 6 pieces

Click here to contact

Product details

Diaphragm Material:	Santoprene;	Max Flow Rate:	3.0 GPM / 11.3 LPM;
Self Priming:	6 ft [1.8 m] Suction;	Power:	Electric;
Pressure:	high Pressure;	Supply Ability:	3000 Piece/Pieces per Day;
Max Fluid Temp.:	140 °F [60 °C];	Valve Material:	EPDM;
Voltage:	12V DC;	Fuel:	Battery, Solar Power or Transformer;
Inlet & Oulet Port:	1/2"-14 MNPT;	Max Pressure:	45PSI / 3.1 Bar;
Application:	water Transfer;	Place of Origin:	Fujian China;
Brand Name:	SEAFLO;	Usage:	WATER;
Model Number:	SFDP1-030-045-33;	Payment Terms:	L/C,T/T;
Port:	Xiamen;	Switch Type:	On Demand [Cut-off Switch];
Structure:	DIAPHRAGM PUMP;	Packaging Detail:	1pc/inner box ,8 pcs/ctn; Seaworthy Strong Carton;
Type:	Reciprocating Pump;

Scenario application

Product Description

Product Description

FEATURES & BENEFITS

-On-demand use
-Capable of supplying1-2 fixtures
-Adjustable pressure switch
-Continuous Duty&Run dry safe - Self priming
-16AWG,4.5"long Leads
-2 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards

STANDARD PUMP CONFIGURATIONS

Model	Voltage	Open Flow (GPM/LPM)	Control Type	Max Draw	Shut-off Pressure (PSI/BAR)	Valves	Diaphragm	Ports	Wire Connections
SFDP1-030-045-33	12V	3.0 / 11.6	Switch	8.0A	45 / 3.1	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP2-030-045-33	24V	3.0 / 11.6	Switch	4.0A	45 / 3.1	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP1-028-045-33	12V	2.8 / 10.6	Switch	6.0A	45 / 3.1	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP2-028-045-33	24V	2.8 / 10.6	Switch	3.5A	45 / 3.1	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads

PERFORMANCE

3.0GPM

PRESSURE		FLOW		CURRENT
PSI	BAR	GPM	LPM	AMPS
0	0	3.12	11.80	3.2
10	0.69	2.59	9.8	5.29
20	1.38	2.32	8.8	6.2
30	2.07	2.11	9.0	7.13
40	2.72	1.90	7.2	8.03
50	3.45	1.74	6.6	8.9
60	4.14	0	0	9.53

4.0GPM

PRESSURE		FLOW		CURRENT
PSI	BAR	GPM	LPM	AMPS
0	0.00	3.91	14.80	4.35
15	0.69	3.22	12.20	7.24
20	1.38	3.06	11.60	7.69
30	2.07	2.80	10.60	8.74
40	2.72	2.54	9.60	9.94
50	3.45	2.32	8.80	11
60	4.14	0	0	11.87

5.0GPM

PRESSURE		FLOW		CURRENT
PSI	BAR	GPM	LPM	AMPS
0	0	4.91	18.60	6
20	1.38	3.75	14.20	9.8
30	2.07	3.43	13.00	11.17
40	2.72	3.12	11.80	12.4
50	3.45	2.85	10.80	13.5
60	4.14	0	0	14.5

HEAT RISE

Packaging & Shipping

Unit Pump Weight	4.09 lbs (1.85 kg)
Selling Unit Size (L x W x H)	8.5"x 5.63"x 5.12 (26.4 x 14.3 x 13 cm)
Selling Unit Weight	4.63 lbs (2.1 kg)
Master Carton Size (L x W x H)	23.62"x 10.83"x 11.5" (60 x 27.5 x 29.2 cm)
Master Carton Qty	8 pcs
Master Carton Weight	38.8 lbs (17.6 kg)

More Products

Related Products

FAQ

Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.

Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Vetus, Reimo, Lilie etc.

Q: How can I pay for my order?
A: Please send order details to us. We will issue a order on Alibaba Trade Assurance, and send you the payment link.

Q: What is your terms of payment?
A: Payment is less than 3000USD, 100% in advance. Payment is more than 3000USD, 30% T/T in advance, balance against the copy of B/L. If you have any another question, pls feel free to contact us.

Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.

Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.

Q: What is your warranty?
A: 2 year, and within 24 hours reply will be provided to solve customers' problems.

Q: What is your port of loading?
A: Xiamen port.
