New Technology plastic raw material mixer machine with Customize made

Product details
mixing/cooling time:6-10min/pot;heating method:electricity heating/self friction;
Warranty:12 months;certificate:CE approved;
Certification:CE;Port:shanghai;
Supply Ability:5 Set/Sets per Month;Automatic Grade:Automatic;
Application:plastic powder;application:mixing/drying/coloring;
color:as per request;Voltage:as per your request;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Condition:New;
Place of Origin:Jiangsu China (Mainland);Weight:800kg;
Packaging Detail:standard export package or as per request;discharging method:hand/gas;
After-sales Service Provided:Field maintenance and repair service,Online support,Video technical support;material:powder;
Brand Name:Fosita;

Product Description

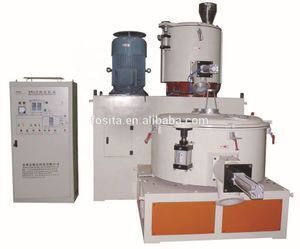

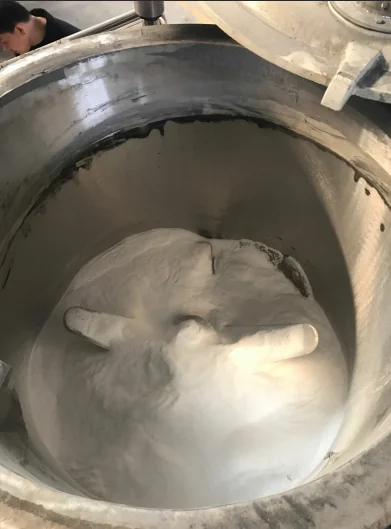

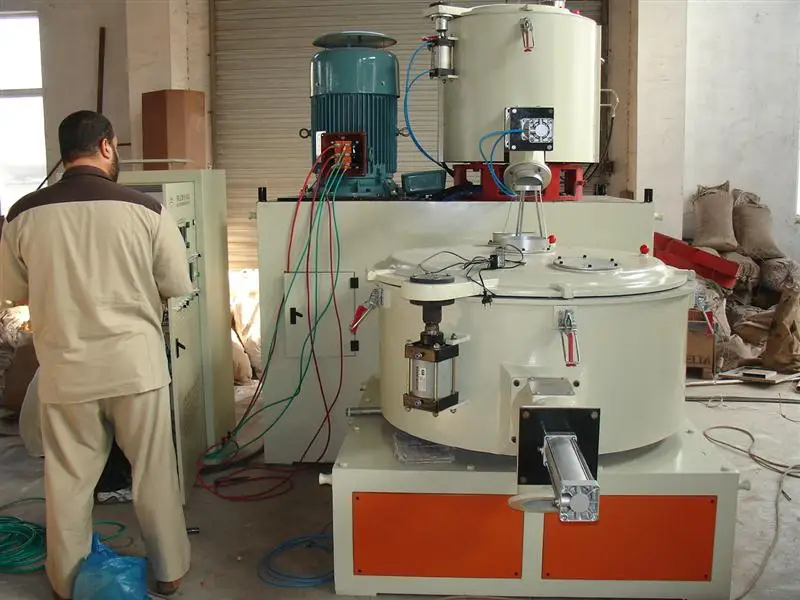

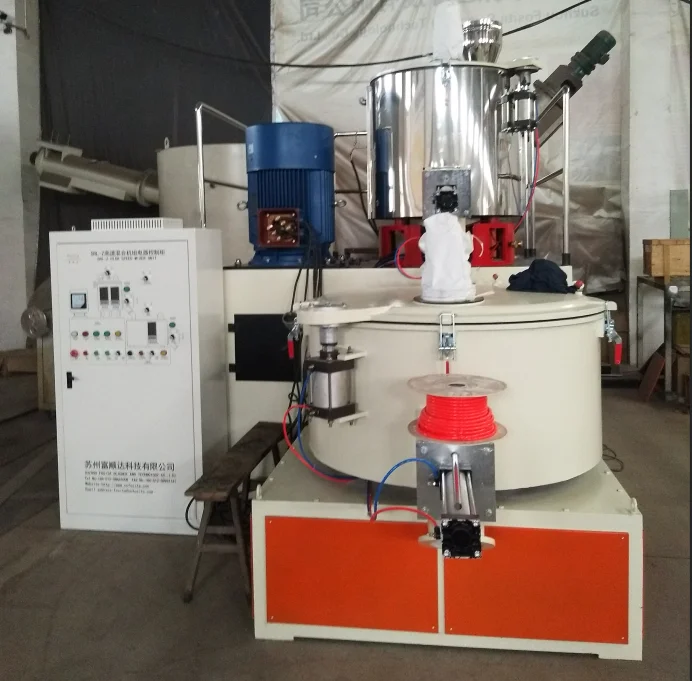

SRL-Z series mixing unit is applicable for mixing ,coloring and drying of various resin such as poly , PE , PP , PVC polypropylene, poly chloride etc. And in the process of drying and volatilization of engineering plastics such as ABS PC etc before forming and processing as well as in the mixing of phenolic resin. The unit combines heat mixing and cool mixing together. The materials after heat mixing can be putting into cool mixer for cooling automatically, exhausts remaining gases and avoids agglomerates.

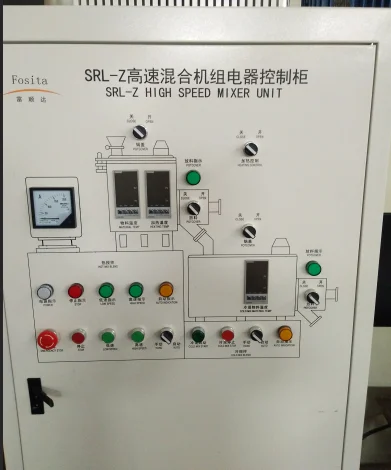

This unit is developed by importing and absorbing advanced foreign technology. By adopting PLC control, it has advantages, such as high automatic level, good mixing effect, complete function, compact structure and beautiful appearance. It is an ideal equipment for plastics mixing.



model

General cubage

Availability cubage

Slurry leaf rev

Motor&Pyro genation power

Water consume

Air consume

Heating mode

Unload mode

Outline size

Gross

Mix /Cooling time

SRL-Z50/100

50/100

32/75

750/1500
/180

7/11/5.5

3t/h

0.3

Electricity Heating/Rub itself

Hand/
Gas

2300/1800
/1900

2.8T

6-10
min/pot

SRL-Z100/200

100/200

75/160

650/1300
/180

14/22/7.5

3.5t/h

0.3

ditto

ditto

2500/2000
/2200

3T

6-10
min/pot

SRL-Z200/500

200/500

150/320

475/950
/130

30/42/11

5t/h

0.4

ditto

ditto

4580/2240
/2470

3.5T

6-10
min/pot

SRL-Z300/600

300/600

200/360

475/850
/130

40/55/11

5-8t/h

0.4

ditto

ditto

4580/2240
/2500

3.8T

6-10
min/pot

SRL-Z300/1000

300/1000

200/640

475/950
/110

40/15/15

6.7t/h

0.4

ditto

ditto

4980*2500
*2740

4.2T

6-10
min/pot

SRL-Z500/1000

500/1000

375/640

430/860
/85

47/67/15

6.8t/h

0.4

ditto

ditto

4580/2240
/2500

7.8T

6-10
min/pot

SRL-Z800/1600

800/1600

600/1050

370/720
/50

83/110/22

7t/h

0.45

ditto

ditto

5170*3200
*4480

9.8T

6-10 min/pot



Application:

1.It is used in mixing,drying,coloring and other industrial art,it is an the ideal equipment for producing profiles&pipes.

2.It has self-friction,electric heating functions.

3.It has features of fine construction,good performance.

4.They have passed dynamic and static equilibrium test.
