Automatic Sachet Sugar and Salt Packaging Machinery

Supplier: Shanghai Tops Group Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Tian
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Function:	Making bag, Printing date, Filling powder, Sealing bag;
Measure Range:	5-100 mL Material;	Application:	Chemical, Commodity, Food, Medical for Powder and Small Granule;
Warranty:	2 years;	Place of Origin:	Shanghai China;
Condition:	New;	Usage:	Salt;
Type:	Production line;	Port:	Shanghai;
Machine Material:	Stainless Steel;	Packing Film Material:	Plastic composite film,OPP/CPP,CPP/PE,MST/PE,PET/PE;
Brand Name:	TOPSPACK;	Packaging Capicity:	40-60 bags/min;
Model Number:	TP-GF-V200;	After-sales Service Provided:	Online support;
Package Preview:	;	Voltage:	1P 220V / 3P 380V;
Applicable Industries:	Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,farms,restaurant,HOME USE,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Bag Width:	30-100mm;
Power(W):	720W;	Certification:	CE,SGS;
Packaging Detail:	1.Seaworthy Plywood Cartons Outside 2.Antirust Plastic Film Inside;	Supply Ability:	10 Set/Sets per Month;
Bag Length:	30-120mm;	Weight:	190kg;
Bag Sealing:	3 or 4 Sides Sealing;	Dimension(LWH):	625x751x1558mm;

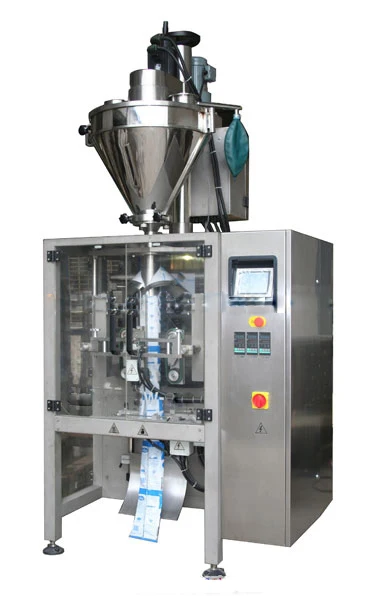

TP-GF-V200 Automatic Sachet Sugar and Salt Packaging Machinery

1. General Description

Our TP-GF-V Series Granule Packing Machine is special designed to packing granules. It is widely used in food, chemical, medicine industry. It is your best solution for packaging products like salt, suger, rice, wheat, soyabean, peanut, cocoa nut, almoud, olive, sunflower seed and other chemical particals like that.

2. Working Principle

TP-GF-V Series Granule Packing Machine is a multi-functional packing machine.
It works in following steps:
a. put in plastic film and material
b. forming a plastic sachet / bag
c. printing date
d. filling in the granules
e. sealing sachet /bag
The plastic sachet can be sealed as you required.

3. Technical Specification

Method of Measurement	Measuring cup type
Range of Measurement	5-100ml Each machine with one measuring cup
Packing Speed	40-60(bag/min)
Bag Size	(W):30-100mm (L):30-120mm
Total Power	720W
Voltage	380V or 220V
Machine Weight	190kg
Machine Size	625x751x1558mm
