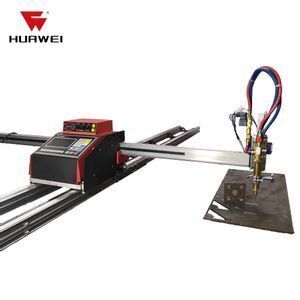

Portable CNC Plasma Metal Cutting Machine Steel Plate Gas Flame Cut Cutter Price Huawei EHNC-1500W-J-3

Supplier: Shanghai Huawei Welding & Cutting Machine Sales Co., Ltd.
Region: Shanghai, China
Contact: Ms Molly Chen
Price: $1110.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Free spare parts,Online support,Video technical support;	Condition:	New,New;
Single package size:	150X35X35 cm;	Color:	Red;
Cutting material:	Metal Stainless Steel Carbon Steel Aluminum;	Rated Power:	200W;
Weight:	90KG;	Type:	Portable Type;
Place of Origin:	Shanghai;	Selling Units:	Single item;
Single gross weight:	45.0 KG;	Package Preview:	;
Dimensions:	300013001200 mm;	Control system:	START Control System;
Warranty:	1 YEAR;	Traveling speed:	5000mm/min;
Brand Name:	Huawei;	Dimension(LWH):	300013001200 mm;
Motor Type:	Stepper Motor;	Packaging Detail:	High quality carton;
Year:	2019;	Certification:	CE;
Cutting mode:	Plasma Cutting+ Flame Cutting;	Application:	Industrial Metal Cutting;
Voltage:	220V/110V;

Portable CNC Plasma Metal Cutting Machine Steel Plate Gas Flame Cut Cutter Price Huawei EHNC-1500W-J-3

Product Description

The EHNC-1500W-J-3 could send by air

delivery after pay on Alibaba directly.

(1) Tailored track acquires high-intensity, high-speed and high-precision features.
(2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.
(3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.
(8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,

protect the torch form damage and prolong life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity switch and dual-speed.
(11) Compatibility of the domestic plasma and foreign-brand plasma.

The EHNC-1500W-J-3 could send by air delivery after pay on Alibaba directly.

The other model for other cutting size please send inquiry to us.

Model	Cutting Range MM	Supply Voltage V/HZ	Cutting TorchNumber of groups	Cutting speed (mm/min)	MAX no-loading speed (mm/min)	Dimensions	Weight
EHNC-1500W-J-2	1500*2000	AC220V-50 110V-60	1	50-750	3000	2.52.20.34	75
EHNC-1500W-J-2.5	1500*2500	AC220V-50 110V-60	1	50-750	3000	32.20.34	82
EHNC-1500W-J-3	1500*3000	AC220V-50 110V-60	1	50-750	3000	3.52.20.34	87
EHNC-1500W-J-3.5	1500*3500	AC220V-50 110V-60	1	50-750	3000	42.20.34	94
EHNC-1500W-J-4	1500*4000	AC220V-50 110V-60	1	50-750	3000	4.52.20.34	101
EHNC-1500W-J-5	1500*5000	AC220V-50 110V-60	1	50-750	3000	5.52.20.34	113
EHNC-1500W-J-6	1500*6000	AC220V-50 110V-60	1	50-750	3000	6.52.20.34	126
