Customizable High Voltage Battery Use for Industrial UPS Energy Storage System 384V 500ah 200KWh battery

Supplier: Guangzhou Meritech Power Co., Ltd.
Region: Guangdong, China
Contact: Ms Kenny Lee
Price: $30000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Status:	China Battery Industry Access Enterprise;	Sealed Type:	SEALED;
Port:	Guangzhou or Customer designated place;	Normal capacity:	500ah;
Battery type:	LiFePo4 Battery;	Cycle life:	≥4000;
Keyword:	200KWh battery;	Certification:	UL,ce,UN38.3, ISO9001, ISO14001, OHSAS18001, ROHS, TLC;
Usage:	UPS,Energy Storage System;	Maintenance Type:	free;
Model Number:	200kwh battery;	Application:	Energy Storage System/UPS System;
Supply Ability:	1000 Piece/Pieces per Month;	Place of Origin:	Guangdong China;
Normal voltage:	384V;	Brand Name:	Meritsun;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packaging Detail:	1) Inner box -carton -pallet-container 2) Packaging also can be made by customers requirements;

Product Description

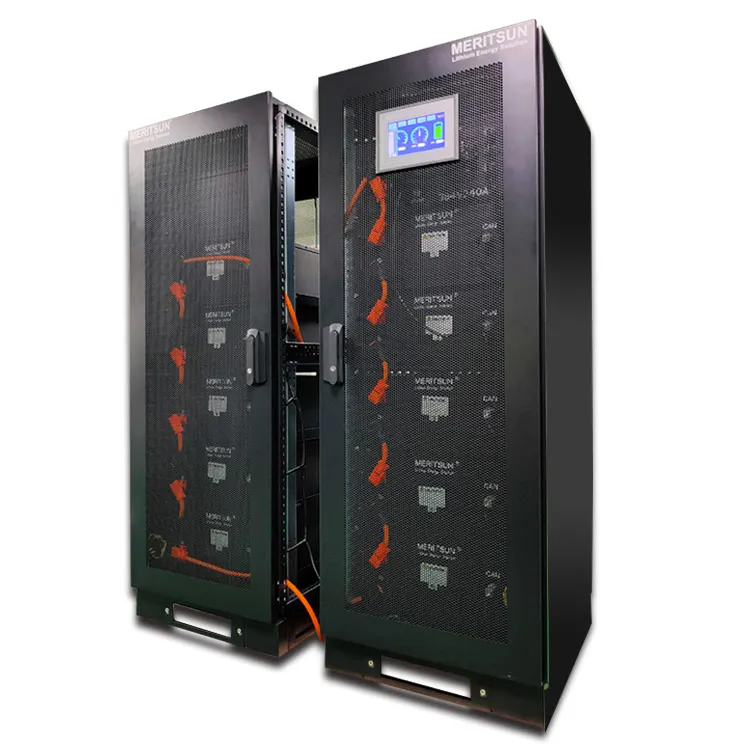

The ESS contain 1 set 384V 500AH battery management system. The ESS battery is LiFePO4, and it’s compound mode is 240 series and 2parallel(240S2P)

Product Details

NO.	Items	Criteria	Remarks
1	Rated Capacity	500Ah
	Minimum Capacity	400Ah
2	Energy	200KWh
3	Nominal Voltage	384V
4	Outgoing Voltage	≥384V
5	Internal resistance	≤250mΩ
6	Communication	RS485-Modbus
7	Display	7.0” TFT Screen
8	Limited charge voltage	438±4V
9	Floating charge voltage	414±4V
10	Maximum charge current	200A
11	Maximum discharge current	200A
12	Peak discharge current/time	250A/10s
13	Discharge cut-off voltage	300V

Company Info

The Company info with regard to Customizable High Voltage Battery Use for Industrial UPS Energy Storage System 384V 500ah 200KWh battery

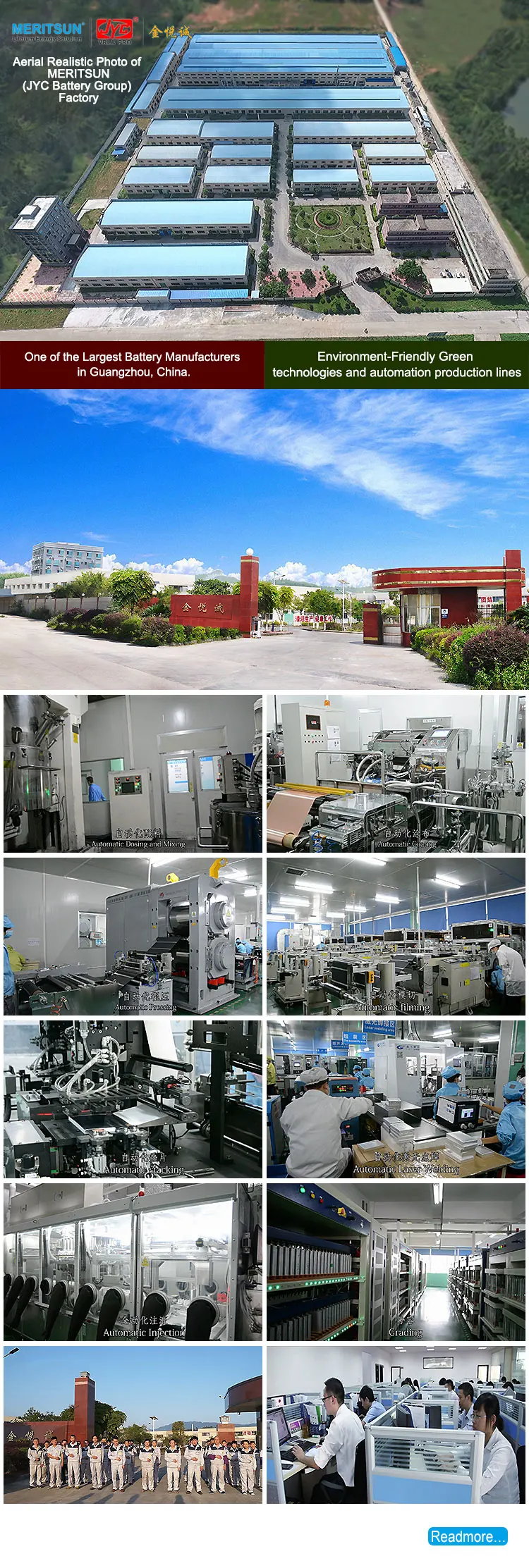

MERITSUN (JYC Battery Group) With a one of the largest battery manufacturing centers in China, finely tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management, and the awareness of being an industry leader in the supplier of batteries.

MERITSUN is a leading manufacturer and exporter of Battery.

Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.

-----------------------------------------------------------------------------------------------------------------------------------------------------

MERITSUN 18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery, Lithium iron Phosphate Battery Production Advantages:

♦ Vertical industry chain brings outstanding cost advantages.
♦ Strict quality control system from raw material to production and finished goods, each process has at least one to inspect.
♦ Advanced Technology in assembling battery packs ensures each pack has precise conformance and a stable performance.
♦ Integrated and serial product to meet different customers' needs.

♦ Market-oriented research and develop ensure the upcoming products meet customer demands.

-----------------------------------------------------------------------------------------------------------------------------------------------------

1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.

2. Cleaner production enterprise in China.

3. OEM/ODM services backed by nearly 20 years' R&D experience.

For more information, Please contact us now

You will get the best design solution for FREE !!!

( Just click here , or click on the customer service on the right side)

Technology

The Technology info with regard to Customizable High Voltage Battery Use for Industrial UPS Energy Storage System 384V 500ah 200KWh battery

-----------------------------------------------------------------------------------------------------------------------------------------------------

The Factors of Quality Guarantee for 18650 Battery, Lithium Battery, Lipo Battery,

Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery,

Lithium iron Phosphate Battery

(First-class quality management system, Professional technical form.)

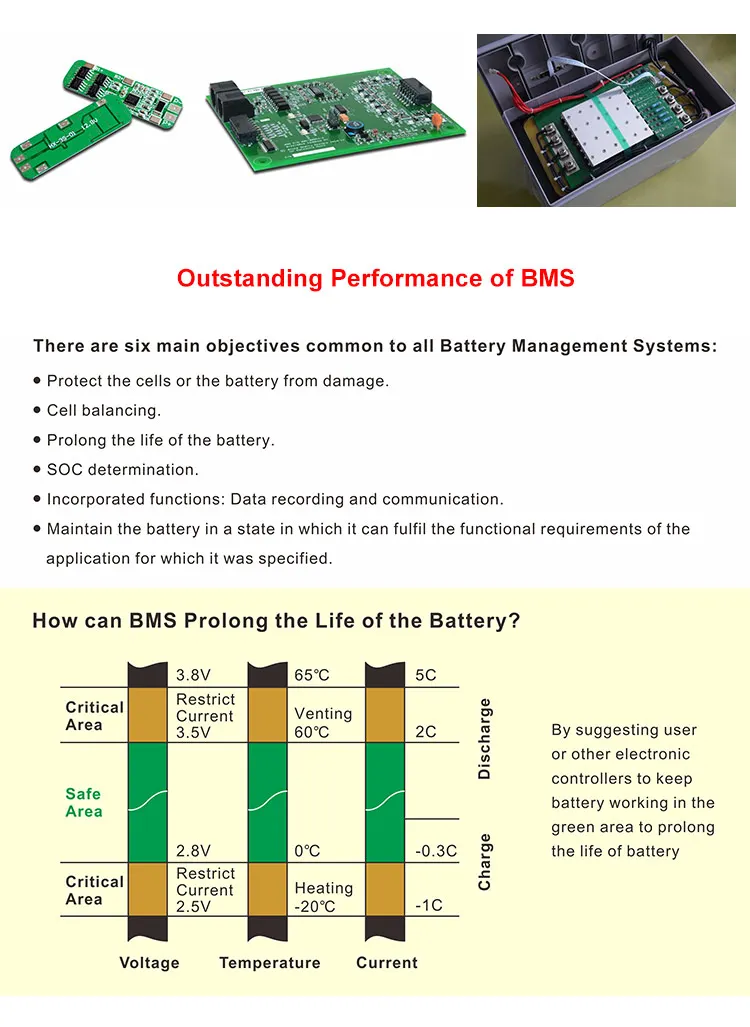

MERITSUN Lithium Battery BMS / PCB / PCM

Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MERITSUN test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.

BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.

For more information, Please contact us now

You will get the best design solution for FREE !!!

( Just click here , or click on the customer service on the right side)

Solutions

The Applied Scope (Industry Solutions) with regard to Customizable High Voltage Battery Use for Industrial UPS Energy Storage System 384V 500ah 200KWh battery

-----------------------------------------------------------------------------------------------------------------------------------------------------

MERITSUN has the proven solution.

MERITSUN already provides security and stable to millions of users as a global.

> Wind-Solar Energy Storage system > Solar street lights > Off-grid energy storage

> Household energy storage > Telecom backup system > Mobile base stations
> Emergency backup energy sources > Uninterruptible power system > Grid load shifters

> Electric Golf Car > Electric vehicles > Electric motorcycles

> Electric forklifts > Electric boats, etc...

For more information, Please contact us now

You will get the best design solution for FREE !!!

( Just click here , or click on the customer service on the right side)

Packaging
