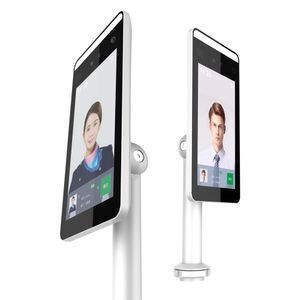

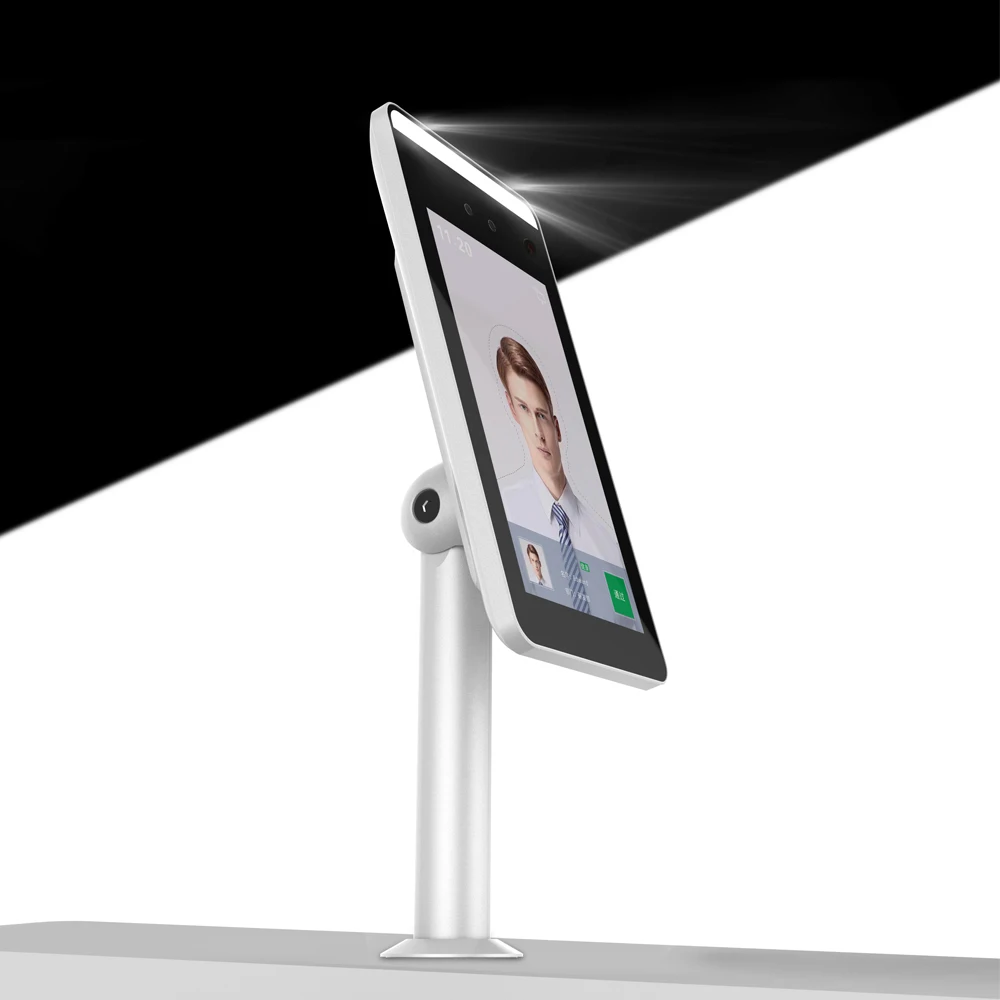

Non-Contact Human Body Measurement Detection Face Recognition Thermal Camera

Supplier: Shenzhen Hdv Photoelectron Technology Ltd.
Region: Guangdong, China
Contact: Mr Jon Wu
Price: $480.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Function:	Attendance records, Access Control;	G.W(kg):	1.95kg;
Place of Origin:	Guangdong China;	Package Preview:	;
Warranty:	1 Year;	Power consumption:	≤ 12 W;
Brand Name:	OEM/ODM;	Certificate:	CE ROHS;
Packaging Detail:	one piece for one box;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Application:	Schools Office Stations Supermarket;	Port:	Shenzhen;
Display:	7 Inch;	Supply Ability:	2000 Piece/Pieces per Week;
Product Size (LWT):	219 * 111 * 21.5mm;	Model Number:	FK02GYW;
Packing size (LWH):	406185158mm;	Supply voltage:	DC12V;

Non-Contact Human Body Measurement Detection Face Recognition Thermal Camera

Product Specifications:

Model:	FK02GYW
System
Main processor	MX3520
operating system	Embedded LINUX
RAM	DDR3 512MB
ROM	EMMC 8GB
Display
size	7 inch IPS HD screen
Resolution	736*1280
camera
Sensor	1/5 GC2145
Resolution	NIR 600*800 15fps
Lens	2.4mm
Face library capacity	Supports up to 30,000 sheets
Recognize face angle	(Daytime) vertical viewing angle 58-60, horizontal viewing angle 35; (living body) vertical viewing angle 48-50, horizontal viewing angle 36
Fault tolerance	Ordinary glasses and short sea surface retention time have no effect on recognition
expression	Under normal circumstances, slight expressions do not affect recognition
reaction speed	About 200ms
Facial exposure	stand by
Local storage	Support 25,000 records
Recognition area	Full screen recognition
Upload method	TCP, HTTP, MQTT
Network features
Network protocol	IPv4, TCP / IP, HTTP
Interface Protocol	no
Safe mode	Authentication username and password
Alarm linkage mode	Voice broadcast, abnormal upload
System Upgrade	Support remote upgrade
Other	/
Hardware accessories
Auxiliary light	fill light, white light fill light
Identification module	no
speaker	Support voice broadcast for successful recognition results
Network module	no
Hardware interface
Network Interface	RJ45 10M / 100M Network Adaptation
Alarm input	no
Alarm Output	no
RS485	stand by
TF card slot	no
HDMI	no
Wiegand interface	Support Wiegand 26, 34, 66 protocols
Hard reply button	stand by
Tamper switch	no
Conventional
shell	Metal body and bracket, plastic panel, IP66
Operating temperature	-20 ° C ~ 60 ° C
Working humidity	10% -90% non-condensing
Storage temperature	-40 ° C ~ 70 ° C
Storage humidity	5% -95% non-condensing
Protection class	/
Supply voltage	DC12V
Power consumption	≤ 12 W
Size (mm)	219 (W) * 111 (H) * 21.5 (T)
Bracket size (mm)	φ25 * 189
Installation method	Desktop installation / floor support installation
