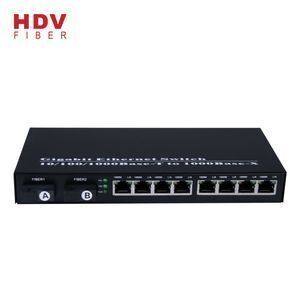

Full Gigabit Optical Fiber 8 RJ45 Port 5v Networking Switch Router Outdoor Ethernet Switch

Product details
Certification:RoHS/CE/FCC;Communication Mode:Full-Duplex & Half-Duplex;
Warranty:2 Year;Packaging Detail:one piece per box;
Power Input:External power DC 5V 2A;Model Number:ZX-2G8WS33-53OC;
Fiber Port:2*1000M Optical Fiber Port;Supply Ability:2000 Piece/Pieces per Week;
Place of Origin:Guangdong China;N.W/G.W(kg):0.64kg/0.78kg;
Brand Name:HDV/OEM;Products Status:Stock;
Transmission Rate:2.5Gbps;Function:QoS,SNMP,Stackable,VLAN Support;
Ports:≤10;Product size (L*W*H):215mm*106mm*28mm;
Operating Temperature/Humidity:-15~+65°C;5%~90% RH Non coagulation;Ethernet Port:8*10/100/1000Base--TX RJ45 port;
Packing size (L*W*H):245mm*180mm*60mm;Port:shenzhen;
Packet Forwarding:12.96Mpps;Bandwidth:2.5Gbps;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Full Gigabit Optical Fiber 8 RJ45 Port 5v Networking Switch Router Outdoor Ethernet Switch





Product Description :

Specifications:



Model

ZX-2G8WS33-53OC

Product

Full Gigabit 8+2 Switch

Fixed Port

8*10/100/1000Base--TX RJ45 port (Data)

2*1000M Optical Fiber Port(optional 1310/1550)

Network Protocol

IEEE802.3

IEEE802.3i 10BASE-T

IEEE802.3u100BASE-TX

IEEE 802.3ab1000BASE-T

IEEE802.3x

IEEE 802.3z 1000BASE-X

Port Specification

100/1000BaseT(X) Auto

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

2.5Gbps

Packet Forwarding

12.96Mpps

MAC Address

2K

Buffer

2.5M

Transmission Distance

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(150 meter)

1000BASE-TX : Cat6 or later UTP(150 meter)

Single mode single fiber(MAX 20KM)

Single mode double fiber (MAX 20KM)

Multiple mode double fiber(MAX 850M/2KM)

Optional 3-100KM Optical Fiber Module

Watt

≤10W;

LED Indicator

PWR:Power LED

FX1/FX2:(Optical fiber LED)

Port :(Green=10/100M LED+Orange=1000M LED)

Power

External power DC 5V 2A

Operating Temperature/Humidity

-15~+65°C;5%~90% RH Non coagulation

Storage Temperature/Humidity

-40~+75°C;5%~95% RH Non coagulation

Product size/Packing size(L*W*H)

215mm*106mm*28mm

245mm*180mm*60mm

N.W/G.W(kg)

0.64kg/0.78kg

Installation

Desktop (optional wall hanger+machine hanger parts)

Lightning Protection level

3KV 8/20us;

IP30

Certificate

CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS;MA;CNAS

Warranty

Whole device for 2 year
