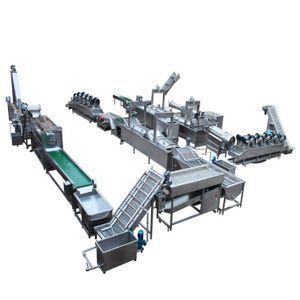

200kg/500kg/1000kg Fully Automatic potato chips Making Machine Frozen French Fries Production Line

Supplier: Qingdao Tune Import And Export Co., Ltd.
Region: Shandong, China
Contact: Mr Wills Tang
Price: $800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	240KW;	Dry material:	content≥20%;
Voltage:	220V/380V;	Supply Ability:	50 Set/Sets per Month french fries process machinery potato chips production line;
Output capacity:	300Kg/h;	Application:	French Fries;
Weight:	1500Kg;	Length:	≥68mm;
Place of Origin:	Shandong China;	Raw material:	NUTS,Vegetables;
Output product name:	potato fries/chip;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,credit card;
After-sales Service Provided:	Field installation, commissioning and training,Engineers available to service machinery overseas;	Brand Name:	TUNE;
Port:	Qingdao port;	Warranty:	1 YEAR;
Heating method:	electric;	Application fields:	Snack food factory,Frozen food Factory,Beverage Factory;
Applicable Industries:	Food & Beverage Factory,Food Shop,Food & Beverage Shops;	Machinery Function:	produce potato chip/fries;
Packaging Detail:	Stretch Film+Wooden box ; 200kg/500kg/1000kg Fully Automatic potato chips Making Machine Frozen French Fries Production Line;	Condition:	New;
Material:	304 Stainless Steel;	Name:	Frozen French Fries Processing Line;
Dimensions:	550020002000mm;	Certification:	CE ISO;
Package Preview:	;	Dimension(LWH):	550020002000mm;

Product Description

Potato requirement

Oval in shape Dry material content≥20% Sugar content≤0.4%;

Length ≥68mm Color outside is yellow Color inside is white
Less and small bud hole

Equipment and components

1. Hoister with water spray

It is used to preclean potato,soften the potato skin, then hoist potatoes into washing and peeling machine.

2. Washing and peeling machine
This machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely.

3. Inspecting table
This machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.

4. Hoister with water spray
This machine is used to preclean potato, soften the potato skin, then hoist potatoes into washing and peeling machine.

5. Potato cutter
This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important.

6. Rinsing machine

This machine used to washing potato starch and protect potato from oxidation, keep its original color.

7. Blanching machine
This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the reducing sugar, also after blanching,it will get inner soft taste of french fries.

8. Vibrating machine to de-water
Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.

9. Electric dryer

Remove water, drying fries

10. Continuous frying machine
This machine is used to unified fry sticks in short time.

11. Vibrating de-oil machine

This machine is used to de-oil with the vibrating.

12. Cooling line

Use fan to blow off the water on stick surface, then deliver sticks into the freezer.

13. Conveyor

Used between cooling line and quick-freezing machine.

14. Fluidized-type freezer
It is used to quick freezing the french fries in short time, fries center temperature at -18 ℃, Can the maximum keep the original flavor and product quality.

15. Conveyor

Used between quick-freezing machine and packing machine.

16. Automatic weighing and packing machine
It is used to pack the french fries automatically, including bucket Elevator.

Processing detail
