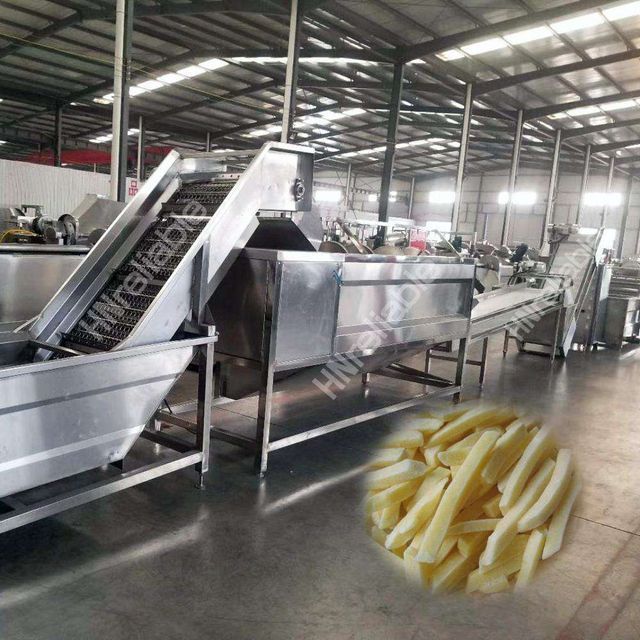

400kg/h Automatic Frozen French Fries Production Line Price
-
Supplier: Henan Reliable Industrial Co., Ltd. -
Region: Henan, China -
Contact: Ms Cindy Zhang -
Price: $9999.00 /set -
Min. Order: 1 set
| brand: | HN is reliable | product name: | Frozen french fries production line price |
| about us: | 30 years manufacturer | port: | any china port |
| Package preview: | State of health: | brand new | |
| Packaging Details: | FCL film packaging: 400kg/h automatic frozen French fries production line price | Application fields: | Vegetable processing factory, snack food factory, potato chip factory |
| Supply capacity: | Price of 20 sets of quick-frozen French fries production line per month | Our team: | 20 professional and technical personnel |
| Warranty: | 1 year | Dimensions (L*W*H): | check the detail information |
| capacity: | 4000kg/h or customized | Material: | High quality SUS304 |
| pack: | Automatic weighing/automatic bag making | strength: | 195.34 kWh |
| weight: | check the detail information | Raw materials: | Vegetables, Potatoes, Sweet Potatoes |
| payment terms: | L/C, T/T, Western Union, MoneyGram, Alibaba Trade Assurance Order | After-sales service provided: | On-site installation, commissioning and training |
| place of origin; place of origin: | China | Mechanical function: | produce potato chips |
| Energy source: | Electric heating or gas, coal heating | Voltage: | 220V/380V/Customized |
| Quality Assurance Certificate: | CE certification | Output product name: | Frozen/French Fries |
| Automatic level: | Fully automatic or according to your requirements | Certification: | International Organization for Standardization |
Applications

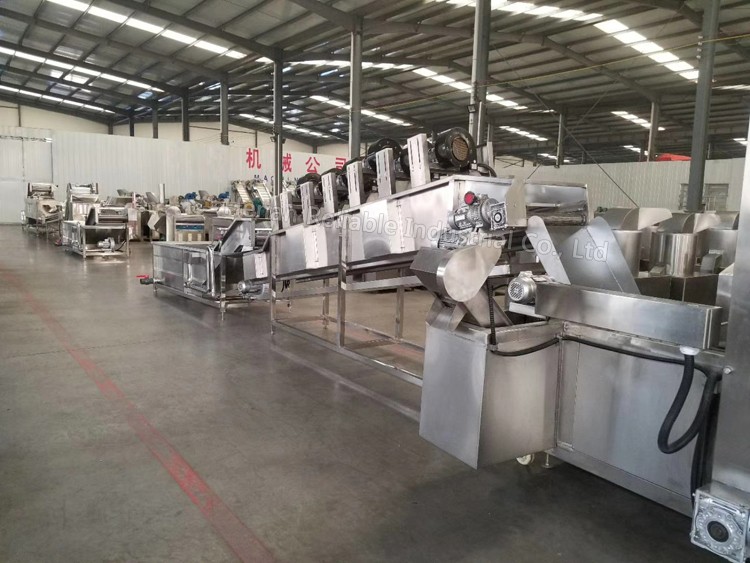

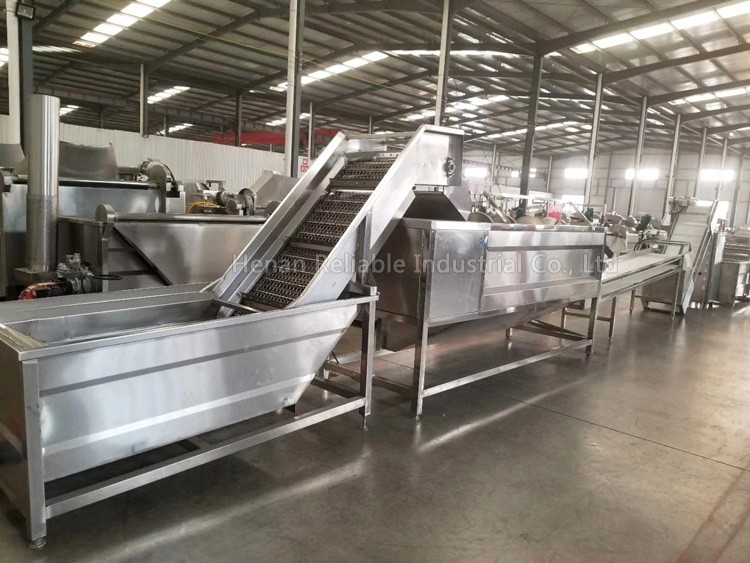

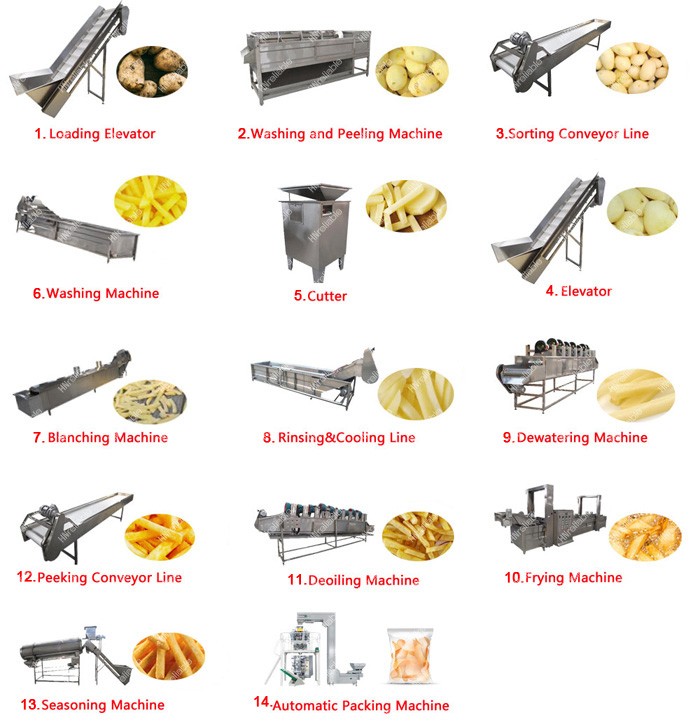

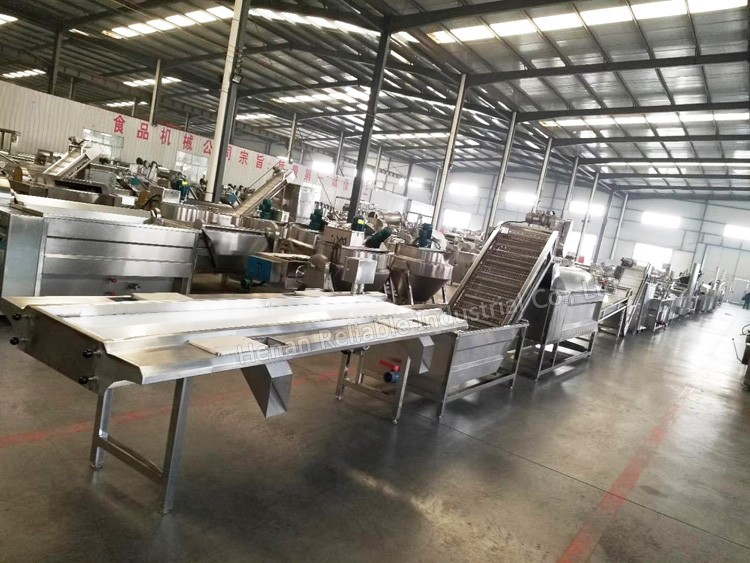

The production line has high degree of automation, large capacity, low energy consumption, labor saving, small floor space, convenient operation, good quality and high profit. The production line mainly includes potato washing and peeling, cutting, washing, blanching, dehydration, frying, deoiling, freezing and packaging. we will provideformulawithTechnical supportFree, Guaranteed to make high-quality and delicious French fries
Different types and capacities of frozen french fries production line:

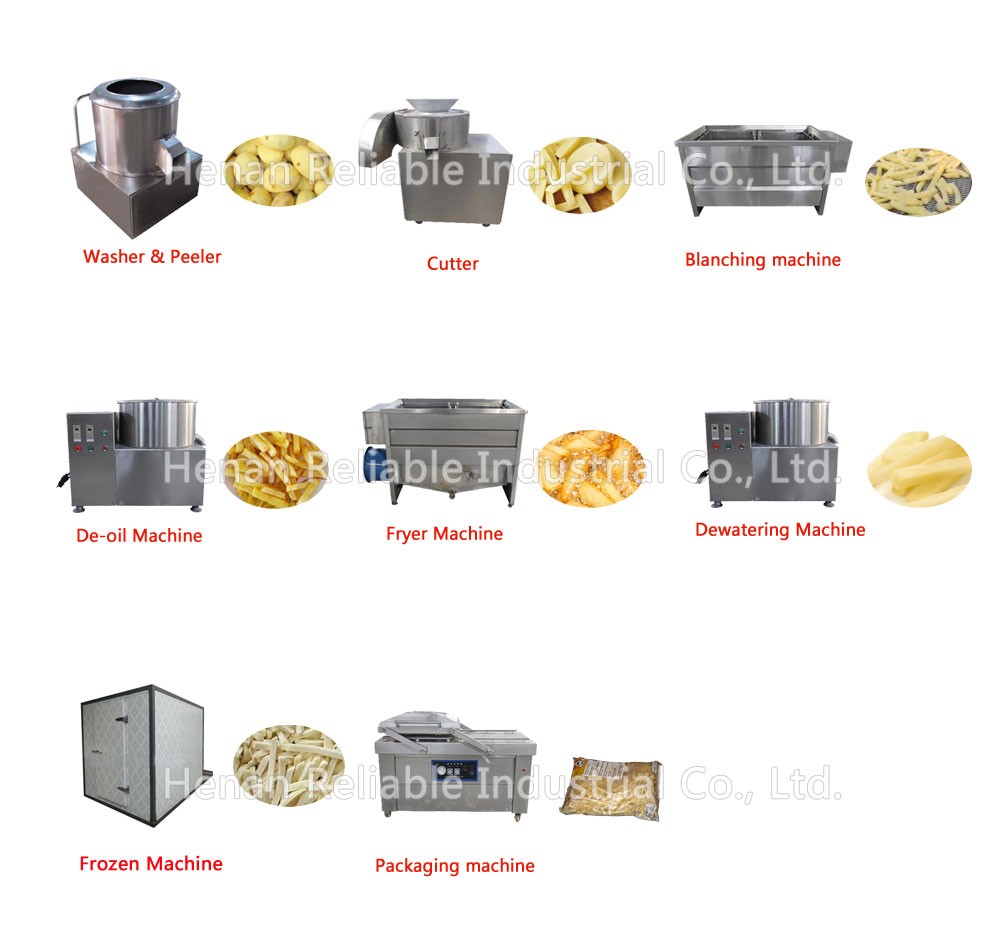

--Semi-automatic line:
150kg/h, 300kg/h, 600kg/h or customized according to your requirements.

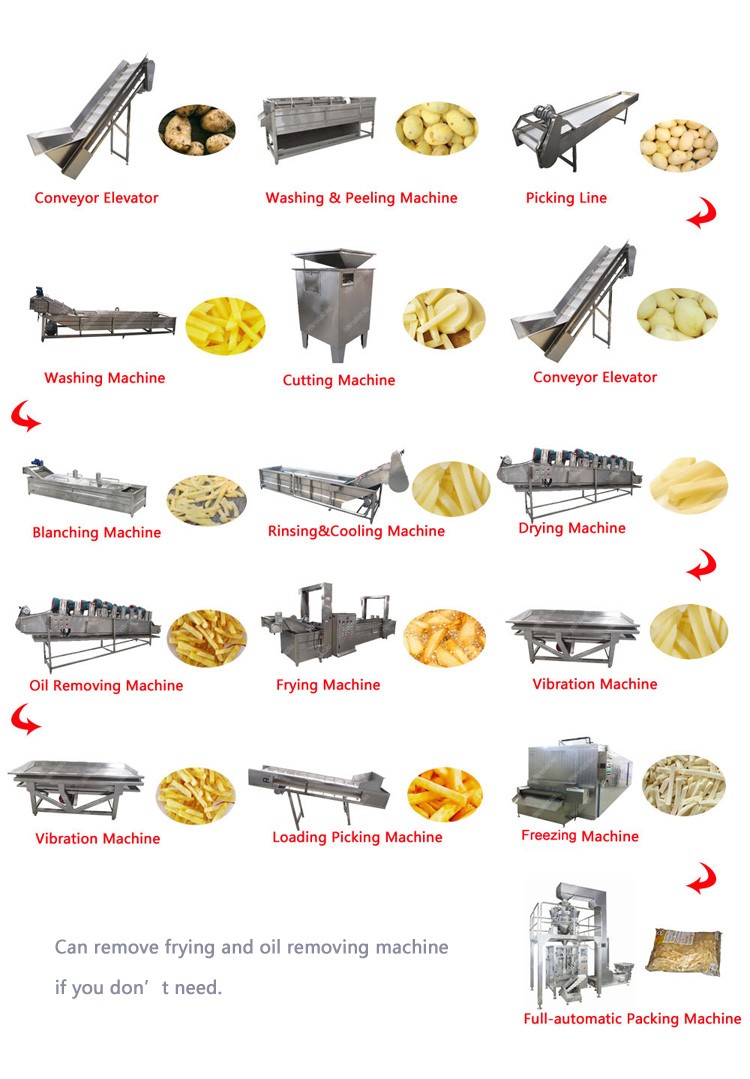

--Automatic line:
400kg/h, 600kg/h, 800kg/h, 1000kg/h, 1500kg/h or customized according to your requirements.
400kg/h Frozen French Fries Production Line Technical Specifications
| | ||
| | Size: 1700x700x1600mm Material: stainless steel + food grade pvc Power: 0.37kw 380v | |
| | ||
| | | |
main feature
2) Our different workers are responsible for different work processes, their jobs are determined and they will operate the process all the time, so they are very experienced.
3) Electrical components are all from world-renowned companies, such asSiemens,Matsushitawait
4) We will doThe machine is strictly tested and run before leaving the factory.
5) Our machines areCE certificationwithISO certification.
6) We promiseGuaranteed for one yearFor non-human damage factors.

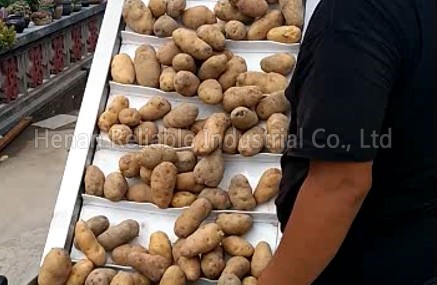

Process: load
1) For loading fresh potatoes
2) PVC food grade material
3) Speed adjustable

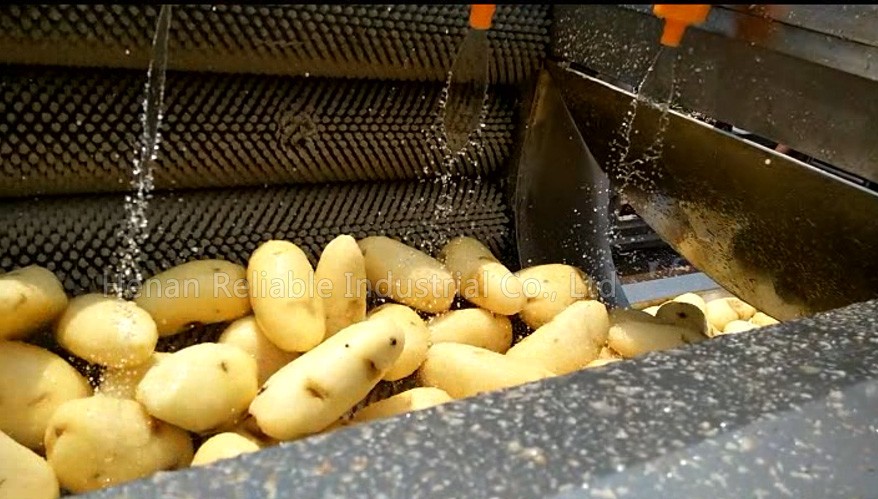

process:cleansing exfoliation
1) The machine is equipped with sprayer and brush roller for washing and peeling.
2) The machine is equipped with imported high-quality nylon brush, which has a long service life
3) Speed adjustable
4) Quick peel

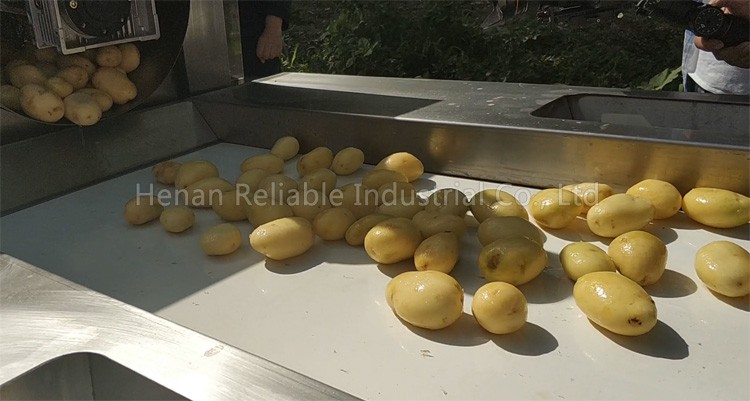

process:pick
1) Used to remove bad potatoes and deal with dead corners, black holes, etc.
2) PVC food grade material
3) Speed adjustable
Name:to cut
1)Cutting thickness: 5mm, 6mm, 7mm, 9mm, 10mm, 12mm
2) Additional blades available

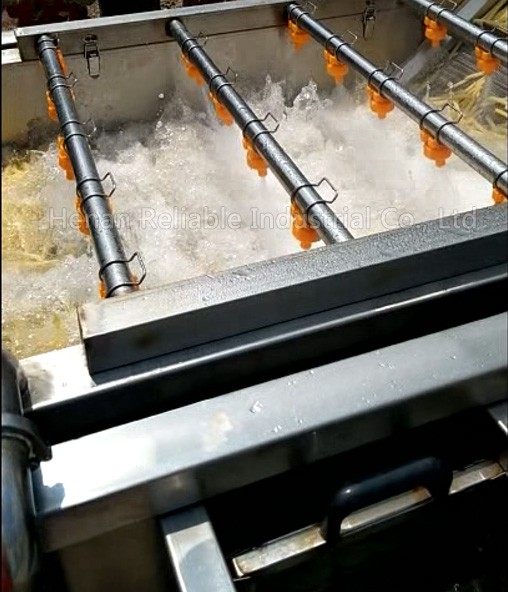

Processing: cleaning
The equipment is equipped with an air bubble generating device to make the French fries tumble, effectively remove the starch and impurities on the surface, the floating matter can overflow from the overflow tank, and the sediment can be discharged from the sewage outlet to achieve the purpose of cleaning. It has the characteristics of thorough cleaning, energy saving, water saving, stable and reliable equipment, etc.

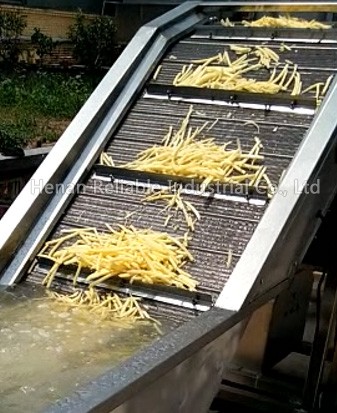

Processing: blanching
It is used to inactivate oxidation activity, remove excessive starch, precipitate reducing sugar, and obtain the soft taste inside French fries after blanching.

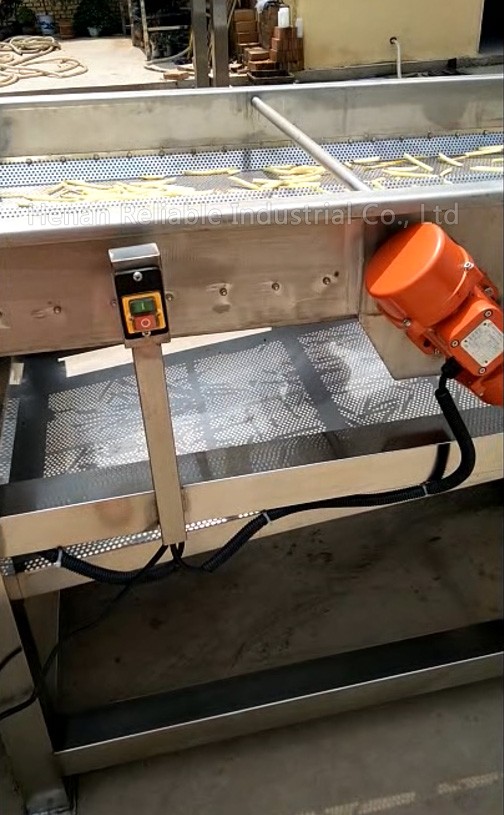

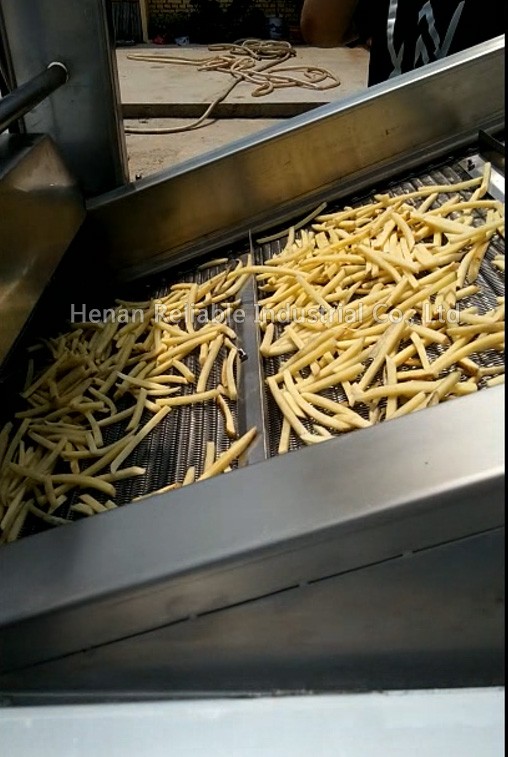

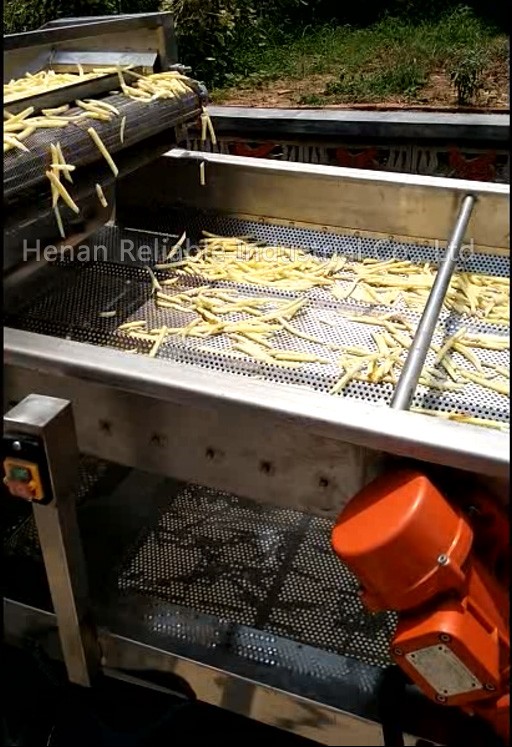

Handling: vibration
The vibrating screen is made of all stainless steel, and different sizes can be customized according to customer needs. It is used to screen waste or unqualified finished products, and can remove most of the oil or water. The equipment has an inclination angle. The finished product can be smoothly transferred to the next procedure, and it is equipped with a collection port and a tray for collecting the filtered waste, which is easy to use and can be used in conjunction with the pipeline.

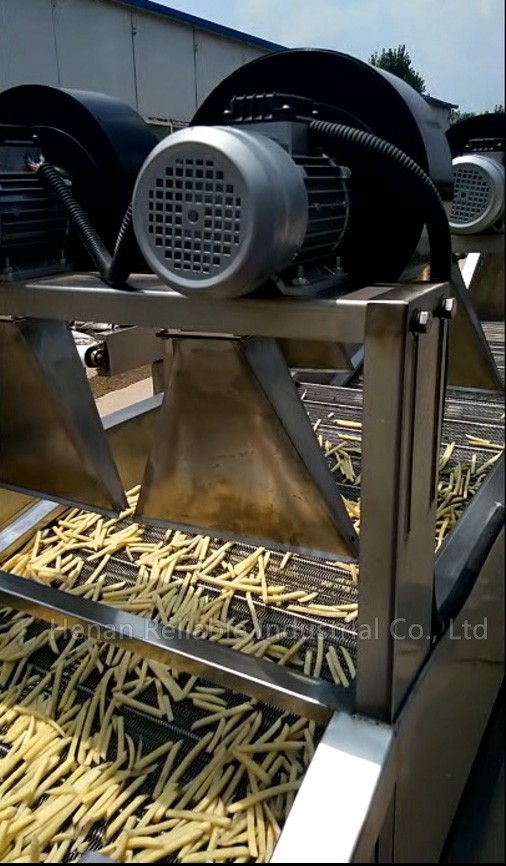

Processing: Dehydration
1) Used to remove moisture from the surface of French fries.
2) Air cooling. The angle and distance of the fan can be adjusted.
3) The air nozzle is designed in a knife shape, which can effectively increase the air volume and pressure, so that the surface moisture can be blown away in a short time

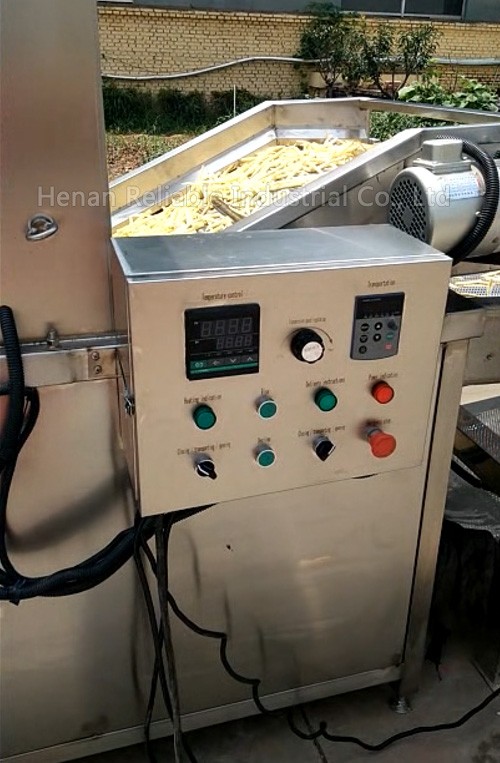

Processing method: fried
1) Double-layer conveyor belt to ensure high-efficiency frying
2) The upper and lower mesh belts are variable frequency speed regulation
3) The oil temperature can be adjusted from normal temperature to 300 degrees
4) French fries take about 7-8 minutes
Handling: vibration
The vibrating screen is made of all stainless steel, and different sizes can be customized according to customer needs. It is used to screen waste or unqualified finished products, and can remove most of the oil or water. The equipment has an inclination angle. The finished product can be smoothly transferred to the next process, and it is equipped with a collection port and a tray for collecting the filtered waste. It is easy to use and can be used in conjunction with the pipeline.

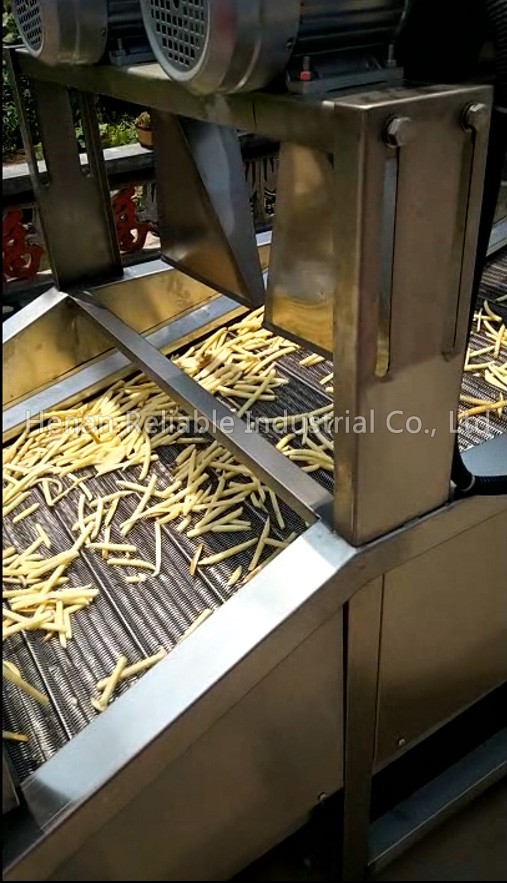

Treatment: Degreasing
1) Use a fan to remove the oil on the surface of the potato chips to increase the taste and maintain the crispness.
2) Air cooling. The angle and distance of the fan can be adjusted.
3) The air nozzle is designed in a knife shape, which can effectively increase the air volume and pressure, so that the surface moisture can be blown away in a short time

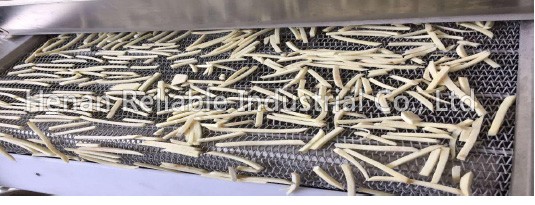

Processing method: quick freezing
Fried products are pre-cooled and then frozen in a quick-freezing machine. The quick-freezing temperature is controlled below -36°C, and the center temperature of potato products drops to -18°C within 20 minutes.

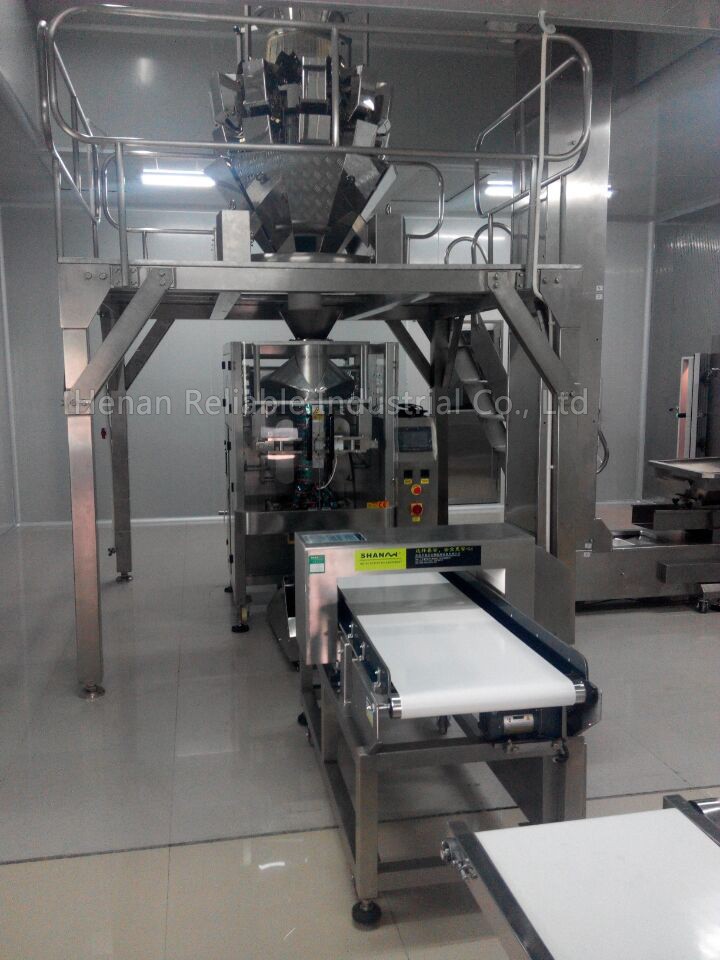

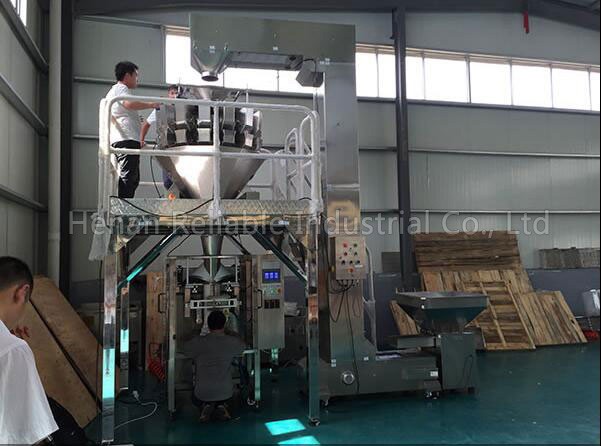

Automatic packaging machine

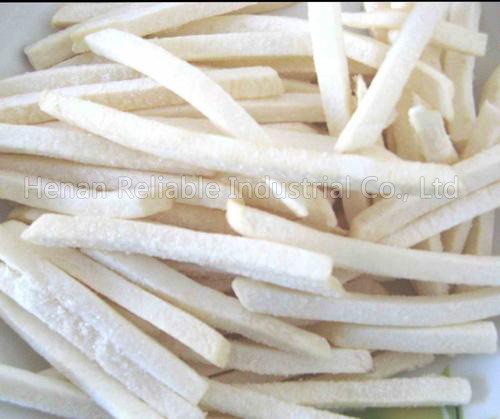

Finished Frozen French Fries

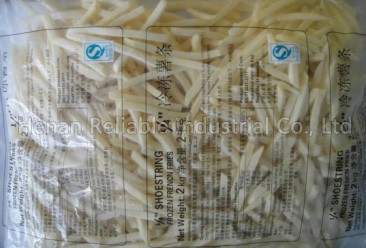

Packaged Frozen Chips
pre-sale service
* Inquiry and consultation support.
* Machine testing support.
* Check out our factory.
After-sales service
* Engineers can provide on-site installation assistance if necessary.
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
| Types of | small machine |

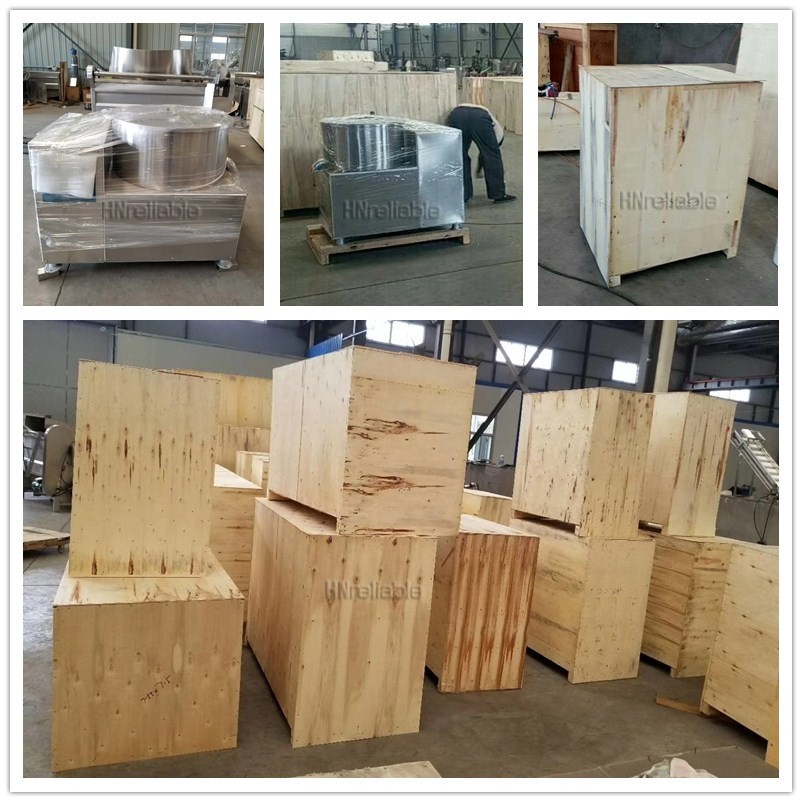

| deliver goods | |
| Types of | |
| deliver goods | |
Semi-automatic Frozen French Fries Production Line
150kg/hour, 300kg/hour, 600kg/hour

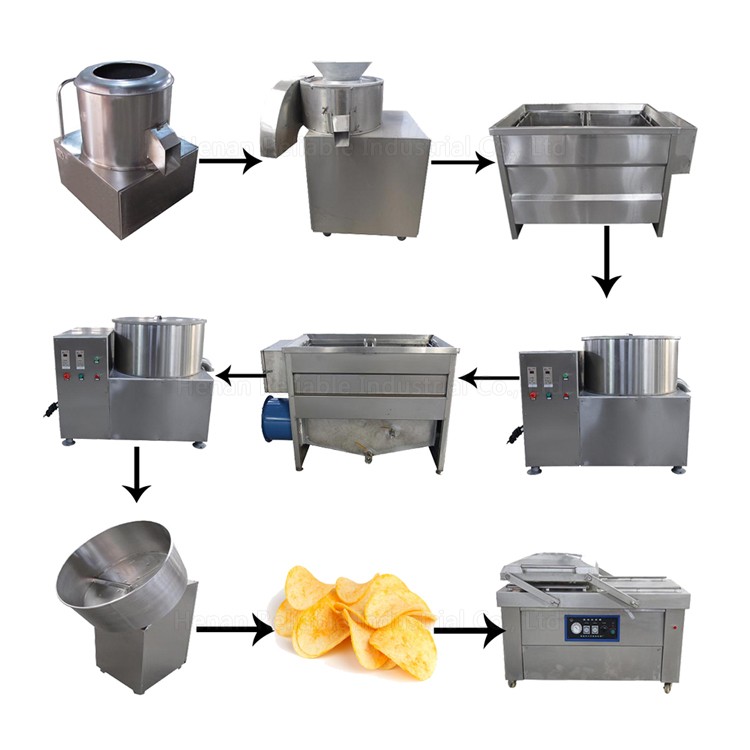

Semi-automatic Potato Chips Production Line
50kg/h, 100kg/h, 150kg/h, 200kg/h
Automatic Potato Chips Production Line
100kg/h, 150kg/h, 260kg/h, 400kg/h

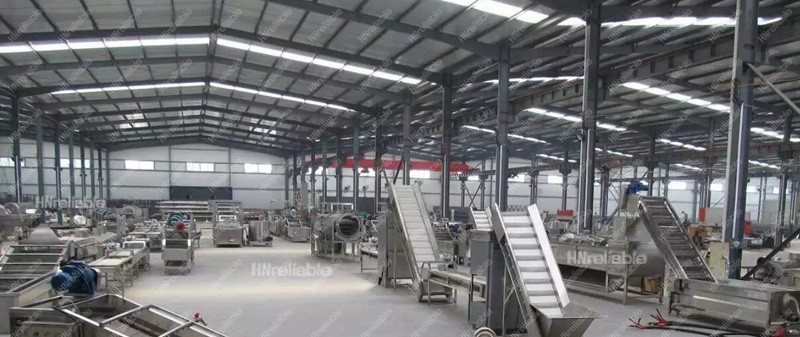

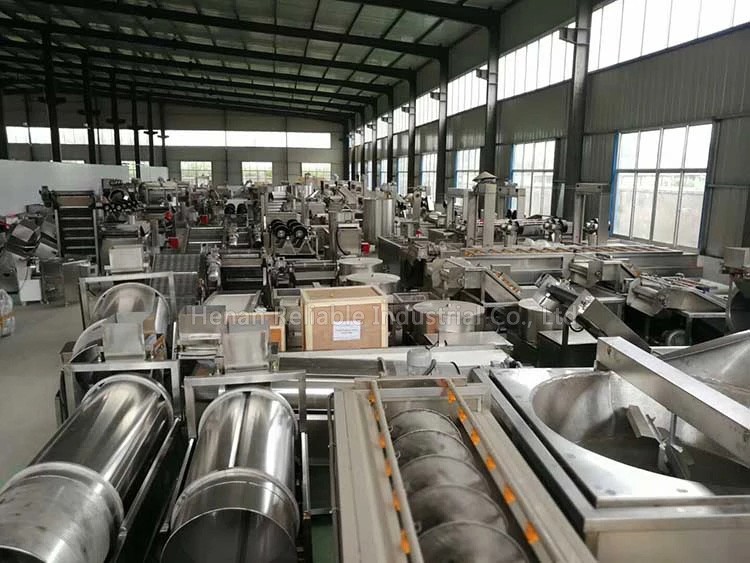

We, Henan Ruilaibo Industrial Co., Ltd., mainly produce and sell fruit and vegetable deep processing machinery, such as potato chip/frozen French fries production line, fruit and vegetable paste production line, dried fruit and vegetable chip production line, fruit and vegetable powder production line, fruit and vegetable juice assembly line machine, fresh fruit and vegetable washing and packaging assembly line machine , Frozen fruit and vegetable assembly line machine.
So far, our machines have been exported to more than 80 countries and regions, such as: USA, Canada, UK, France, Spain, Cyprus, Estonia, Latvia, Lithuania, Ireland, Netherlands, Romania, Bulgaria, Serbia, Macedonia, Albania , Greece, Slovenia, Guinea, Nigeria, Kenya, Tanzania, South Africa, just past, Ghana, Cameroon, Mozambique, Mali, Egypt, Mauritius, Algeria, Saudi Arabia, Egypt, Iraq, Israel, Jordan, Kuwait, Lebanon, Oman, Qatar , Pakistan, Malaysia, Philippines, Indonesia, Cambodia, India and other countries.
With an experienced team and strict quality control system, we always provide customers with the best and newest equipment and good pre-sales and after-sales services, customers are warmly welcome to come to test the machines, and provide overseas services with professional engineers.
Our goal is to establish a win-win cooperative relationship with our customers. We are here for you!
-
