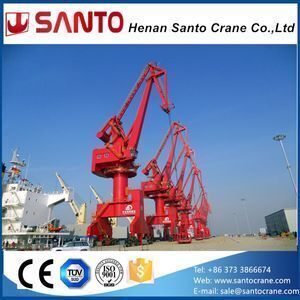

Power Station Portal Portal Crane Products from Henan Santo Crane Co., Ltd.

Product Details

Delivery Detail:	Shipped in 180 days after payment;	Rated Loading Capacity:	50t;
Place of Origin:	Henan China (Mainland);	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	12 Months;	Span:	10m;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Port:	Qingdao Port;
Max. working load of wheel:	300kn;	Span:	10.5m;
Packaging Detail:	Standard package.;	Application:	workshop,factory,Warehouse,construction ect;
Condition:	New;	Control mode:	Cabin control/remote control;
Rated Loading Capacity:	Customized;	Max. Lifting Height:	40m;
Model Number:	MQ;	Max. Lifting Height:	40m;
Feature:	Portal Crane;	Power:	AC 3Ph 380V 50Hz or according to client's requirement;
Supply Ability:	30 Set/Sets per Year;	Condition:	New;
Max. Lifting Load:	As required;	Color:	Customer's Requirement;
Product name:	Gantry Crane;	Brand Name:	Santocrane;
Rated Lifting Moment:	As design;	Application:	Offshore Pedestal;
Certification:	CE ISO certificated;

Please accept our thanks for your kindly attention for our Power Station Portal Portal Crane

Cabin with Good Overview Windows

All in One Control

Cabin with Beautiful Design, Wide Vision.Humanization of interior design can reduce operater's tension and fatigue and improve the working efficiency.

Perfect man-machine engineering design, high control precision, more easy and convenient manipulation.

Shock Absorbing Seat

Multi-functional air-conditioning

Configuration of suspension damping suspension system seat retainer operator body perfectly, maximum absorption of vibration of the equipment operation and reduce the labor intensity.Adjustable seat with comfortable, breathable feature, and provide the operator a safe and comfortable working environment, prevention of occupational diseases, protect the health of the operator.

With anti-fog and defrosting and ventilation function, can be all-weather operations.Well adapted to harsh climate port, for the operator to provide comfortable working environment.

Noise reduction

Cabin is sealing good, at the same time, ues the high quality green noise insulation materials, healthy environmental protection, build a comfortable working environment.

Santo Crane Care More for

Delicate Details

Optimizated electrical room's decoration, and spacious access channel embodies the designer's pursuit of ergonomics. Engineers can simply conveniently maintenance for motor, reducer, cable drum facilities.
Rotating disc with waterproof rope design, has a unique structure of the double disc waterproof rope mechanism, can effectively stop the rain into the machine room, avoid rust on inside the motor, electric cabinet, etc.
Slewing mechanism running stable and reliable, with electric interlocking rotation anchor device between rotating parts and door frame. Mast anchor pins installed inside the cylinder of the door frame, anchor detection device can automatically detect berth.
Two-wire centralized lubrication system, lubrication points with lubrication tee can be automatic refueling, or manually. At the time of reducing maintenance time, avoids the failure lubrication that failure of lubrication points led to a wide range of lubrication condition.

Parameters

Four-bar linkage Type
Load Capacity	16t	25t	40t
Working Range	30m, 33m, 35m, 37m	28m, 30m, 35m, 36m	30m, 35m, 39m, 40m, 43m
Wheel Dis.	10.5m, 12m, 16m	10.5m, 12m, 16m	10.5m, 12m, 16m
Lifting Speed	60m/min	55m/min	50m/min
Luffing speed	50m/min	50m/min	45m/min
Rotating Speed	1.0~1.5r/min	1.0~1.3r/min	1.0~1.2r/min
Traveling Speed	26m/min	26m/min	26m/min

Single Mast Type
LoadCapacity	40t	45t
Working Range	11~30m, 12~35m	12~35m, 13~28m
Wheel Dis.	10.5m, 16m	10.5m, 16m
Lifting Speed	25m/min	25m/min
Luffing speed	25m/min	25m/min
Rotating Speed	0.8~1.0r/min	0.8~1.0r/min
Traveling Speed	26m/min	26m/min

Production-We care more on details

To help you have a good knowing of the portal crane. We prepare a case for your reference, if you need to know more information, welcome to contact us!

1	Product name	single mast port crane 25T
2	Fabricate standard	European standard
3	Welding	According to European standard. Welder from Italy & Serbia worked for this order.
4	Certificates	CE, ISO
5	Testing	TUV testing.
6	Steel pretreatment	Sand blasting and primary painting(Jotun Paints).
7	Painting	5 times Painting. This order we adapt Jotun Paints.
8	Electrical	SIEMENS
9	Motor Brake	SEW
10	Packing	Triple-wrapped
11	Payment terms	Progress payments by TT
