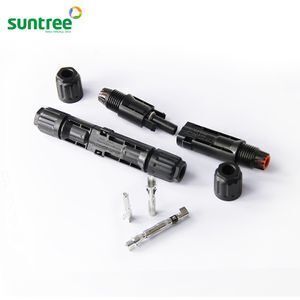

TUV Approval IP68 Waterproof Connector 50 Amp MC4 Solar DC MC4 1500V Connector

Supplier: Yueqing Xinchi Imp. and Exp. Co., Ltd.
Region: Zhejiang, China
Contact: Mr. Tony LAU
Price: $0.78 / >=120 pieces
Min. Order: 120 pieces

Click here to contact

Product details

Type:	connector;	Model Number:	MC4 Connector;
Packaging Detail:	standard packing;	Rated Current:	up to 50A;
Web:	https://shsuntree.en.alibaba.com;	Application:	solar pv system;
Payment Terms:	L/C,T/T;	Port:	Ningbo/Shanghai;
Fuse:	110*26.5;	Waterproof grade:	IP68;
Material:	PPO,Copper, Tin-Plated;	Name:	mc4 solar connector;
Pin Dimensions:	4.0mm;	Place of Origin:	Zhejiang China (Mainland);
Rated Voltage:	DC 1500V;	Certificate:	TUV CE IEC;
Gender:	female and male;	Brand Name:	Suntree;
Supply Ability:	5052 Piece/Pieces per Week;	Frequency:	50/60Hz;

Product Introduction

Simple on-site processing
Mating safety provided by keyed housings
Mutiple plugging and unplugging cycles

Accomodates PV cable with deferent insulation diamaters
High Voltage and Current carrying capacity
TUV and CE approved

Product Parameters

Product Brand	Suntree
Product Name	Solar Connectors
Product Type	MC4 Connectors
Operation Current	50A
Inner Core Material	Copper tin open type
Insert Resistance	1mmΩ
Insert force	≤60N
Pull out the force	≤89N
Degree of protection	IP68
Wiring specifications	2.5/4/6mm*2
Max operation voltage	DC 1500V
Shell material	PPO Insulation material
Temperature range	-40℃~125℃

Product Details Show

Advantage

•Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
•High mechanical endurance, TUV CE approved compatible mc4 pv branch connector male/female plug and socket solar energy system

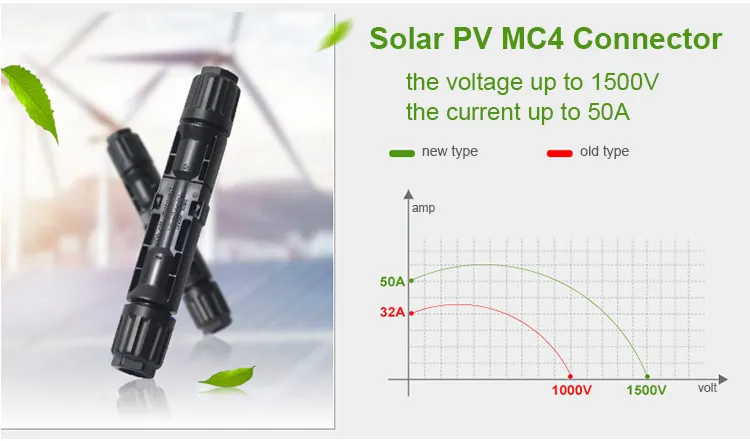

•High current and voltage carrying:50A,1500VDC
•Low transition resistance

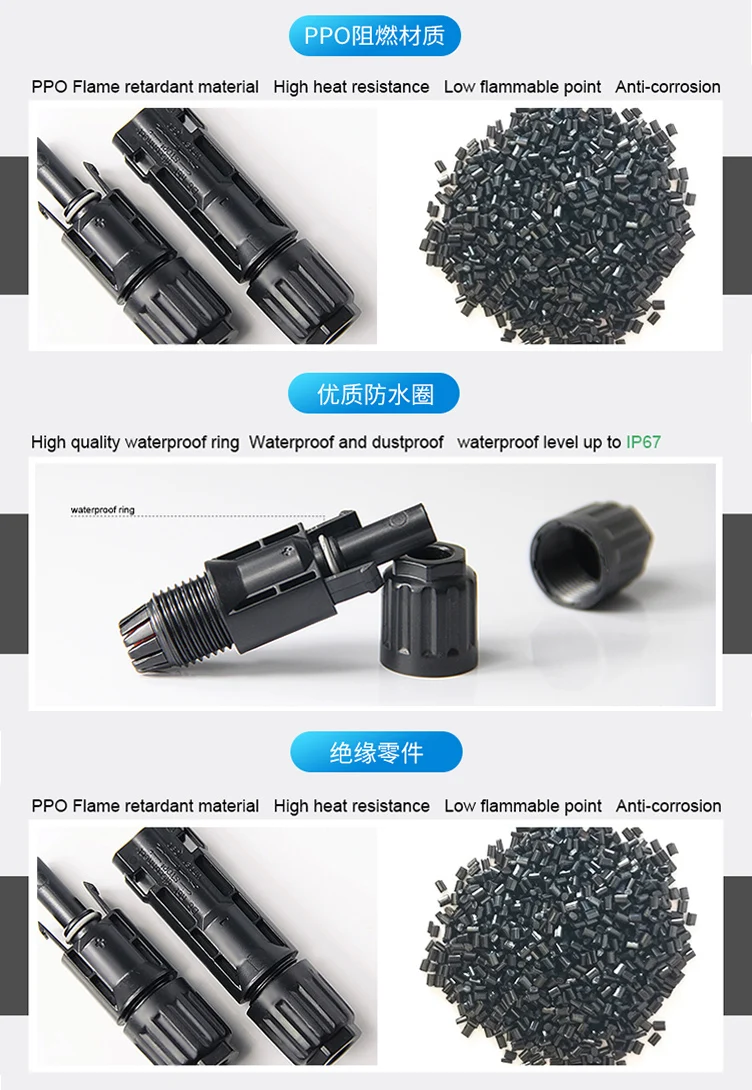

•Innovative sealed,waterproof,dust resistance design:IP68
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
•Approved by TUV

Main Products

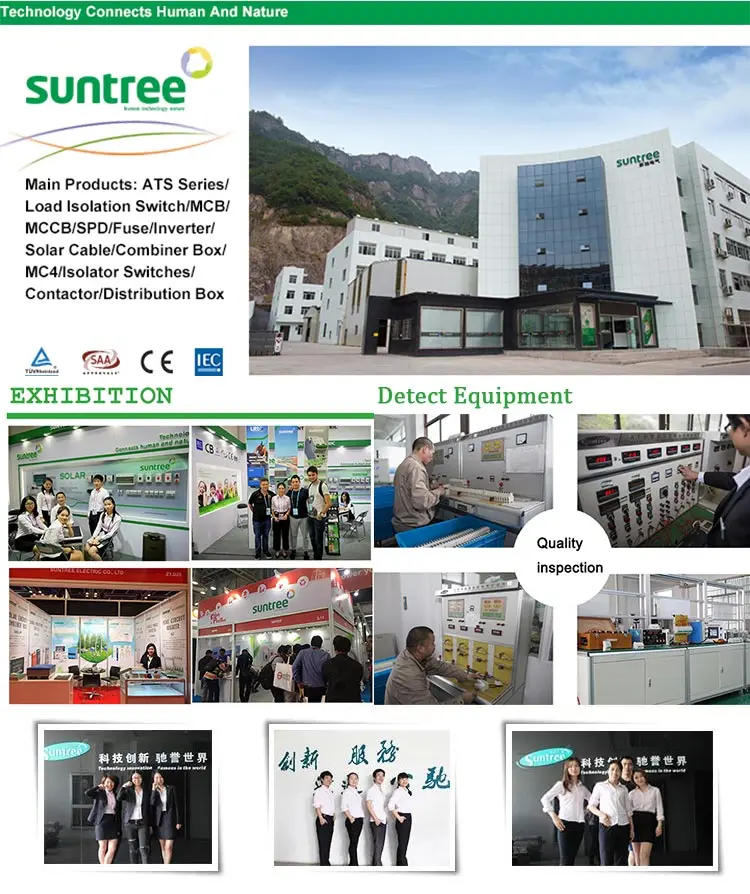

Company Information

XinChi Electric Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products:- DC-Fuse, Solar system parts, Solar Isolator Switch panel, SISO-63 solar Isolator Switch, SISO-32 Solar Isolator Switch, Solar Panel/Inverter/Cable, AC&DC Circuit Breakers, Contactors, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box, Industrial plug& socket,etc.

Quality &Standards:-Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT, CCC etc.

Main markets:-Australia,New Zealand,&other worldwide markets.

Business strategies &Characristic:-Stability, expertise and technological innovation are the corner stones of our company's business strategy.
We are trying to develop XinChi into a world-class Electrical manufactures

FAQ

Q: How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?
A: First order MOQ=120pcs

Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
