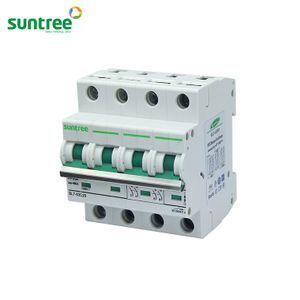

Suntree IEC Solar PV DC Breaker 4 Pole DC MCB 1000V 20 Amp Mini Circuit Breaker MCB

Supplier: Yueqing Xinchi Imp. and Exp. Co., Ltd.
Region: Zhejiang, China
Contact: Mr. Tony LAU
Price: $11.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Mounting:	35mm din rail breaker;	Model Number:	SL7-63;
Type:	Mini;	Delivery Detail:	0 days after payment;
Standards:	IEC60947-2;	Package Type:	standard carton packing;
Brand Name:	Suntree;	Rated Current:	6A~ 63A;
Rated Voltage:	1000V 1200V;	Type:	1000V DC Circuit Breaker;
Single package size:	8X9X8 cm;	Breaking Capacity:	4.5KA 6ka;
Package Preview:	https://sc02.alicdn.com/kf/HTB1B7lWaLjsK1Rjy1Xaq6zispXaw.jpg_640x640.jpg;	Single gross weight:	0.7 KG;
Ambient Temperature:	-20℃~70℃;	Place of Origin:	Zhejiang China (Mainland);
Poles Number:	4P;	Pole number:	4 Pole;
Certificates:	IEC,TUV,SAA,CE,ROHS etc.;	Selling Units:	Single item;
Guarantee Period:	2 Years;

Product Introduction

1.Specialised MCB for DC applications
2.Ratings 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
3.Type B and C tripping characteristics (details available on request)
4.4.5/6kA short circuit capacity (IEC60947)
5.2P 550V 800V DC 4P 1000V 1200V DC
6.Current limiting operation under fault conditions
7.18mm modular width per pole
8.IP20 finger proof terminals
9.Safety terminals ensure that incorrect connection is not possible
10.Terminal capacity up to 35mm
11.High torque terminals up to 4.5Nm
12.Circuit indicator window allowing clear labeling of circuits
13.Suitable for DIN rail mounting in OEM / panel builder enclosures
14.Suitable for installation in consumer units, design units and MCB distribution boards
15.Toggle is padlockable in "ON" or "OFF" position
16.Wide range of multi-functional accessories

Product Parameters

SL7 PV Series Circuit Breaker		SL7-63
Frame degree rated current (A)		63A
Ue Rated operating voltage (V DC)		DC 550V	DC 800V	DC 1000V	DC 1200V
Rated Current In (A)		6-10-16-20-25-32-40-50-63
Rated insulation voltage Ui (V DC)		2P: 800V 4P:1200V
Rated Impact voltage Uimp (kV)		4
Ultimate breaking capacity lcu (kA)		6	6	6	6
Run breaking capacity lcs (%lcu)		75%	75%	75%	75%
Curve type		C
Trip type		Thermal-magnetic
MECHANICAL		20000
		8500
ELECTRIC		2500
		1500
Shunt release (SHT)		Option
Undervoltage release (UNT)
Auxiliary contact (AX)
Alarm contact (AL)
Wiring capacity (mm²)		In≤32A,1∼25mm²,1≥40A,10∼35mm²
Ambient temperature (℃)		-20∼70
Altitude		≤2000
Relative humidity		≤95%
Pollution Level		3
Installation Environment		No obvious shock and vibration
Installation category		Class lll
Installation		DIN Standard rail
Dimensions(W)x(H)x(Deep)	W	35	35	70	70
	H	80	80	80	80
	Deep	71	71	71	71
Weight (kg)		0.24	0.24	0.48	0.48

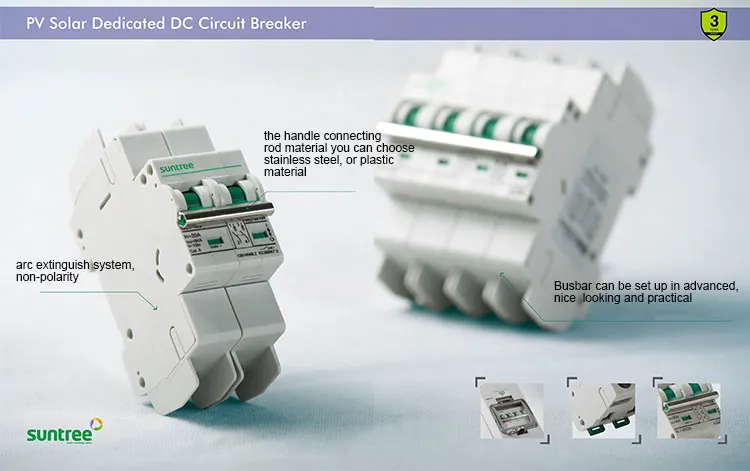

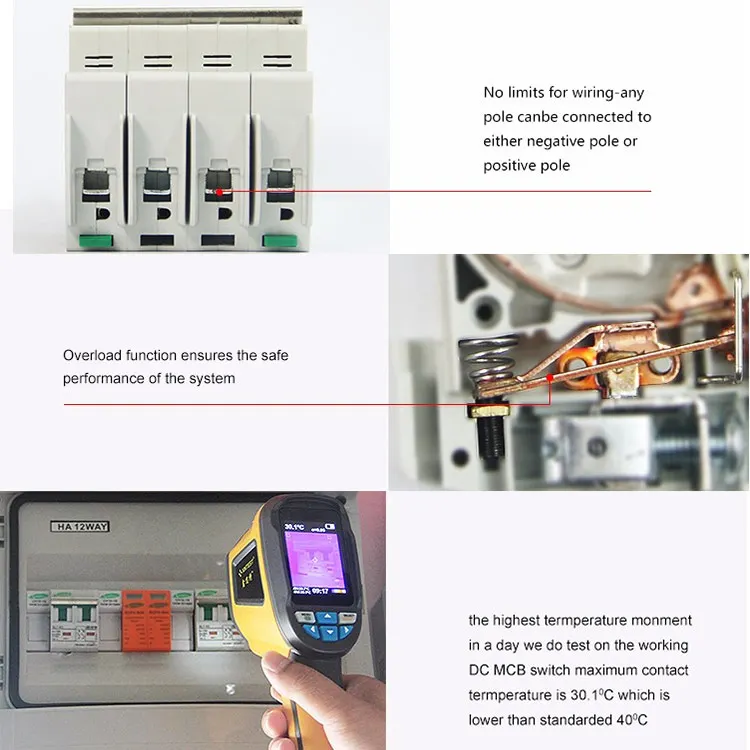

Product Details Show

Product Processing

Main Products

Company Information

XinChi Electric Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products:DC-Fuse, Solar system parts,Solar Panel/Inverter/Cable, AC&DC Circuit Breakers, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box,dc combiner box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT, CCC etc.

Main markets:Australia,New Zealand,&other worldwide markets.

Business strategies &Characristic:Stability, expertise and technological innovation are the corner stones of our company's business strategy.
We are trying to develop XinChi into a world-class Electrical manufactures

FAQ

Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.

Q:What's the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:Can I get a sample for test before place order?
A:Of course!

Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.

Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
