SEAFLO 12V 5.5 GPM Solar Hot Water Supply Booster Pumps for Water Pressure System

Supplier: Fujian Aidi Electric Co., Ltd.
Region: Fujian, China
Contact: Ms Patty Wu
Price: $50.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Flow Rate:	< 500GPH;	Self Priming:	6 ft [1.8 m] Suction;
Package Preview:	;	Wire Connection:	2-Pin/ Leads;
Port:	Xiamen;	Tank Volume:	1.0 L;
Rated Current:	16 - 21A;	Payment Terms:	L/C,T/T;
Ports:	1/2" MNPT;	Max Fluid Temp.:	140 °F [60 °C];
Pressure Off:	60 PSI /4.2 BAR;	Supply Ability:	3000.0 Piece/Pieces per Day;
Control Type:	Switch;	Voltage:	12V;
Weight:	9.7 lbs (4.4 kg);	Pressure On:	50 PSI / 3.4 BAR;
Certification:	ce,ISO9001:2000,ROHS;	Packaging Detail:	1pc/inner box , 2 pcs/ctn; Seaworthy Strong Carton;

Product Description

51 Series Water Pressure System

5.5GPM/20.8LPM

SEAFLO 12V 5.5 GPM Solar Hot Water Supply Booster Pumps for Water Pressure System

A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a?5 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a?Plate mounted board. Serves 3 or more 1/2" (13mm) outlets.

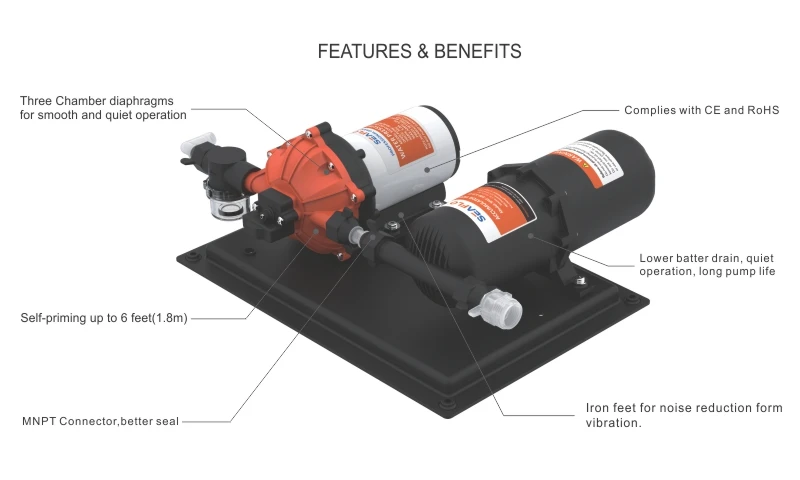

FEATURES & BENEFITS

- Powerful 5.5 gallons per minute of flow
- Superior self-priming capabilities

- Built-in adjustable pressure switch

- Heavy-duty, corrosion resistant motor

- Ultra quiet with constant and steady flow
- Powerful enough to supply up to 5 fixtures

- Easy pre-assembled installation

- Capable of being run dry without dammage

TYPICAL APPLICATIONS

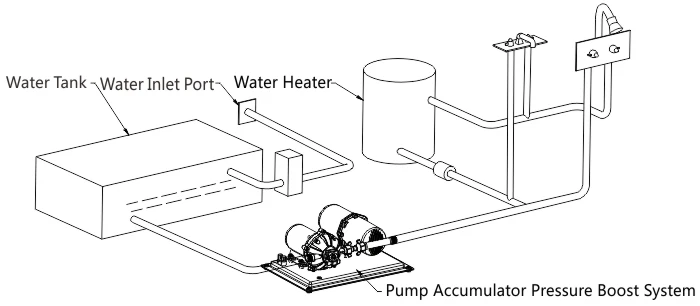

Marine, RV, Filtration

PUMP
Type	5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type	Pressure switch
Max Recommended Temperature	60° C(140° F)
Priming Capabilities	6 feet (1.8 m) suction lift
Re-start Pressure	Shut-on Pressure 20 PSI :20 PSI ±3 PSI Shut-off Pressure 60 PSI :60 PSI ±3 PSI
Inlet/Outlet Ports	1/2" MNPT
Weight	14.3 lbs (6.45 kg)

MOTOR
Leads	14 AWG, 13" (33 cm) long with 2-Pin connector/Leads
Duty Cycle	Interrnittet
Max.Amp Draw	17.0 A
Fuse	25.5 A

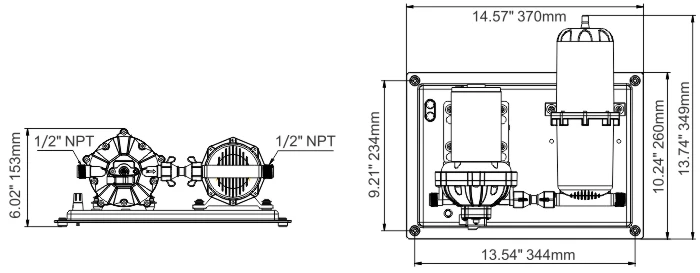

DIMENSIONS

STANDARD PUMP CONFIGURATIONS

Model	Tank Volume	Voltage	Control Type	Open Flow (GPM/LPM)	Pressure On (PSI/BAR)	Pressure Off (PSI/BAR)	Max Draw	Ports	Wire Connections
SFWSK1-055-060-003	1.0L	12V	Switch	5.5 / 20.8	50 / 3.4	60 / 4.2	17.0A	1/2"MNPT	2-Pin/Leads
SFWSK2-055-060-003	1.0L	24V	Switch	5.5 / 20.8	50 / 3.4	60 / 4.2	9.0A	1/2"MNPT	2-Pin/Leads
