Semi-automatic rubber mold spin casting machine

Supplier: Shenzhen Kaite Industry Co., Ltd.
Region: Guangdong, China
Contact: Ms Lisa Zheng
Price: $2000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Cover:	automatic close/open;	Power:	750;
Speed:	VFD adjustable;	Voltage:	customized;
Applicable metal:	Zinc, lead, tin;	Brand Name:	KAITE;
Machinery Test Report:	Provided;	Dimension(LWH):	7108501230;
Key Selling Points:	High Productivity;	Local Service Location:	None;
Core Components:	Motor;	Condition:	New,New;
Place of Origin:	China;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining,Advertising Company,Jewelry Industry;
Video outgoing-inspection:	Provided;	Weight:	320kg;
Showroom Location:	None;	Packaging Detail:	Wooden package;
Warranty:	1 YEAR;	After-sales Service Provided:	Video technical support,Online support;
Port:	China main port;	After Warranty Service:	Video technical support,Online support;
Marketing Type:	Ordinary Product;	model:	Silicone rubber;
Payment Terms:	L/C,D/P,T/T,Western Union;	Warranty of core components:	1 YEAR;
Machine Type:	semiautomatic;	Casting:	automatic;

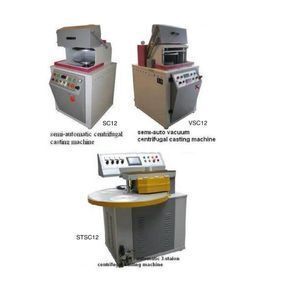

1. Semi-auto centrifugal casting machine is used to produce casted buckles and accessories for the leather industry and garment industry, imitation jewellery, promotion gifts, medal, and figurines etc from zinc alloy or tin alloy.

Features:

1. Digital speed display.

2. Digital timer for centrifugal time setting.

3. Cover Automatic open / close design, effectively saving time and labor.

4. Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options

5. Safety protection of the centrifugation area.

6. Electronic emergency brake system.

7. Easy operated and maintained.

Model	SC12	SC14	SC16	SC18	SC20	SC25
Mold dia. max	12"	14"	16"	18"	20"	25"
Mold thick	0-120mm
Pressure	0-7KG
Power	0.75Kw	1.5Kw	1.5Kw	1.5Kw	2.25Kw	3.0Kw
Speed	50-1400rpm

2. Semi-auto vacuum centrifugal casting machine With an option vacuum pump is used to produce precision casted buckles and accessories for the leather industry and garment industry, imitation jewelry, promotion gifts, medal, and figurines etc from zinc alloy or tin-lead alloy.

Features:

1. Efficient vacuum pump, centrifugal casting cycle shorted, cooling faster, rubber mold working life prolonged

2. Digital speed display, digital counter.

3. Digital timer for centrifugal time setting.

4. Cover Automatic open / close design, effectively saving time and labor.

5. Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options

6. Safety protection of the centrifugation area

7. Electronic and pneumatic double emergency brake system

8. Easy operated and maintained.

Model

VSC12

VSC14

VSC16

VSC18

VSC20

VSC24

VSC25

Mould dia. max

12”

14”

16”

18”

20”

24”

25”

Mould Thick

0-120mm

Clamping Pressure

0-0.7Mpa

Centrifugal

Power

1.5kw

2.25kw

3.0Kw

3.0kw

Speed

50-1400rpm

Vacuum pump

Pressure

0.07Mpa

Power

0.75kw

1.5kw

Semi-automatic 3 station centrifugal casting machines,

Spin casting machines are used to produce casted buckles and accessories for the leather industry and garment industry, imitation jewellery, promotion gifts, medal, and figurines etc from zinc alloy, tin alloy, other metals, wax, or resin. Production output up to 200 casting operations per hour.

Features
Precious Index rotary table, speed adjustable
Independent mould camping pressure system with independent pressure regulator and pressure gauge
Variable frequency drive adjust centrifugal speed from 0-1400 rpm
Safety protection of the centrifugal area.
Touch screen control panel digital display and setting all functions, speed, time etc.
PLC setting and controlling all cycle functions, time and speed.

Automatic dignoises model missing.
l Built-in fan forced cooling rubber mold improved working life of the mold.
Easy operated and maintained

Model	STSC12	STSC14
Mould diameter max	12”	14”
Mould Thickness	0-100mm
Pressure	0-7KG
Centrifugal motor	1.5kw
Centrifugal speed	50-1400rpm
Indexing motor	0.75kw
Indexing speed	50-1400rpm
