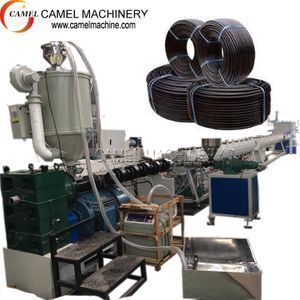

20-110mm plastic HDPE PE PP pipe extrusion production line /making machine

Supplier: Zhangjiagang Camel Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jerry xia
Price: $38000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ;	Power(W):	37kw;
Capacity:	150-200kg/h;	Application:	Pipe,Profile;
Voltage:	380v/220v;	Screw Design:	Single-screw;
Weight:	6000kg;	Max. speed:	15m/min;
Screw diameter (mm):	65;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,pe pipe production line;
Brand Name:	CAMEL MACHINERY;	Warranty:	1 YEAR,15 Months;
Port:	shanghai for pe pipe production line;	Place of Origin:	Jiangsu China;
Supply Ability:	30 Set/Sets per Month pe pipe production line;	Condition:	New;
Dimension(LWH):	20mx2.5mx2.2m;	Total power:	100kw;
Certification:	CE ISO9001;	Name:	pe pipe production line;
Plastic Processed:	PE,PP,Polystyrene,HDPE/PP,Lldpe,LDPE;	Key Selling Points:	Automatic;
Frequency Inverter Brand:	ABB;	Temperature Controller Brand:	Omron;
After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Packaging Detail:	Export standard packing: wood case with film wrapped. The total machines need one 40 feet container pe pipe production line;
Total length:	40m;	Pipe diameter:	20-160mm;
Output (kg/h):	100 - 200;

Product Description

20-160mm plastic HDPE PE PP pipe extrusion production line /making machine

Product Description

HDPE pipe PE water pipe PE drip irrigation pipe extrusion production line making machine

Product Application

20mm-160mm PP PE water Pipe Production Making Machine is mainly suitable for making PP,PE pipes,with various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc.

Machine Type	Pipe Diameter	Main motor power
SJ65/33	16mm-63mm	45KW
SJ75/33	63mm-160mm	75KW
SJ90/33	160mm-250mm	90KW
SJ110/33	250mm-400mm	110KW

Detailed Images

Detailed image

Machine Parts

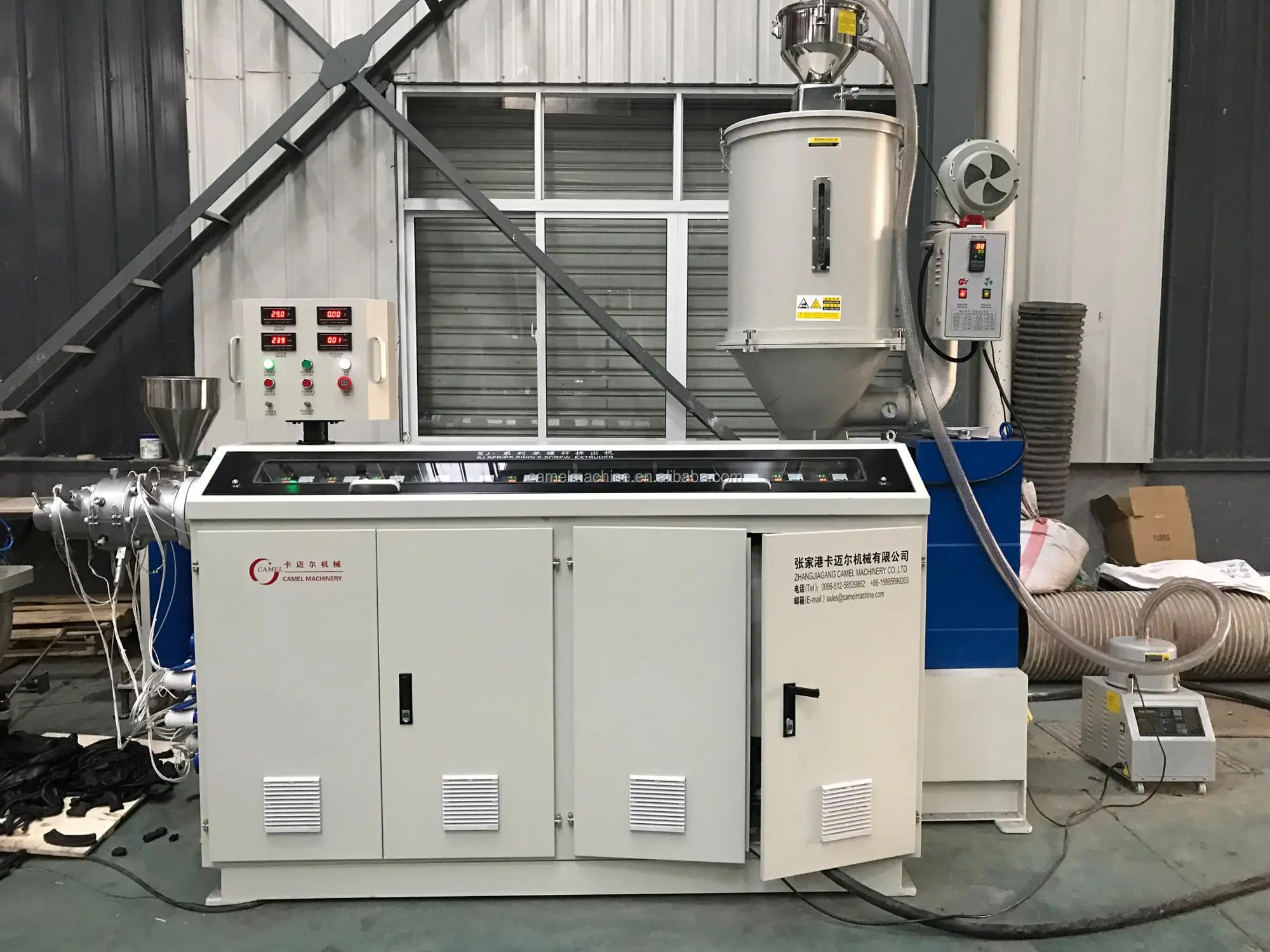

Name: SJ75/33 Single Screw Extruder(with vacuum loader)

Brand: CML

Original: CHINA

1)Screw and barrel are all from Zhoushan,with good quality.
2)Motor:Siemens
3)Heating method:Electric aluminum cast heating
4)Electric contactor:Siemens
5)Frequency inverter:ABB

Machine Part

Name: Mold Head
Brand: CML
Original: CHINA
1)Pipe diameter:20mm-160mm
2)Sizing unit:20mm,25mm,32mm,40mm,50mm,63mm,

75mm,90mm,110mm,125mm,160mm
3)Sizing unit material:Copper alloy steel

Machine Parts

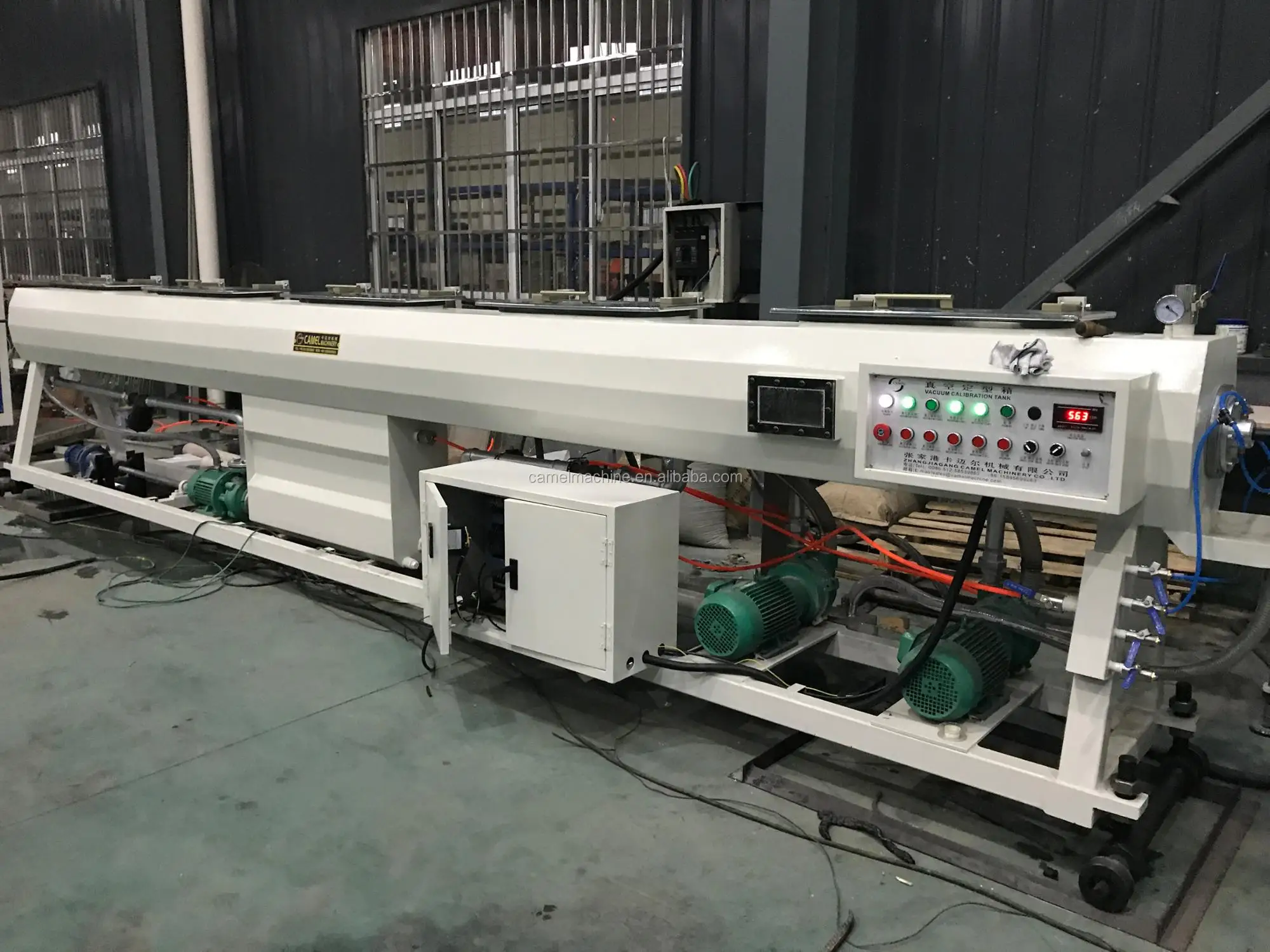

Name: Vacuum Calibration and Cooling Tank
Brand: MC
Original: CHINA
1)Tank effective length:6 meters
2)Tank Raw material:#304 stainless steel

3)with Vacuum pump and Water Pump

Machine Parts

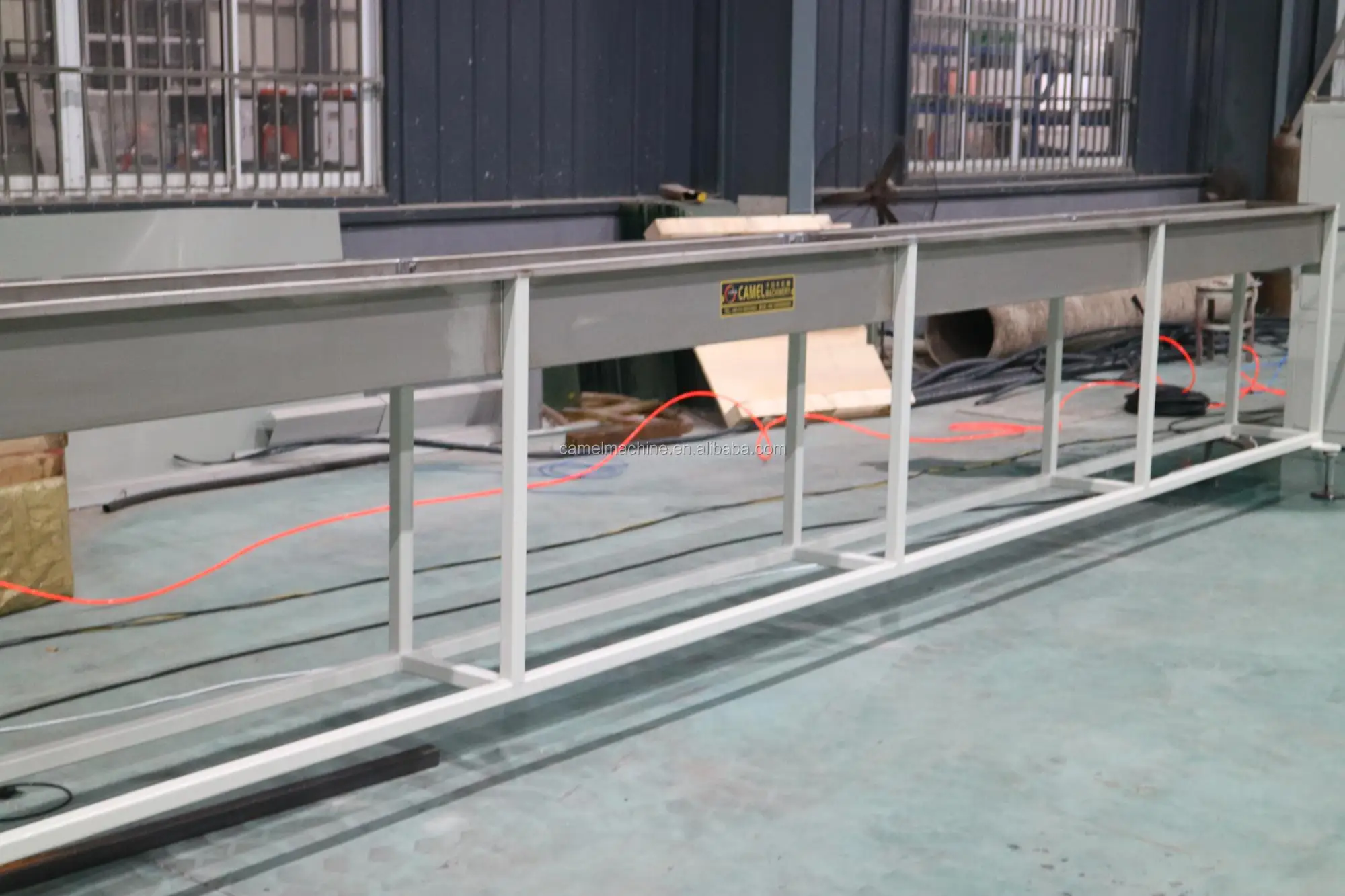

Name: Water Cooling Tank
Brand:CML
Original: CHINA
1)Tank effective length:6 meters
2)Tank Raw material:#304 stainless steel

3)With water pump

Machine Parts

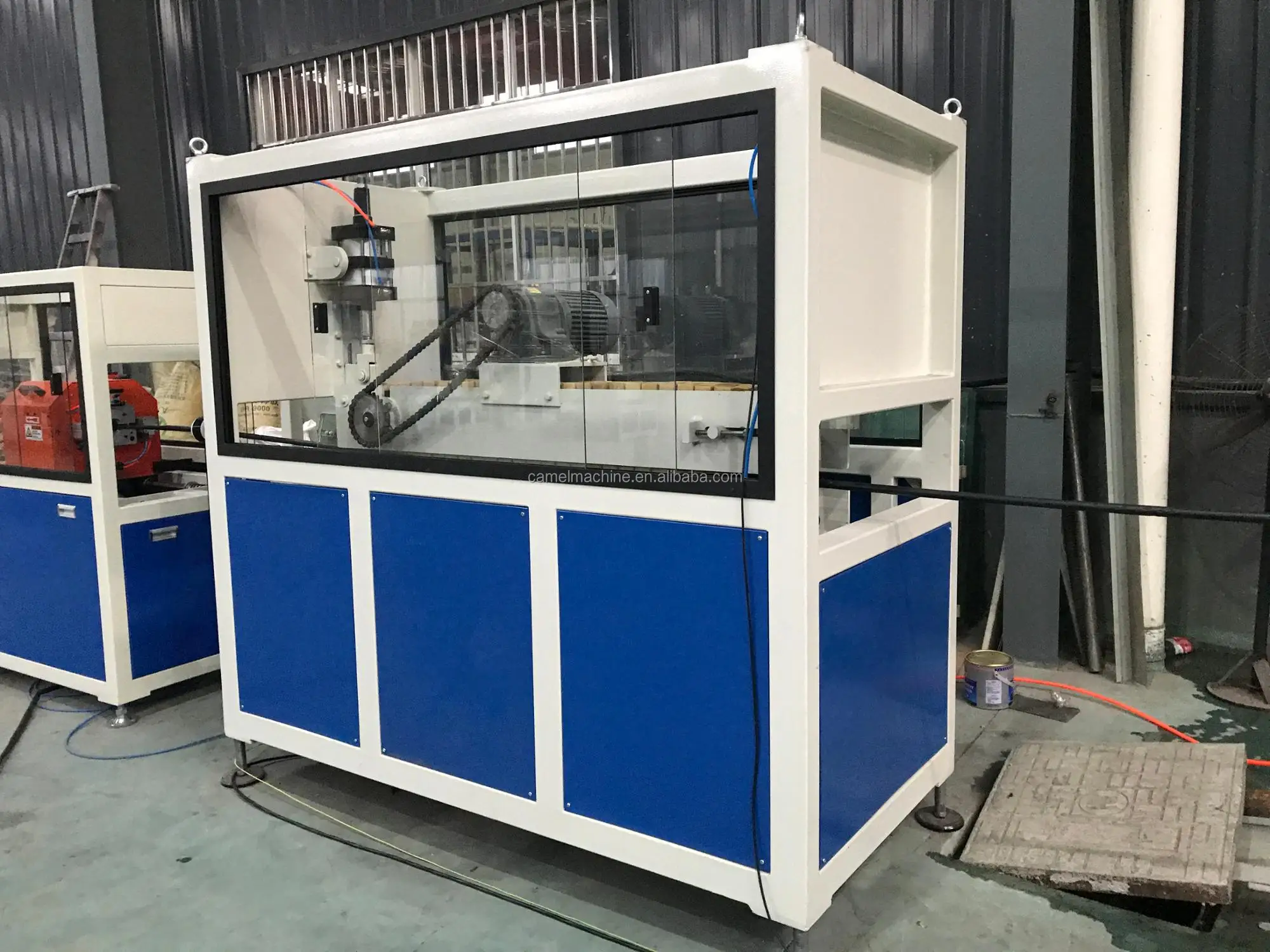

Name: Hual off Machine
Brand: CML
Original: China
1)Effective traction length:1.8meter
2)Motor power:4KW
3)Traction speed:2-6m/min
4)Speed control:by ABB inverter

Machine Parts

Name: Cutting Machine
Brand: CML
Original: China
1)Cutting method:Non-dust cutting
2)Cutting knife raw material:alloy steel
3)Cutting range:20mm-160mm

Machine Parts

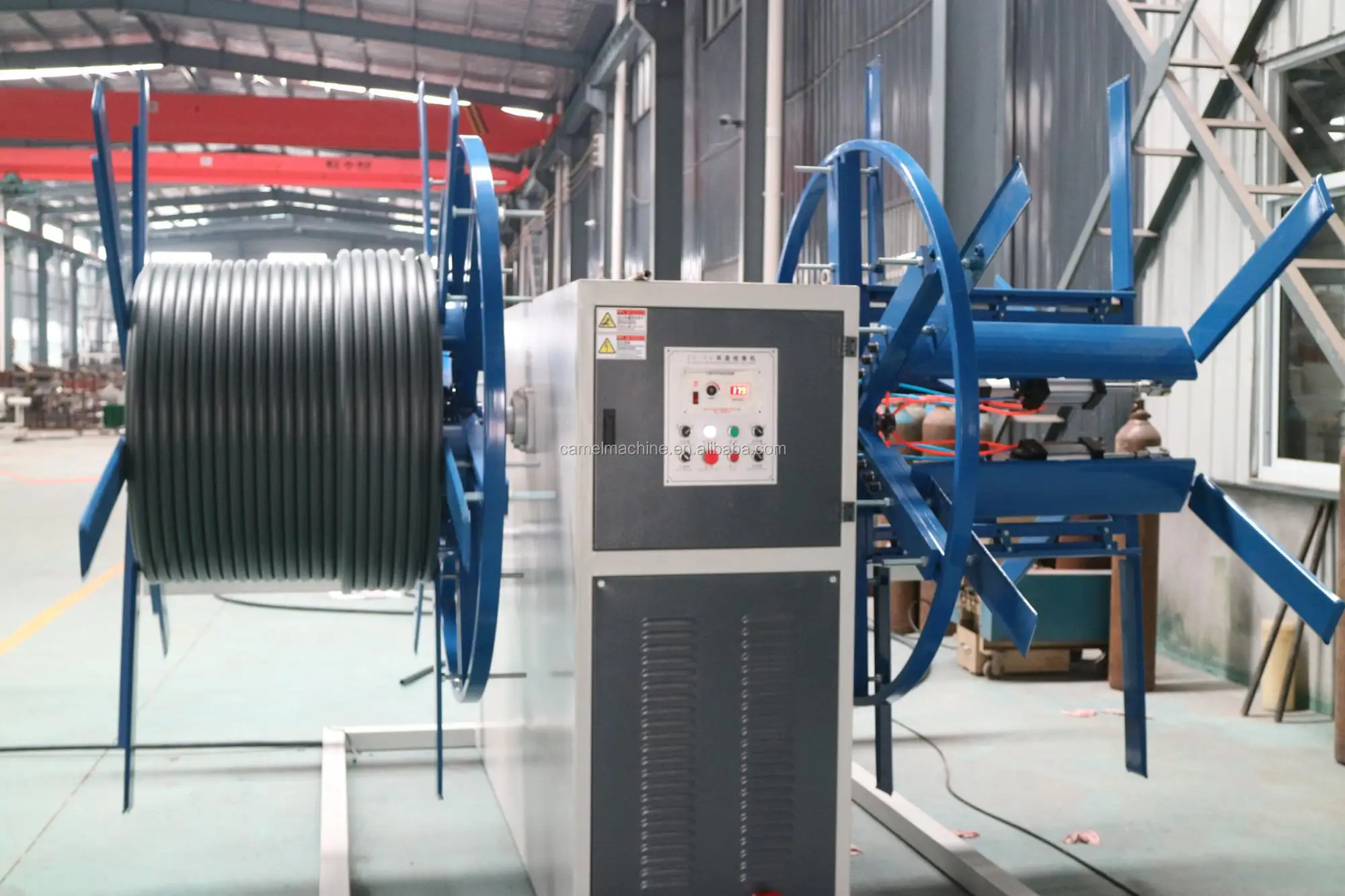

Name: Winder Machine

Brand: CML
Original: China
1)Coiling pipe diameter:20mm-63mm

2)Motor power:25N.M

3)Coiling speed:0.5-10m/min

Related product

Packaging & Shipping

Packing & Delivery

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
