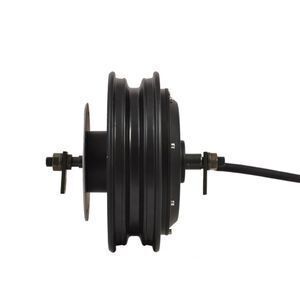

10inch 4000W 205 55H V3 Brushless DC Electric Scooter Hub Motor

Product details
Output Power(W):4000W;Single gross weight:20.0 KG;
Rim Size:10*2.15inch, 10*3.0inch;Model Number:Double Shaft Hub Motor;
Type:Brushless dc motor;Packaging Detail:wooden & Carton Box;
Product Name:10inch 4000W 205 55H V3;Voltage(V):48v-96v;
Package Preview:;Usage:electric scooter;
Place of Origin:Zhejiang China;Color:Black;
Certification:ISO9001, CCC, CE;Selling Units:Single item;
Speed:35-80kph;Single package size:43X43X34 cm;
Waterproof Grade:IP54;Efficiency:84~92%;
Brand Name:SiAECOSYS;Warranty:Provide;

10inch 4000W 205 55H V3 Brushless DC Electric Scooter Hub Motor

Product Description

For 10inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

There are two width of wheel, 10*2.15inch, 10*3.0inch for choice.

We offer narrow tire, 10*2.15inch as default.





Feature

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 84~92%



QS Motor Specification

Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

Brand: QS Motor,QSMOTOR

Motor Design: Double axle with 10inch moped rim (integrated)

Rim size:10x2.15inch(Narrow Tire as default), Matched tire:3.0-10

              10x3.0inch(Wide Tire), Matched tire:5.0-10

Magnet Height: 55mm, 16pole pairs

Stator: Aluminum Core

Rated Power: 4000W

Speed(customizable):

                     48v 21km/h~80km/h

                    60v 26km/h~80km/h

                    72v 32km/h~80km/h

Max Torque approx 201N.m

Thermic Probe: KTY83-122 (as default, optional)

Max Efficiency approx 88%

Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

Drop-outs: 200mm

Dual Halls with waterproof connectos

4mm² Phase Wire

Waterproof Grade: IP54

Color: Black (as default), Yellow or White/Luminous

Pictures Show





QS Motor 10inch 500W-4000W 205 E-scooter/Motorcycle List



How to Recommend you suitable motors?

Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?

1. E-bike, E-scooter, E-tricycle or E-car?

2. Weight of vehicle with battery, loading weight (weight with load only)?

3. Tire model/diameter?

4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?

5. Battery nominal voltage, peak voltage, capacity and vehicle range?

6. What's the drop-outs/rear fork width of your frame?

Within your details information, we could make assessment and calculation accordingly for your project





Application



Company Information

 About US

SIAECOSYS is an union of manufactories in electric driving industry, and belongs to Taizhou SIA Trading Co., Ltd that set from QS Factory in 2013 year.

Currently, more than 80 top factories join SIAECOSYS, and they are willing to provide customized products and service for international customers who has passion in e-scooter/tricycle/car industry.

SIAECOSYS focus on organizing member factories together to customize specific e-driving system solution and products for different requirements from customers in the world.

Nowadays, SIAECOSYS has more than 5000 customers from the world and more than 40 customers send inquiry every day.

SIAECOSYS has sale department, Technology department, Quality inspection department, general accounting department, purchase department and after-sale service department.







FAQ



Q1. Are you trader or manufacture?

A: We're manufacture.



Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).

The specific delivery time depends on the items and the quantity of your order.

Q3. How long is your warranty time?

A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.



Q4. About Customs Clearance

For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

Special countries list:

Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.

Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.



05. Does your products with CE certification?

Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
