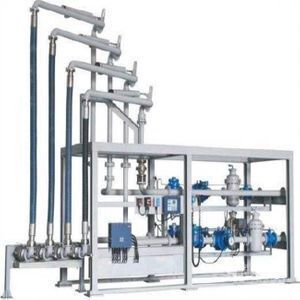

Bottom loading arms

Bottom Loading Arm is conveyance equipment used for bottom loading of tank truck. The design meets the requirements of USA API regulation about bottom loading arm and can work with bottom quantitative loading control system and bottom overfill prevention ESD system.

Bottom loading arm not only can meet user's loading requirements of oil products, (suitable for API RP1004), but also meets user's bottom loading requirements of chemicals. (The design is suitable for EU standard or American standard.)The operator can operate professional handle easily on the ground. We are committed to creating a faster, easier connection and safer loading and working environment.

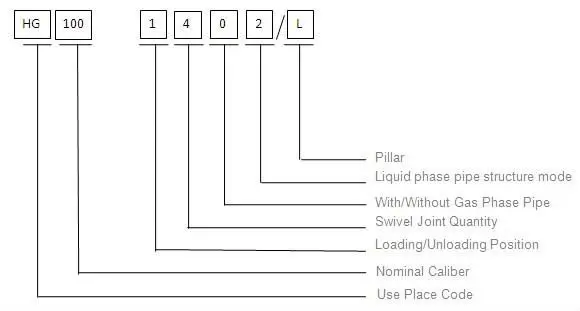

Model Instruction

Use Place Code: HG—Train Tanker      QG—Car Tank

Loading/Unloading Position: 1—Top loading/unloading   2—Bottom loading/unloading

Swivel Joint Quantity: 4—4 pieces swivel joints, 5—5 pieces swivel joints

With/Without Gas Phase Pipe: 0—Without Gas phase pipe , 1—With Gas phase pipe

Liquid phase pipe structure mode:1-Up connection 2-Down connection 3-Up turn 4-Down turn

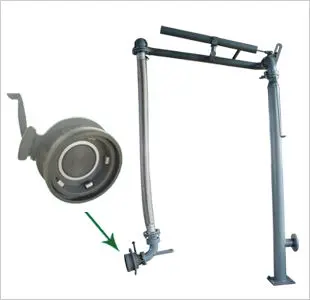

Structure Drawing

• Basic model of lower bottom loading arm: QDZ100QDZ100
• Imported original dry break female joint O seal: Standard configuration is fluorous rubber, and according to different medium requirements of user, NBR, EPDM, FMK or silicon rubber can be selected.
• Body material of imported original dry break female joint: Aluminum alloy, SS316 stainless steel
• Connection type of imported original dry break female joint: API standard is applicable to dry break female (male) joint of oil industry standards, TEAM standards for special joints of chemicals and the joint cannot interchange with API standard

 Features

• Standard diameter 4 "Chinalco/Sinosteel
• Provide hose design of various length and contact CPEPT for details
• Joint rotation balance 4 "dry break separation joint (cast aluminum) and special separation joint of chemicals (SS316)
• Portable body can be equipped with six lower (bottom) loading arms at most
• Oil and gas recovery arm is designed to prevent oil and gas from discharging into the environment and over-pressure during loading.
• Practical application proves its high reliability
• Compact design can cover various complicated working environments without disturbance to other devices
• Low maintenance requirements to reduce risks of equipment stop
