Wholesale China Import iqf freezer

Product details
Place of Origin:Zhejiang China;Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Food & Beverage Shops;
Freezing temperature:-36C;Product name:Wholesale China Import iqf tunel freezer;
Voltage:220V/380V;After-sales Service Provided:Field installation, commissioning and training,Engineers available to service machinery overseas;
Warranty:1 YEAR;Packaging Detail:iqf tunel freezer steel I-beam or U framework and standard package;
OEM:YES;Showroom Location:None;
Supply Ability:10 Set/Sets per Month iqf tunel freezer;Certification:iqf frozen;
Cooling Capacity:iqf tunel freezer;Payment Terms:L/C,T/T,Western Union;
Port:Shanghai or Ningbo;Output material temperature:-18C;
Power(W):iqf frozen;Freezer length:12m;
Condition:New;Weight:iqf frozen;
Local Service Location:None;Output:2000kg/h;
width of screen belt:1.2m;Brand Name:Guanfeng;
Input material temperature:+15C;Dimension(L*W*H):13.6*4.1*3.7m;
Key Selling Points:Automatic;Type:food freezing machine,iqf tunel freezer;
After Warranty Service:Online support;

Click to  HOME  >>  Product Categories   >>



+

model

GLZ-0.5

GLZ-1.0

GLZ-2.0

GLZ-3.0

Capacity(kg/h)

500

1000

2000

3000

Dimension(m)

7x3.8x4.05

8x4.5x4.05

11x4.5x4.05

14.5x4.5x4.05

Inlet temperature

+15℃

Outlet temperature

-18℃

Freezing temperature

≤-33℃

Freezing time

4-40min(variable frequency regulation)

Refrigerant

R22/R404A/R717

Power(kw)

30.9

46.3

74.2

101.7

Product overview and applications:

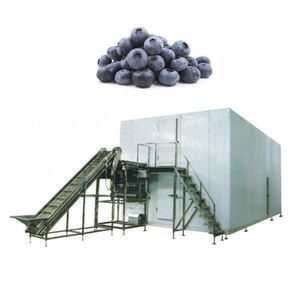

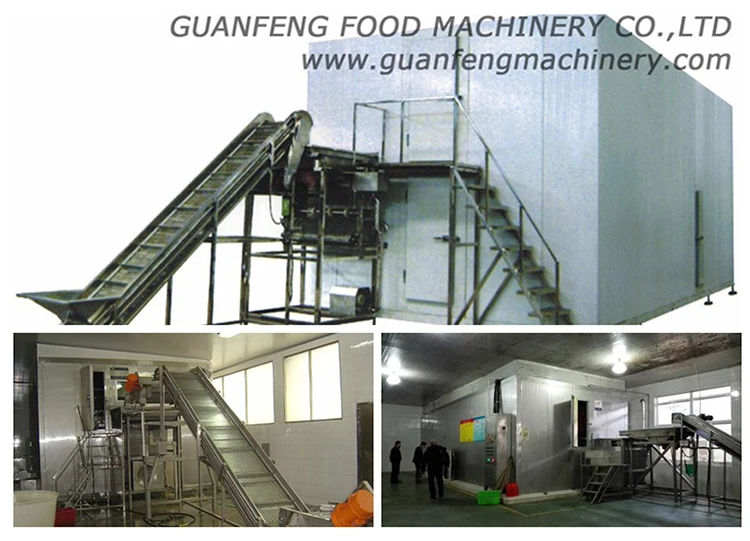

GUANFENG GLZ model fluidized quick-freezing machine combines the latest technology of other same products from Sweden and Canada, realizing a real fluidized and perfect IQF effect. Suitable for processing fruits and vegetables slices, dices and etc. Mainly freezing the fruits and vegetables.



The  conveying net belt adopts servo control.

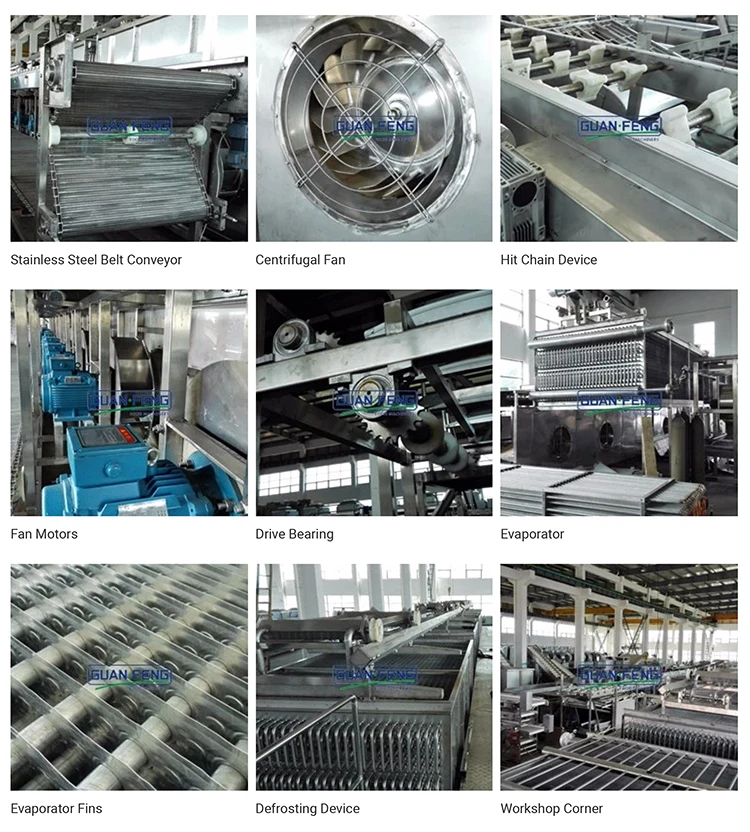

In addition to motor, electrical components and other standard parts,others are made of SUS304 stainless steel, which makes the equipment durable, stable and reliable in performance, and has advantages of simple operation, easy maintenance, low energy consumption.



Main Features :

1) Suitable for fluidized IQF frozen processing for green peas or fruits and vegetables slices, dices etc.

2) Frequency converters for belt conveying and also fan blowers which assure flexibility during the production even with the most difficult products.

3) Extraordinary freezing efficiency is guaranteed by the extremely efficient evaporator, optimized design and quality finishing.

4) Easy access to all freezer parts, easy handling of maintenance and cleaning operations.

5) Stainless steel wire mesh belt, which is the most reliable solution by now, proven performance by users, and universal solution for easier replacement and maintenance all over the world.

6) Superior fluidized IQF function by extra belt hitting system together with the adjustable high pressure centrifugal blower to generate vertical air flows which keep the materials in a fluidized condition during the freezing process.

7) With our high quality stainless steel belt and on position cleaning device for the belt, we can bring the highest sanitation level and easy work for cleaning of our freezer.











+




1.Are you A factory or A trading company?

A: We are factory manufacturing food processing machines and we provide OEM and after-sale service.



2.Where is your factory? How can I visit your factory?

A: Our factory is located on Shaoxing, it is near to Shanghai and Hangzhou. We are warmly welcome

     you visit our factory.



3.Can you send me the video to show the machine works?

A: Certainly, we have made video of our machines and processing lines.



4.How can I pay my order?

A: We accept T/T and L/C payment.



5.Do you have a CE certificate?

A: For every model of machine, it has a CE certificates, and we also get ISO9001 and SGS certificates.



6.What is your advantages?

A: As a professional food processing machinery supplier, we can provide integrated solution for food

 processing industry. We have got more than 50 patents.
