The factory must have a loader

Loaders are widely used in road, railway, construction, hydropower, port, mining and other construction projects of earth and stone construction machinery, it is mainly used for shoveling soil, sand, lime, coal and other loose materials, but also for ore, hard soil and other light shoveling operations.Different auxiliary working devices can also be used for earth-moving, lifting and loading and unloading of other materials such as wood.

In the road, especially in the construction of high grade highway, the loader is used to fill and dig the roadbed, aggregate and load the asphalt mixture and cement concrete yard.In addition, it can push and transport soil, scrape the ground and pull other machinery and other operations.Because the loader has the advantages of fast working speed, high efficiency, good maneuverability and easy operation, it becomes one of the main machines in earthwork construction.

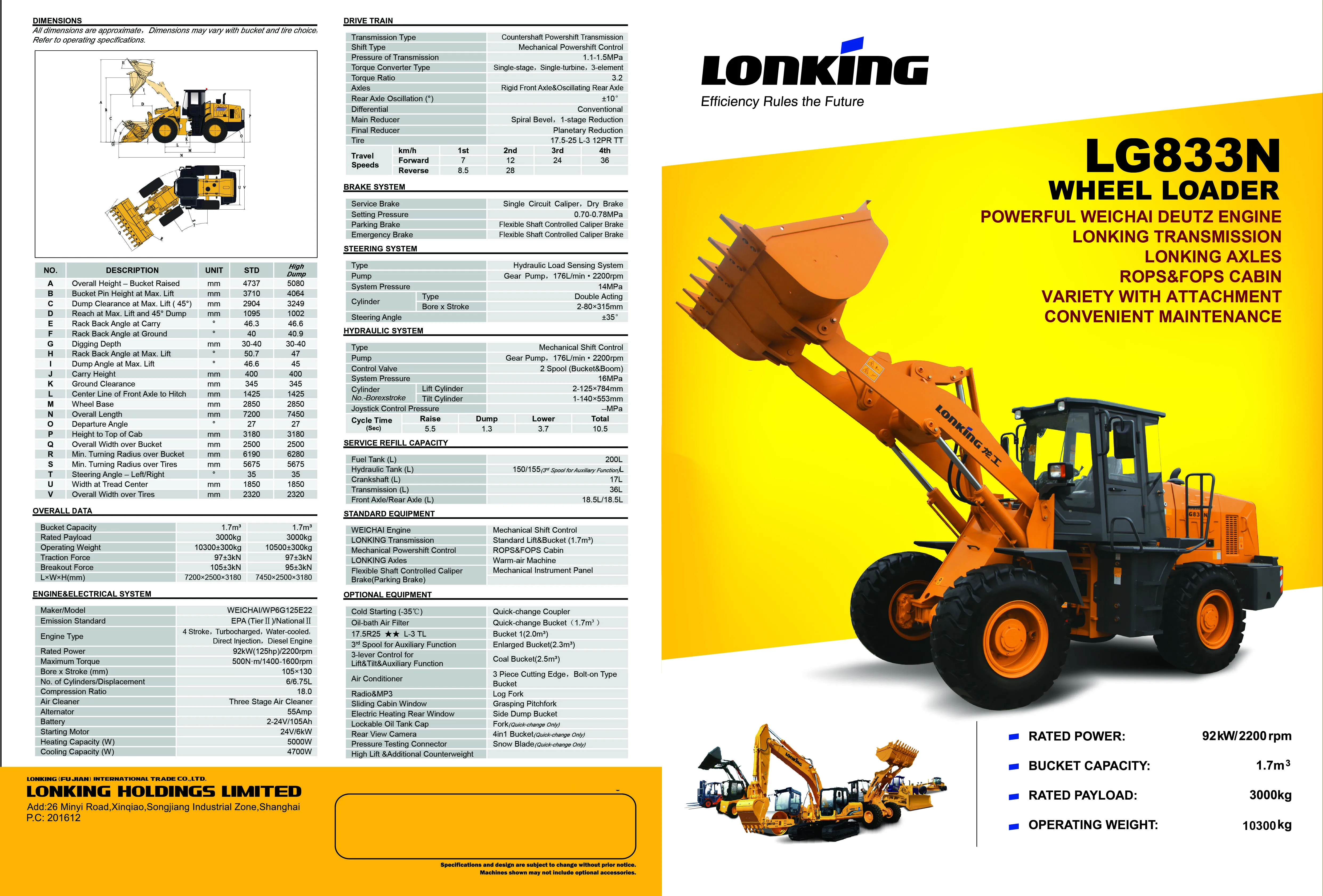

LG833Nhigh discharge king (national iii) environmental protection, strong new power, reliable transmission equipped with daoitz high pressure common rail electric injection engine, low noise, green environmental protection, power efficiency.Comply with national emission regulations, engine performance, economy and emissions of good technical indicators.The engine assembly USES frame support to reduce front-end wheel failure by 80%.Equipped with longgong hydraulic shift fixed shaft gearbox, high transmission efficiency, reliable work.Dragon - made drive axle, high reliability, strong adaptability to heavy load.Ergonomic design for comfort and safety.

LG833N technical parameters

Standard capacity (m3) 1.7

Rated deadweight (Kg) 3000

Rated power (KW/ RPM) 92/2200

Operating quality (kg) 10500

Maximum traction (kN) 97

Maximum lifting force (kN) 95

Unloading height (mm) 3249

Basic performance

Operating weight (kg)10500

Rated deadweight (kg)3000

Bucket capacity (m3)1.7

Unloading height - unloading Angle 45°3249(mm)

Digging force (excavation force) (kN)95

Rated load (ton)3-5 tons

Rated power (kw/ RPM)92/2200

Longgong LG833N high unloading king (state iii) performance characteristics

1, environmental protection, strong new power, reliable transmission

• equipped with deutz high voltage common rail electric injection engine, low noise, environmental protection, power efficiency.

• comply with national emission regulations, engine performance, economy, emission and other technical indicators.

• the powertrain USES frame support to reduce front-end gear failures by 80%.

• equipped with longgong hydraulic shift fixed shaft gearbox, high transmission efficiency, reliable work.

• dragon homemade drive axle, high reliability, strong adaptability to heavy load.

2. Ergonomic design -- comfortable and safe

• the cab is designed with panoramic glass Windows, with a wide field of vision and almost 360° panoramic visibility.

• the flexible suspension of the cab is installed, and the mechanical suspension seat can well absorb the impact and vibration from the main body of the machine, so as to ease operator fatigue and improve driving comfort.

• the cab adopts stable frame structure, optional ROPS&FOPS, safe and reliable.

• multi-direction adjustable seat, adjustable steering wheel, suitable for operators of all types to adjust to the best operating state.

• the layout of electronic control switch, controller and control control is ergonomic, convenient and comfortable to operate.

• optional high efficiency air circulation air conditioning system with good defrosting function.

• engine room and cab with noise reduction design.

3. Super frame structure is more robust and durable

• the box-like frame is thickened and reinforced to resist torque and increase durability.

• the main hinged plates are widely spaced to resist loads from different directions and effectively resolve stress.

• all key structural components are analyzed by finite element method to ensure that all heavy-duty conditions are met.

• robot welding, solid seam.

• long wheelbase alignment, reasonable bridge load distribution, and further improve the adaptability of heavy load.

• the unloading height is up to 3249mm, leading in environmental adaptability industry.

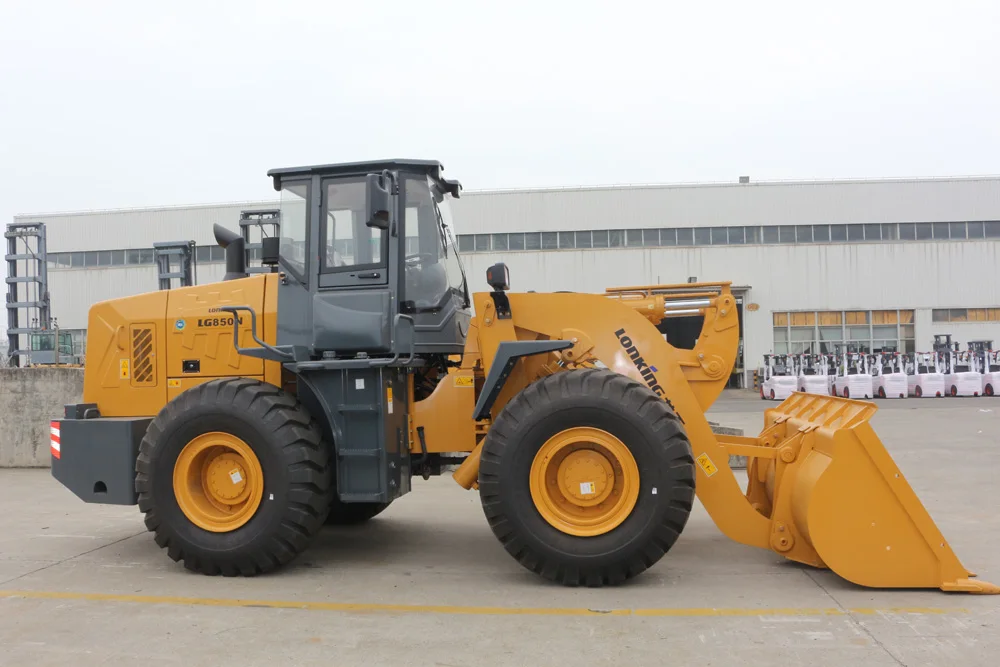

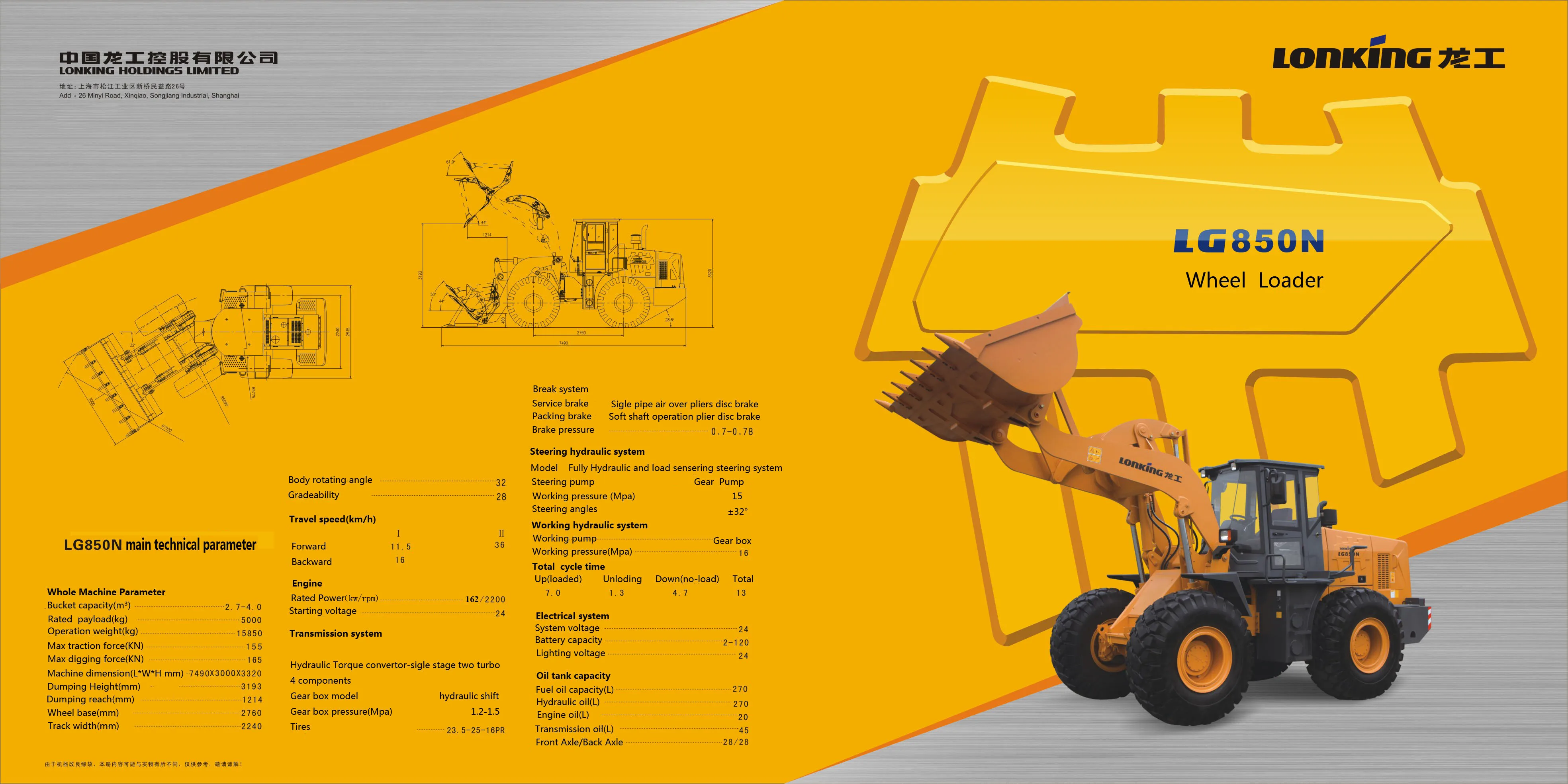

LG850N Weichai guo-3 emission powerful new power, reliable transmission weichai guo-3 emission engine, air-air cooling, four-valve structure, low noise, full combustion, power efficiency.Using ECU electronic control components, engine performance, economy and emissions of good technical indicators.The engine assembly USES frame support to reduce front-end wheel failure by 80%.Equipped with longgong homemade classic planetary gearbox, homemade drive axle, reinforced transmission shaft, high transmission efficiency, reliable work.Ergonomic design for comfort and safety.

LG850N technical parameters

Standard capacity (m3) 2.7-4.0

Rated deadweight (Kg) 5000

Rated power (KW/ RPM) 162/2200, 154/2200 (optional)

Operating quality (kg) 15850

Maximum traction (kN) 155

Maximum lifting force (kN) 165

Unloading height (mm) 3193

Basic performance

Machine operating weight (kg)15850

Rated deadweight (kg)5000

Bucket capacity (m3)2.7-4.0

Unloading height - unloading Angle: 45°3193(mm)

Digging force (excavation force) (kN)165

Rated load (ton)5-6 tons

Rated power (kw/ RPM)162/2200, 154/2200 (optional)

Longgong LG850N (third country) loader performance characteristics

1. Strong new power and reliable transmission

• equipped with weichai three emission engine, air to air cooling, four valve structure, low noise, full combustion, power efficiency.

• using ECU(electronic control element), engine performance, economy and emission are excellent.

• the powertrain USES frame support to reduce front-end gear failures by 80%.

• equipped with longgong homemade classic planetary gearbox, homemade drive axle, reinforced transmission shaft, high transmission efficiency, reliable work.

2. Ergonomic design -- comfortable and safe

• the cab is designed with panoramic glass Windows, with a wide field of vision and almost 360° panoramic visibility.

• flexible suspension mounted in the cab, mechanically suspended aviation seats can well absorb the impact and vibration from the machine body,

Thus ease operator fatigue, improve ride comfort.

• the cab adopts stable frame structure, optional ROPS&FOPS, safe and reliable.

• the layout of electronic control switch, controller and control control is ergonomic, convenient and comfortable to operate.

• optional high efficiency air circulation air conditioning system with good defrosting function.

• engine nacelle and cab with noise reduction design.

• bucket automatic leveling technology effectively simplifies the operation and reduces the labor intensity of the operator.

3. Super frame structure is more robust and durable

• the box-like frame is thickened and reinforced to resist torque and increase durability.

• the main hinged plates are widely spaced, enhancing torsion resistance.

• the key structural components are analyzed by finite element method to ensure that the requirements of each working condition are met.

• robot welding, solid seam.

• wide spacing and good passability.

• short wheelbase layout, suitable for narrow working conditions, flexible operation.

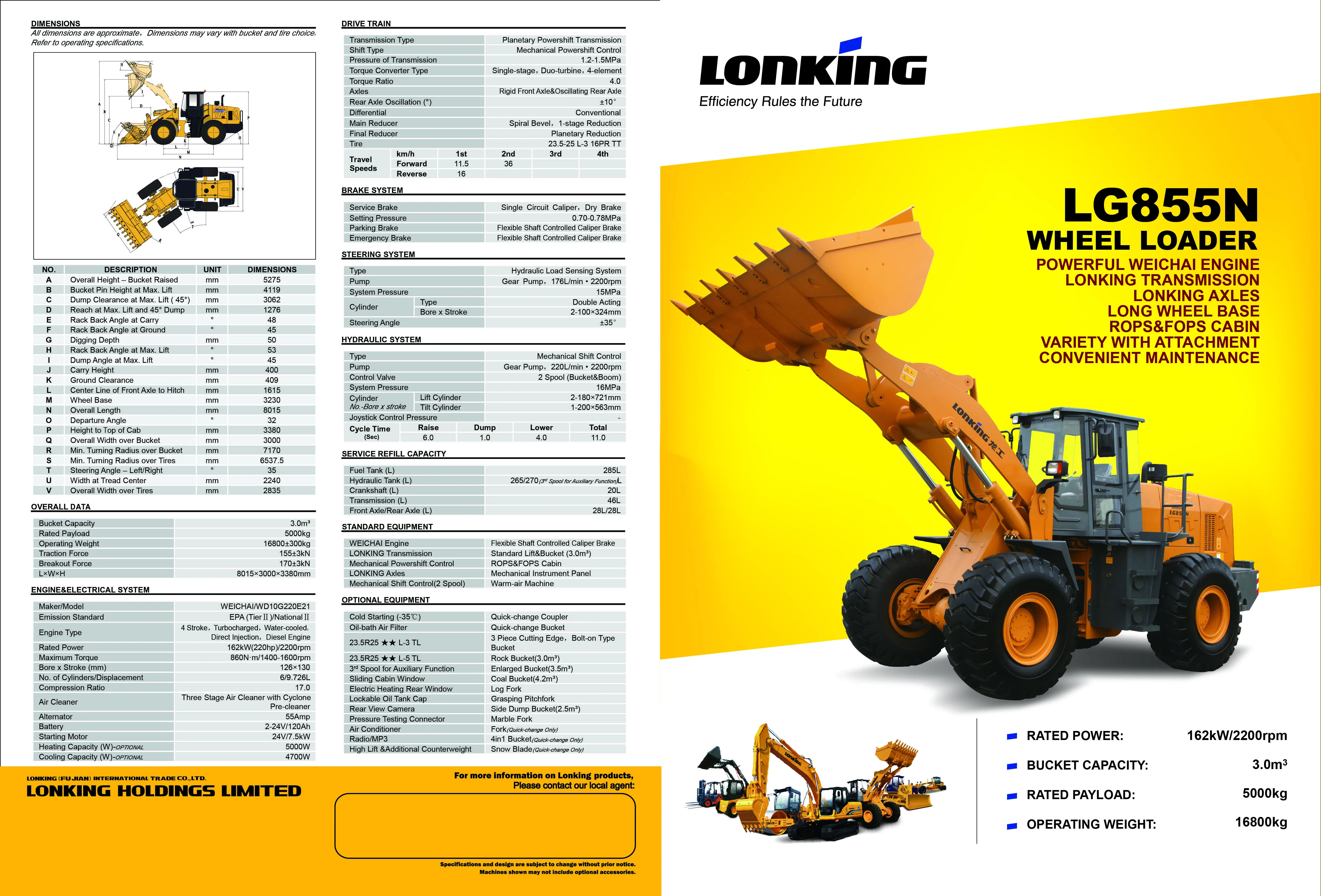

LG855NEnvironmental protection, strong new power, reliable transmission using international advanced electronic common rail system, power efficient weichai guo three emission engine.Precise ECU electronic control device, excellent engine performance, economy and emission.High sensitive electronic throttle control precision, effectively improve power, reduce fuel consumption.Siphon exhaust pipe reduces exhaust resistance, improves engine efficiency, and reduces overall noise.The engine assembly USES frame support to reduce front-end wheel failure by 80%.

LG855N technical parameters

Standard capacity (m3) 2.7-4.0

Rated deadweight (Kg) 5000

Rated power (KW/ RPM) 162/2200, 154/2200 (optional)

Operating quality (kg) 16800

Maximum traction (kN) 155±3

Maximum lifting force (kN) ≥170

Unloading height (mm) 3060

Basic performance

Operating weight (kg)16800

Rated deadweight (kg)5000

Scoop capacity (m3)2.7-4.0 unloading height -- unloading Angle: 45°3060(mm)

Unloading distance - unloading Angle is 45°

Digging force (digging force) (kN)≥170

Rated load (ton)5-6 tons

Longgong LG855N (national iii) loader performance characteristics

1, environmental protection, strong new power, reliable transmission

• adopt international advanced electronic common rail system, power efficient weichai three emission engine.

• precise ECU(electronic control device), excellent engine performance, economy and emission.

• high sensitivity electronic throttle control precision, effectively improve power, reduce fuel consumption.

• siphon exhaust pipe reduces exhaust resistance, improves engine efficiency, and reduces overall noise.

• the powertrain USES frame support to reduce front-end gear failures by 80%.

• equipped with longgong classic planetary gearbox and self-made drive axle, high transmission efficiency and reliable work.

2. Ergonomic design -- comfortable and safe

• the cab is designed with panoramic glass Windows, with a wide field of vision and almost 360° panoramic visibility.

• the flexible suspension of the cab is installed, and the mechanically suspended aviation seat can well absorb the impact and vibration from the main body of the machine, so as to ease operator fatigue and improve ride comfort.

• multi-direction adjustable seat, adjustable steering wheel, suitable for operators of all types to adjust to the best operating state.

• the cab adopts stable frame structure, optional ROPS&FOPS, safe and reliable.

• the layout of electronic control switch, controller and control control is ergonomic, convenient and comfortable to operate.

• optional high efficiency air circulation air conditioning system with good defrosting function.

• the cab and engine compartment are designed to reduce noise.

• bucket automatic leveling technology effectively simplifies the operation and reduces the labor intensity of the operator.

3. Super frame structure is more robust and durable

• the box-like frame is thickened and reinforced to resist torque and increase durability.

• the main hinged plates are widely spaced to resist loads from different directions and effectively decompose stress.

• all key structural components are analyzed by finite element method to ensure that all heavy-duty conditions are met.

• robot welding, solid seam.

• the long wheelbase is arranged in the middle, the bridge load distribution is reasonable, and the adaptability of heavy load is further improved.

LG862NEnvironmental protection, strong new power, reliable transmission weichai guo three emission engine, air-air cooling, four valve structure, low noise, full combustion, power efficiency (strong).Using ECU (electronic control unit), the engine has good performance, economy and emission.The engine and double transformer assembly are supported by frame, which can reduce the front gear failure rate by 80%.Equipped with longgong homemade 6 ton gearbox, drive axle, equipped with imported bearing transmission efficiency, reliability is stronger.

Main technical parameters

Standard capacity (m3) 3.5-5.6

Rated load (Kg) 6000

Rated power (KW/ RPM) 178/2200

Operating quality (kg) 20500

Maximum traction (kN) 179±3

Maximum lifting force (kN) 200±3

Maximum unloading height (mm) 3410

Basic performance

Operating weight (kg)20500

Rated load (kg)6000

Bucket capacity (m3)3.5-5.6

Unloading height - unloading Angle: 45°3401(mm)

Unloading distance - unloading Angle is 45°

Digging force (excavation force) (kN)200±3

Rated load (ton) above 6 tons

Longgong LG862N (third country) loader performance characteristics

1, environmental protection, strong new power, reliable transmission

• equipped with weichai three emission engine, air to air cooling, four valve structure, low noise, full combustion, power efficiency (strong).

• adopt ECU (electronic control unit), engine performance, economy and emission are excellent.

• the engine and double transformer assembly are supported by a frame, reducing the front gear failure rate by 80%.

• equipped with longgong homemade 6t class gearbox and drive axle, equipped with imported bearing with high transmission efficiency and stronger reliability.

• end tooth flange shaft with heavy transmission, with higher centering accuracy and enhanced transmission capacity.

2. Ergonomic design -- comfortable and safe

• the cab is designed with panoramic glass Windows, with a wide field of vision and almost 360° panoramic visibility.

• the flexible suspension of the cab is installed, and the mechanically suspended aviation seat can well absorb the impact and vibration from the main body of the machine, so as to ease operator fatigue and improve ride comfort.

• multi-direction adjustable seat, adjustable steering wheel, suitable for operators of all types to adjust to the best operating state.

• the cab adopts stable frame structure, optional ROPS&FOPS, safe and reliable.

• equipped with pilot hydraulic operating system, the operation is flexible, accurate and more efficient.

• the layout of electronic control switch, controller and control control is ergonomic, convenient and comfortable to operate.

• optional high efficiency air circulation air conditioning system with good defrosting function.

• the cab and engine compartment are designed to reduce noise.

• bucket automatic leveling technology effectively simplifies the operation and reduces the labor intensity of the operator.

3. Super frame structure is more robust and durable

• the reinforced 6t class vehicle frame after finite element analysis, with reasonable stress distribution, strong and durable, fully meet the requirements of harsh conditions.

• the main hinged plates are widely spaced, enhancing torsion resistance.

• high quality rubber limit device is installed at vehicle frame hinge, which can effectively reduce steering impact force and improve the service life of hinge seat and bearing.

• equipped with high wear resistance integral cutter plate, increase welding side teeth, strong cutting ability, high structural strength;Add secondary guardrail at the top of bucket to effectively prevent falling of high materials.

• ultra high unloading height, super large capacity and high strength design, to meet the needs of various working conditions.

• long wheelbase layout, reasonable bridge load distribution, and further improve the adaptability of heavy load.

4. Scientific maintenance management system

• integrated needle diagnostic interface for accurate and convenient engine fault diagnosis.

• open three-section hood, front, middle and back hood are independent of each other, improving the convenience of machine maintenance.

• standard 93 sand and air filter can reduce the early grinding rate of the fourth equipment by more than 90%, making daily maintenance convenient.

• integrated built-in filter element, convenient maintenance and low cost.

• the air conditioner filter can be easily replaced in the cab.

• the fuel tank rotates sideways to provide wide maintenance space.

• the circuit adopts modular design for easy maintenance.
