made in china high quality diesel underground Loader / Scooptram / LHD with Perfect after Sales Service for Sale
- 10000.00 unit
| type: | diesel engine scooptram; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Brand Name: | SDTW; | Packaging Detail: | nude packing; |
| Supply Ability: | 100 Unit/Units per Month; | Condition: | New; |
| Warranty: | full one year; | Color: | in rad and white; |
| Product name: | scooptram; | Port: | qingdao; |
| Place of Origin: | Shandong China (Mainland); | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |

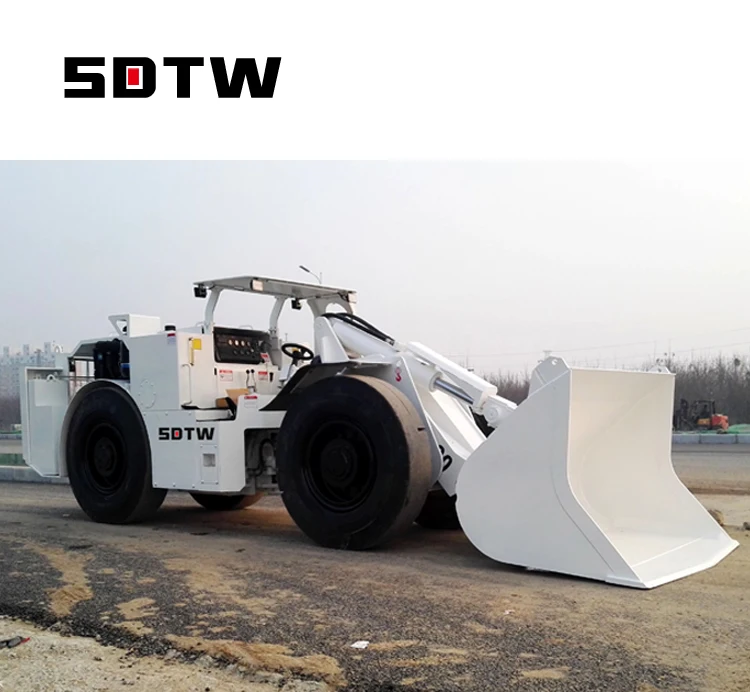

Made in china high quality diesel underground Loader / Scooptram / LHD with Perfect after Sales Service for Sale

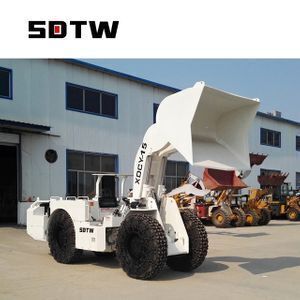

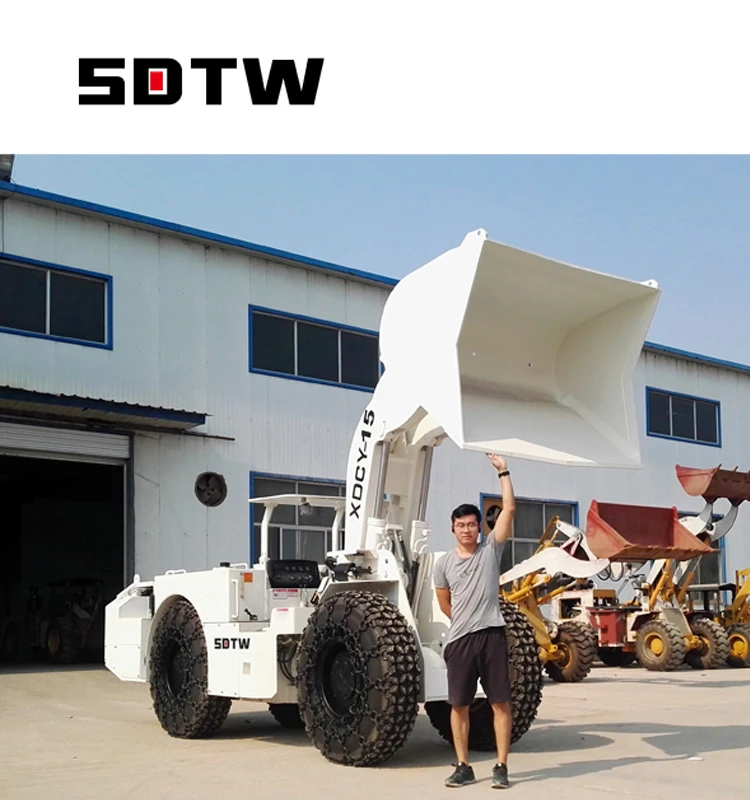

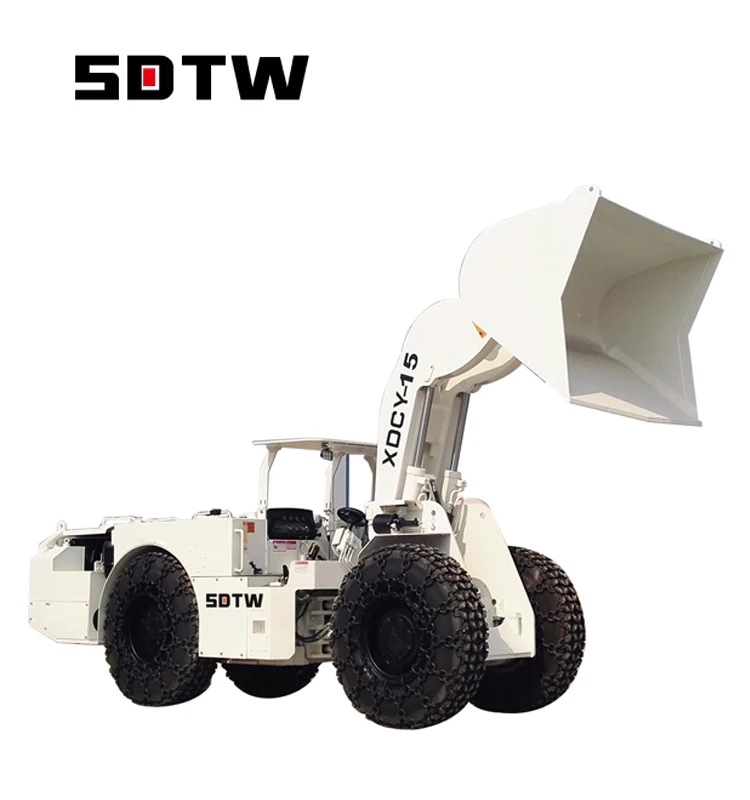

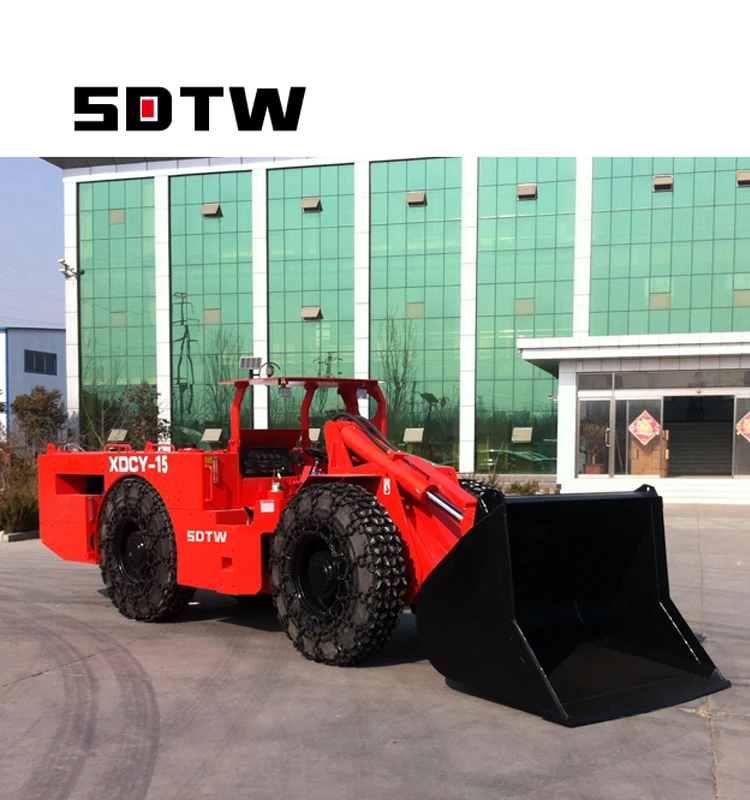

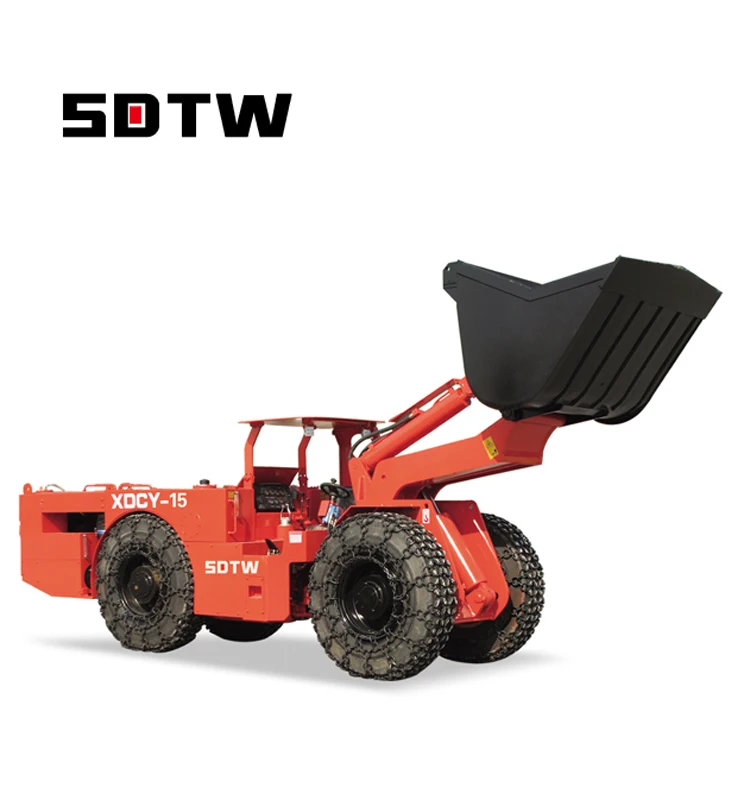

XDCY-15 1.5 CBM Diesel LHD (2.1M Dumping)
Feature&Benefits
1. Power system adopts YTO turbo-charged engine, big power, low emissions.
2. Using technology leader slewing structure, hydraulic steering, rear axle swing compared to traditional forms, lower failure rate, easy to maintain.
3. Walk system uses hydraulic torque converter, power shift transmission, and improve reliability.
4. Operating system adopts pilot control, making the operation more simple work, work more efficiently.
5.Exhaust system is equipped with imported purifier water filtration system, greatly reducing air pollution.
6. Vehicle chassis plate thickening, enhanced vehicle steel bucket shovel blade made of high strength alloy steel, wear resistance to shear, V-type structure, reducing scooping resistance and longer life.
7. Adopt 12.00-24 puncture resistant smooth rubber tires.
8. Working brake is air over hydraulic oil wet type brake, parking brake is air over hydraulic oil caliper disc brake, the brake is safe and reliable.
9. The machine can be shoveling, loading, transport, unloading one operation, compact structure, convenient operation, high efficiency operation for recovery of mines and tunneling mucking, and workplace and road construction formation, transport of materials and other auxiliary operations.
Specifications
Model | XDCY-15 |
Main specifications | |
Bucket capacity (m3 ) | 1.5 |
Rated load (t) | 3.0 |
Weight (t) | 10.0 |
Lifting time of the arms (s) | ≤4 |
The sum of three items(s) | ≤9 |
Forward gear(km/h) | I 0-9.5 II 0-28.5 |
Reverse gear | I 0- 12.8 |
Max. climbing gradient | 20° |
Dimensions | |
Overall dimension (mm) | 6450×1600×2100 |
Wheel base (mm) | 2750 |
Wheel tread(mm) | 1270 |
Max. dumping height(mm) | 2100 |
Dumping reach (mm) | 1085 |
Diesel engine | |
Engine model | YTO LR4M3Z-22 TURBO /CUMMINS 4BTA3.9-C125 |
Engine type | In-line,water-cooling,4-stroke, 4 cylinders, direct-injection |
Rated power(kw) | 81/92 |
Rated speed (r/min) | 2200/2200 |
Total exhaust of cylinder(L) | 4.5/3.9 |
Type of starting | Electric start |
Transmission system | |
Torque converter |
|
Model | China LIUGONG BS205 |
Type | Single stage, three elements |
Gearbox |
|
Model | China LIUGONG BS205 |
Type | Planetary power shift |
Axle and tire | YUNYU CY30S |
Type of main reducer | Spiral bevel gear,single stage |
Type of final reducer | Single stage planetary |
Size of tire | 12.00-24 |
Working device of hydraulic system | |
Model of working pump | CBG2100 |
Nominal displacement(ml/r) | 100 |
Rated pressure(Mpa) | 12.5 |
Multi-way directional valve | DF32.2 |
Pressure(Mpa) | 20 |
Rated flow(L/min) | 250 |
Steering system | |
Type | Load-sensing hydraulic steering |
Displacement(ml/r) | 400 |
Max input pressure(Mpa) | 16 |
Brake system | |
Type of traveling brake | Air over hydraulic oil wet type brake |
Type of parking brake | Air over hydraulic oil caliper disc brake |

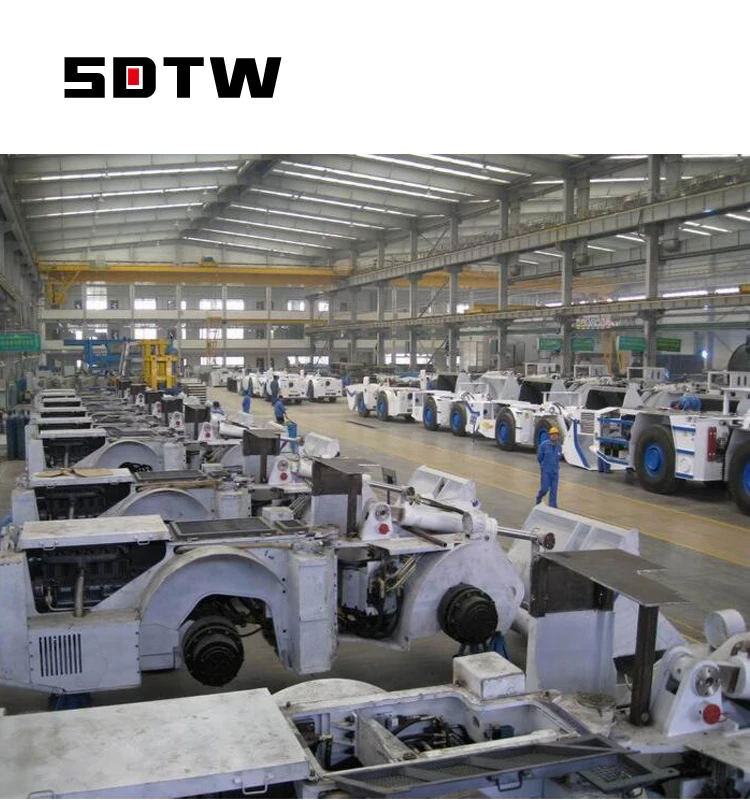

Shandong Tongwu Machinery Equipment Co., Ltd, is one of the professional total solution supplier of construction machinery and engineering machinery with its many years of production, sales and services. Tongwu keeps on growing with its reliable products and good service, Product coverage continues to expand, like Crawler excavator, Wheel excavator, Backhoe loader, Wheel loader, Skid steering loader, Truck concrete pump, Forklift, Road roller, Grader.
Tongwu sales network covers more than 20 provinces and cities, and exported to more than 50 countries, like Australia, Thailand, Indonesia, Brazil, Argentina, South Africa, Germany, England, France, Finland etc, several countries are with agent and distributors. Company adheres service first, quality-oriented management aim, got more and more good reputation these years.
For more information, please send inquiry to following information.
