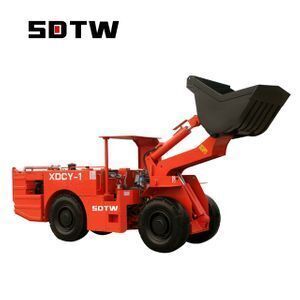

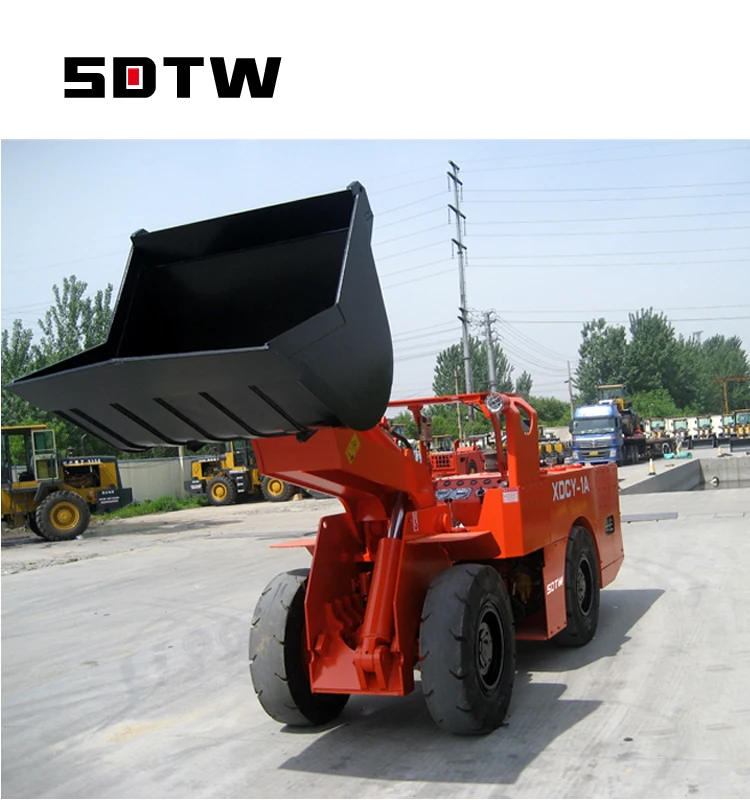

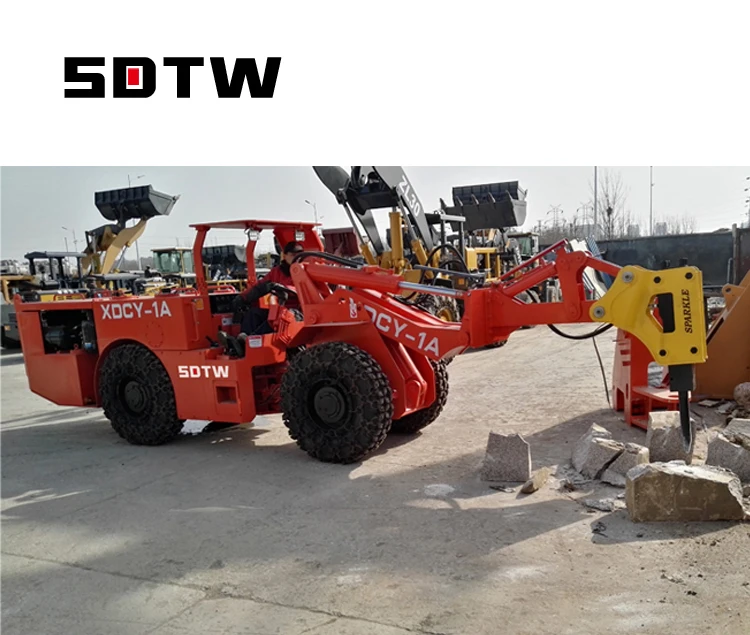

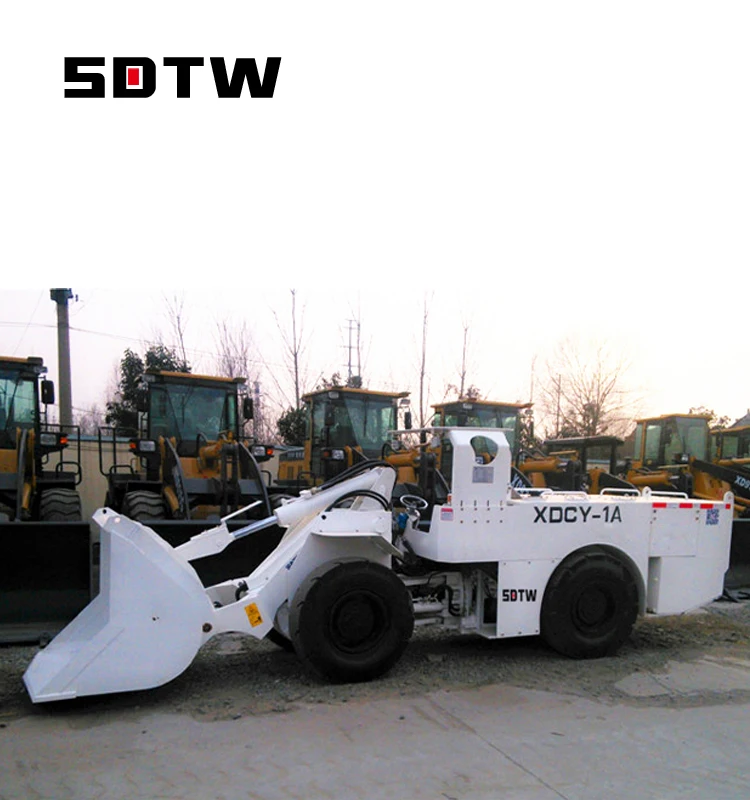

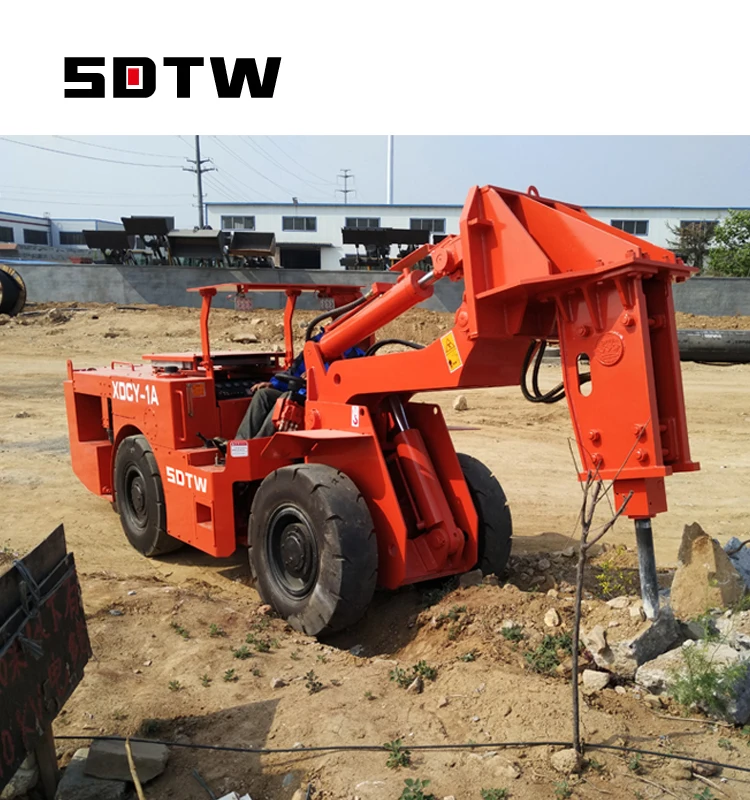

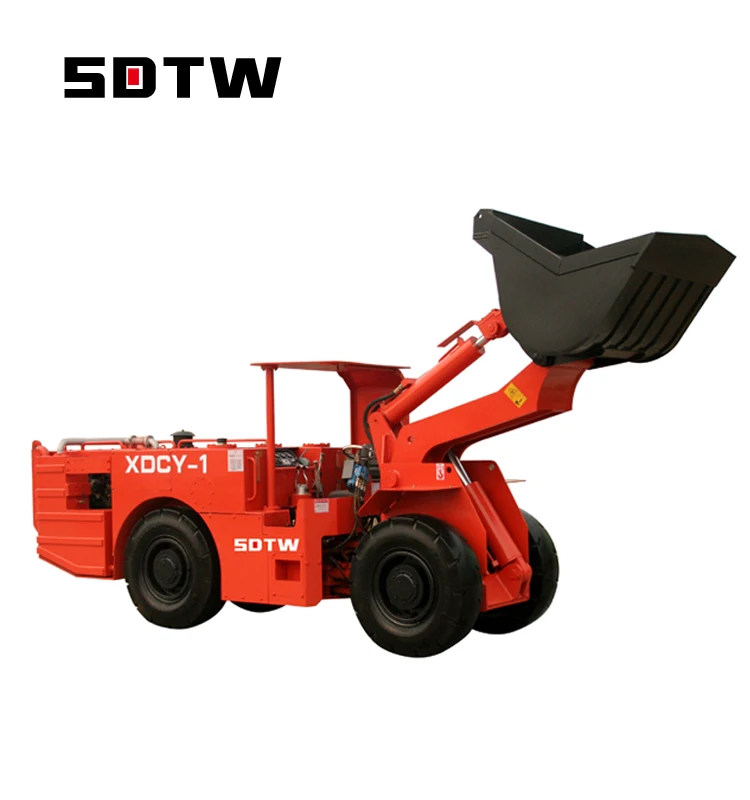

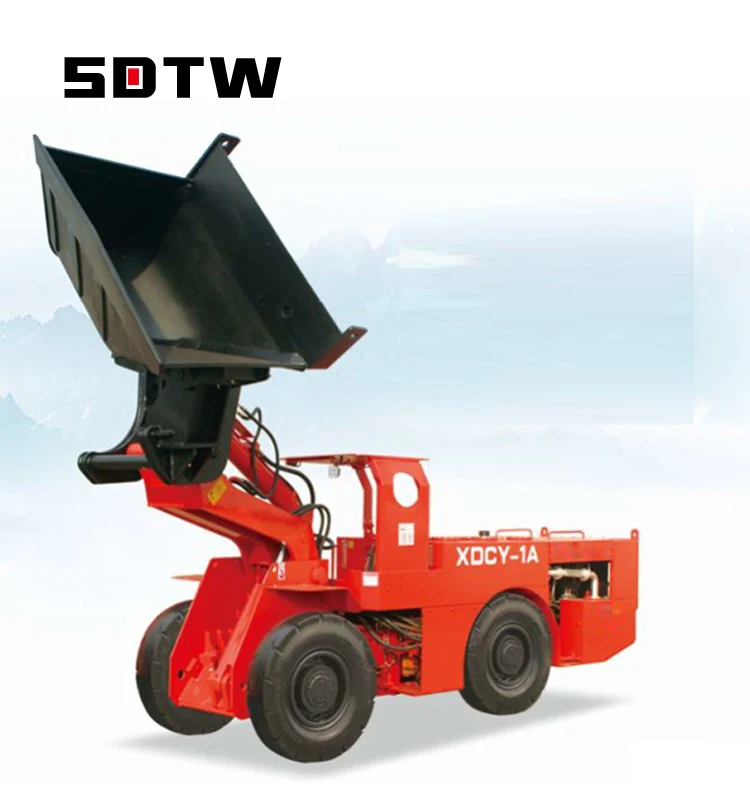

China High Quality TONGWU 1.0m3 Diesel Underground Loader / Scooptram / LHD

Supplier: Shandong Tongwu Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Michael Xu
Price: $50000.00 / >=2 units
Min. Order: 2 units

Click here to contact

Product details

Port:	QINGDAO;	Color:	in red and white;
Local Service Location:	Peru,Chile,Uzbekistan;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Application:	Underground Loader;	Supply Ability:	100 Unit/Units per Month;
Brand Name:	SDTW;	Warranty:	1.5 years;
Showroom Location:	Chile,Uzbekistan;	Condition:	New;
type:	diesel engine scooptram;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	nude packing;	Place of Origin:	Shandong China;
Capacity:	1-4 cbm;	Warranty:	full one year;
Usage:	Underground Areas;	Applicable Industries:	Construction works ,Energy & Mining;
Product Name:	scooptram;

China High Quality TONGWU 1.0m3 Diesel Underground Loader / Scooptram / LHDatest price XDCY-1A 66KW 1cbm Scooptram

Product Description

Specification

Model	XDCY-1A(Normal bucket)	XDCY-1A (Side dumping bucket)
Main specifications
Bucket capacity (m³ )	1.0	1.0
Rated load (t)	2.0	2.0
Weight (t)	7.0	7.0
Lifting time of the arms (s)	≤4	≤4
The sum of three items(s)	≤8	≤8
Forward gear(km/h)	I 0-5.8 II 0-9.5	I 0-5.8 II 0-9.5
Reverse gear	I 0-5.8 II 0-9.5	I 0-5.8 II 0-9.5
Max. climbing gradient	20°	20°
Dimensions
Overall dimension (L×W×H mm)	5717×1300×2000	5817×1300×2000
Wheel base (mm)	2242	2242
Wheel tread(mm)	1000	1000
Max. dumping height(mm)	1250/1700/2100	2400
Dumping reach (mm)	860	280
Diesel engine
Engine model	LR4A3Z-22/ CUMMINS 4BTA3.9-C80	LR4A3Z-22/ CUMMINS 4BTA3.9-C80
Engine type	In-line,water-cooling, 4-strokec,4 cylinders, direct-injection	In-line,water-cooling, 4-strokec,4 cylinders, direct-injection
Rated power(kw)	66.2/60	66.2/60
Transmission system
Torque converter
Model	YJ280	YJ280
Type	Single stage, three elements	Single stage, three elements
Gearbox
Model	ZL20	ZL20
Type	Fix counter-shaft, power-shift	Fix counter-shaft, power-shift
Axle and tire	YUNYU CY20S
Size of tire	10.00-20	10.00-20
Working device of hydraulic system
Model of working pump	CBG2063	CBG2063
Nominal displacement(ml/r)	63	63
Rated pressure(Mpa)	16	16
Multi-way directional valve	ZL20	ZL20
Pressure(Mpa)	17	17
Rated flow(L/min)	100	100
Steering system
Type	Load-sensing hydraulic steering	Load-sensing hydraulic steering
Displacement(ml/r)	250	250
Max input pressure(Mpa)	16	16

Company Information

Shandong Tongwu Machinery Equipment Co., Ltd, is one of the professional total solution supplier of construction machinery and engineering machinery with its many years of production, sales and services. Tongwu keeps on growing with its reliable products and good service, Product coverage continues to expand, like Crawler excavator, Wheel excavator, Backhoe loader, Wheel loader, Skid steering loader, Truck concrete pump, Forklift, Road roller, Grader.

Tongwu sales network covers more than 20 provinces and cities, and exported to more than 50 countries, like Australia, Thailand, Indonesia, Brazil, Argentina, South Africa, Germany, England, France, Finland etc, several countries are with agent and distributors. Company adheres service first, quality-oriented management aim, got more and more good reputation these years.
