Bamboo Toothpick Processing Equipment Bamboo Toothpick Making Machine

Supplier: Kaifeng Youdo Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Cherry Han
Price: $9200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	1850kg;	Toothpick specifications:	Two pointed;
Operation:	Easy Handle;	Supply Ability:	50 Set/Sets per Month;
Advantage:	High Effiency;	Warranty:	1 Year;
Function:	Bamboo Toothpic Processing Machine;	Capacity:	800,000/8h;
Payment Terms:	T/T,Western Union,MoneyGram,Paypal;	Power(W):	23.41kw;
Brand Name:	UD;	Certification:	GS;
Condition:	New;	Dimension(LWH):	9.65cbm;
Raw material:	Bamboo;	Packaging Detail:	Wooden cases;
Voltage:	380V;	Feature:	High Capacity;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms;	Showroom Location:	None;
Port:	Qingdao port;	Toothpick size:	Diameter2.0mm,length65mm;
Local Service Location:	None;	Place of Origin:	China;
After-sales Service Provided:	Overseas third-party support available;	After Warranty Service:	Video technical support,Online support;
Machine name:	Bamboo toothpick ancillary equipment production lines;

Bamboo Toothpick Processing Equipment Bamboo Toothpick Making Machine

Introduction

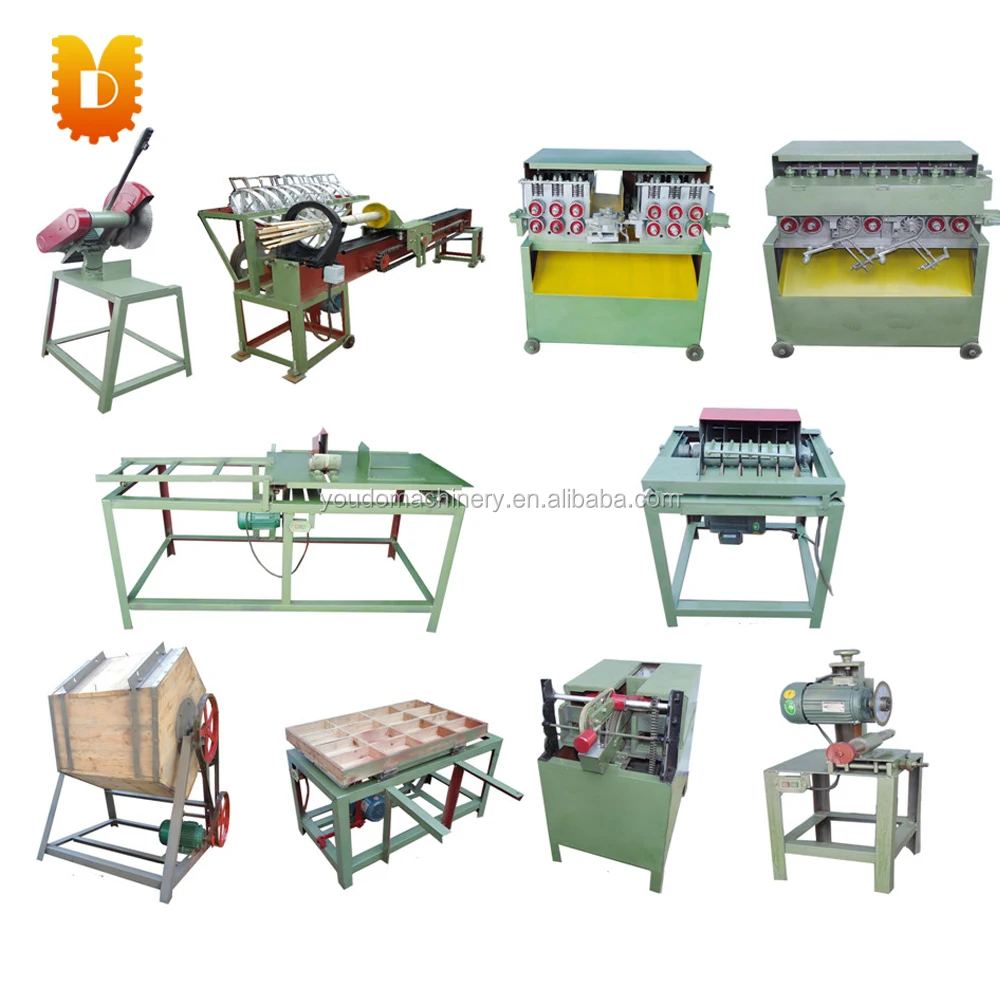

1. The original bamboo - take the material sawing - open bamboo - section of the set wide open film - drawing - bleaching - drying - cut length - polished - finishing - sharpening - packaging.

2. More than 10 for a production line, the production of two pointed toothpicks, 8 hours of production 800,000, about 100 kg. Need to operate 4-6 employees, the use of industrial electricity 380v. An increase of Unit 9, the output doubled, then 1.6 million.

3. If you want to produce a tip of a carved bamboo toothpicks, then replace the 9 machine (a sharpening machine) can, the same 10 machines as a set, 8 hours output of 600,000, an increase of 9 (a sharpening machine One), production doubled, then 1.2 million.

4. Usually every 100 kg of fresh (wet) bamboo, can produce diameter 2.0mm, 65mm long toothpick specifications of 10-13 million, about 13-16 kg dry finished toothpicks.

Technical parameters

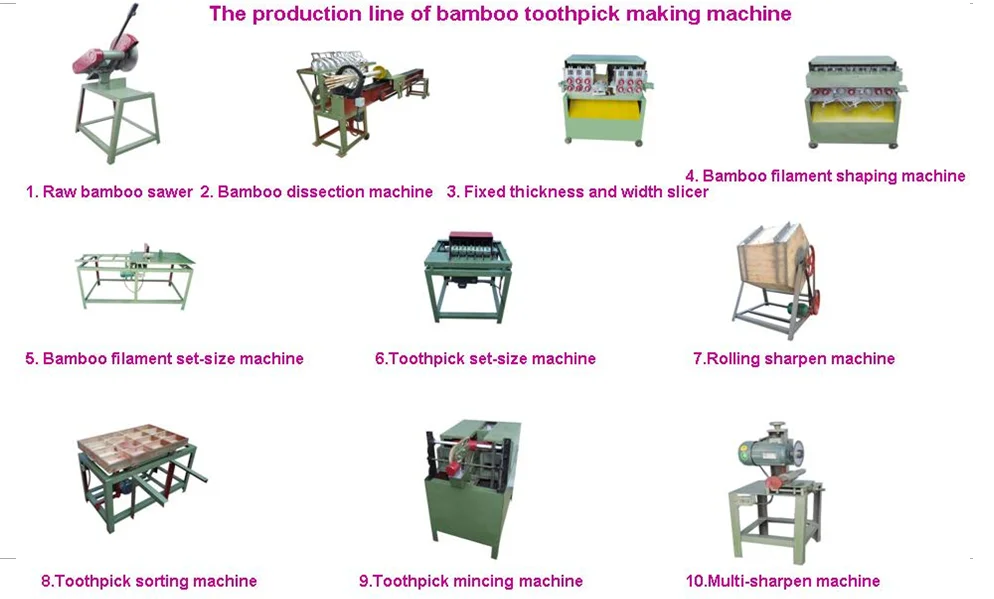

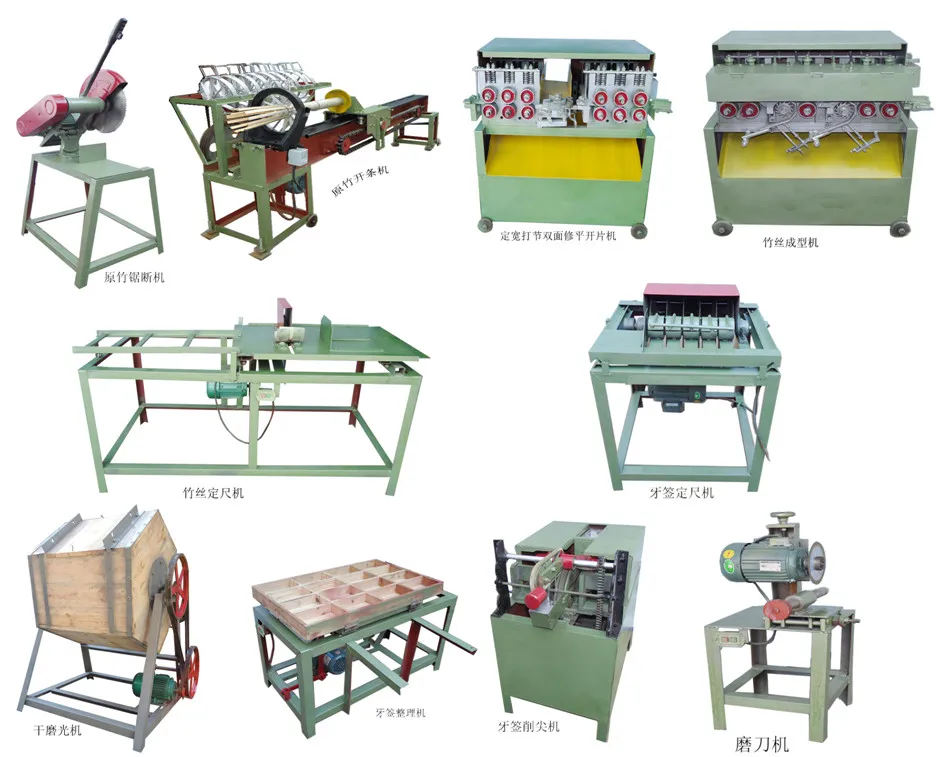

No.	Item	Description & parameters	Motor
1	Bamboo sawing machine	Model : UD-111 Weight : 65 kg Dimension :900510930 mm	2.2 kw
2	Bamboo dissection machine	Model : UD-102 Weight :630kg Dimension :30008501200mm	3.0 kw
3	Bamboo flaker	Model : UD-103 Weight :450kg Dimension :14606601000mm	3.7 kw
4	Bamboo filament shaping machine	Model : UD-104 Weight :450kg Dimension :1050650990mm	8.1kw
5	Bamboo filament set-size machine	Model : UD-105 Weight :85kg Dimension :1500650990mm	0.75kw
6	bamboo toothpick set-size machine	Model : UD-278 Weight :210 KG Dimension :900600800 mm	2KW
7	Polishing machine	Model : UD-80 Weight :120 kg Dimension :10008001200 mm	1.5kw
8	toothpick finishing machine	Model : UD-113 Weight :65 kg Dimension :5301000800 mm	0.55kw
9	Tooth pick mincing machine	Model :UD-268 Weight :260 kg Dimension :9005701010 mm	2.75KW
10	Multi-sharpen machine	Model : UD-112 Weight :65kg Dimension :750500950mm	0.55kw
