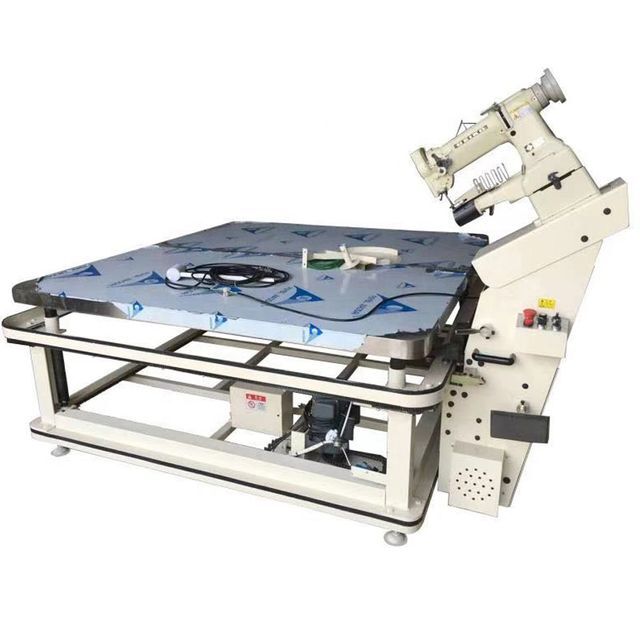

Automatic mattress tape sewing machine

Supplier: Kaifeng Youdo Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Cherry Han
Price: $2050.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Preview:		place of origin; place of origin:	Henan, China
Supply capacity:	20 pieces per month	Sewing head angle:	40 degree

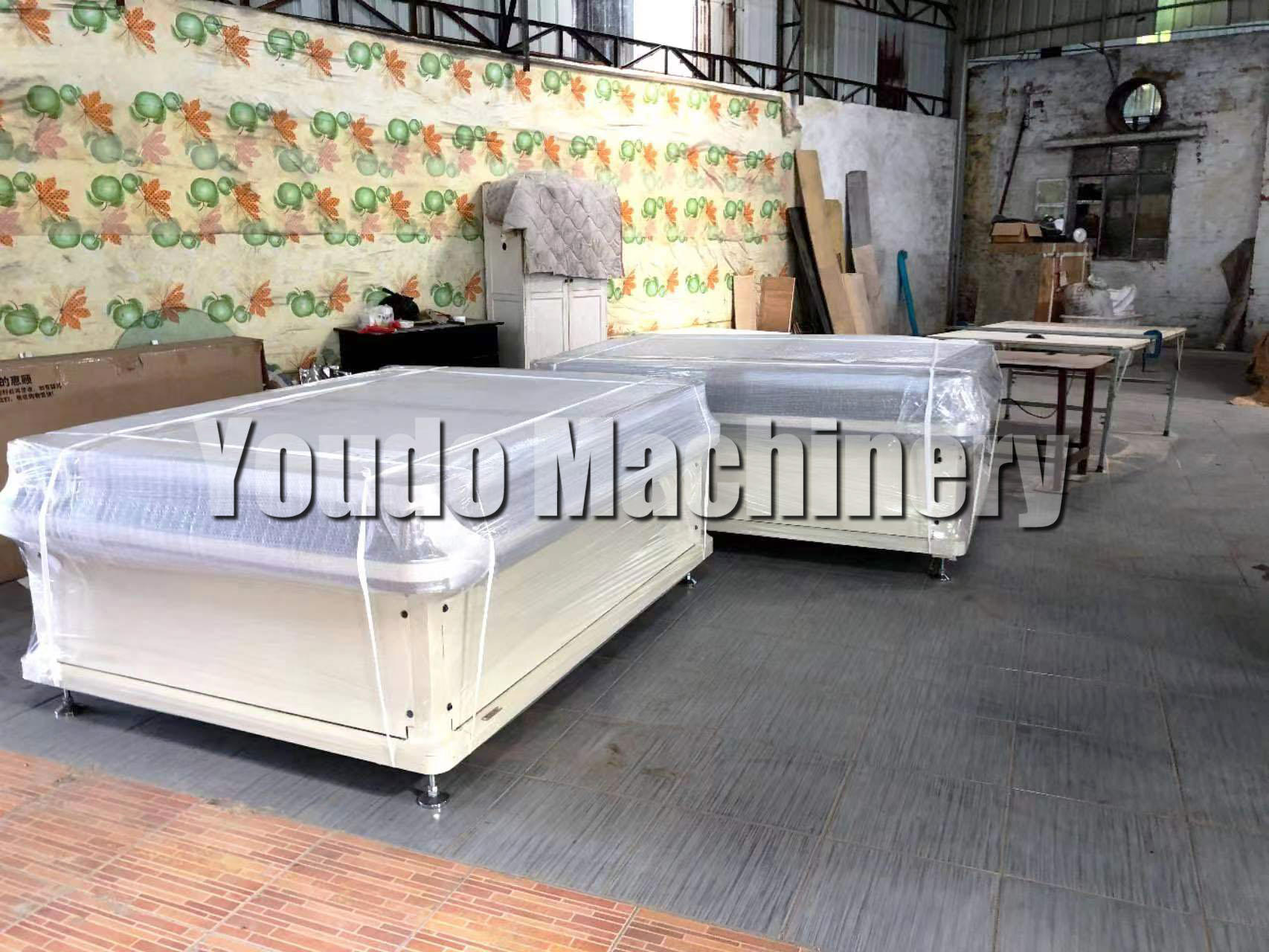

Mattress Thickness:	100-350mm	Packaging Details:	wooden box
Health status:	new	Core Components Warranty:	1 year
Video external inspection:	if	Marketing Type:	New Products 2020
Voltage:	220V	Sewing head:	8B
payment terms:	L/C,Western Union,T/T,MoneyGram	port:	Qingdao
Table lift:	automatic	Core components:	PLC, motor
Workbench:	1500*1950mm	brand:	UD
Dimensions (LWH):	20521600820mm	Model:	UDBB-8B
Mechanical test report:	if	Table lift stroke:	0-280mm
weight:	480kg,480	strength:	220v
Key words:	Mattress Sewing Machine	Showroom location:	not any
Warranty:	1 year	Applicable industries:	Manufacturing plant, home use

Youdu Machineryis a factory with 10 years experience in machinery production and foreign trade.

For ten years, we have helped friends in 152 countries to start businesses.

With our support, the business of 1230 friends is getting bigger and bigger, ranking in the forefront of the industry.

We have received after-sales praise from more than 10,000 friends, we strictly control the quality of our products, and have long-term cooperation with 127 large foreign companies based on the principle of mutual benefit.

Our service tenet is:Choose us to make you rich. Finding us means you will find a one-stop solution for your needs.

Choose us to start your business development journey.

Please let me grow with you, my friend.

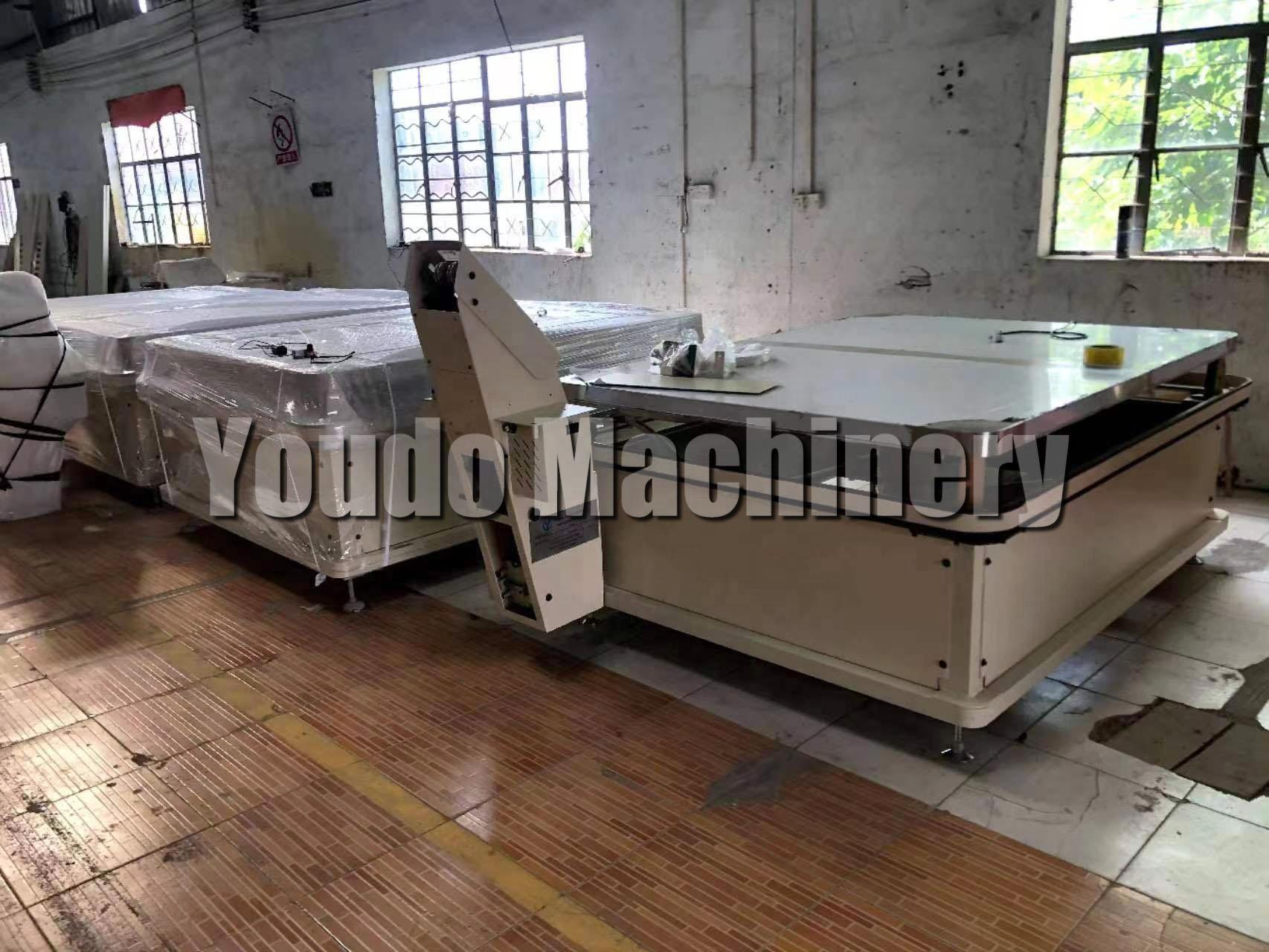

Finished product display

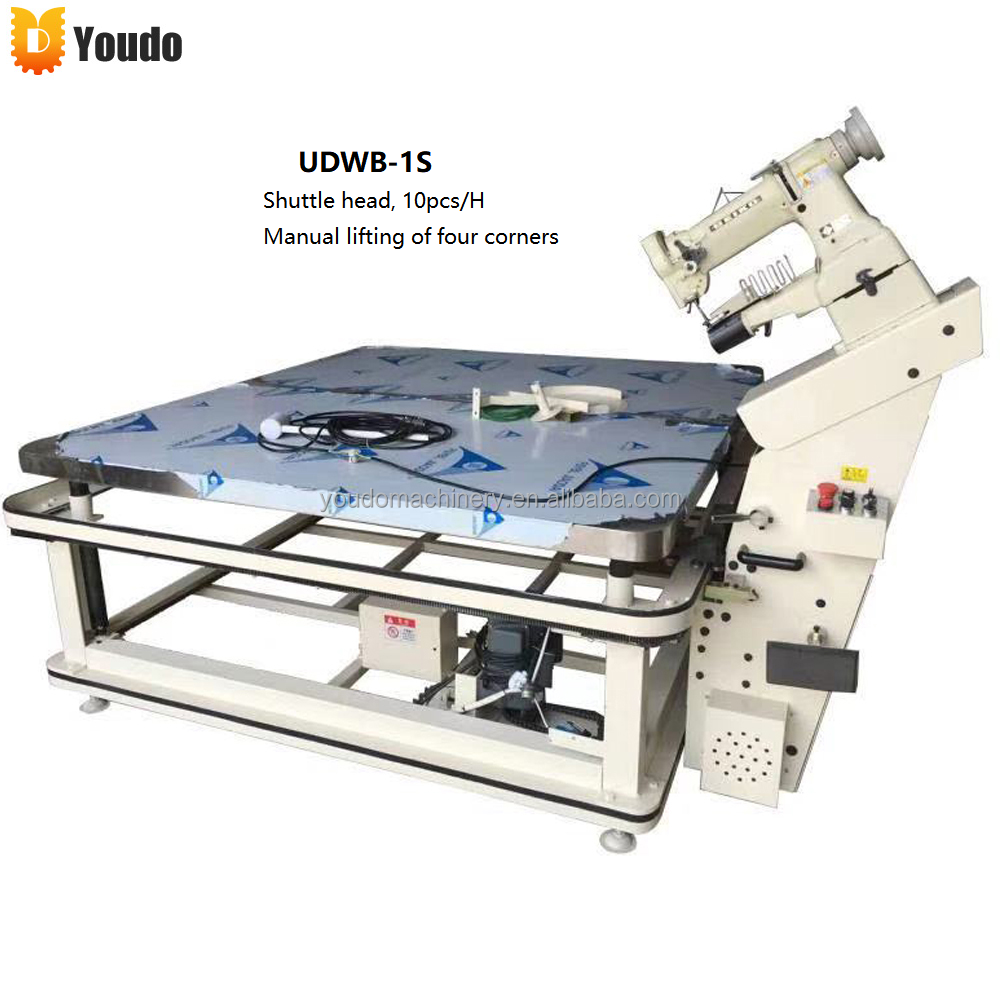

UDWB-1SShuttle head, 10pcs/H, four-corner manual lift

Model	UDWB-1S
Sewing maximum pitch angle	40°
Table lifting stroke	0-280(mm)
working desk size	1500x1950mm
Model size	2173x1722x800mm
Frame table lift form	Screw drive/electric lift
Chassis hoisting form	Manual/electric adjustment of inclination
power supply	220V 50HZ
weight	430kg

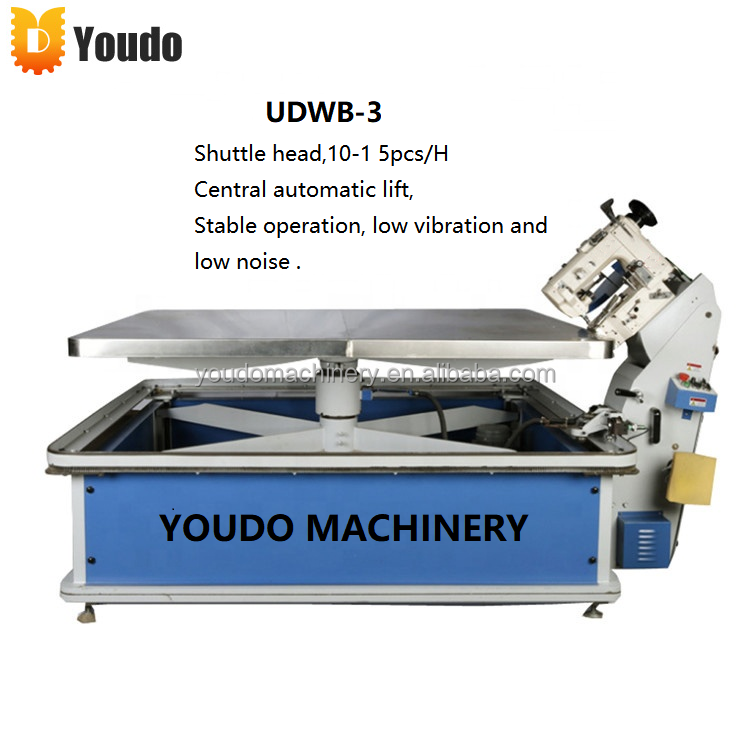

UDWB-3Shuttle head, 10-15pcs/H, central automatic lift, stable operation, low vibration and low noise.

Model	UDWB-3
head model	Shuttle 8B-2
Adjustable tilt angle of sewing machine head:	38°-52°
The lifting stroke of the worktable is adjustable:	0-260mm
Mattress overlock range	20-50mm
aspect	26502250820mm
weight	488kg
capacity	12-15 sheets/hour
strength	1.2KW
Voltage	220V/50HZ/220V/60HZ/380V/50HZ

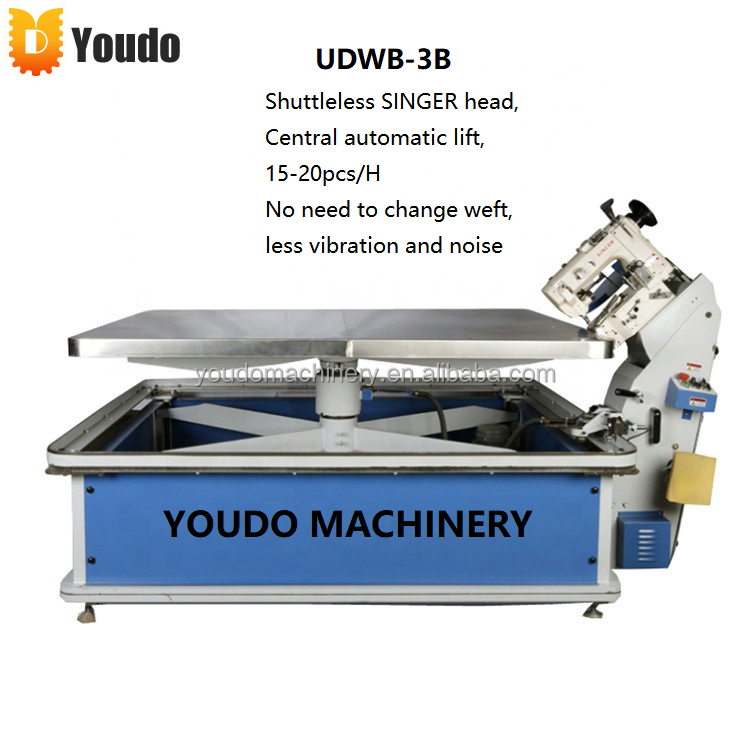

UDWB-3B.Shuttleless SINGER head, central automatic lifting, 15-20 pieces/hour, no need to change weft, low vibration and low noise

Model	UDWB-3B
Automatic deceleration in corners	Yes
head model	Singer-300U Shuttleless Gimbal
head working angle	35°-55°
Mattress Thickness	20-420mm
Lifting range of worktable	260mm
lift table	Electric (middle lift)
working desk size	1560*19600mm
head speed	1100~3000 (r/min)
Walking speed	6~16 (m/min)
Productivity	10~20/hour
Motor type	220-1p/380-3p
total motor power	1.2kW
gross weight	550kg
Machine size	22501750800mm

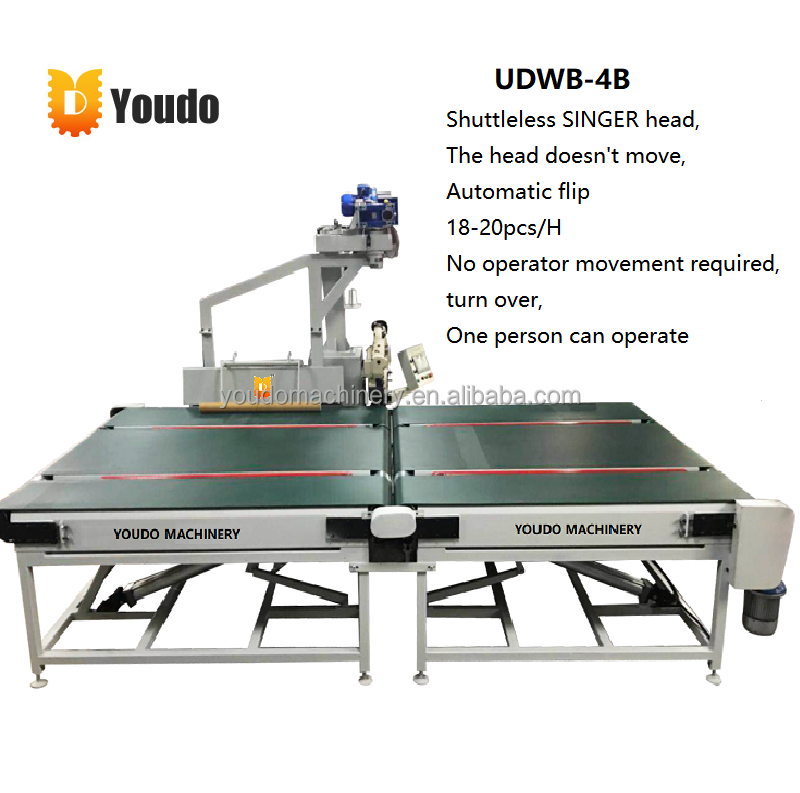

UDWB-4BShuttleless singing head, the head does not move, automatically flips, 18-20 / hour, no need for the operator to move, flip, one person can operate.

Model	UDWB-4B
head model	Singer-300U
head working angle	35°-65°
Mattress Thickness	60-450mm (special customization)
work efficiency	18-12 sheets/hour
working desk size	20003950900mm
total measurement	2850*4050mm
Working power	Three-phase 380V
work pressure	06~1.0Mpa
total motor power	4KW
Conveyor belt motor power	0.75KW (2 units)
Lifting motor power	0.37KW
Corner motor power	1.5KW
head motor power	0.37KW
gross weight	1300KG
