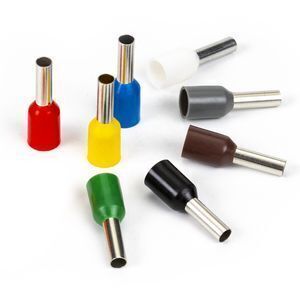

WenZhou E0508 7508 1008 1508 2508 VE series copper tube wire electrical Pin terminal Copper ferrule insulated cord end terminals
- 0.10 bag
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Plating Type: | Tinned; | Color: | Red, yellow, blue, green, black, gray, brown, white, orange; |
| Pack: | 100-1000PCS/Bag; | Metal Material: | Copper&Brass; |
| Place of Origin: | Zhejiang China; | Product Name: | insulated cord end terminals; |
| A.W.G: | #24--#1; | Packaging Detail: | It is usually packed in a transparent packaging bag. Can be specified, packed in transparent plastic box.; |
| Surface coating: | Electro Tin Plated; | Application: | Wire crimping; |
| Brand Name: | CHFRPU; | Port: | shanghai ningbo; |
| Supply Ability: | 35000.0 Bag/Bags per Week; | Temperature resistance: | 105 ℃; |
| Model Number: | VE; | Insulator material: | Flame retardant PP; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| ITEM NO | VE |
| Metal Material | Copper&Brass |
| Surface coating | Electro Tin Plated |
| Insulator material | Flame retardant PP |
| Application | Wire crimping |
| A.W.G | #24-#1 |
| Color | Red, yellow, blue, green, black, gray, brown, white, orange |
Prodduct Size
| Quickly understand the model Take VE1008 as an example VE: Product series 10: suitable for 1.0 square millimeter wire 08: Exposed length of copper tube Metal material: copper & brass (Default copper. Please contact if you need brass. Brass price is more advantageous) Insulator material: flame retardant PP |
 |
|
ITEM NO
|
Dlmenslon(mm)
|
Cable slze
(mm²) |
|||||
|
F
|
L
|
W
|
DΦ
|
CΦ
|
A.W.G
|
||
|
VE0306
|
6.0
|
10.8
|
1.8
|
1.1
|
0.9
|
#24
|
0.3
|
|
VE0308
|
8.0
|
12.8
|
|||||
|
VE0310
|
10.0
|
14.8
|
|||||
|
VE0506
|
6.0
|
12.0
|
2.5
|
1.3
|
1.0
|
#22
|
0.5
|
|
VE0508
|
8.0
|
14.0
|
|||||
|
VE0510
|
10.0
|
16.0
|
|||||
|
VE0512
|
12.0
|
18.0
|
|||||
|
VE7506
|
6.0
|
12.6
|
2.8
|
1.6
|
1.3
|
#20
|
0.75
|
|
VE7508
|
8.0
|
14.6
|
|||||
|
VE7510
|
10.0
|
16.6
|
|||||
|
VE7512
|
12.0
|
18.6
|
|||||
|
VE1006
|
6.0
|
12.6
|
3.2
|
1.8
|
1.5
|
#18
|
1.0
|
|
VE1008
|
8.0
|
14.6
|
|||||
|
VE1010
|
10.0
|
16.6
|
|||||
|
VE1012
|
12.0
|
18.6
|
|||||
|
VE1508
|
8.0
|
15.2
|
3.6
|
2.0
|
1.7
|
#16
|
1.5
|
|
VE1510
|
10.0
|
17.2
|
|||||
|
VE1512
|
12.0
|
19.2
|
|||||
|
VE1518
|
18.0
|
25.2
|
|||||
|
VE2508
|
8.0
|
15.6
|
4.0
|
2.6
|
2.3
|
#14
|
2.5
|
|
VE2510
|
10.0
|
17.6
|
|||||
|
VE2512
|
12.0
|
19.6
|
|||||
|
VE2518
|
18.0
|
25.6
|
|||||
|
VE4009
|
9.0
|
17.2
|
4.8
|
3.2
|
2.8
|
#12
|
4.0
|
|
VE4012
|
12.0
|
20.2
|
|||||
|
VE4018
|
18.0
|
26.2
|
|||||
|
VE6010
|
10.0
|
18.6
|
6.0
|
3.9
|
3.5
|
#10
|
6.0
|
|
VE6012
|
12.0
|
20.6
|
|||||
|
VE6018
|
18.0
|
26.6
|
|||||
|
VE10-12
|
12.0
|
21.0
|
7.4
|
4.9
|
4.5
|
#7
|
10.0
|
|
VE10-18
|
18.0
|
27.0
|
|||||
|
VE16-12
|
12.0
|
22.0
|
8.6
|
6.2
|
5.8
|
#5
|
16.0
|
|
VE16-18
|
18.0
|
28.0
|
|||||
|
VE25-16
|
16.0
|
29.0
|
11.0
|
7.9
|
7.5
|
#4
|
25.0
|
|
VE25-22
|
22.0
|
35.0
|
|||||
|
VE35-16
|
16.0
|
30.0
|
12.5
|
8.7
|
8.3
|
#2
|
35.0
|
|
VE35-25
|
25.0
|
39.0
|
|||||
|
VE50-20
|
20.0
|
36.0
|
15.1
|
10.9
|
10.3
|
#1
|
50.0
|
|
VE50-25
|
25.0
|
41.0
|
|||||
Instructions
Package&Product
Certificate
