Pitch 2.0mm 6P 8P 10P 14P 26P 34P 40P 64P Vertical Male Jack Out Box Connector

Supplier: Bestconn (Wuhan) Technology Co., Ltd.
Region: Hubei, China
Contact: Ms Amy Hu
Price: $0.055 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

port:	Shenzhen Yantian Port	asphalt:	2.0mm

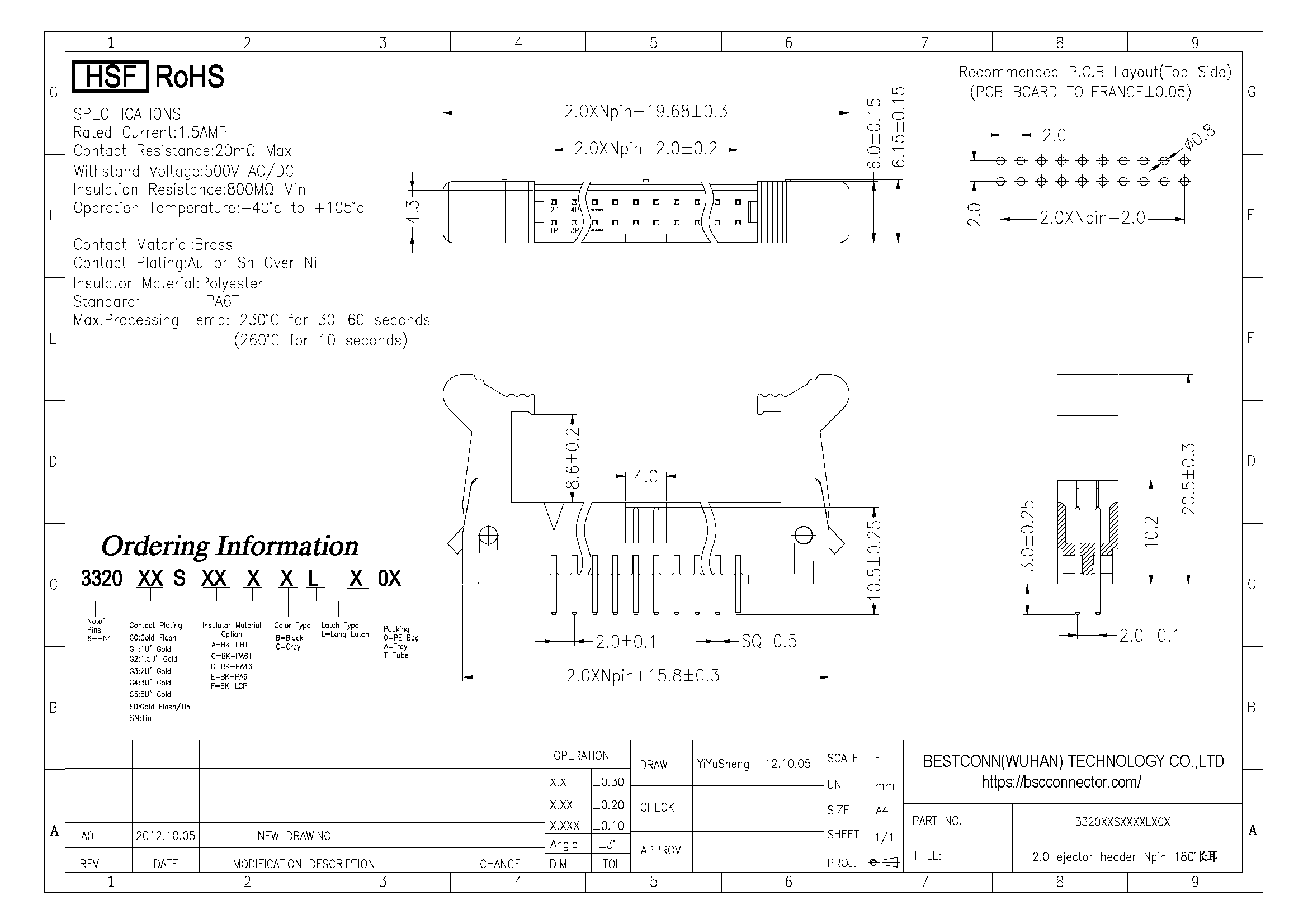

model:	3320-XXSXXXXLX0X	Insulation resistance:	Minimum 800mΩ
Rated current:	1.5 amps	shape:	straight
Origin:	China	Pressure resistance:	500V AC and DC

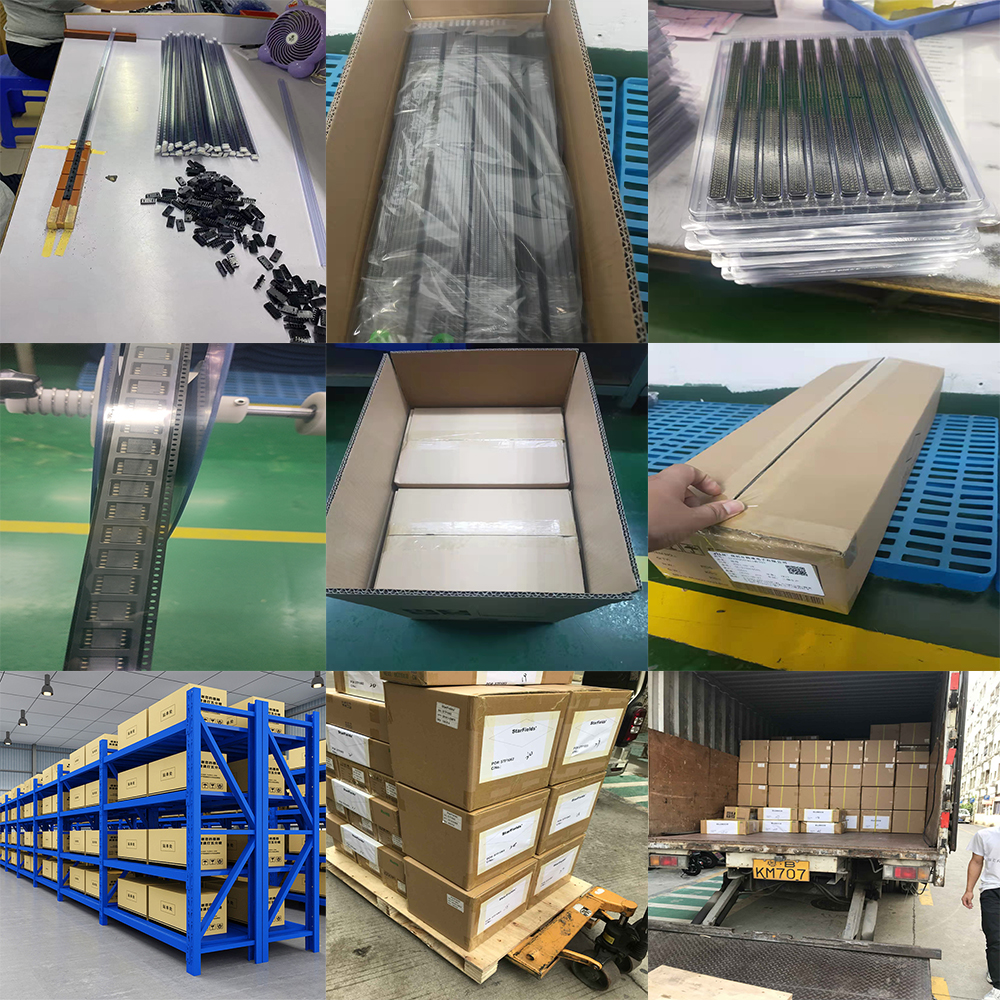

Packaging Details:	First into PE bags/trays/tubes/reels, then into cartons	Contact resistance:	20mΩ max
Supply capacity:	4,000,000 pieces per day	Contacts:	6~64P
Contact materials:	brass	Latches:	long latch
payment terms:	Western Union, T/T, Paypal	Package:	Tube/Tray/Reel + Lid

Contact Plating	gold or tin on nickel
Processing	accept
asphalt	2.0mm
Contacts	6~64P
shape	straight
latch	long latch
Package	Tube/Tray/Reel + Lid
rated current	1.5 amps
Contact resistance	20mΩ max
withstand voltage	500V AC and DC
Insulation resistance	Minimum 800mΩ
contact material	brass

The ejector has two horn-shaped ear buckles (long ear and short ear), so people call this connector Ejector Header, which is a very simple internal wiring device to use. Thimble application: mainly used in computer equipment, industrial automation equipment, digital products, security equipment, electronic instruments, new energy products, medical equipment and other fields.

feature:1. Pin header connectors are divided into straight plug (180 degrees), curved plug (90 degrees) and SMT 2. Environmental protection, in line with ROHS standards. 3. High cost performance and convenient transportation. 4. The ejector head is easy to customize.

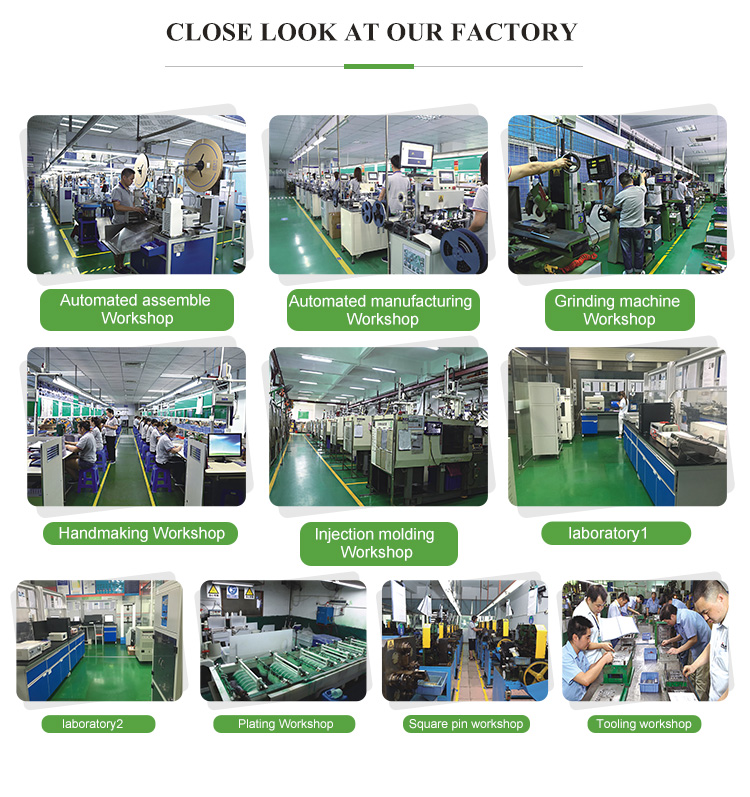

Bestcom (Wuhan) Technology Co., Ltd. is a professional connector overall solution provider, committed to developing and providing reliable B connectors, cables and wire harnesses that represent quality, reliability and convenience. Our products are widely used in electronic applications all over the world, including telecommunications, home appliances, electronic toys, automobiles, medical equipment, etc. We can provide standard or customized products according to your requirements. Creating excellent products and the highest value for customers is our ultimate goal. You are welcome to join, let us link the future together!

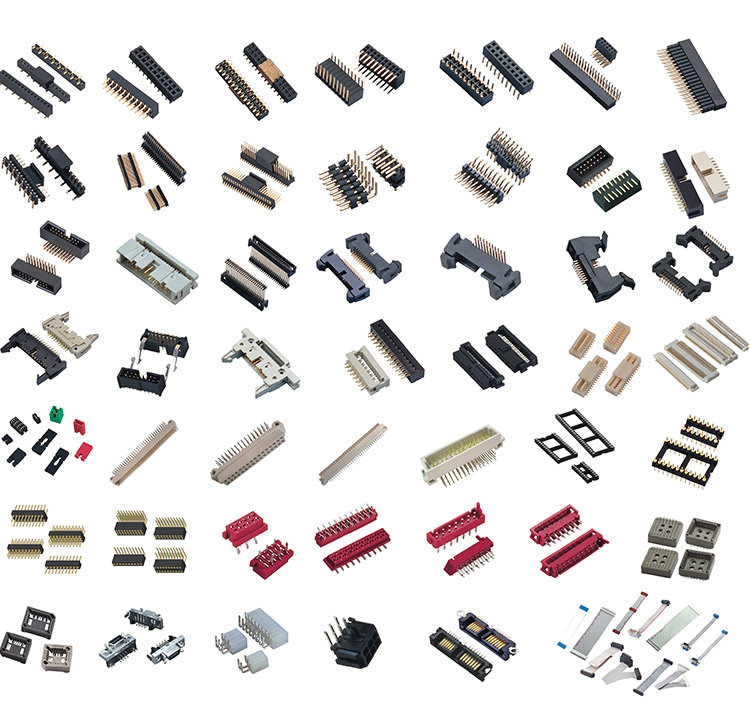

Product Range

Pin header/female header/thimble pin/pin header/PLCC/IC socket/IC adapter/machine female header/machine pin header/wafer/DIP plug/IDC socket/DIN41612/board-to-board connector/terminal block/MMICRO MATCH/cable assembly

Pitch 2.0mm 6P 8P 10P 14P 26P 34P 40P 64P Vertical Male Jack Out Box Connector
