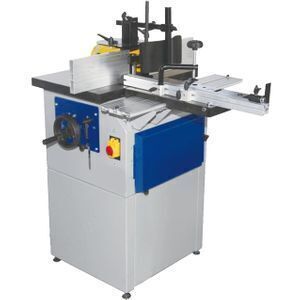

SH30-2 CNC spindle moulder / tenoner tooling / vertical milling machine

Supplier: Laizhou Huibang Machinery Trading Co., Ltd.
Region: Shandong, China
Contact: Ms Alice Sun
Price: $180.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE;	Sliding table size:	400250(2181000)mm;
Table size:	600*400mm;	Supply Ability:	1000 Set/Sets per Month;
Dust outlet diameter:	100mm;	Place of Origin:	Shandong , China;
Max.tooling diameter:	163/163mm;	Voltage:	220v;
Spindle Speed:	4000/6000/8000;	Weight:	100/108kgs;
Brand Name:	Huibang;	Dimension(LWH):	83010701280mm;
Cutterblock vertical stroke:	110mm;	Sliding table travel:	450/600mm;
Condition:	New;	After-sales Service Provided:	No overseas service provided;
Shaft Number:	2;	Warranty:	One year;
Spindle diameter:	30mm;	Payment Terms:	L/C,D/A,D/P,T/T;
Packaging Detail:	standard case carton or wooden case , according your demands Lead time :30-45;	Speeds:	3(1400/4000/6000/9000)rpm;
Power(W):	1500w;	Application:	Milling Machine;
Port:	Qingdao,Ningbo,Shanghai,Guangzhou,Shenzhen;	Type:	Vertical;
Table height:	870mm;	Motor:	1500w;

Product Description

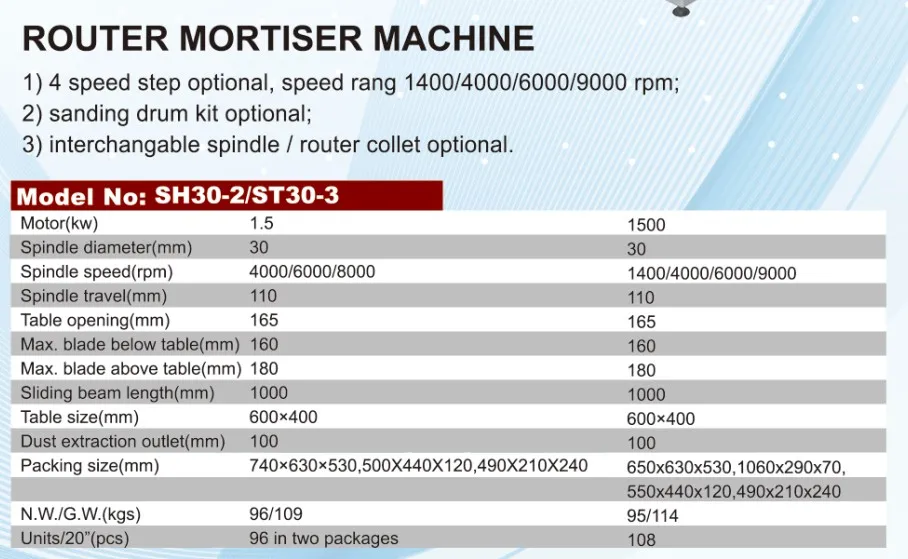

Model no	SH30-2	ST30-3
Motor(kw)	1.5	1.5
Spindle diameter(mm)	30	30
Spindle speed(rpm)	4000/6000/8000	1400/4000/6000/9000
Spindle travel(mm)	110	110
Table opening(mm)	165	165
Max.blade below table(mm)	160	160
Max.blade above table(mm)	180	180
Sliding beam length(mm)	1000	1000
Table size(mm)	600*400	600*400
Dust extraction outlet(mm)	100	100
Packing size(mm)	740630530	650630530

• Cast Iron Main Table

• Cast Iron Tenonning Table

• Cast Iron Cutter Hood

• 1/2'' Routing Collet Included

• 4 Speeds; Softwood, Hardwood, Routing, Sanding

• Maximum Tooling Diameter 160mm

• Independently Adjustable Fences

• 100mm Diameter Extraction Outlet

Certifications

Detailed Images

4 speed step optional,speed rang1400/4000/6000/9000

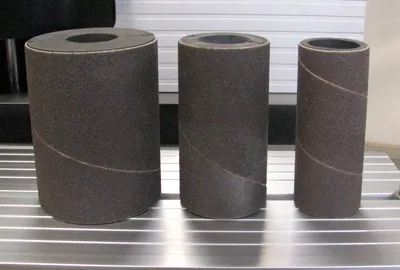

• 1500rpm - Drum Sanding
• 4500rpm - MouldingHardwoods
• 6500rpm - Moulding Softwoods
• 8500rpm - Routing

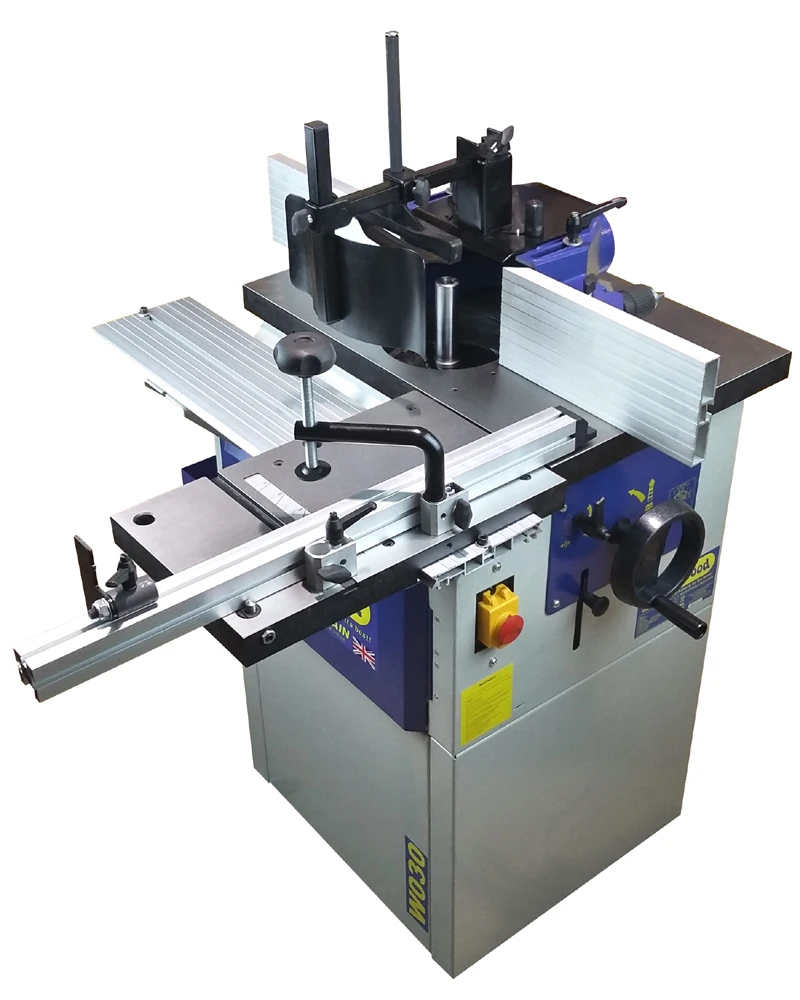

Fitting neatly into the gap between the heaviest router table and an industrial sized spindle moulder this machine is ideally suited to small professional workshops.

A precision ground cast iron table, a steel base cabinet and a 2hp induction motor are the basic ingredients which make up this fantastic recently upgraded spindle moulder. The height of the spindle, which is a standard 30mm diameter, is controlled by the large hand wheel which can then be locked in position.

Our Service

Our company mainly manufactures:

1. Woodworking tools and machines such as:wood planer thicknesser ,mortising machine ,spindle moulder,combination machine ,drill bench ,wood sander,wood band saw,wood table saw ,wood lathe,edge bander ,scroll saw;Tools like clamp bench,miter saw stand,saw horse,roller conveyor,rollre stand,mobile base ,dovetail jig,ect.
2.Metalworking machines such as : metal cutting bandsaw ,metal sander ,grinder,ect
3.Construction machinery such as :brick cutting machine ,brick clamp tools ,drywall panel hoist ,and so on
4.Forest and garden machinery such as :log splitters ,sweepter ,etc
5.We promise to reply to you upon receipt of your inquiry within 12 hours .
6.After the machine reached you ,please check the machine to see if they are going well ,if there is any question ,please also do not hesite to contact with us ,we will try our best to give you the solution within 2 days.

Packing & Delivery

OEM:

1 .Offer your design documents or let our designer team wouk out some concepts for choosing.
2.We will always provide you with a virtual pre-production proof that shows the exact placement of your logo on the product.
Packaging:Carton or wooden carton, also may according to your demands .
Shipment :We normally ship the order by Express like EMS,DHL in order to ensure you receive your order tax free upon import.
Payment term:T/T,L/C,or 30% payment in advanced.
