China factory wood thread vertical shaft forming machine

Supplier: Qingdao Xinrebon Cnc Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Jasper Gao
Price: $1000.00 / 1 - 9 sets
$850.00 / 10 - 49 sets
$650.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Supply capacity:	500 sets per month
Dimensions (LWH):	1300/700/1000mm	Core component warranty:	1 year
Function:	milling wood profiles	usage:	furniture craft
Spindle diameter (mm):	35 mm	Power (kW):	5
Core components:	engine	Showroom location:	not any
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Voltage:	380V/Customized
Mechanical test report:	if	Key words:	Wood Shaft Forming Machine

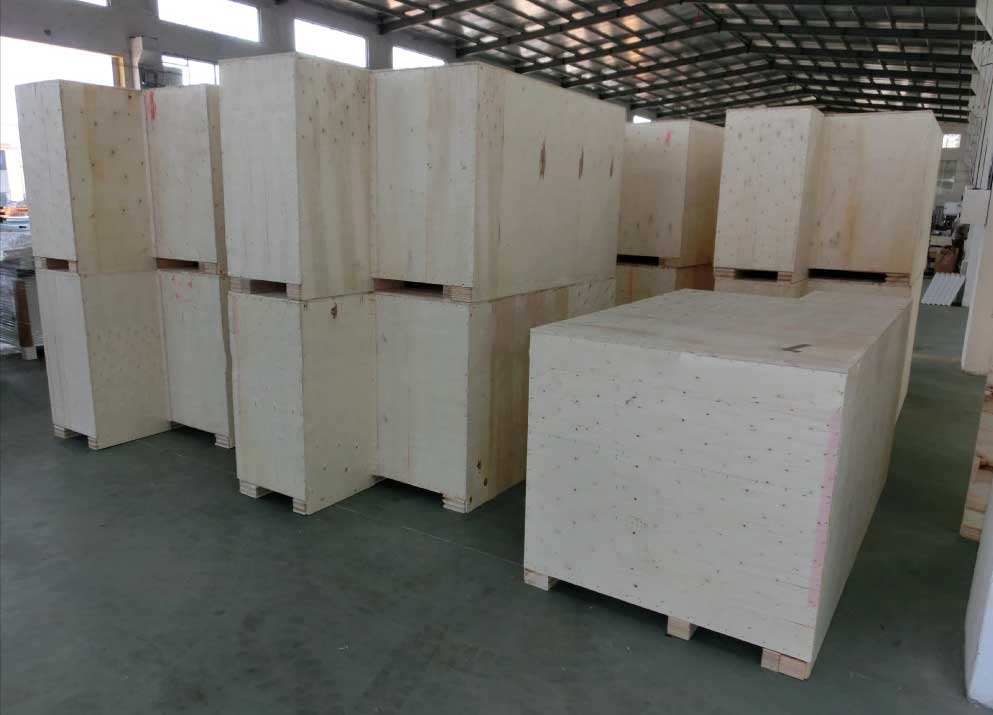

Packaging Details:	wooden box/film	port:	Qingdao Port
Weight (kg):	400 kg	Number of axes:	1
product name:	Woodworking Spindle Forming Machine Wood Forming Machine	Maximum working thickness (mm):	120 mm
Applicable industries:	Building material stores, machine repair shops, manufacturing plants, farms, home use, print shops, construction, energy and mining, advertising agencies, other	Video outbound inspection:	if
Warranty:	1 year	brand:	Processing
Main selling points:	easy to operate	color:	actual needs of customers
Marketing Type:	2020 New Products	application:	wood molding
Origin:	China	Package preview:

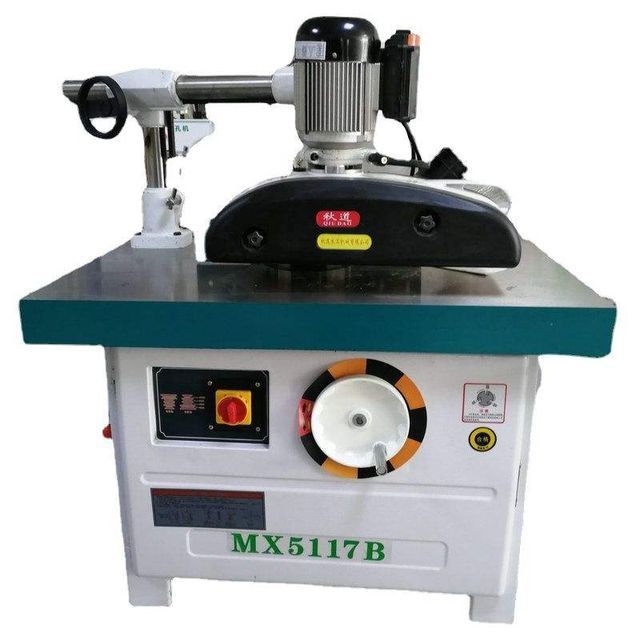

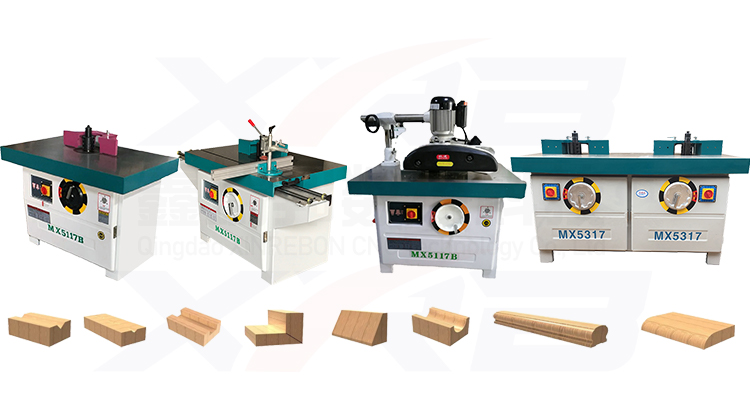

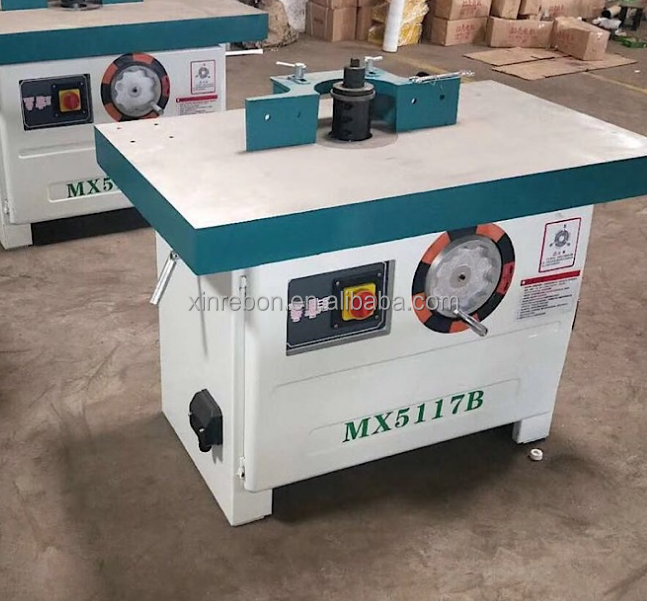

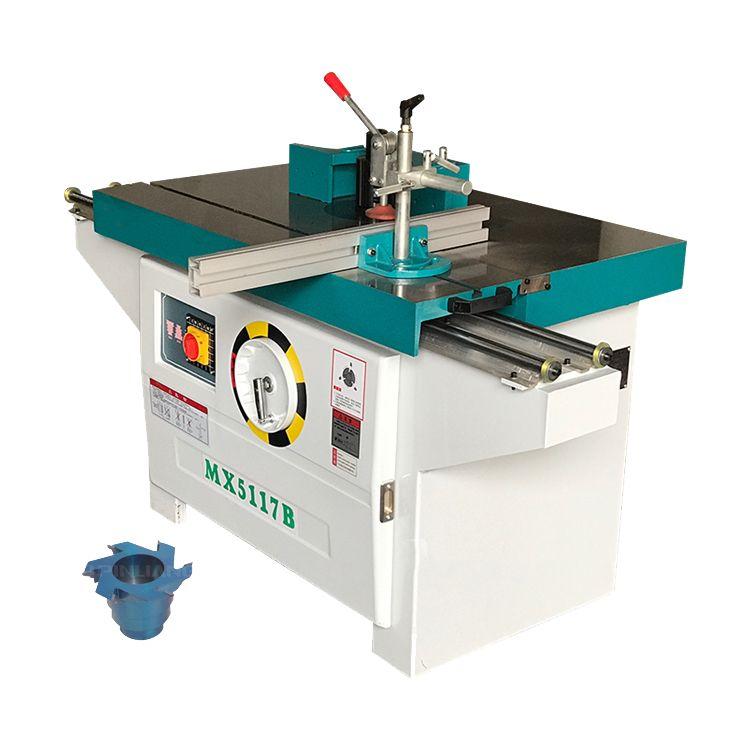

Woodworking vertical axis milling machine MX5117/5317 furniture wood milling machine

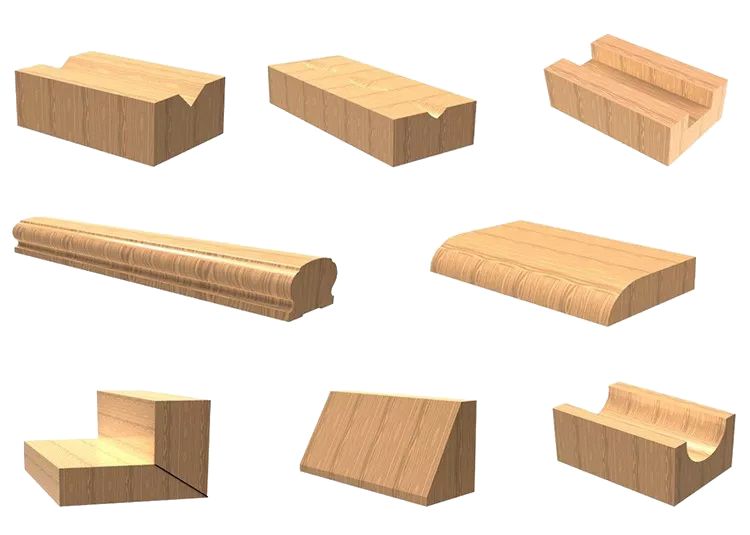

It is suitable for the reprocessing of bent edges and special-shaped edges, and can also be used for chamfering and bevelling processing, and using templates to make wooden lines of different shapes. Widely used in woodworking, furniture and construction industries.

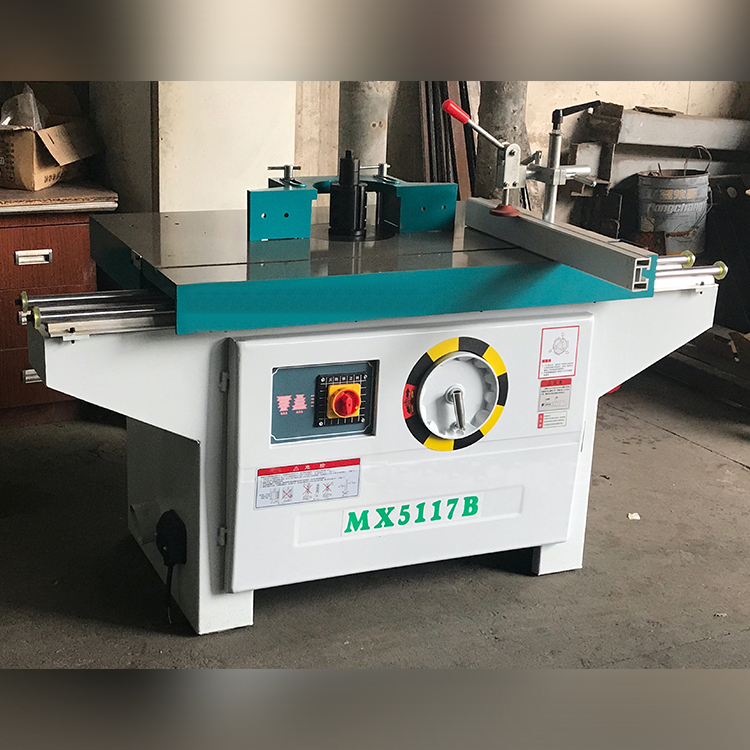

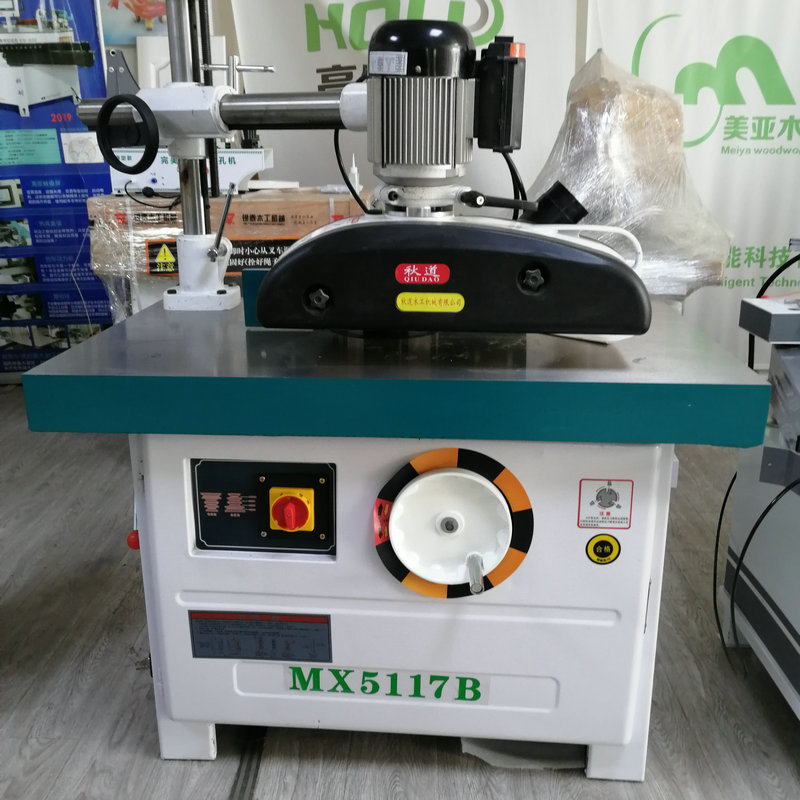

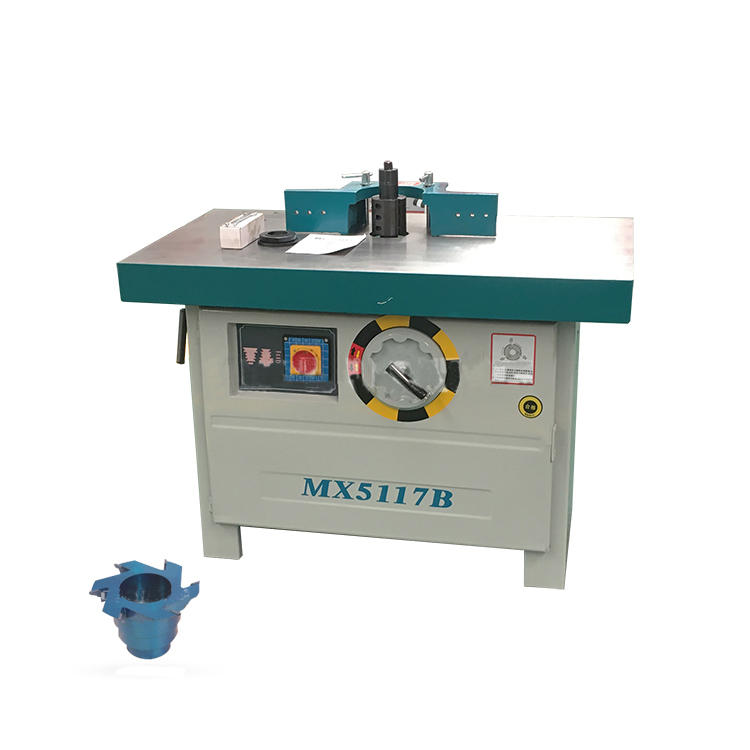

Model	MX5117B
Spindle diameter	35 mm
working thickness	120 mm
workbench	1130*700mm
strength	4kW/5kW
aspect	13007001000mm
Spindle speed	5000/8000/10000 rpm
weight	365 kg

Model	MX5117
strength	4kW/5.5kW
aspect	16507001100 mm
maximum. Milling height	120 mm
working desk size	1110x700 mm
Spindle diameter	35 mm
Spindle speed	8000 rpm/mm
station direction	counter / clockwise
weight	400 kg

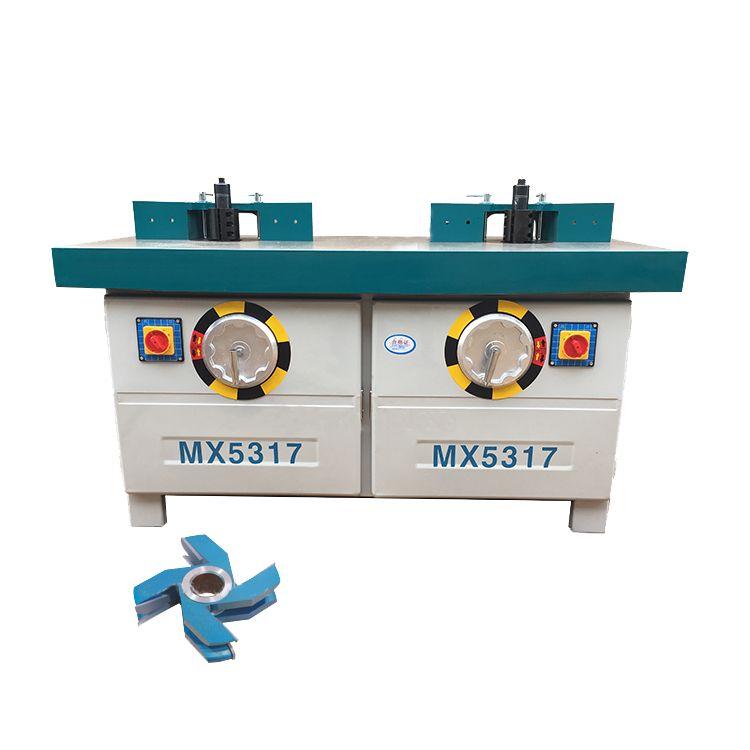

Model	MX5317
maximum. Milling height	0-120mm
Spindle speed	6000/8000/10000 rpm
Spindle diameter	35 mm
Executive standard	GB12557-2010
strength	4kw2 / 5.5kw2
workbench	1700*680mm

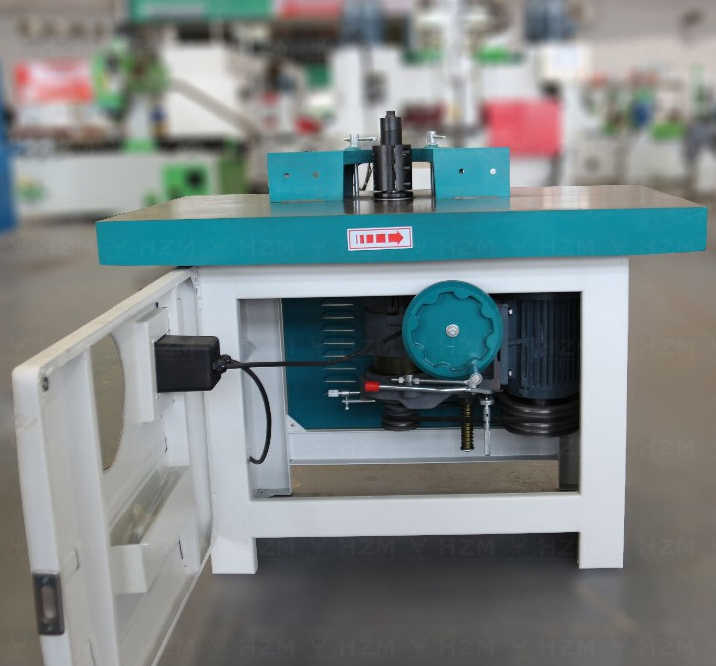

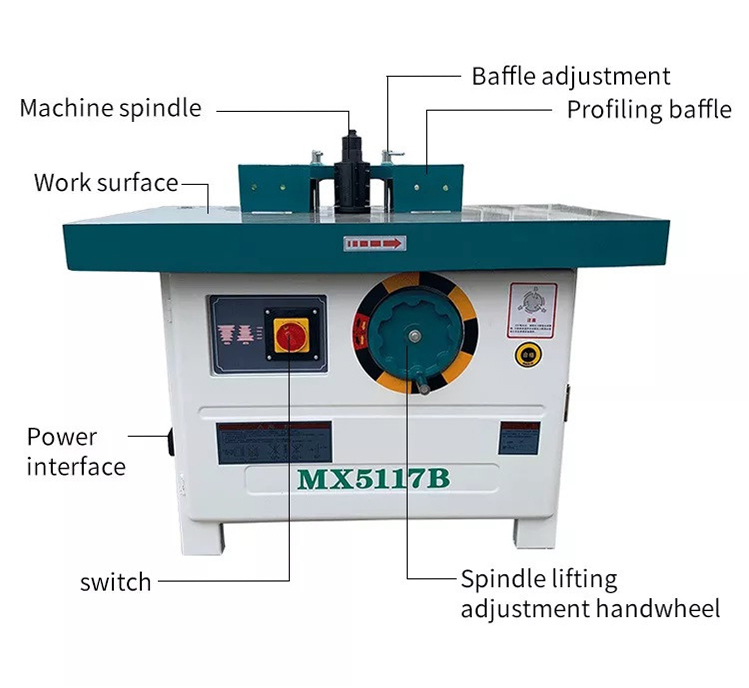

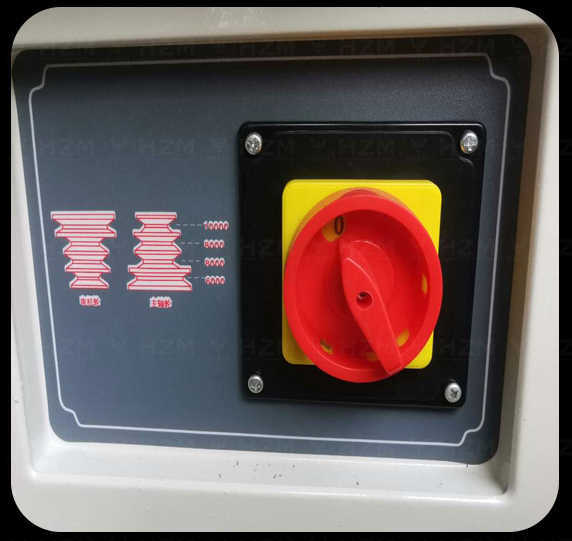

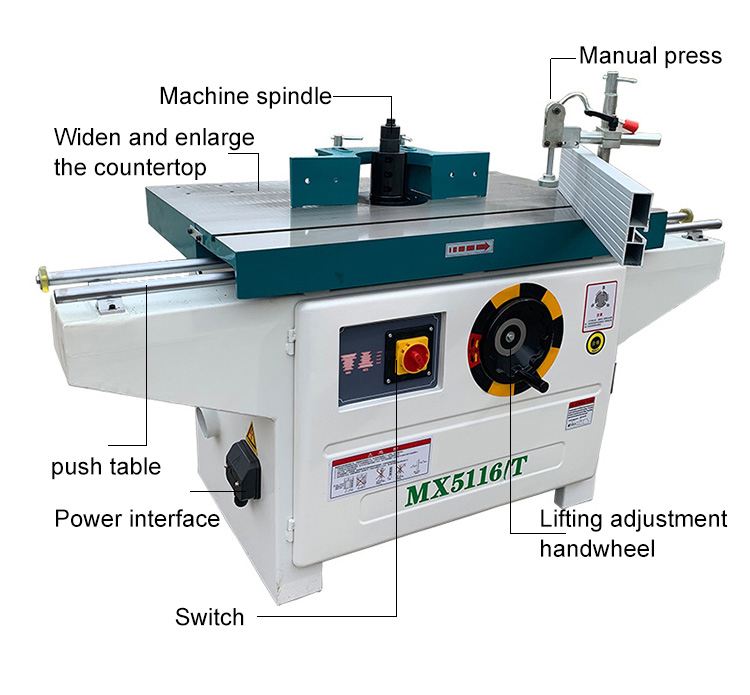

control switch

One-button start, built-in protection device, convenient operation and higher efficiency.

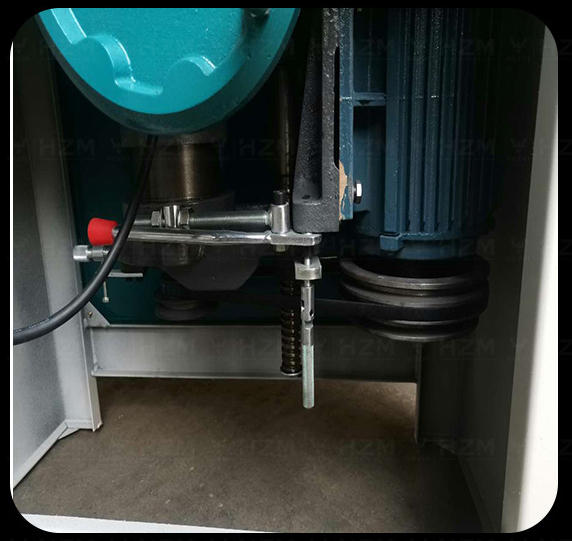

Replace the motor belt

Physical handle locking structure, high reliability, more stable practicality.

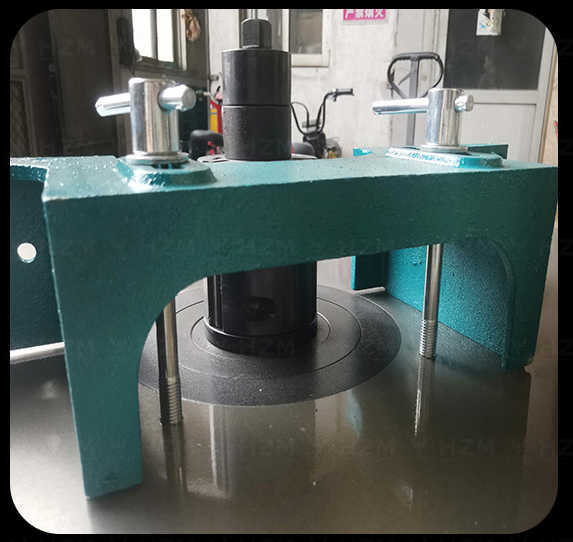

Support bezel locked

Alloy forging, high-quality locking screw adjustment, stronger stability.

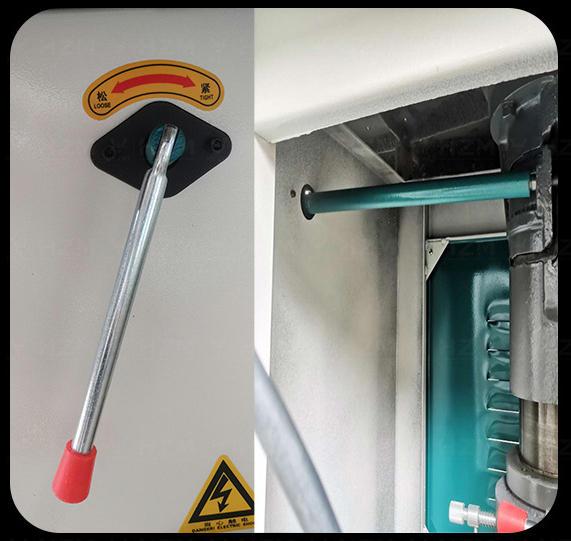

Spindle lock

It is more convenient to tighten left and right to prevent the main shaft from sliding.

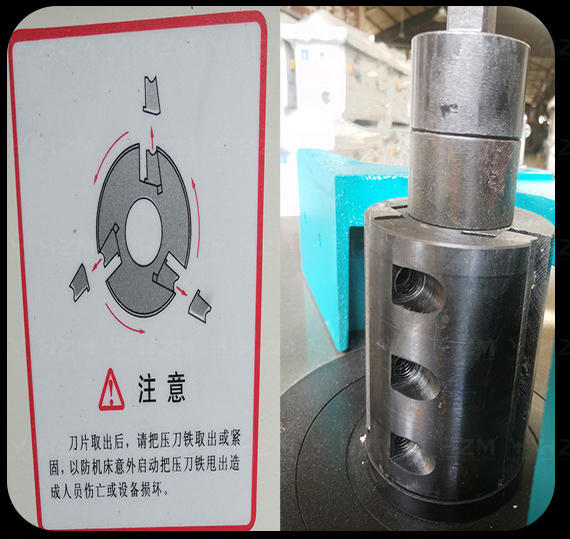

Spindle head

The main shaft is all metal forged, with high quality and easy and quick tool change.

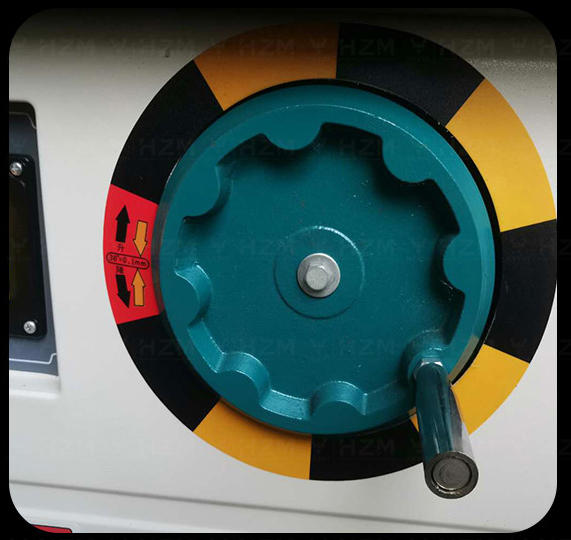

Spindle lifting hand wheel

Hand rocker design, more convenient lifting, physical structure lifting, stable and durable.

Qingdao Xinrebang CNC Technology Co., Ltd.

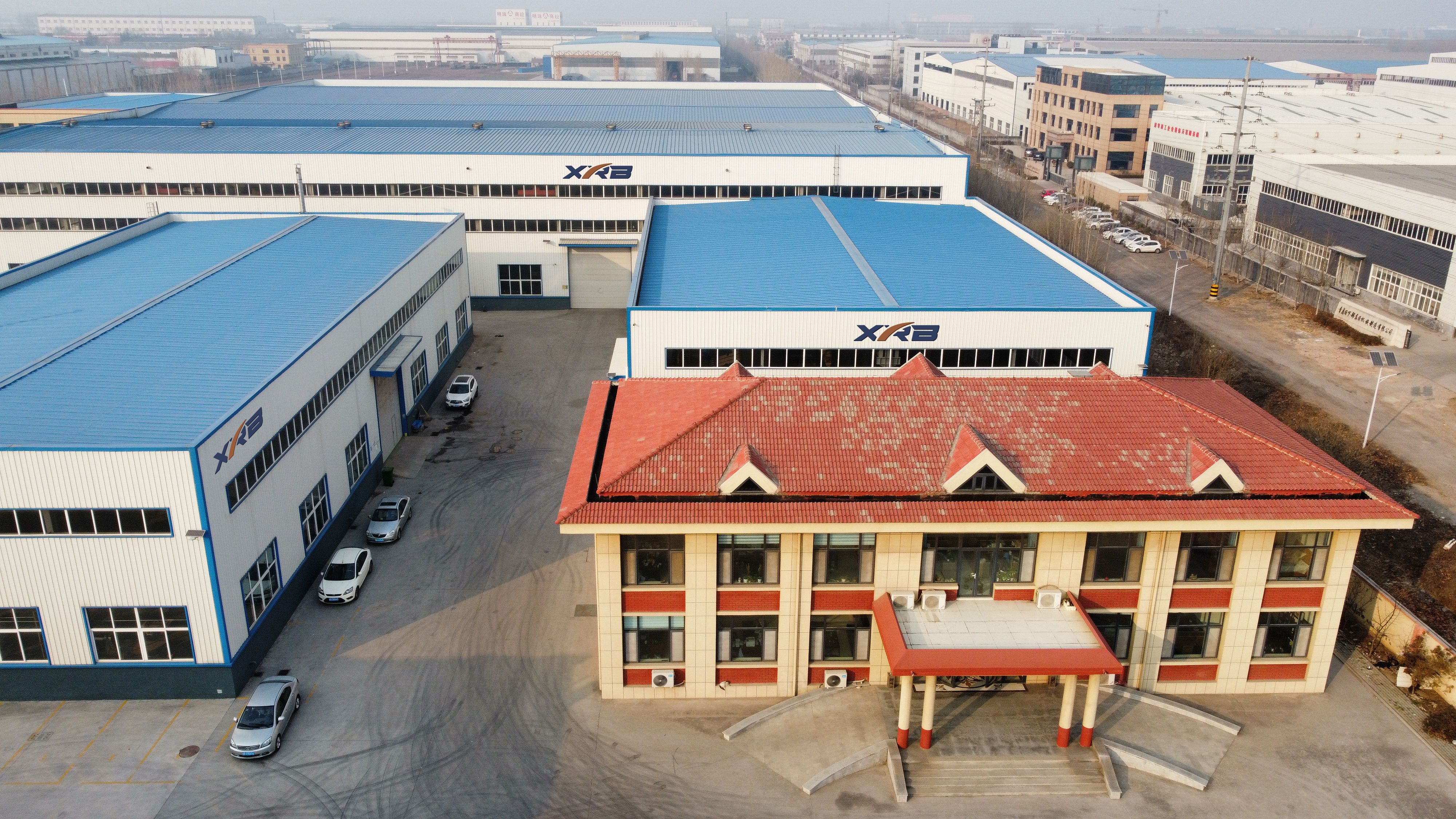

Xinrebang CNC Technology Co., Ltd., we are a professional manufacturing company. The factory is located in Shandong Province, 20 kilometers away from Qingdao Port and only 10 kilometers away from the high-speed railway station. Based on efficient transportation, our machines can reach consumers directly and easily. We always take the road of technological innovation and constantly upgrade our products. At present, our machines serve consumers in more than 20 domestic provinces and more than 30 foreign countries, enjoying a high reputation and praise. Combining years of experience, we have won the trust and praise of our customers. Now we produce all kinds of woodworking machinery, including edge banding machine, hot and cold press, planer, sanding machine, polishing machine, CNC milling machine, CNC panel saw, horizontal band saw machine, multi-row drilling machine, precision sliding table saw machine, various solid wood processing machinery, etc. Our philosophy: professionalism, efficiency, and loyalty; our mission: to create core values for customers, employees, and the company.

Q1: Can you provide OEM or ODM service?
A: Of course, we have our own design department, we can provide OEM or ODM service for you.

Q2: What is your minimum order quantity?
A: Hello, the MOQ we support is one.

Q3: How long is the warranty period of your machine, and what kind of warranty service can I get?
A: Our machines provide one-year after-sales warranty and lifetime service. If there is any problem with the machine, please contact us. We promise to solve the problem for you within 24-48 hours, if the machine parts are damaged due to non-human reasons within the warranty period, we can send you parts for free, except consumables.

Q4: If I pay, when will you ship the goods?
A: Hello, common machines are in stock. We will deliver the goods to the shipping company within 5-7 days for fast shipment, but the shipping time depends on the shipping company.
