Professional Manufacturer Supply Portable cnc flame cutting machine High Perfomance Portable CNC plasma cutting machine

Machine Introduction :

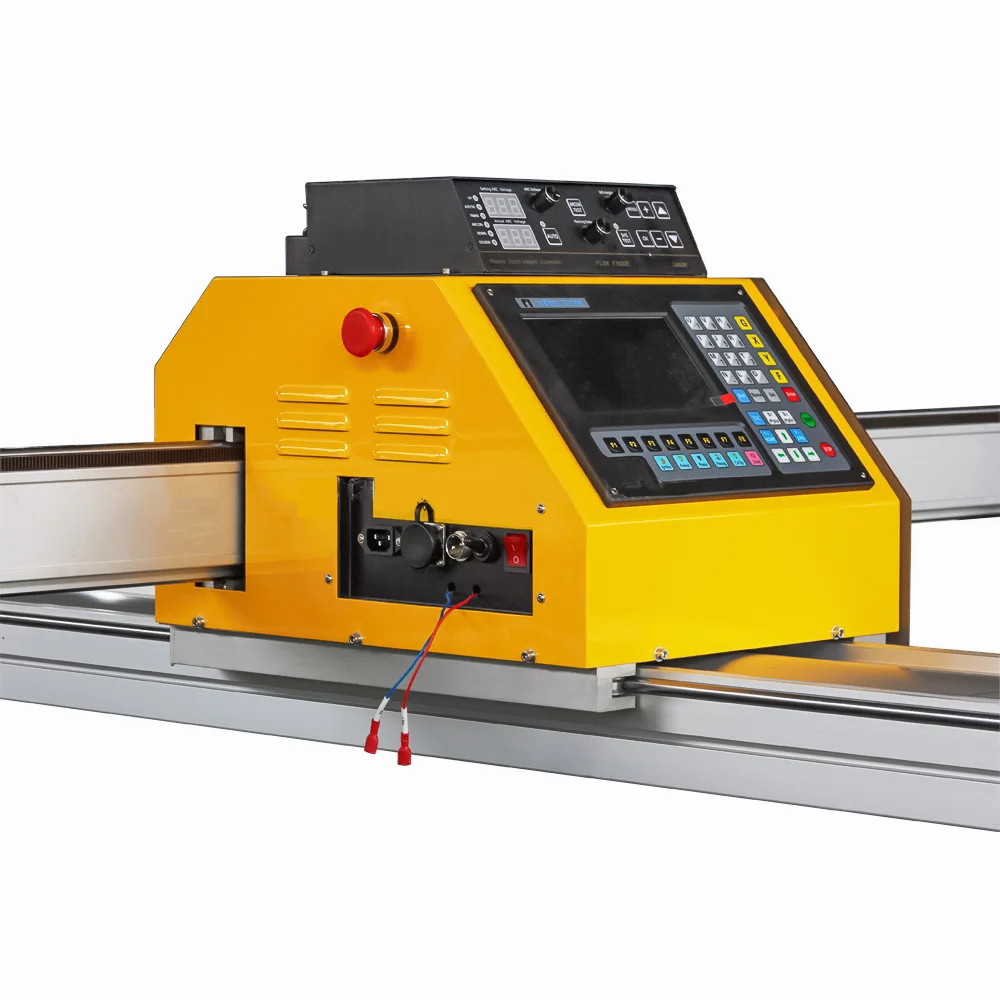

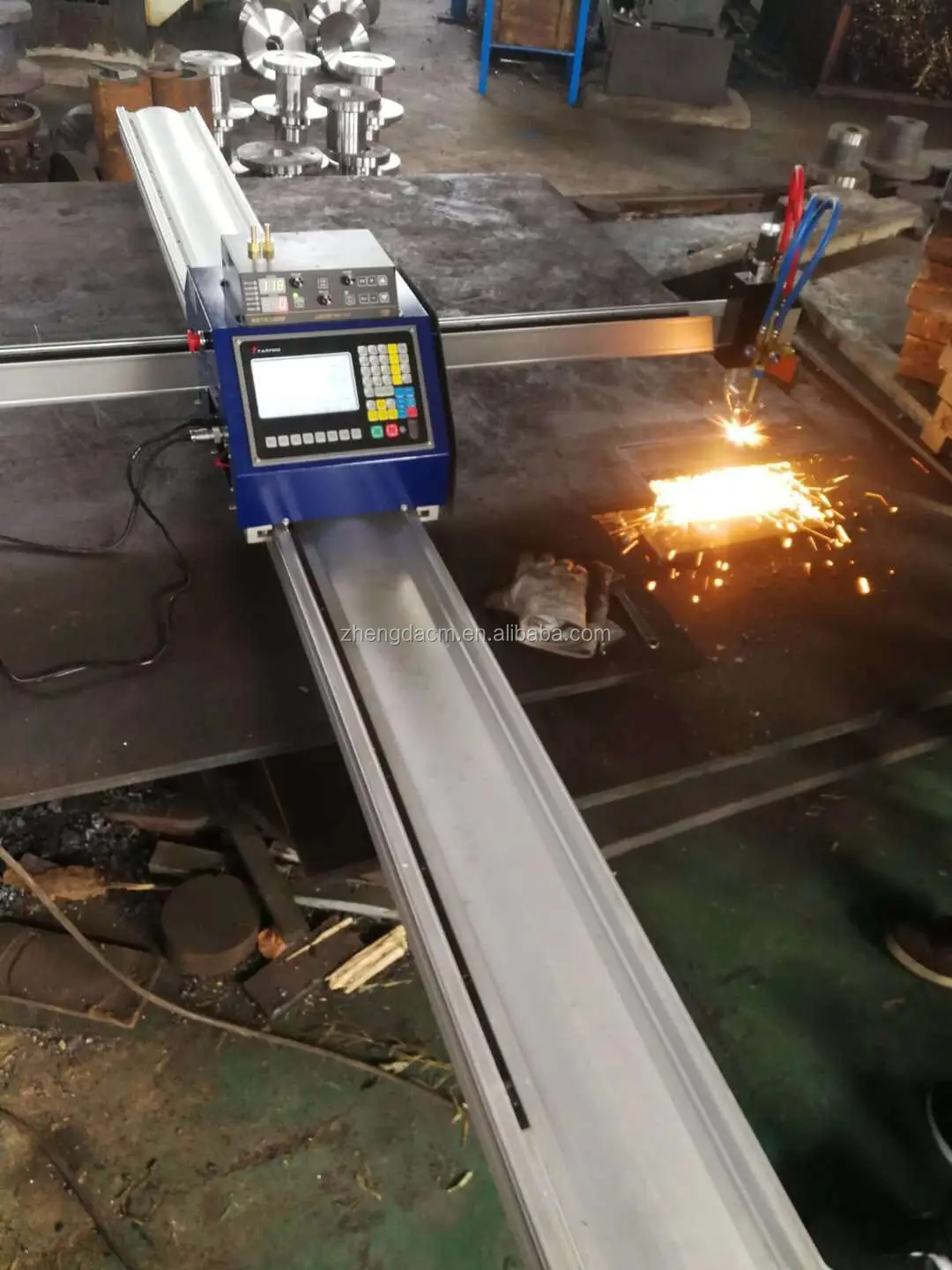

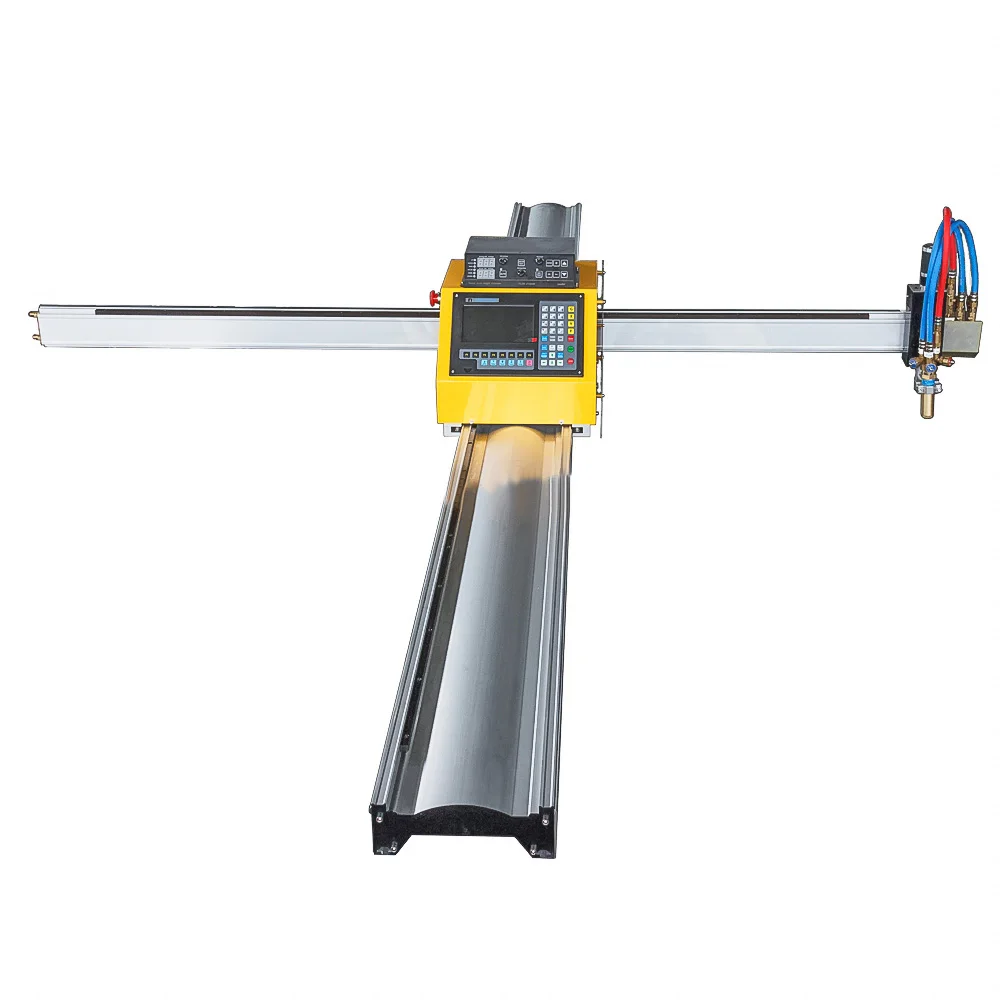

Portable numerical control flame/plasma cutting machines can be programmed to cut any plane shape parts composed of beeline and arc ,which are same as large gantry cutting machines . It is equipped with a 5.7 inch LED with dynamic and static graphical display .It is directly perceived and very easy to learn .It can be programmed to cutting parts directly , and also can be operated in computer translating instructions into a program file by CAD program , and then deducing it via U hardware .The standard positioning of this machine is flame cutting ,external hanging plasma cutter is also workable .

Machine Features :

1. Programmable cutting arbitrary shape parts of line and arc .
2. Dynamic and static graphic display ,easy to learn . Can convert CAD file in computer ,through USB flash drive transmits to machine to realize cutting all kinds’ graphs and also can program and operate directly on the machine .
3. Track and movement organizations adopt unique design , ensuring the working precision of machine .
4. Can use flame cutting (gas cutting ) and plasma cutting .
5. Interfaces in English or Chinese can be converted freely .
6. Economical , Portable and easy to operate .
7. Great working stability , Effective shield plasma high frequency interference

Voltage:220V
Rated Power:400W
Dimension(L*W*H):3500*280*200mm
Certification:CE
Warranty:1 Year
After-sales Service Provided:Free spare parts, No after-sales service, Online support, Video technical support
Application:Industrial Metal Cutting
Control system:Shanghai Fangling
flame Cutting thickness:6-160mm
Cutting material:Metal Stainless Steel Carbon Steel
Plasma cutting thickness:Plasma Power Source Capacity)
Cutting speed:0-8000mm/min
Function:Stainless Steel Aluminum
Cutting gas:Oxyfuel +Propane Acetylene
Color:Red
Weight:120kg

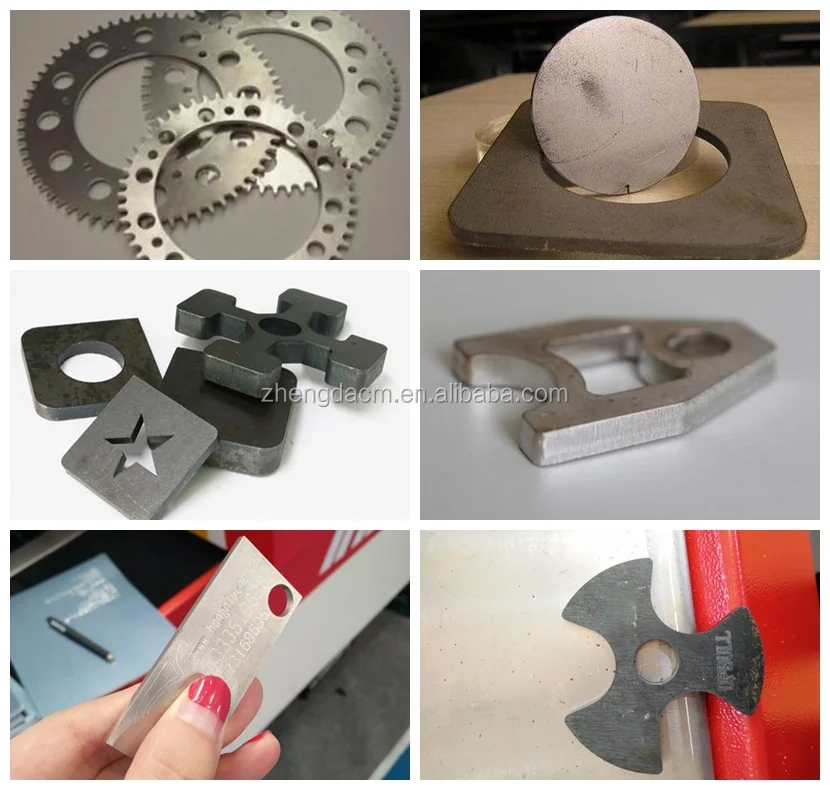

  This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

   Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.

we use strong non-fumigation plywood case with steel tube under the pallet. it can avoid any damage

to the cnc machine. When importing the plywood case is with fumigation-free, the procedure is simple.

we also buy the insurrance for the shipping and mahcine.

1 packed the cnc machine with plastic sheet for clearing and damp proofing.

2  then put the cnc machine in the plywood case for safety and clashing.

3  transport the plywood case into the container.
