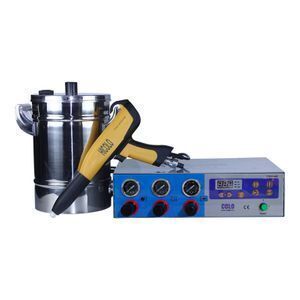

Portable powder coating system electrostatic powder coating spray machine

Supplier: Hangzhou Color Powder Coating Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Ms Monica Qi
Price: $650.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Ningbo/Shanghai;	Weight:	12.50KG;
Brand:	Colo;	Place of Origin:	China;
Condition:	New;	Applicable Industries:	Manufacturing Plant,Retail;
Payment Terms:	L/C,T/T,Western Union;	Dimension(LWH):	433542;
Coating:	Powder Coating;	Type:	powder coating system;
Application:	Powder Coating Spray Application;	Packaging Detail:	carton with foam;
Model:	Colo-660T-H;	Color:	Customized;
After-sales Service Provided:	Video technical support,Online support;	Substrate:	Iron;
best quality:	high quality;	Warranty:	1 YEAR;
Voltage:	220V;	Brand Name:	COLO;

Portable powder coating system electrostatic powder coating spray machine

this is for small powder bottle,it can fill about 15 pounds powder(10X20CM),easy to take and for small working.

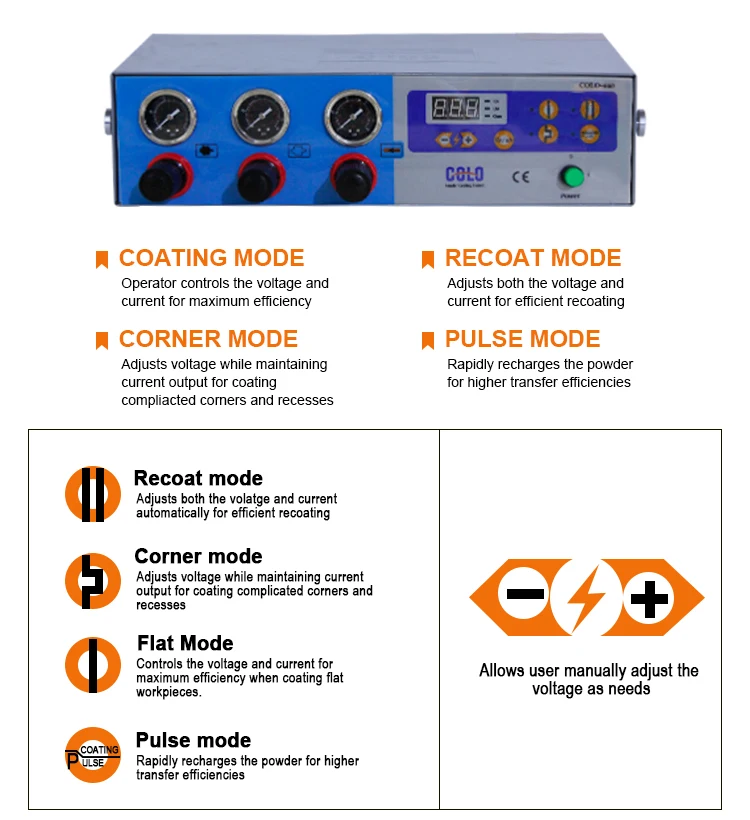

660 control unit with the feature as follow:

Character: Controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts

This machine is suitable for the coating of simple, flat workpieces

This machine is suitable for the coating workpieces with complicated shapes

This application mode is suitable for the over-coating of workpieces

Which are already coated.

Technical Data:

Control air unit

Input voltage: 220V/110V	Frequency: 50HZ/60HZ	Input power:50W
Output voltage:Max 20V(peak to peak)	Output current: 0.7 A	Control voltage: 24V/DC
Work temperature range: -5°C-40°C		Safety: IP54
Compressed air moisture content: 1.3g/m3 max		Input air pressure:4-8kg/m3
Input barometric pressure: 6-8 bar	The largest air consumption:24m3/h

Powder spray gun

High Pressure Mode: Inside	Max Power Injection: 650g/min	Max Output Current:150uA
Polarity: Negative	Output voltage: 0-100KV max	Gun weight: 550g
Output voltage:Max 20V(peak to peak)		Connection cable: 5M

Configuration:
Powder gun *1 + powder pump*1 + powder container*1 + oil-water separator*1 + air pressure regulator*1

The process of the coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces.

Factory

Hangzhou Color Powder Coating Equipment Co., Ltd. is a manufacturing supplier in China, who is professional in research and development, production, sales and service together in the line of the electrostatic powder coating equipment.

Our main products are: electrostatic generators, electrostatic spray gun, high pressure module, circuit board, powder hopper, automatic reciprocating machines.With advanced productivity, high-quality testing technology, excellent R & D capability and advanced design,

we focus on making COLO-products as a famous brand. What's more, COLO coating equipment has been reputed to be of good quality by USA, Canada, France, Germany, Italy, Mexico, Colombia, Peru, Brazil, Russia, Poland, Egypt, Vietnam, India, Saudi Arabia, South Africa and so on more 70 countries

welcome to contact us to get more detail information !!!
