7 Pin Mini Remolque Cargo Transportation Trailer

Supplier: Guangdong Ecocampor Vehicle Co., Ltd.
Region: Guangdong, China
Contact: Ms Lynn Lam
Price: $2488.00 / >=2 units
Min. Order: 2 units

Click here to contact

Product details

Jack:	Zinc Plated;	Brake System:	electrical break system + hand break + emergency brake;
Use:	Truck Trailer;	Single package size:	450X230X260 cm;
Type:	Semi-Trailer;	Packaging Detail:	industrial packaging plastic bag+kraft paper+carton+plywood pallets; wrap bags+carton+plywood pallers Commerical packing:commerical packing:1pcs/plastic bag+carton+plywood pallets Or according to customers' requiremnet;
Chassis surface:	powder coating;	Axle:	45mm solid axle;
Brand Name:	Ecocampor;	Single gross weight:	1560.0 KG;
Wall Studs:	406mm width C-channel on-center;	Suspension:	Leaf Spring Suspension;
Max Payload:	1600lbs;	OEM No.:	EC-CT-01;
Size:	3657.6 x 1828.8 x 2133.6mm;	Place of Origin:	Guangdong China;
Drawbar:	100x50mm tube;	Chassis:	steel tube with hot deep galvanized;
Usage:	Mini Remolque Trailer;	Cross Members:	C-channel;
Certification:	no;	Material:	Steel;
Selling Units:	Single item;

Product Description

Product Description

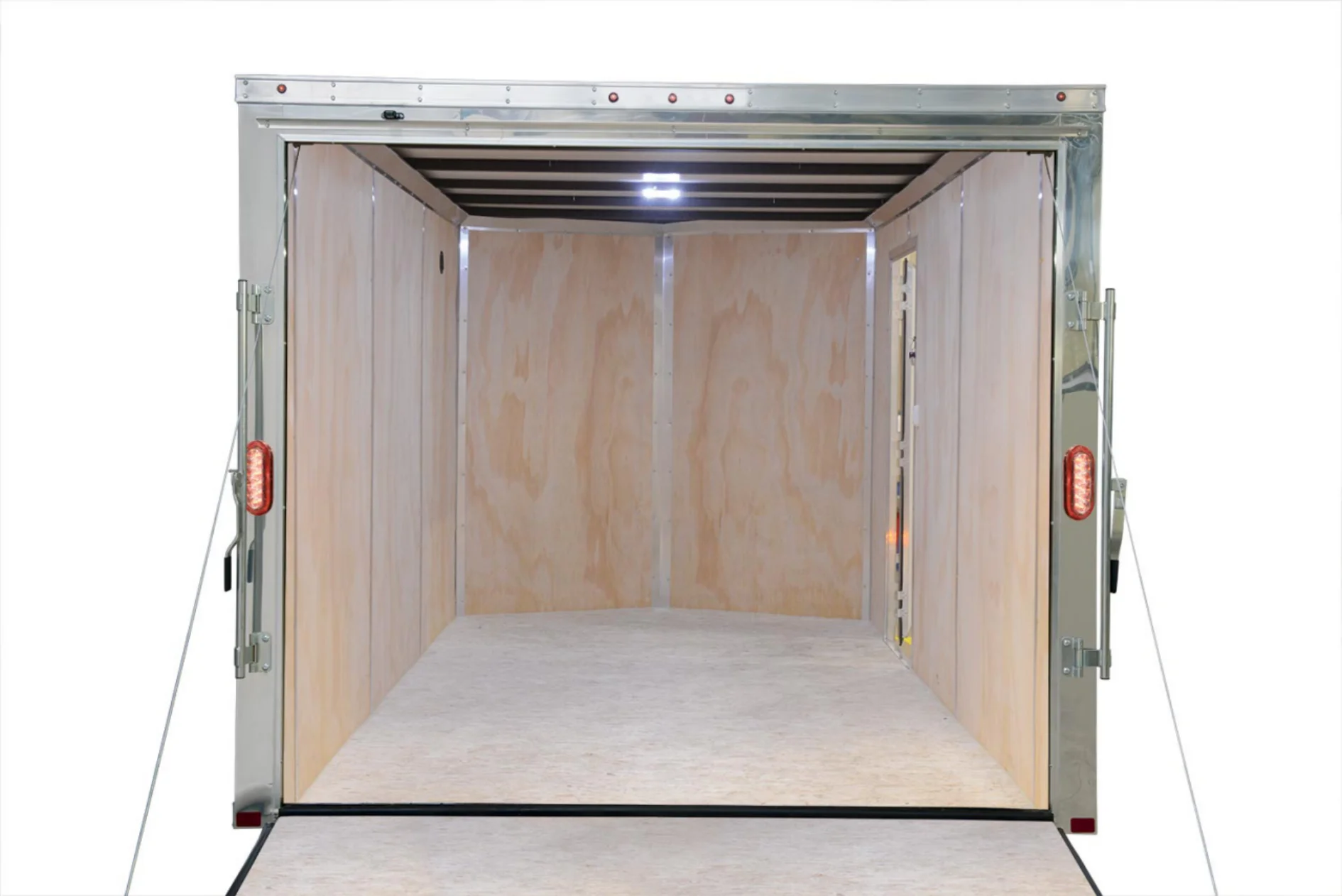

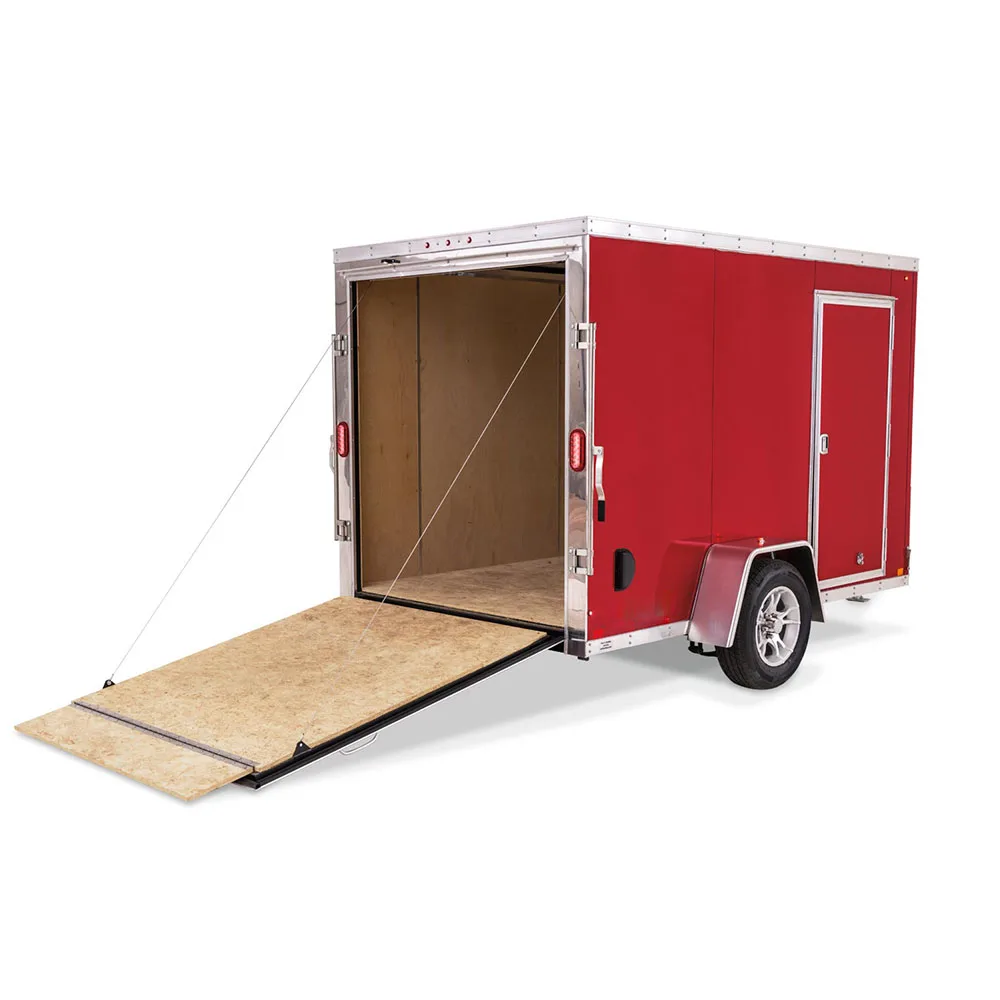

This single axle enclosed trailers are perfect for your smaller tasks. Constructed with a tube frame and tongue, 16” on-center tube wall studs, and tube roof rows, you can be confident that even our smallest trailers are up to the task. These units come fully loaded with features like 3/8″ plywood wall liner, screwless exterior, 24″ Stoneguard with top trim, and a bright front nose cap and rear hoop. You shouldn’t have to lower expectations for a smaller trailer.

Specification

Standard Feature with Optional Size
	5 x 8 ft	5 x 10 ft	6 x 10 ft	6x 12 ft
GVWR(lbs)	2990	2990	2990	2990
GAWR(lbs/axle)	3500	3500	3500	3500
Curb Weight	850	1260	1240	1390
Payload	2140	1730	1750	1600
Frame	4 x 2 Tube
Cross Members	C - Channel ( 24" on - center)
Tongue	4 x 2 Tube
Wall Studs	16" on Center tube
Coupler	2" Ball
Jack	2K Zinc Plated
Fenders	Aluminum
Easy Lube Axles	4" Drop Spring
Tires	205/75R 15 LRC
Wheels	15", 5 on 4.5, Radial Tires
Wheels	Silver Mod	Silver Mod	Aluminum
Flooring	Engineered Wood
Lights	All LED Lights
Electric Plug	4 ways plug
Eterior	0.8mm Aluminum
Overall Length	150"	174"	174"	198"
Overall Width	80"	80"	92"	92"
Overall Height	80"	80"	93"	93"
Interior Height	59"	59"	72"	72"
Interior Width	57"	57"	69"	69"
Interior Length	108"	132"	132"	156"
Floor Height	18"	18"	18"	18"
Ramp Door Capacity(lbs)	2250	2250	2250	2250
