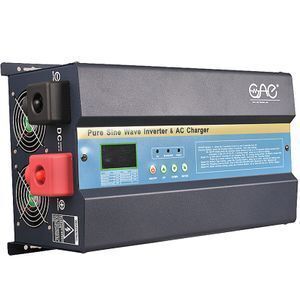

High Quality 1kw to 6kw solar power inverter pure sine wave inverter with mppt charge controller

Supplier: Foshan Top One Power Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Ken Chow
Price: $250.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model Number:	GSI;	peak power:	rated power*3;
Output Frequency:	50/60HZ;	Package Preview:	https://sc01.alicdn.com/kf/H25be65d2539542ed9d516b6cd985ceecj.jpg_640x640.jpg;
Place of Origin:	Guangdong China;	Weight:	11.2;
Output Current:	MAX 95A;	Transfer time:	<4ms;
Display:	LCD+LED Display;	Rated power:	1kw 2kw 3kw 4kw 5kw 6kw;
Application:	Home appliace/office equipment/solar system;	Payment Terms:	T/T,Western Union,MoneyGram;
Brand Name:	ONE INVERTER;	Communication:	RS485;
Output waveform:	pure sine wave;	Certificate:	CE FCC EMC,CE FCC & RoHS;
Type:	DC/AC Inverters;	Packaging Detail:	1 sets in a carton;
Output Type:	Single;	Warranty:	12 Months;
Efficiency:	92%;	Size:	5333.525.5;

High Quality 1kw to 6kw solar power inverter pure sine wave inverter with mppt charge controller

GSI series off grid low frequency Pure sine wave solar inverter, it range from 1kw ~6kw, transfer efficiency >90%, switch time <4ms, inbuilt 50A MPPT/ 35A AC charger / AVR stablizer / intelligent cooling system, using latest toroidal tranformer, triple surge power, 64-Bits DSP control chipset.

Product Description

Details data sheet

MODEL	GSI-102	GSI-152	GSI-202	GSI-302	GSI-402	GSI-502	GSI-602	GSI-702
RATED POWER	1KW	1.5KW	2KW	3KW	4KW	5KW	6KW	7KW
SURGE POWER	3KW	4.5KW	6KW	9KW	12KW	15KW	18KW	21KW
INPUT
VOLTAGE	220VAC
SELECTABLE VOLTAGE RANGE	145-265VAC				170-265VAC
FREQUENCY RANGE	50HZ/60HZ±5HZ
OUTPUT
AC VOLTAGE REGULATION(BATT. MODE)	(DC BATT.MODE)220VAC±3%
TANSFER TIME	≤5ms
WAVE FORM	PURE SINE WAVE
BATTERY
BATTERY VOLTAGE	12V/24V				24V/48V
FLOATING CHARGE VOLTAGE	13.8V(12V)/27.6V(24V)/55.2V(48V)
OVERCHARGE PROTECTION	17V(12V)/34V(24V)/68V(48V)
SOLAR CHARGE & AC CHARGER
MAXIMUM PV ARRAY OPEN CIRCUIT VOLTAGE	150VDC
MAXIMUM PV ARRAY POWER	420W(12V)/840W(24V)				1400W(12V)/2800W(48V)
STANDBY POWER COMSUMPTION	7.2W(12V)/14.4W(12V)/28.8W(48V)
MAXIMUM AC CHARGE CURRENT	35A
MAXIMUM SOLAR CHARGE CURRENT	30/50A(OPTIONAL)				30-60A(OPTIONAL)
MAXIMUM CHARGING CURRENT	85A				95A
PHYSICAL
*DIMENSION,DWH(MM)*	*530335250MM*				*740335275MM*
G.W.	18.8	21.8	24.8	28.3	34.9	36.9	38.9	51.4
ENVIRONMENT
HUMIDITY	0~95%(NO CONDESNSATION)
OPERATING TEMPERATURE	0~60℃
STORAGE TEMPERATURE	0~60℃
*PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT FURTHER NOTICE
