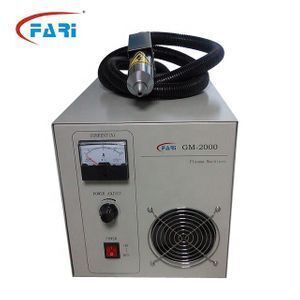

Plasma Surface Treatment Machine of FARI GM-2000

Supplier: Shenzhen Fangrui Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Tina Jiao
Price: $2150.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand:	FARI;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Home Use,Printing Shops;
Brand Name:	FARI;	Port:	SHEN ZHEN;
Power:	1000W;	Place of Origin:	Guangdong China;
Certificate:	CE ISO;	Size:	280280380 mm;
Color:	White;	Supply Ability:	100 Set/Sets per Month;
Application:	plastic,glass, metal;	Weight:	20kg;
Warranty:	1 YEAR;	Type:	plasma surface treatment machine;
Name:	plasma surface treatment;	After-sales Service Provided:	Free spare parts,Online support,Engineers available to service machinery overseas;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Visa;

Product Description

Product Name	Plasma Surface Treatment Machine of FARI GM-2000
Brand Name	FARI
Color	White
Quantity of nozzles	1
Operating mode	Panel power control, convenient and swift
processing width	3mm~5mm/7mm~13mm/15mm~18mm(Optional)
Complete set of accessorles	Plasma generator, plasma gun
Certification	ISO9001, CE

Products Show

Specifications

Input Voltage	AC220V(±10v)
Output Power	1000 VA
Dimension(WDH)	280(W)×280(D)×380(H)mm
Plasma power supply frequency	18-25KHZ
Air supply pressure	2-3bar
Gross Weight(with Package)	28kg

Product Application

Applied in surface cleaning and activation treatment in respect of printing and packaging, mobile and computer digital, silicone rubber, plastic products, metal products, glass precision, wires and cables, electronics, automobile, medical biology, textile goods and composite materials, which play a key role in subsequent adhesion, printing, code spraying, spraying, gluing and welding process.

CASE SHOW

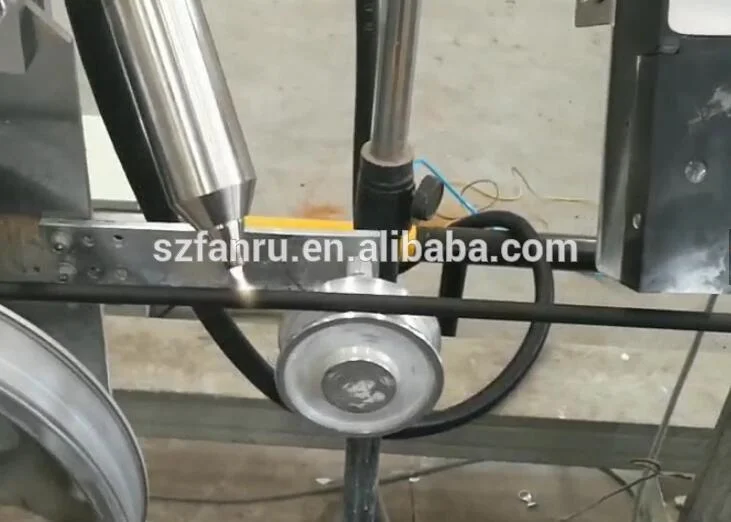

Plasma surface treatment for Cable materials.

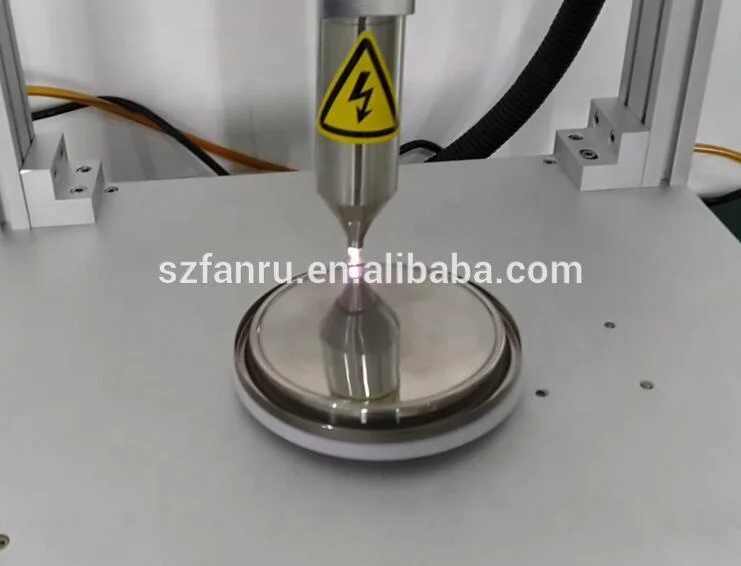

Plasma surface treatment for Kettle heater.

Plasma surface treatment for Pasting box machines.

Characteristics

Completely replace the traditional processing to material surface by using chemical products and this process does not have any negative impact to the environment.

There are often grease, oil and other organic matter and the oxide layer on material surface, so before conducting the sputtering, paint, adhesive, bonding, welding, brazing and PVD, CVD coating,the plasma treatment which could bring a completely clean surface without oxidation layer is necessary.

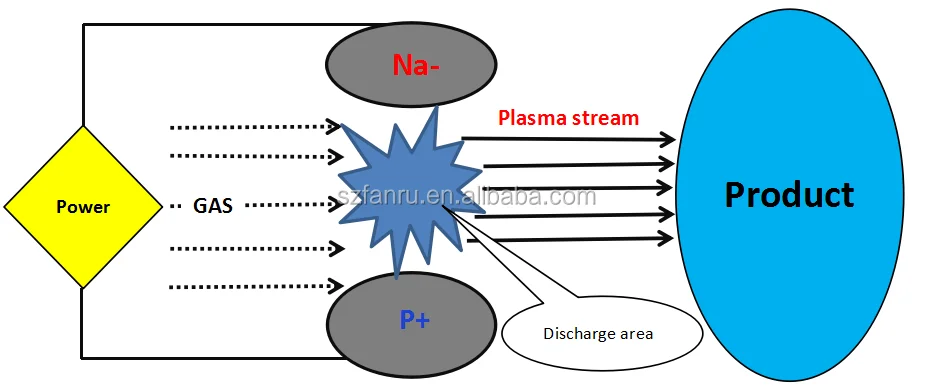

The reaction mechanism is a series of comprehensive physical and chemical reactions, the gas under high pressure can generate ionization reaction into highly reactive free radicals which will further react with organic pollutants on the materials surface, and through the particle bombardment to material surface, it can make the material surface roughening, activate material surface, and greatly increase the hydrophilicity of the material surface so that can get good viscose, printing, spraying effects.

Our Certifications

_{In the production and development, We have made many technology breakthroughs, and obtained many invention patents.}

_{Our Company Has Passed the ISO9001:2015 quality system authentication and CE authentication.}

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 10-30 days after receiving the order and full payment if the goods are in stock. or it is 30-40 days if the goods are not in stock, it is according to order quantity.

Q:Do you have ce certification?

A: Yes, we have. if you need , we can send to you.

Q: What is your terms of payment ?

A: 100% full payment. If you have another question, pls feel free to contact us as Email.

Packing & Delivery

Packing Details : Packing, 1set packed in wooden box, The packed can also according to customer's requirements.

Delivery Details : Usually 10-30 days after receiving the order and full payment.

_ITEM	Details
_SIZE	_{65(L)37(W)57(H) mm}
_{Gross Weight}	_35Kg
_{Packing Details}	The normal package is wooden box(Size: LWH).

1. Professional placement

2. Professional shock

3. Complete package

Our Service

1.One year guarantee time.

2.If parts (except wearing parts) are broken within guarantee time (it is not caused by human factor), we will be changed for free(customer should pay delivery charge).

If you have any problem , please contact us ,we will reply you within 24 hours and try our best solve the problem for you
