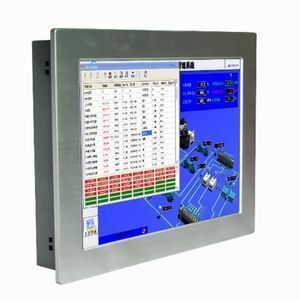

2020 Fanless Embedded 10/12/15/17/19 inch Touch Screen All in One i3 i5 i7 Processor Industrial Panel PC
- 195.00 piece
| Storage: | 64 GB; | Touch screen: | Capacitive Touch Screen; |
| Packaging Detail: | Export Package; | Brightness: | 250cd; |
| Warranty: | 1 Year; | Products Status: | Stock; |
| Place of Origin: | Guangdong China; | CPU: | J1900 Quad Core; |
| Brand Name: | Zuljana; | Payment Terms: | T/T,Western Union,MoneyGram,Online Alibaba Trade Assurance; |
| Resolution: | 1024*768; | RAM: | 4 GB; |
| Dimensions(mm): | 30.86*23.91*5.38; | Type: | Embedded Computer; |
| Port: | Shenzhen; | Certification: | FCC,ce,RoHS; |
| Supply Ability: | 3000 Piece/Pieces per Month capacitive touch screen display 10 inch; |
| Product Details | Product name | 10" Capacitive Touch PC |
| Article code | ZL10J1900W4G64GCAP | |
| PC System | CPU | Intel® Celeron™ QuadCore J1900 |
| Chipset | Intel® E3800 | |
| Graphic GPU | Intel® HD Graphics | |
| Audio | Realtek 887 8 -channel high definition audio codec, Audio Amplifier EUA 2012A | |
| Memory | 1x 4GB DDR3L SODIMM | |
| Storage | ZULJINAH Industrial 64GB SSD | |
| Network | 2x Realtek PCIe GB LAN 8111G; W-LAN | |
| Driver Support | Win7/8/10; Linux; 32Bit/64Bit | |
| Pre-installed OS | Linux Ubuntu | |

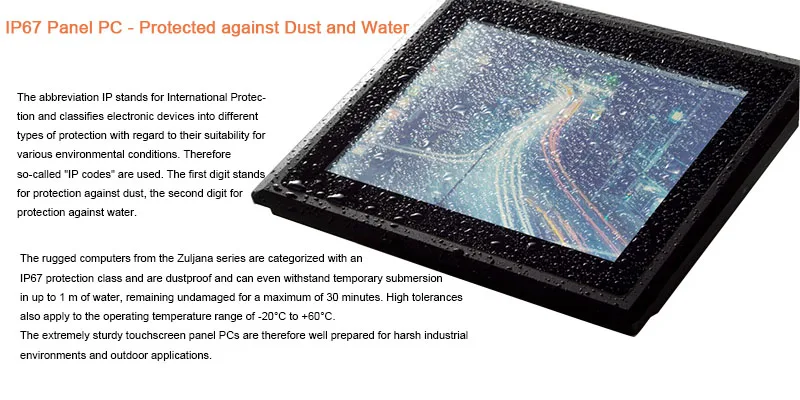

| LCD Panel | IP rating | IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 9.7/24.64 | |
| Display active screen size (cm) | 19.7×14.7 | |
| Aspect ratio | 4:3 | |
| Physical resolution | 1024×768 | |
| Maximum showable resolution | 1920×1080 | |
| Colors displayed | 16.7M | |
| Brightness (cd/m²) | 350 | |
| Contrast | 800:1 | |
| Typical reaction time Tr/ Tf (ms) | 10/15 | |
| Visual Angle horizontal/vertical (°) | 170/170 | |
| Backlight Lifetime (hours) | LED / 20,000 | |

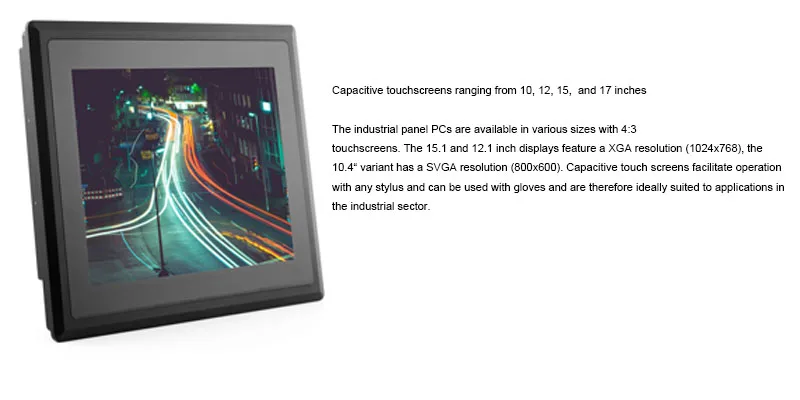

| Touch Panel | Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB | |
| Touch Life (Contacts) | Unlimited | |
| Surface Hardness | 7H | |
| Surface Treatment | Anti-glare (chemical etched) | |
| Operation/Mechanical | Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% - 90% | |
| Net weight (kg) | 2.00 | |
| Gross weight (kg) | 2.90 (incl. packaging) | |
| Housing material | Rubber Front Case, Aluminum IPC Back Case | |

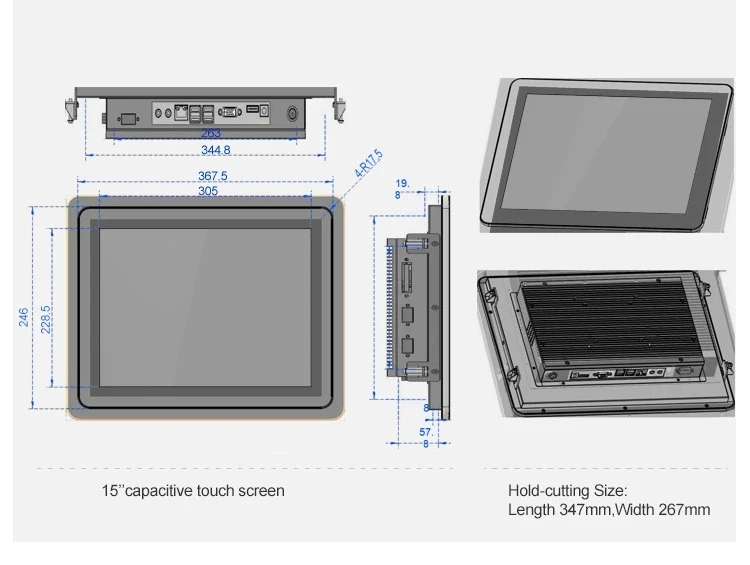

| Housing (cm) L × W × H | 24.43 × 19.52 × 5.25 | |

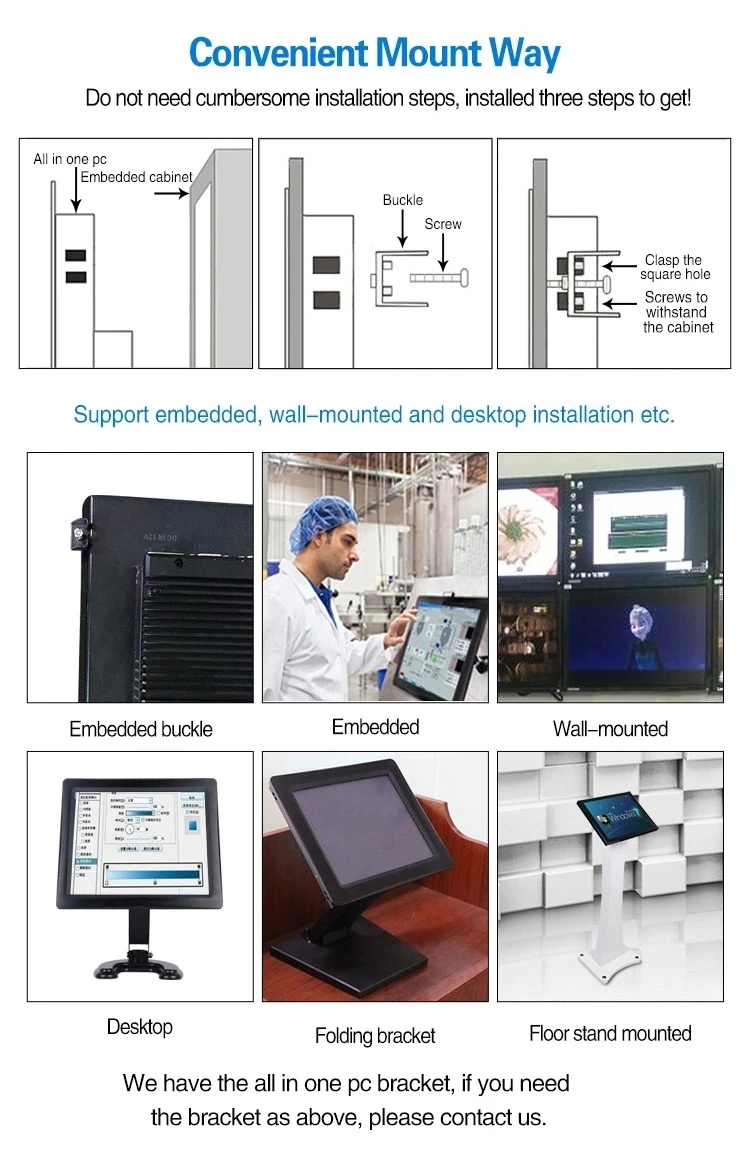

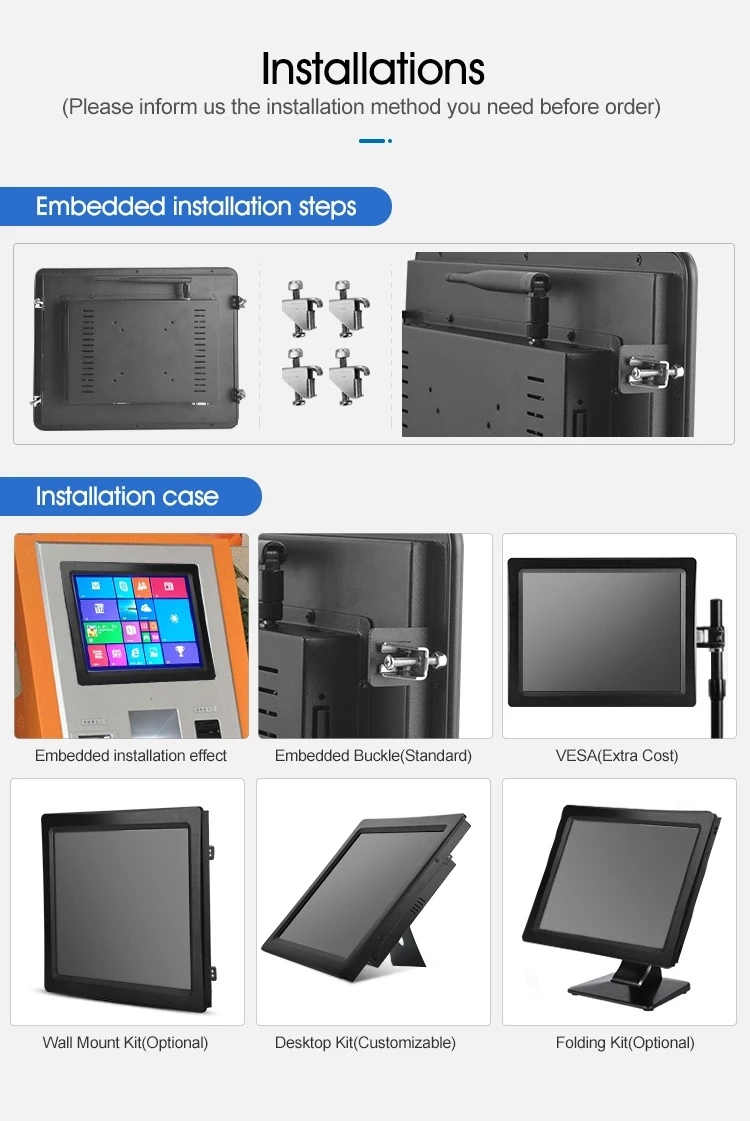

| Mounting | VESA 100 | |
| Power | Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out | |
| Working Power (V) | 12 | |
| Power Consumption (W) | 14 | |
| Stand-By Consumption (W) | <1 | |
| Included in Delivery | Power Supply | |
| Driver DVD | ||
| Short Installation Manual | ||
| Standard Stand | ||
| W-LAN Antenna | ||
COMPANY INFORMATION:
Shenzhen BaoBao Industrial Co., Ltd. is a leading company of LCD and LED Monitor in shenzhen ,China ,As a High - tech enterprise, we have our own R&D, Factory,Marketing and after sales service department,We are specialized in LCD Monitor, Touch Screen Monitor,Open Frame Monitor, All in One PC since 2014
ZULJINAH Factory
Area: 10,000M² Non-dust standard workshop
Worker: 300 workers
Annual :1,000,000pcs of monitors annually
Payment Terms:
Payment ways: We support Western Union, T/T, L/C at sight. And we suggest you use Trade Assurance through Alibaba.com to protect your orders.
1. Payment terms: 30% deposit by T/T when order confirmed, the balance shall be paid before the shipment by T/T
2. Lead time: 3-5 working days according to the order quantity
3. Sample lead time: within 3 working days after we get payment.
4. The price : based on FOB Shenzhen, we will offer best discount according to order quantity.
5. Warranty: One year.
6. Provide service: OEM&ODM service for batch orders, to print logo and design box.
Packing and Shipping:
FAQ:
Our sevice
1. As a professional manufacturer and supplier of touch screen monitors over 9 years,we win our customers with good quality,best service and competitive price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team serve for you diligently
4.Sample order is welcomed and will be delivered within 3 days.
5.We support Trade Assurance to ensure On-time shipment and product quality.
6.We provide OEM service according to your requirements.
7.We provide 12 months maintenance warranty for our products.
