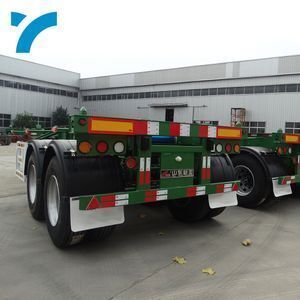

Container transportation cheap container skeleton semi truck trailer 3 axle cargo trailer

Supplier: Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Ms GUO Kara
Price: $3000.00 / >=3 pieces
Min. Order: 3 pieces

Click here to contact

Product details

King pin:	2"(50mm) or 3.5"(90mm);	Port:	any port of China;
Axle Brand:	BPW / FUWA / Yonglitai / Huajin Brand etc.;	Brand Name:	Yong Chao;
Tire:	12R20 / 12R22.5;	Size:	1240024801550mm;
Axles No.:	2 or 3 or 4 axles;	Axles:	13T16P;
Max Payload:	60T;	Function:	Transport 20ft 40ft Container;
Product name:	2/3 Axles 40ft Container Skeleton Semi Trailer;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Type:	Semi-Trailer;	Supply Ability:	400 Unit/Units per Month;
Color:	customize;	Place of Origin:	Shandong China;
Use:	Truck Trailer;	Certification:	ISO9001, CCC;
Material:	Steel;	Suspension:	Mechanical Suspension / air suspension / single point suspension;
Landing Gear:	Standard 28Ton, JOST / FUWA etc.;	Packaging Detail:	Shipped by RO-RO / container / bulk cargo carrier. PS: By container: 2 or 3 units in one 40' container PS: By bulk or RO-RO: 3 or 4 units stack up is more economical;

Product Description

Welcome to visit our factory
Give you the most suitable one
Learned by others, surpassed by nobody

Overall Dimension(LWH)	1240025001520
Tare Weight	5.7t
Loading Weight	60t
Axle	2 or 3 axles, BPW / FUWA / HUAJING etc.
Leaf Spring	90*13-10 4/6/8 sets, Funiu or Taiyue etc.
Suspension system	Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)
Main Beam	The height of the beam is 500mm,upper plate 14mm,down plate is 16mm,middle plate is 6/8 mm, Material is Q345 Carbon Steel
Container Twist Locks	4 pcs or 8 pcs or 12pcs container lock
Tire Type and quantity	12R22.5-18 12units
Steel Rim	9.00-22.5 12Units
Tool Box	1 Standard (1 tyre spanner, 1 gudgeon sleeve and 1 cranking bar)
Traction Pin	2"(50mm)or3.5"(90mm)
Landing Gear	Standard 28Ton, JOST / FUWA etc.
Brake system	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; two 40L air tanks, ABS optional
Electrical system	1.Voltage:24V,LED lights 2.Receotacle:7 ways (7 wire harness)
Painting	customize

Product Function:
1.Material: high strength international standard steel
2.Small tare weight.
3. Anti-bumping ability, no deformation;
4.Earthquake resistance;
5. Meets the different road bearing capacity.
6. Concern every detail: welding strong, surface neat.
