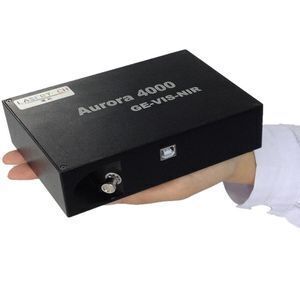

Aurora4000 UV-NIR Fiber Optical Spectrometer

Supplier: Changchun New Industries Optoelectronics Tech Co., Ltd.
Region: Jilin, China
Contact: Ms Demi Zhang
Price: $1300.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Port:	Changchun;	Supply Ability:	5000 Unit/Units per Month;
Resolution:	0.75nm FWHM;	Range Broadband:	200~1100nm;
Payment Terms:	T/T,Western Union;	Place of Origin:	Jilin China (Mainland);
Model Number:	Aurora4000;	Measurement Range:	200~1100nm;
Weight:	840g;	Packaging Detail:	Static-free plastic bag, Protective Packing;
Size:	149 mm x 105 mm x 46 mm;	Wavelength Range:	200~1100nm;
Brand Name:	LASERTECH;	Focal Length:	101.6nm;

Product Description

Applications

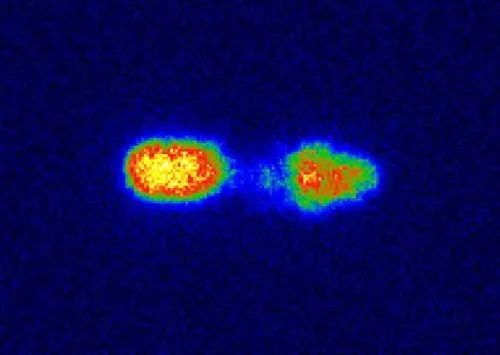

Laser spectral analysis

Fluorescence spectral analysis

Raman spectral analysis

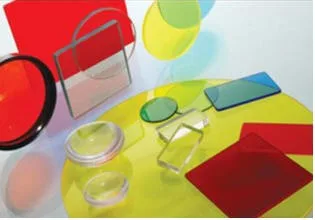

Film thickness measurement

Chemical research

Biological cell analysis

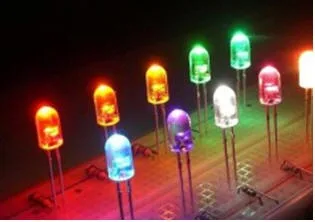

LED analysis

Features

Up to 0.1 nm(FWHM) optical resolution

Convenient operation

Customized wavelength range and resolution

Fit various applications

Support download for Spectral Analysis 5.0

Available Model

Model	Spectral range
Aurora4000 General series	GE 350-1100nm
	GE 200-1100nm
	GE Raman
Aurora4000 External Triggering series	TG 350-1100nm
Aurora4000 External Triggering series	TG 200-1100nm

Typical Spectrometer

Model	Wavelength	Optical resolution
		Entrance aperture
		10	25	50	100	200
Aurora	200-1100nm	0.75	1.09	1.83	3.45	6.61
	350-1100nm	0.75	1.09	1.83	3.45	6.61
	300-515nm	0.15	0.26	0.44	0.83	1.58
	400-837nm	0.44	0.53	0.89	1.68	3.21
	785-1100nm	0.35	0.38	0.64	1.21	2.31

Wavelength Customizable Spectrometer

Model	Entrance aperture	Spectral range	Optical resolution
AURORA4000	10um	200-300nm	0.17
		200-347nm	0.14
		226-369nm	0.18
		310-404nm	0.16
		319-455nm	0.13
		400-480nm	0.08
		423-547 nm	0.12
		480-568 nm	0.12
		546-653 nm	0.12
		568-634 nm	0.09
		654-754 nm	0.10
		748-837 nm	0.23
		794-876 nm	0.24

Detector

Detector	Toshiba TCD1304DG linear CCD array
Wavelength range	200-1100nm
Pixels	3648 pixels
Pixel size	8um*200um
Sensitivity	130 photons/count at 400nm
	60 photons/count at 600nm

Spectrometer

Dimensions (mm)	14910546
Weight (g)	840
Optical resolution	<0.75nm FWHM (Depending on the grating mark density and the slit size, available in a variety of options)
Signal-to-noise ratio	300:1 (at full spectrum)
Dark noise	12RMS counts
Dynamic range	2*109 (system)
Integration time	4ms-10s
Stray light	<0.05%@600nm; <0.10%@435nm
Corrected linearity	>99.8%

Optical Bench

Design	f/4, Symmetrical crossed Czerny-Turner
Focal length	101.6mm input and output
Entrance aperture (um)	5,10,25,50,100 or 200
Grating	A variety of different grating, ultraviolet and infrared
Fiber optic connector	SMA905 to 0.22 numerical aperture single-strand fiber

Electronics

Power consumption	450mA@5VDC
Trigger mode	4 kinds
Data transfer speed	Full scans into memory every 4 ms with USB 2.0; every 18 ms with USB 1.1
Inputs/outputs	5 inputs and 5 outputs (opto-isolator inputs/outputs)
Analog channels	Analog channels
Connector	30-pin connector
