12V DC 1100 gph non-automatic submersible bilge pumps Water Pump

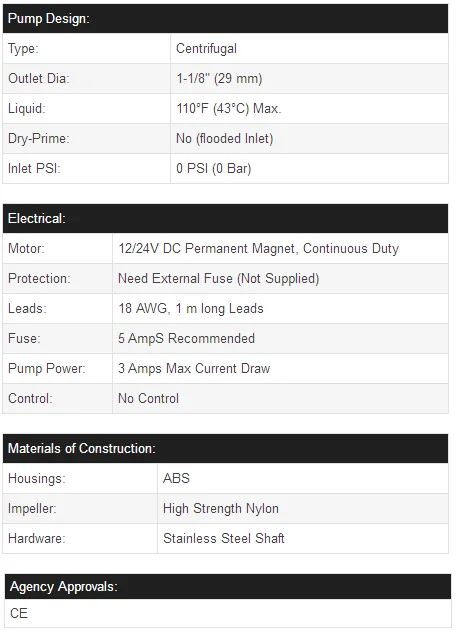

Product details
Port:Xiamen Port;Flow Rate:1001 - 1500GPH;
Head:4m;Protection:Need External Fuse (Not Supplied);
Rated Current:1 - 4A;Packaging Detail:Inner color box: 1pc Master carton: 20pcs;
Standard or Nonstandard:Standard;Motor:12/24V DC Permanent Magnet, Continuous Duty;
Theory:Centrifugal Pump;Payment Terms:L/C,T/T,Paypal;
Current:3.0 Amps Max Current Draw;Certification:CE,ISO9001:2000,RoHS;
Flow rate:1100GPH/4164LPH;Outlet Dia:1-1/8" (29 mm);
Voltage:12/24V;Dry-Prime:No (flooded Inlet);





Typical Applications







Model

Flow Rate

Voltage

Max Draw

Fuse Amps

Head

Wire Lead

Outlet Dia

N.W. / G.W.

NMBP12-G1100-40-12

1100 GPH

12 V

3.0 A

5.0 A

12' (4m)

3' (1m)

1-1/8"

0.38/0.44 kg

NMBP12-G1100-40-24

1100 GPH

24 V

1.8 A

3.0 A

12' (4m)

3' (1m)

1-1/8"

0.38/0.44 kg

Custom Service: Bar-cording, Packaging, Label / Logo, Instruction, Color, etc.

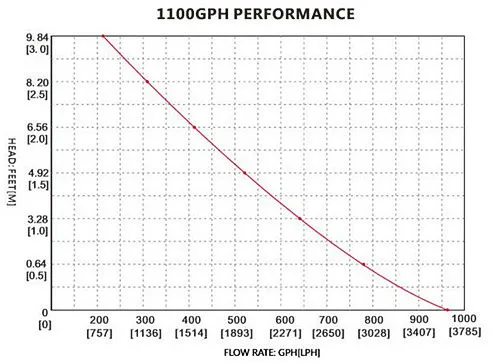

 Performance Data

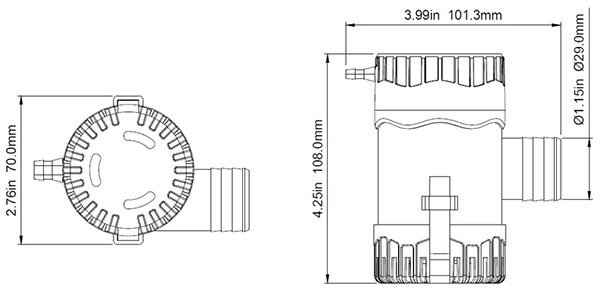

Dimensions





Repair Kits
