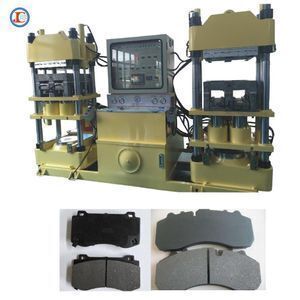

4 cylinder isobaric brake pads making machine manufacturers suppliers

  Main Characteristics of the Machine:

1.    Adopting exhaust vacuum technology could produce high accurate rubber components.

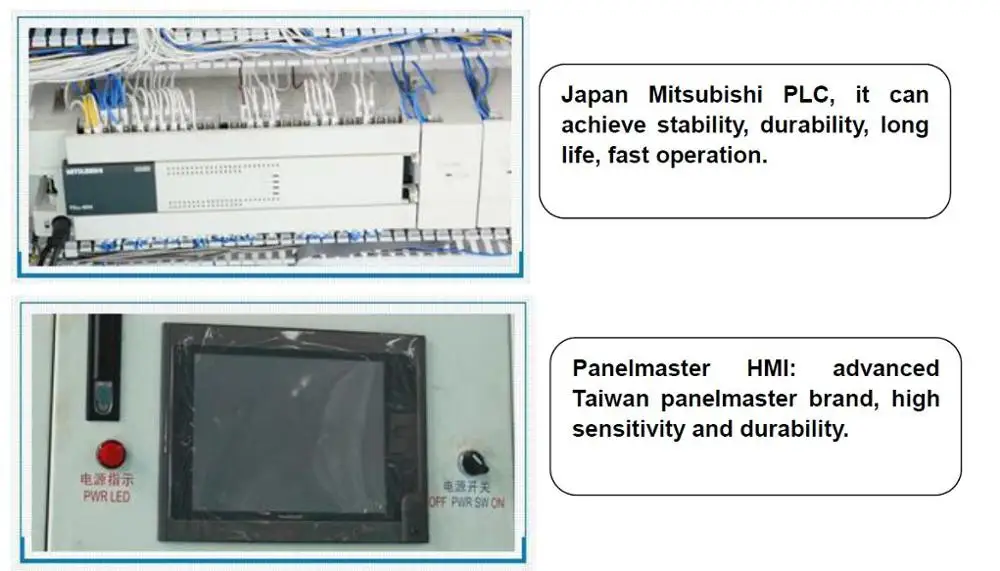

2.    Controlled by PLC, several programs could to be process through automatic control, to check and adjust the heating temperature with automatic, improving control level, labor strength and product efficiency.

3.    Large plate vulcanizing press is used to produce textile construction conveyor belt, such as ordinary rubber conveyor belt, nylon conveyor belt, PVG belt, steel wire core conveyor belt etc.

4.    The special function of the turn-over board makes the nozzle not die material, easy for cleaning and stable quality.

5.    Japanese-made high-tech infrared safety electric eye, automatic warning system and multiple security guards, grasp the status of the machine clearly to ensure safety.

6.    The full-scale oil system, low noise and automatically adjust the function of pressure size.

Technical parameter:

Type: 4 Columns

Clamping Force: 200-400 Tons

Oil Cylinder Mode: fast subsidiary cylinder

Plunger Diameter: Φ500 mm

Plunger Stroke: 450mm

Heating Plates Distance: 420mm

Plated Size: 700x700mm

Heating Mode: electric heating tube

Heating Power: 36KW(18KW x 2)

Mould Openning Mode: 2RT-UP/DWON

Main Cylinder Up Speed: Low Speed:1-6mm/s, High Speed: 60mm/s;

Main Cylinder Dwon Speed: Low Speed:1-6mm/s, High Speed: 80mm/s;

Max. Operating Pressure: 20MPa

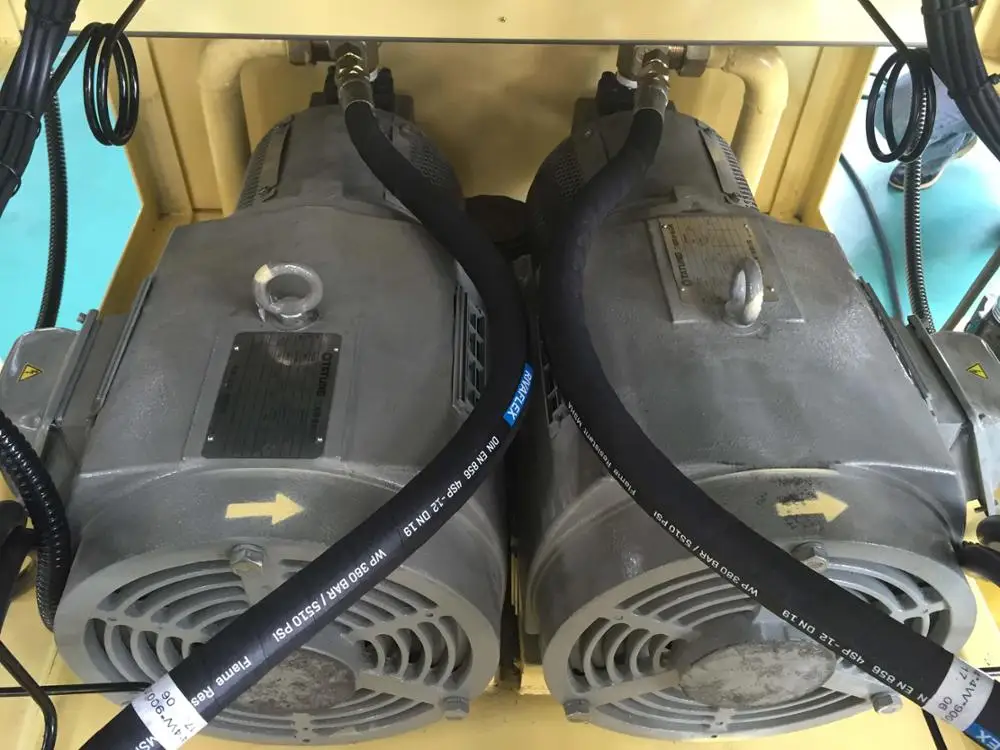

Moto Power: 30HP(15HP x 2)

Max. Heating Temperature: 220℃

Gross weight: 17000 kg

Dimension: L3660*W3050*H2350 mm

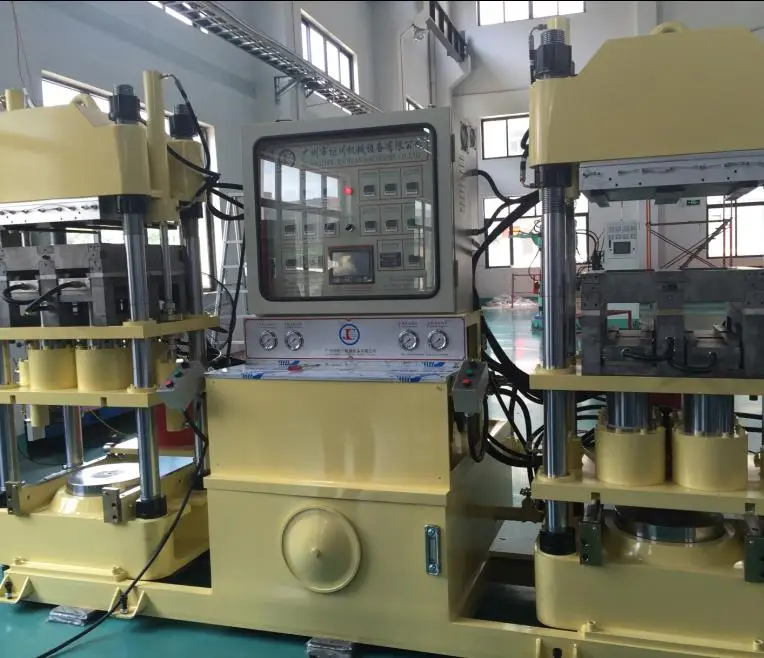

 Product show:

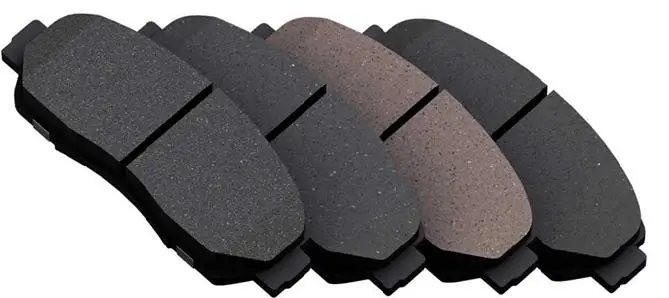

Finished product:

Related product:

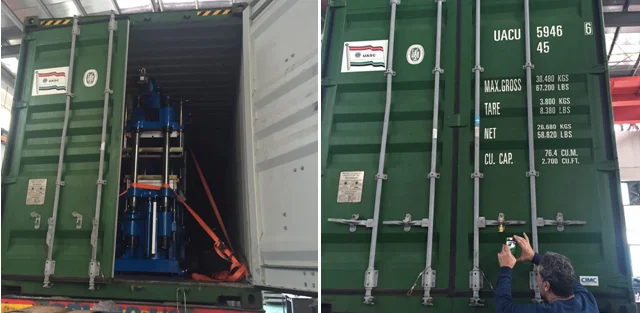

 Shipping and packing

Company information

Guangzhou JuChuan Machinery Co.,Ltd was established in 1997. We are mainly specializing in producing silicone/rubber injection molding machines, Vacuum compression molding machines, plate vulcanizing machine, “all-in-out” ,liquid silicone injection machine, ”first in first out” ,”first in last out”, vertical and horizontal silicone/rubber injection machine for 20 years.

We have a special company patent: Anti-collision Molding System prevent mold damage occurring form misalignment.

Trade show:

Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
