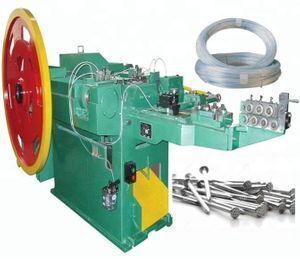

Z94-3C Automatic Steel Wire Nails Making Machine Price

Supplier: Wuxi Shenda Nail Machinery Factory
Region: Jiangsu, China
Contact: Ms ECHO SHI
Price: $3600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local Service Location:	None;	Package Type:	Wood box or customized;
Condition:	New;	Place of Origin:	Jiangsu China;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;	After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Selling Units:	Single item;	Advantage:	New;
Usage:	Iron;	Warranty:	1 YEAR;
Showroom Location:	None;	Single gross weight:	1,300 KG;
Package Preview:	https://sc02.alicdn.com/kf/H9de1469a82da4793824f2911960961e7V.jpg_640x640.jpg,https://sc01.alicdn.com/kf/Ha496044f09124372acc2e417176a8ef7Z.jpg_640x640.jpg;	Machine Type:	Nail Making Machines;
Brand Name:	Shenda;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Single package size:	180X130X150 cm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Key Selling Points:	Easy to Operate;

Z94-3C Automatic Steel Wire Nails Making Machine Price

My contact way

Contact: Echo Shi

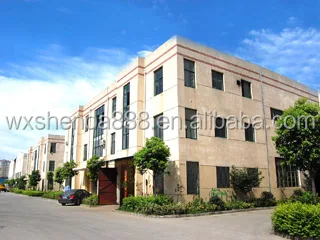

Our Factory

Wuxi Shenda Nail Machinery Factory is specialized in manufacturing and exporting various machines and equipments since 1995.

Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.

25-Years Manufacturer for nail machines and wire drawing machines

Our engineer travels too many countries to assist customers to install the nail production line if necessary.

Time proves we are a professional factory with stable quality and competitive price.

We provide one-stop service from design to installation.

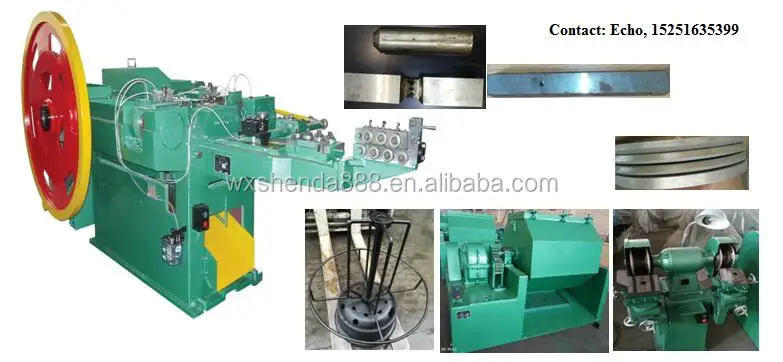

Nail Making Process

First Step: Automatic Wire Nail Making Machines

Nail Length: 9-310mm

Nail Diameter: 0.9-6.5mm

This machine adopts plunger type stricture so as to ensure the features such as high

speed,low noise and less impact . Especially , it can make the high quality of oil rivet nail, roofing nails, U nails and double-head nails.

Each model machine could make different kinds size nail,the nail length could adjust on machine and nail diameter need feed with related diameter coil wire.

Each nail making machine supply related nail mould ,nail knife and punch pin ect spare parts

The specification of common nail machines is as follow :

Model	Z94-1C	Z94-2C	Z94-3C	Z94-4C	Z94-5.5C	Z94-6.5C
Max. dia. of nail	1.6mm	2.8mm	3.5mm	4.5mm	5.5mm	6.5mm
Min. dia. of nail	0.9mm	1.2mm	1.8mm	2.8mm	3.1mm	4.5mm
Max. Length of nail	25mm	50mm	75mm	100mm	150mm	200mm
Min. length of nail	9mm	16mm	30mm	50mm	80mm	100mm
Motor power	1.5kw	2.2kw	3kw	4kw	5.5kw	11kw
Nail making speed	450pcs/min	350pcs/min	320pcs/min	260pcs/min	200pcs/min	180pcs/min
LWH	1.51.31.2m	1.71.31.4m	2.01.41.4m	2.21.61.65m	2.51.61.5m	3.51.91.8
Weight	1.2tons	1.45tons	1.8tons	2tons	2.3tons	5.5ton

At workshop

At warehouse

At Trade Fair

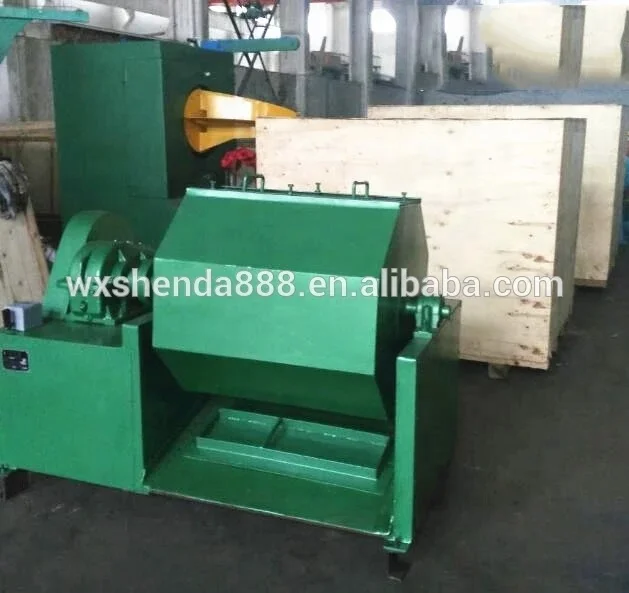

Second Step: nail polihsing machine is used to make the nail brighening.

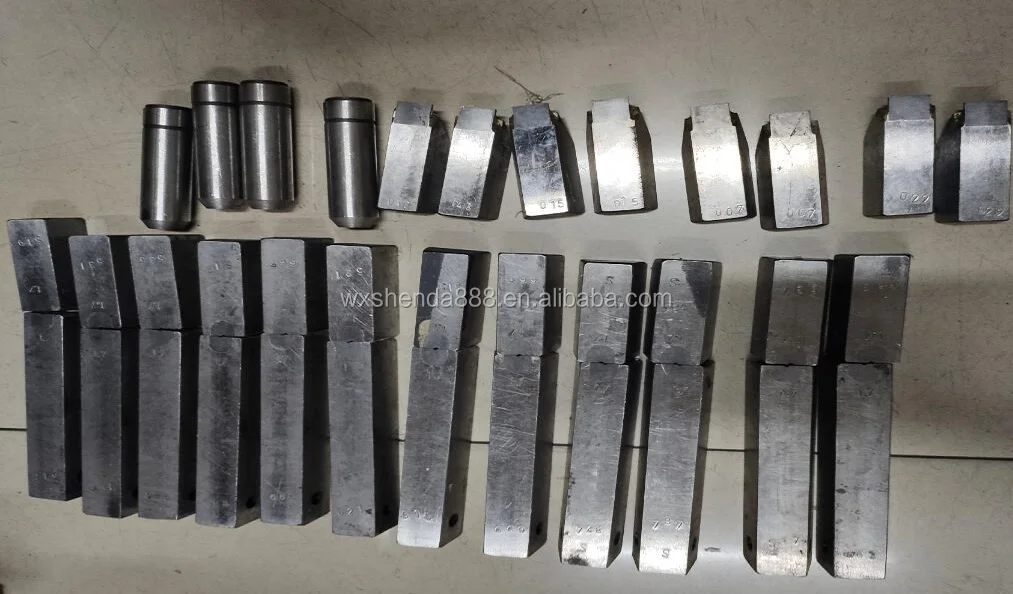

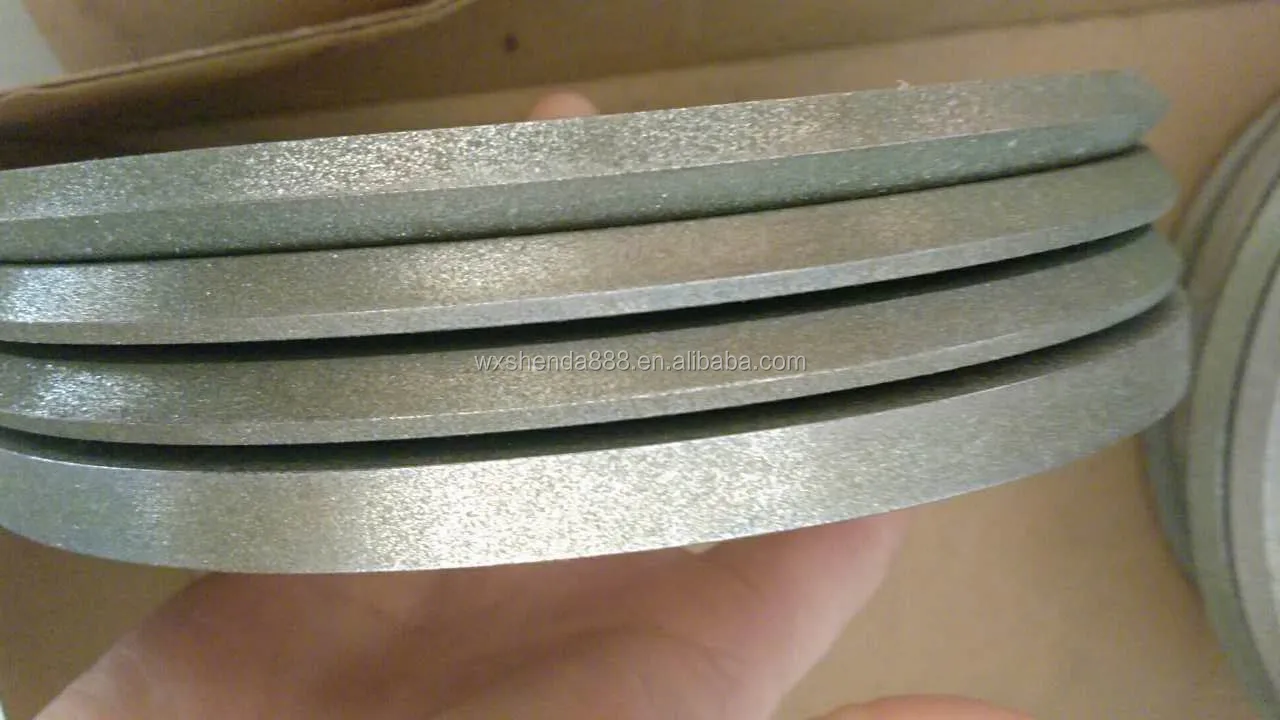

Spare parts of nail making machines

Packaging & Shipping

The package using plywood box helps to strengthen the structure and improve the sealing performance.
Our factory uses container and marine transportation,other modes of transpotation will also be accepted depending on the particular situation.

Our company services

All produts purchased in our company are one year guarranty(except spare parts).

If quality problems happen within guarantee period, our company will repair for free.

To insure machine in good condition, we will 100% test and adjust the machine before delivery, so you can use directly when you get it. Also production pictures will be sent to clients, to help them know the machines better.

Additionally, our company provides technical support and fittings for life. After-sales service is available any time and we will solve your problems in time. If needed, our technician is available overseas to help you.

Also we promise;

a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.
