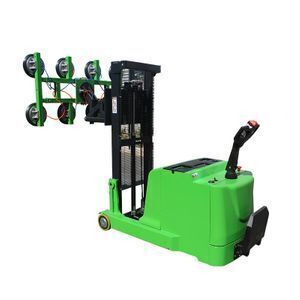

Battery Operated Granite Suction Panel Vacuum Glass Lifter

Product details
Condition:New;Load Capacity:600kg ,customized;
After-sales Service Provided:Engineers available to service machinery overseas;Lifting Height:3.5m,handing,rotating and moving;
Brand Name:SAGAFIRST;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Input Voltage:110V 220V 240V 380V, 400V, Customized;Packaging Detail:Wooden Pallet And High Quality Paper Boxes with Stretch Film.;
Type of Suction Caps:250mm/300mm round rubber suckers/square sponge suckers;Place of Origin:Shandong China;
Local Service Location:Egypt,United Kingdom,Germany,Viet Nam,Saudi Arabia,Indonesia,India,Mexico,Russia,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,South Korea,UAE,Bangladesh,Kyrgyzstan,Nigeria;Warranty:1 YEAR;
Maintenance Free Battery:2x12V/120AH;Drive Motor:24V/700W;
Safety and Security:Dual Circuit Vacuum System;Control Voltage:24V;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba Trade Assurance;
After-sales Service Provided:Free spare parts;Showroom Location:Egypt,United States,Italy,Philippines,Brazil,Peru,Saudi Arabia,Pakistan,Mexico,Russia,Morocco,UAE,Colombia,Romania,South Africa,Malaysia;
Supply Ability:1000 Set/Sets per Month;Certification:ISO CE ROHS;
Port:Qingdao Port, Shanghai Port, Ningbo Port, Guangzhou Port;

Battery Operated Granite Suction Panel Vacuum Glass Lifter

- OEM  & ODM Service -




SAGAFIRST Brand Vacuum Lifter
are specially designed for handling different kinds of heavy plate,board and glass,useful for installing steel board,glass wall,moving such as granite,marble.Easily handle lifting,moving and rotating with vacuum suction caps and powerful drive system.



  Data Sheet:

Model Type

VGL-LD-350

GL-LD-600

Load Capacity

350kg (retract)/175kg(extend)

600kg (retract)/300kg(extend)

Lifting Height

3500mm

3500mm

QTY of Suction Cap

4pcs (standard)

6pcs (standard)

Suction Cap Diameter

Ø300mm (standard)

Ø300mm (standard)

Battery

2x12V/100AH

2x12V/120AH

Battery Charger

Smart Charger

Smart Charger

Controller

VST224-15

CP2207A-5102

Drive motor

24V/600W

24V/900W

Hydraulic power

24V/2000W/5L

24V/2000W/5L

Front Wheel

High elastic solid rubber wheel

Ø310x100mm 2pcs

High elastic solid rubber wheel

Ø375x110mm 2pcs

Driving Wheel

Ø250x80mm Middle horizontal drive wheel

Ø310x100mmMiddle horizontal drive wheel

Weight

780kg

1200kg

Usages

Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps.

Product Description



GL-LD series Vacuum Lifter Floor crane style vacuum lifter,various options.

GL-LD-6030 is designed and modified based on Sagafirst LD Series Full Power Floor Crane. And it is combined with vacuum lifter for carrying glass, steel plate and some other materials.



Self-propelled drive, Higher lift cap, available upon request. Electric side shift 100mm both right/left. Electric tilting forwards/backwards from vertical to horizontal or reverse. Suction plate is manual rotating.

Handling Equipment Special design for handling difference kind of heavy plate,such as steel,glass,granite,marble and so forth,with vacuum suction caps.
Vacuum RoboThe vacuum suction is designed with automatic pressure control doable routes to avoid system failure.Ideal for loading/unloading transporting,rotating and installation.Easy for operation,with the following functions

1. Self-propelled drive. Manual rotating.

2. Electric lift up to 3.5M

3. Higher lift cap. is available upon request.

4. Electric side shift 100mm both right & left.

5. Electric tilting forwards/backwards from vertical to horizontal or reverse.






1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.

2. DC24V reliable actuators for lifting,extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.

3. Attractive price,staff saving,strong improvement of working environment.

4. Sagafirst vacuum lifter are dealt with shot blasting and stoving varnish,high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation,Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
9. Up to American standard ANSI/ASME and Europe standard EN1570.



Detailed Images

 Safety Precautions
1. Explosion-proof valves                  2. Spillover valve
3. Emergency decline valve              4. Overload protection locking device.
5. DC power,safety and security       6. DUAL circuit vacuum system

Applications

  Sagafirst Vacuum Lifter is specially designed for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.

Packaging & Shipping



Standard Vacuum Lifter will be wrapped by bubble file and packed in wooden pallet.

Shipped by sea.





 Sagafirst welcome to visit us to negotiate business and inspect the production.



Certifications

 All of sagafirst scissor lift tables are approved by European certificates and meet the international standards.







 Questions

 Answers

 Are you a factory or trading company?

 We're factory with over 12years exporting experience.

 What's the MOQ?

 1UNIT,the more,the better.

 What's the payment terms?



 >USD5000  30%TT in advance,balance before shipment.

 >USD100,00  TT or Irrevocable L/C At Sight.

 Do you offer OEM&ODM service?

 Yes,like lifting capacity, lifting height, size of platform,painting  color,logo,manual etc.

 What's the delivery time?

 15~20days after down payment

 What's the quality warranty?

 24 months.Offer free parts for replacement.

 How can I get the after-sales service?

 We offer videos,pictures and technical guidance immediately.

 What's your QA&QC policy?

 3times 100% inspection before shipping.

 Can you tell me your clients in my country?

 Of course. But only after the permittance of customers.
