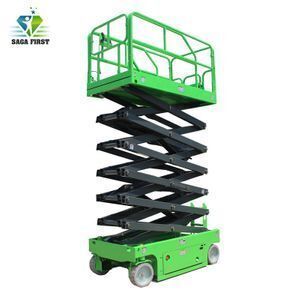

3m 4m Semi Electric Mobile Mini Scissor Lift

Supplier: Qingdao Sinofirst Machinery Co.,ltd
Region: Shandong, China
Contact: Ms Alison Z
Price: $9000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Support Legs:	4;	Emergency Decline System:	Yes;
Lift Power:	Battery;	Warranty:	1 Year;
Safe Valves:	Overflow Valve,Check Valve, Adjustment Valve,;	Overall Dimensions:	13007401650mm;
Brand Name:	SAGA FIRST;	Color:	Yellow, Orange, Blue,Customized;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Food & Beverage Shops,Advertising Company;	Control Mode:	Undder and Upper;
Certification:	CE ISO9001;	Surface Treatment:	Plastic Spraying;
Table Size:	1170*600mm;	Moving Mode:	Manually;
After-sales Service Provided:	Free spare parts;	Place of Origin:	Shandong China (Mainland);
Lift Mechanism:	Scissor Lift;	Weight:	420KG;
Packaging Detail:	High Quality Paper Boxes with Stretch Film.;	Min. Lifting Height:	1700mm;
Port:	Qingdao Port, Shanghai Port, Ningbo Port, Guangzhou Port;	Lift Drive / Actuation:	Hydraulic;
Lifting Time:	33s;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba Trade Assurance;
Supply Ability:	1000 Set/Sets per Month;	Power:	0.8KW;
Charger:	12V/15A;

3m 4m Semi Electric Mobile Mini Scissor Lift

- OEM & ODM Service -

Model No.		SP06	SP08	SP10	SP12
Lifting capacity	kg	300	300	300	300
Folding maximum height(guardrail unfolding)	mm	2150	2275	2400	2525
Folding maximum height(guardrail removed)	mm	1190	1315	1440	1565
Overall Length	mm	2400	2400	2400	2400
Overall Width	mm	1150	1150	1150	1150
Platform Size	mm	2270×1150	2270×1150	2270×1150	2270×1150
Platform extend size	mm	900	900	900	900
Minimumground clearance(folding)	mm	110	110	110	110
Minimumground clearance(rising)	mm	20	20	20	20
Wheelbase	mm	1850	1850	1850	1850
Minimum turn radius(inner wheel)	mm	0	0	0	0
Minimum turn radius(outer wheel)	mm	2100	2100	2100	2100
Power source	v/kw	24/3.0	24/3.0	24/3.0	24/3.0
Running speed(folding)	km/h	4	4	4	4
Running speed(rising)	km/h	0.8	0.8	0.8	0.8
Rising/falling speed	sec	40/50	40/50	70/80	70/80
Battery	V/Ah	4×6/210	4×6/210	4×6/210	4×6/210
Charger	V/A	24/25	24/25	24/25	24/25
Maximum climbing ability	%	20	20	20	20
Maximum working allowable angle	/	2-3°	2-3°	2-3°	2-3°
Way of control	/	Electro-hydraulic proportion control
Driver	/	Double front-wheel
Hydraulic drive	/	Double rear-wheel
Wheel size(stuffed&no mark)	/	Φ381×127	Φ381×127	Φ381×127	Φ381×127
Whole weight	kg	1900	2080	2490	2760

Hydraulic motor supply power for driving and lifting. It is different drive model with Electrical motor drive. Hydraulic self propelled scissor lift is famous for its high precision, great sensitivity, low ware and lower noise.

Product Description

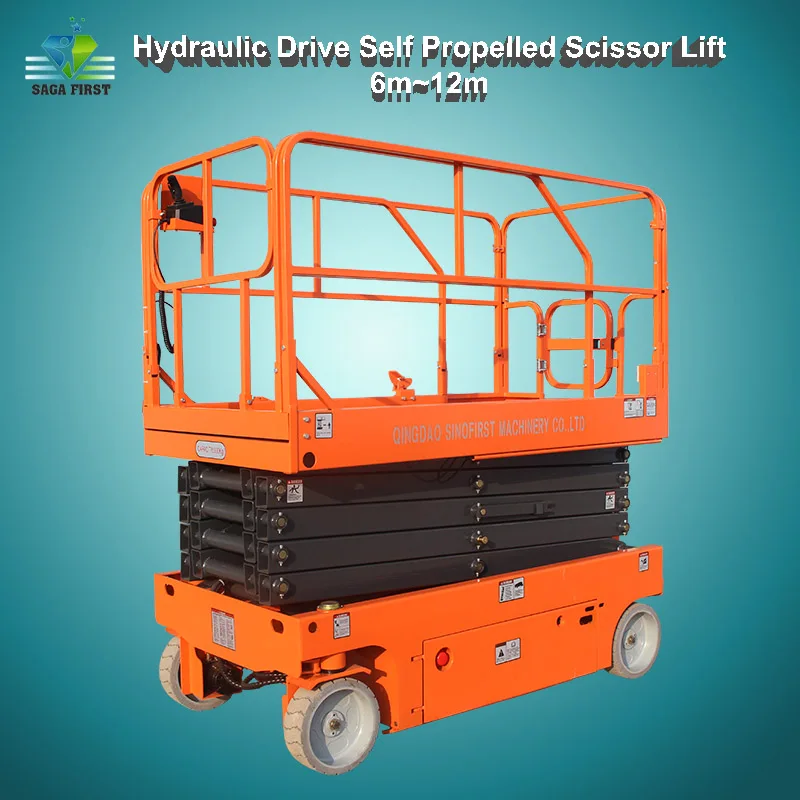

Hydraulic Self Propelled Scissor Lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.

Self-lock Gate on Platform Emergency Lowering System Non Marking Tyre

Emergency Stop Button Cylinder Check Valve Overflow Valve

Adjustment Valve Forklift Holes Intelligent Charger

Light Weight Support Legs Or Brakes Maintaince Free Battery

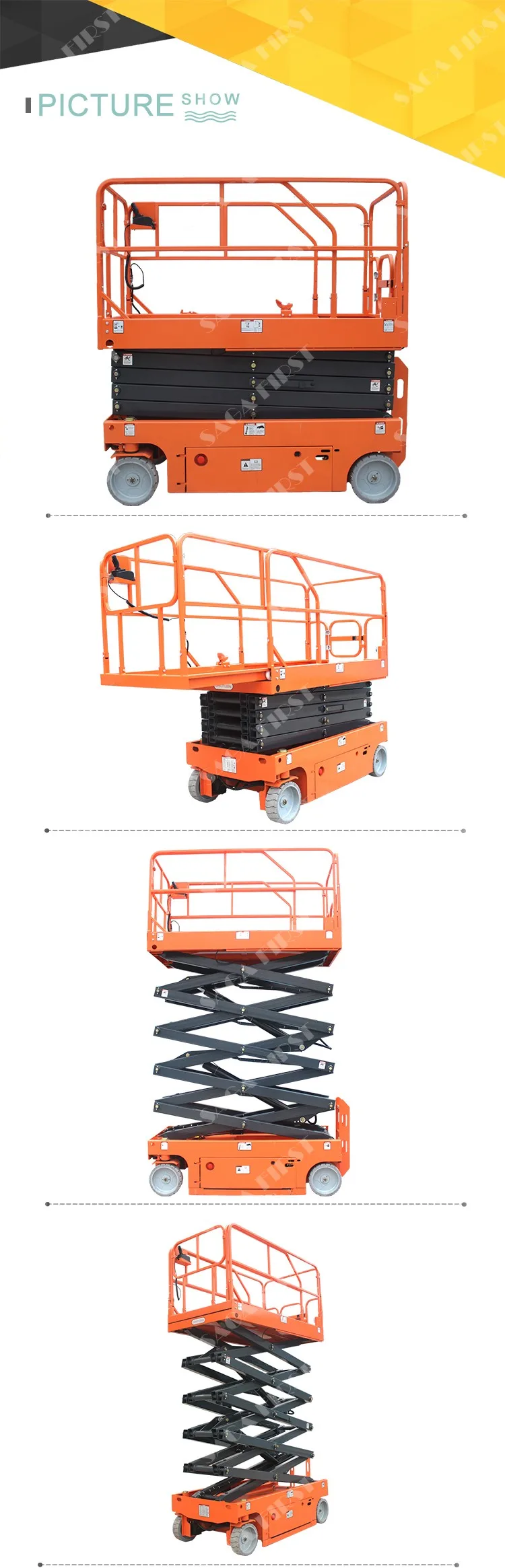

Detailed Images

Safety Precautions:
1. Explosion-proof valves 2. Spillover valve 3. Emergency decline valve

4. Check Valve 5. Adjustment Valve 6. Tilt Angle Sensor

7.Automatic pothole protection 8.Self-lock gate on platform 9.Safety Maintaince Rod

Applications

Hydraulic Self Propelled Scissor Lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.

Certifications

Questions	Answers
Are you a factory or trading company?	We're factory with over 12years exporting experience.
What's the MOQ?	1UNIT,the more,the better.
What's the payment terms?	>USD5000: 30%TT in advance,balance before shipment. >USD100,00: TT or Irrevocable L/C At Sight.
Do you offer OEM&ODM service?	Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc.
What's the delivery time?	15~20days after down payment
What's the quality warranty?	24 months.Offer free parts for replacement.
How can I get the after-sales service?	We offer videos,pictures and technical guidance immediately.
What's your QA&QC policy?	3times 100% inspection before shipping.
Can you tell me your clients in my country?	Of course. But only after the permittance of customers.
