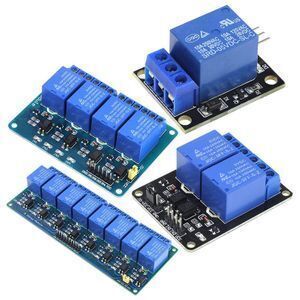

1 2 4 8 Channel DC 5V Relays Module with Optocoupler Low Level Trigger Expansion Board for arduino for Raspberry Pi

Product details
Port:Shenzhen;Theory:Voltage Relay;
MOQ:10PCS;Weight:15g/31g/61g/118g;
Type:1/2/4/8 Channel;Contact Load:Low Power;
Trigger current:5mA;Maximum load:AC 250V/10A, DC 30V/10A;
Brand Name:Aokin;Place of Origin:Guangdong China;
Packaging Detail:antistatic bag 1pcs Channel 1/2/4/8 DC 5V Relays Module with Optocoupler Low Level Trigger Expansion Board for arduino for Raspberry Pi;Supply Ability:10000 Piece/Pieces per Month 1 2 4 8 Channel relay module(low level);
Condition:100%new;Size:Subminiature;
Model Number:3D0011-3D0014;Payment Terms:L/C,T/T,Western Union,MoneyGram,Trade Assurance;
Color:Blue;Name:1 2 4 8 Channel relays module(low level);
Usage:General Purpose;

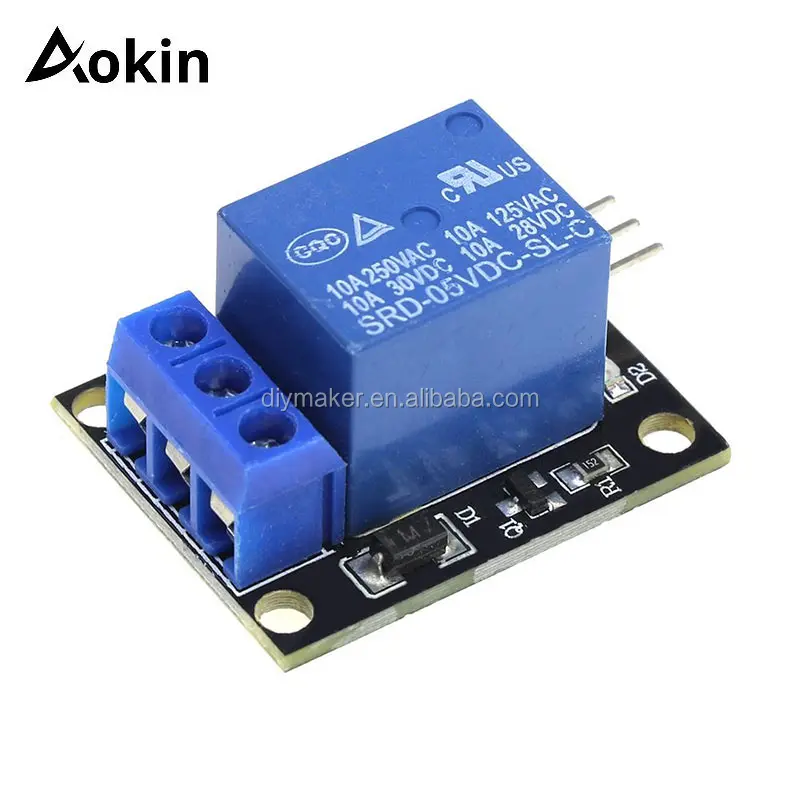

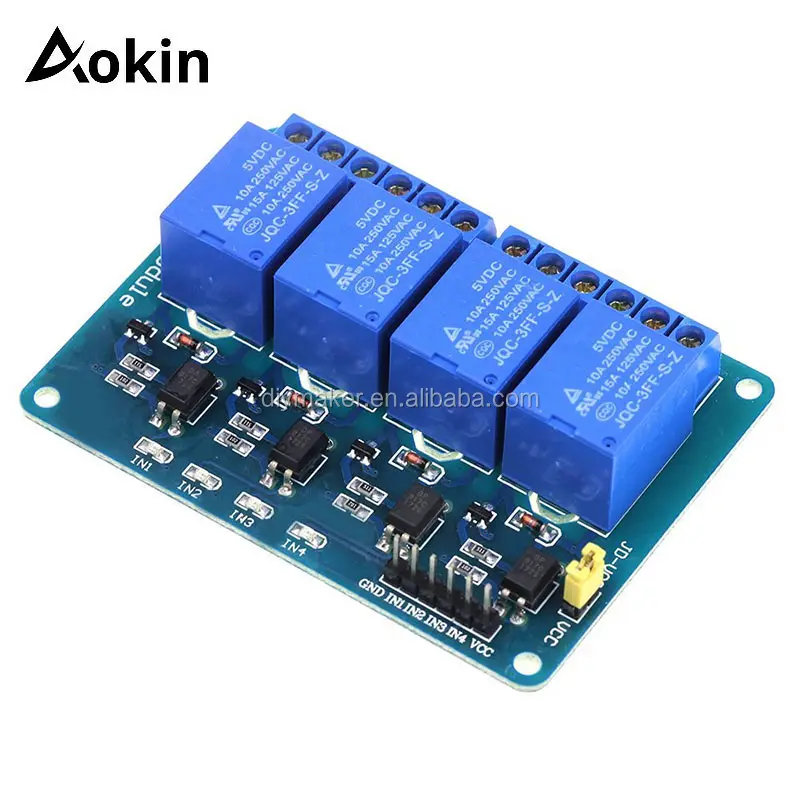

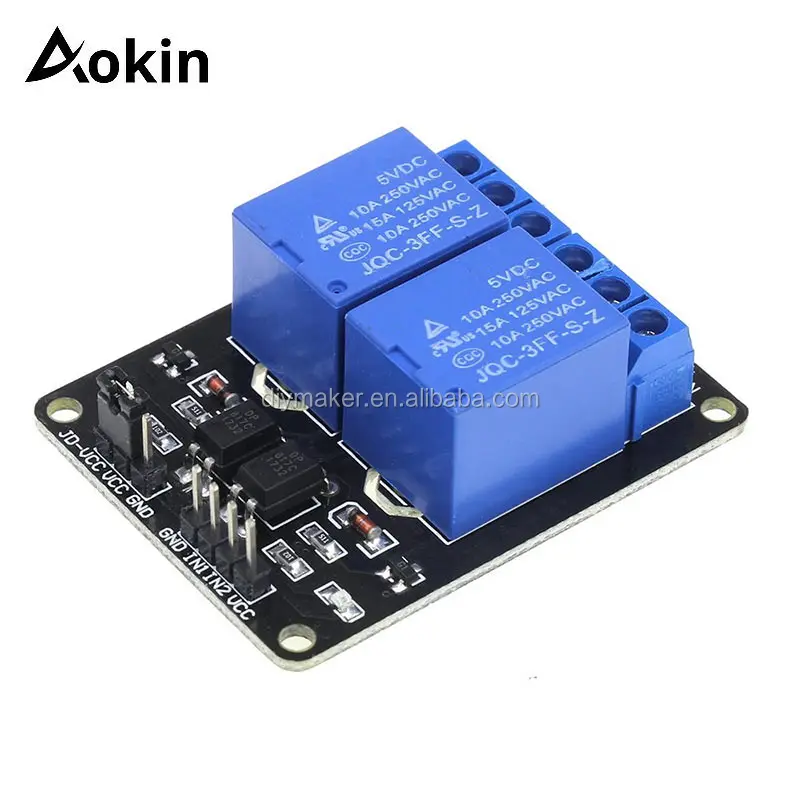

1 2 4 8 Channel DC 5V Relays Module with Optocoupler Low Level Trigger Expansion Board for arduino for Raspberry Pi

Product Description



1.The module uses genuine quality relay, normally open interfaces.
2.Using SMD optocoupler isolation, driving ability, stable performance.
3.The module can be high or low by a jumper setting trigger
4.Fault-tolerant design, even if the control line is broken, the relay will not operate.
5.The power indicator (green), the relay status indicator (red)
6.The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient.


Maximum load: AC 250V/10A, DC 30V/10A
Trigger current: 5mA
Working voltage: 5V
Module size: 50 x 26 x 18.5mm (L x W x H)
Four mounting bolts holes, diameter 3.1mm
DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level control relay
NO: normally open relay interface
COM: Common Interface Relays
NC: normally closed relay interface
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin


1. The new 5V Relay Module Can be used as microcontroller development board module can be used as home appliance control
2. 5 V-12V to TTL control signal
3. The control signal DC or AC, 220V AC load can be controlled.
4. There is a normally open and one normally closed contact
5. A power indicator light
6. A control indicator, pull off, disconnect does not shine
7. Transistor drive to increase the relay coil control pins high impedance.
8. The control pin has a pull-down circuit to prevent malfunction relay vacant

More Products

Please kindly contact us when you need the link for the hot-selling product. Thank you

FAQ

Q1. Is it the final price in the price list?

A1: No, there still have some negotiated room. It depends on the order you placed, the more you placed, the lower price you will get.



Q2. What is your minimum order quantity?
A2: Minimum order quantity starts from ONE piece.



Q3. How can I place an order?

A3: (1) Agreement is achieved on the product price and product specifications.

      (2) We make proforma invoice for your confirmation.

      (3) When you agree on the proforma invoice, you make the payment.

      (4) We deliver the goods after we receive your payment.



Q4. What is your price term?

A4: EXW Shenzhen.



Q5. What is your lead time?

A5: Sample: Immediately, normally within 1day after payment received.

      Small order: About 3-5 working days after payment received.

      Bulk order: About 5-7 working days after payment received.



Q6. What are your terms of payment?

A6: Wire Transfer(T/T), Western Union, Letter of Credit(L/C), PayPal, Ali Pay, Transfer in        WeChat, Credit Card, Trade Assurance, etc.



Q7. How about the shipping?

A7: Usually, we will deliver the goods via Express like FedEx, DHL, TNT, UPS, China Post and so on. Shipping way will depend on the goods quantity and weight.

Our Services

1. Our another factory in Rangoon will be finished, it can help clients save costs like tariffs(customs duties/tax) when imported electronic components & 3D printer parts from our company, especially for American clients(free tax to the United Stated).


2. Our company can not only sell single electronic module, but also can support OEM & ODM orders, like assembling products, customize any electronic components product following your ideas or requests.


3. Price for reference only, please contact us for the final precise price.

Company Information

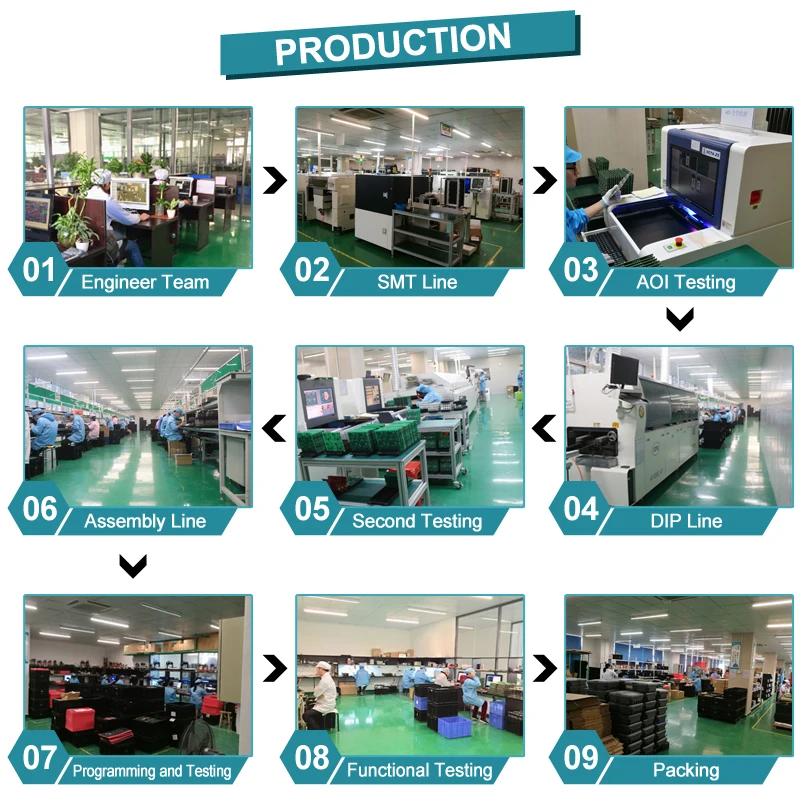

Shenzhen Nonstop Technology Co., Ltd. was established on August 29, 2011. Has a professional R & D production team and a responsible sales team, mainly engaged in 3D printing accessories and electronic components.
