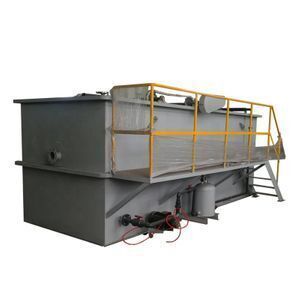

Oil Water Separator Machine DAF Dissolved Air Flotation Units System Price For Wastewater Treatment
-
Supplier: Jiangsu Guonong Environmental Protection Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr kevin kong -
Price: $1000.00 /set -
Min. Order: 1 set
| MOQ: | 1 Set; | Applicable Industries: | Hotels,Manufacturing Plant,Food & Beverage Factory,Restaurant,Printing Shops,Advertising Company,wastewater treatment; |
| Function: | Removing COD BOD NH-N TSS; | Brand Name: | GNGTHISM; |
| Packaging Detail: | standard export package; | Warranty: | One Year Technical Support; |
| Flow rate: | 1-200M3/h; | Power: | 1.1-15; |
| Size: | 4-30M3; | Warranty: | 1 year; |
| Weight: | 3-10ton; | Supply Ability: | 15 Set/Sets per Month; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Port: | shanghai; |
| Material: | standard export package; | Place of Origin: | Jiangsu China; |
| Control: | Automatic Control Box; | Product name: | Oil Water Separator Wastewater Treatment DAF Dissolved Air Flotation; |
| Material: | Carbon Steel /SS304/SS316L; | Certification: | CE,ISO9001; |
| Product Keywords: | DAF Dissolved Air Flotation Units System Price; | After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support; |
Oil Water Separator Machine DAF Dissolved Air Flotation Units System Price For Wastewater Treatment

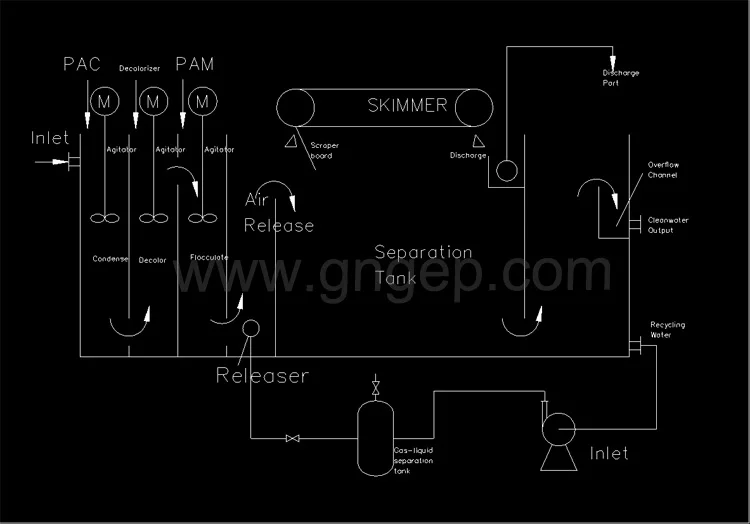

Oil Water Separator Wastewater Plant Treatment DAF Dissolved Air Flotation is an efficient flotation method for water clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.
DAF Features
1. Flow rate of one set: 1-300 m³/h.
2. Recycle flow dissolved air flotation.
3. High efficiency pressurization system providing high quantity dissolved-air water to create large
quantities of small bubbles.
4. Custom design on different dissolved air flotation equipment and recycle flow ratio according to
the type of wastewater and treatment requirement to achieve target removal effect and stability.
5. Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
6. Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is
available to save the space and cost.
7. Automatic and remote controllable.
8. Material of construction: carbon steel epoxy painted, carbon steel FRP line, SS304/SS316L
DAF is a proven, and effective physical-chemical technology commonly used for many industrial and municipal applications,including :
•Product recovery and reuse
•Pretreatment to meet sewer discharge limits
•Pretreatment to reduce loading on downstream biological systems
•Polishing of biological treatment effluent
•Removing silt and grease from industrial water

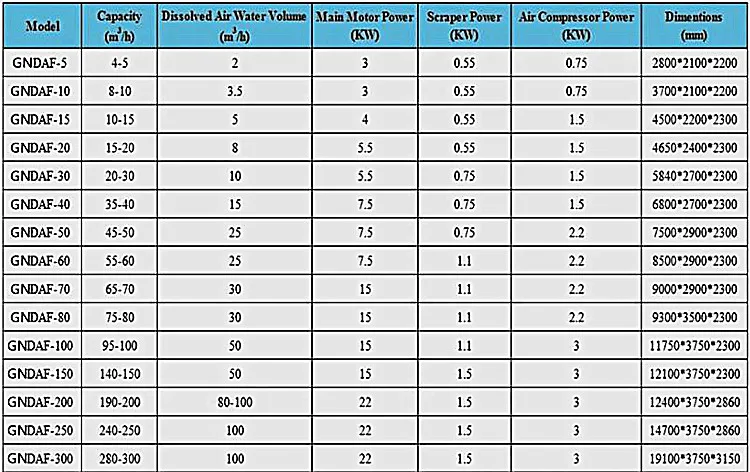

Technical Parameters
Application
DAF is used extensively in the following industries:
•Meat, poultry, and fish processing
•Dairy industry
•Petrochemicals
•Pulp and paper
•Food and beverage
Key DAF Features
- Total suspended solids (TSS) reduction up to 97%
- Chemical oxygen demand (COD) removal up to 85%
- Low-cost operation and maintenance
- Standard and customized units meet a variety of application and flow ranges
- Designed for ease of installation and use
- Suitable for high-salinity water

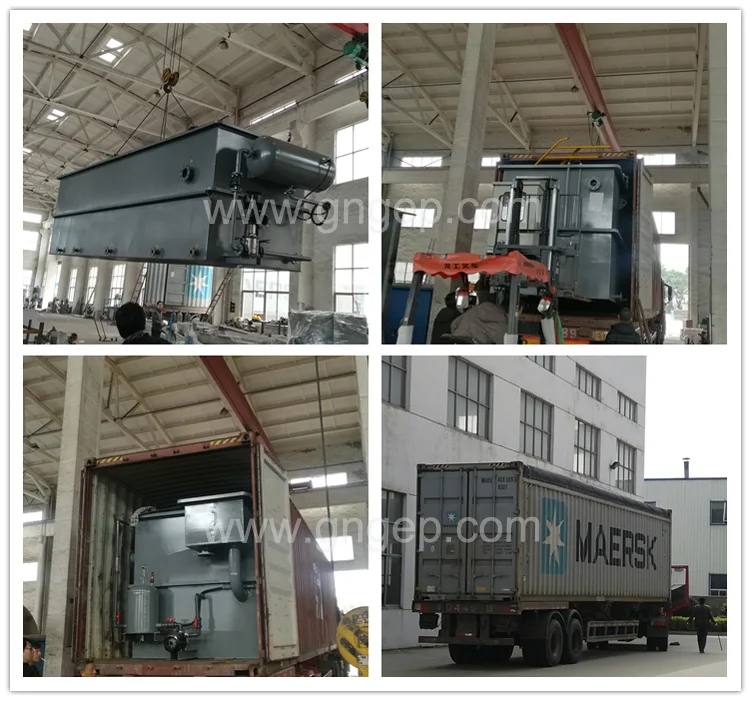

Packaging & Shipping
Our Company
Jiangsu Guonong Environmental Protection Co., Ltd is the professional water treatment R&D manufacturer. It is located in Yixing city, Jiangsu Province, China.
Our products include Fine Bubble Disc Diffuser, MBBR Media , Sludge Dewatering Machine, Automatic Chemica Dosing System. Dissolved Air Flotation, Drum Filter Screen, Screens and Fine Screens, Grit-water separator, Screw Conveyor, Nano Bubble Generator, etc.
After years of exploration and practice our Company has developed into a comprehensive service system.
Now more than 80% of our products are exported to Southeast Asia, The Middle East, Europe, North America, Central and South America areas, Africa and other countries worldwide. We also have many agents in Southeast Asia, North America and Central South America areas, etc.
We insist on "Quality first, Reputation Foremost", our mission is" To be the best integrated water treatment supplier Worldwide".
Customer site
Customers and Fairs
Related products
Sludge Dewatering Machine Rotary Drum Filter Screen
Nano Bubble Generator Fine Bubble Disc Diffuser
FAQ
Q: How to choose the right model?
A: For better model selection, please provide us the sewage type, water quality, flow rate.
Q: What’s the material of your Dissolved Air Flotation?
We can provide three kinds of materials, including carbon steel, carbon steel plus FRP lining, and SS304/SS316L. For common carbon steel material, we use the the world-famous paint, like Sigma Coatings, Pain Bow, etc to keep it from corrosion. What’s more, the thickness of the carbon steel we used is 8mm, which owns longer service life.
Q. How to keep your equipment from corrosion?
A: We use the world-famous paint, like Sigma Coatings, Pain Bow, etc. What's more, the thickness of the carbon steel we used is 8mm, which owns longer service life.
Q: What about your delivery time?
A: Normally within 20~25 days against down payment.
Q: How to install after the equipment on site?
A: We will provide detailed illustrations to you. If necessary, we will send technicians to help you.
Q: How long is your warranty?
A: One year after the arrival of the goods. During this period, any damage caused by non-human factors, we will provide the damaged parts free of charge.
Q: Do you provide OEM service?
A: Yes, OEM is available.
