High oxygen fine bubble disc diffuser

Product details
Size:5/6/8/9/12 inch;Weight:0.5-1.2 Kg;
Certification:ISO 9001, CE Certificate;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:Shanghai;Supply Ability:10000 Piece/Pieces per Month;
Oxygen transfer rate:25-30;Applicable Industries:water treatment, aquaculture;
Packaging Detail:Bubble pack and five- layer hard carton package for High oxygen fine bubble disc diffuser;Connector:3/4'' NPT male thread;
Support dish material:strengthened PP+glass fiber;Material:Strengthened PP +GF;
Warranty:2 years;Place of Origin:Jiangsu China;
Application:aquaculture/waste water treatment;Membrane material:EPDM/Silicone/PTFE;
Product name:High oxygen fine bubble disc diffuser;After-sales Service Provided:Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;
Feature:high oxygen transfer efficiency;Bubble Size:1-2mm;
Type:Disc;Brand Name:GNGTHISM;
Product Description

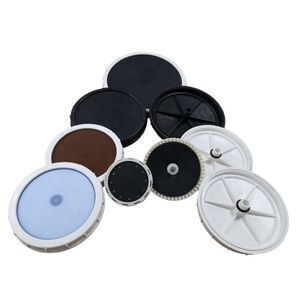

High oxygen fine bubble disc diffuser

Fine bubble diffuser, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Fine bubble disc diffuser series combines effective design, low installation costs, reliability and high performance in intermittent and continuous aeration processes.Special designed the slits cut opining, patterns and spacing between the slits for high oxygen transfer and longtime operation.

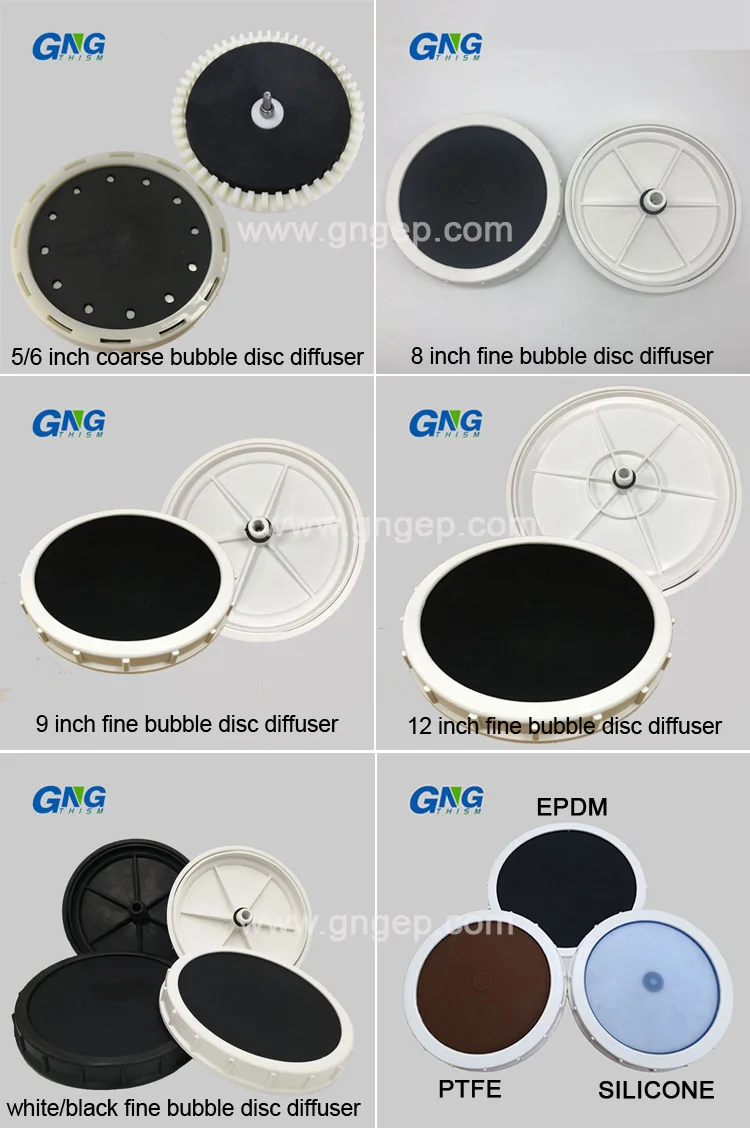

Product Show

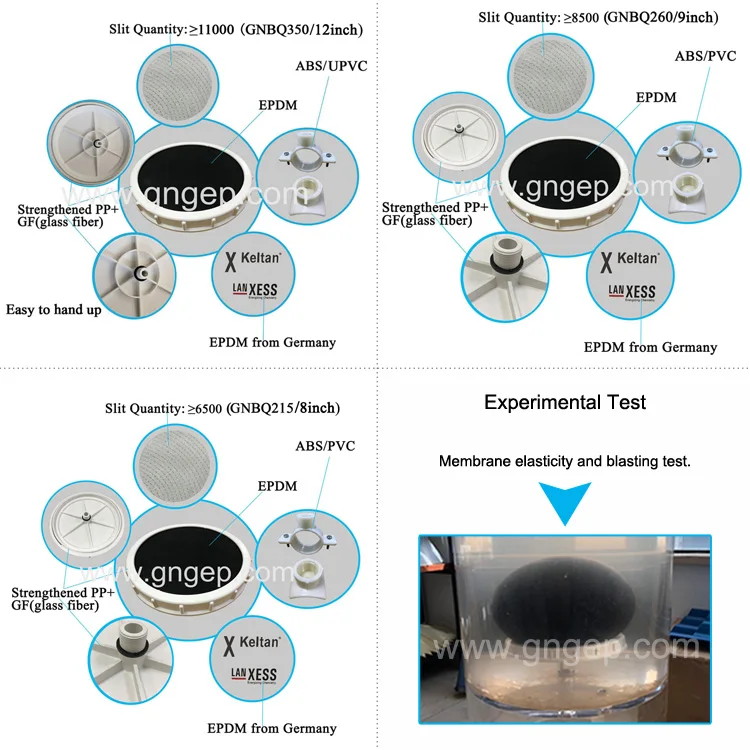

Disc Diffuser Designs

Standard Membrane Materials

We provide disc diffusers that are specially designed for a plethora of applications.

The special low plasticizer EPDM is aimed at beverage production, and food and animal processing. The silicone membrane diffuser is specifically created for refining processes, petrochemicals, and the paper industry.

Anti-fouling Surface for Membrane Materials

Relatively based on the latest nano technology, the surface of the membrane materials are meant to prevent the accumulation of both biological and solid encrustations.

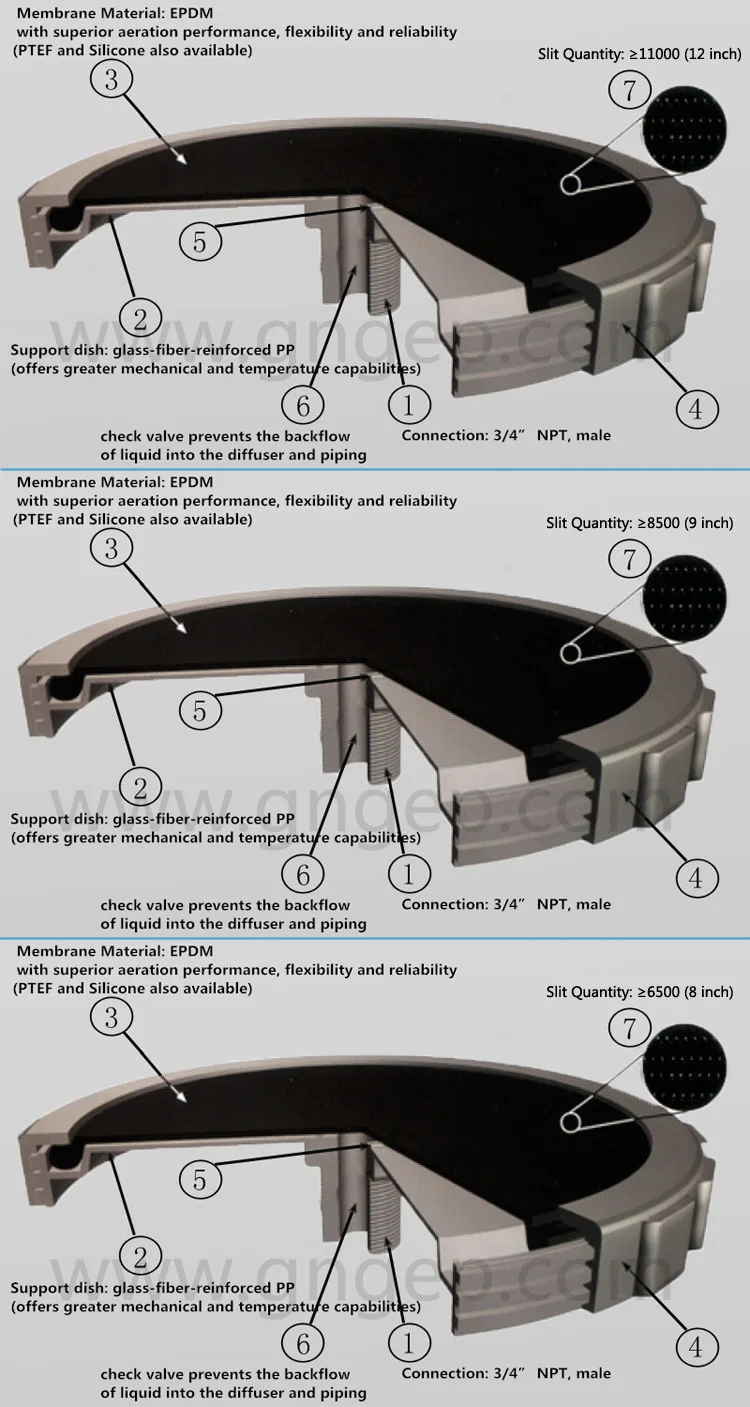

Reinforced Polypropylene Support Dish and Ring

We provide disc diffusers with rings and support dish that are strengthened and well-protected by glass fibers for optimum chemical resistance. With this sturdy support dish, it can endure varying temperatures and resist harmful UV rays.

All disc diffusers come with built-in non-return valves to ensure safety and security of the water treatment process. This valve controls the build-up of sludge and prevents its infiltration into the aeration system, especially when the air flow is sporadic.

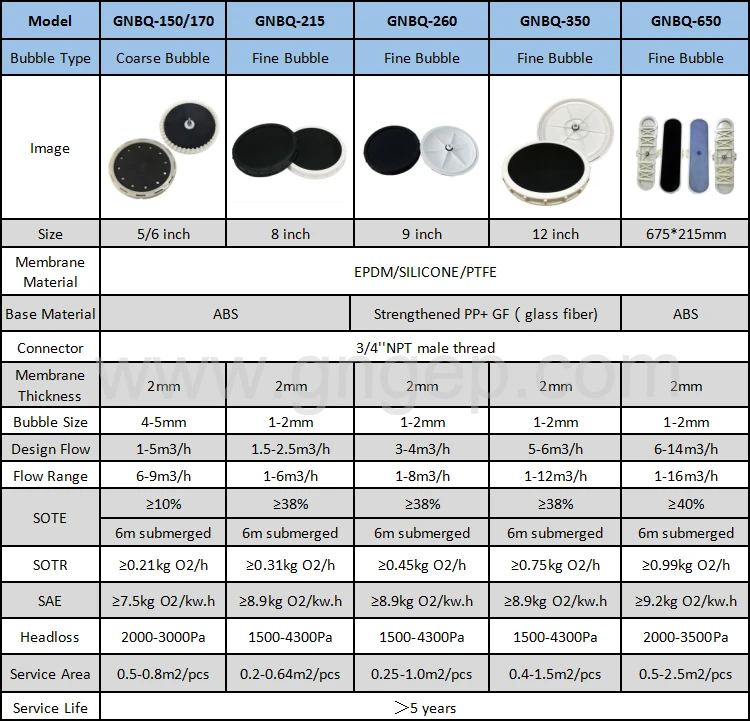

Technical Parameters



Features

♦ Quick and Easy Installation

We offer disc diffusers that include pre-fabricated components for easy and fast installation process. In case replacement or maintenance is necessary, the materials can also be removed easily.

♦ Flexible Design

The disc diffuser has an adjustable pipe support system for easy leveling during the installation process. It also fits onto any type of material, which includes ABS, PVC, etc.

♦ Full Pipework System

For minimal issues on the installation and removal process, the disc diffuser boasts fully operational pipework system for enhancing growth and expansion in the long run.

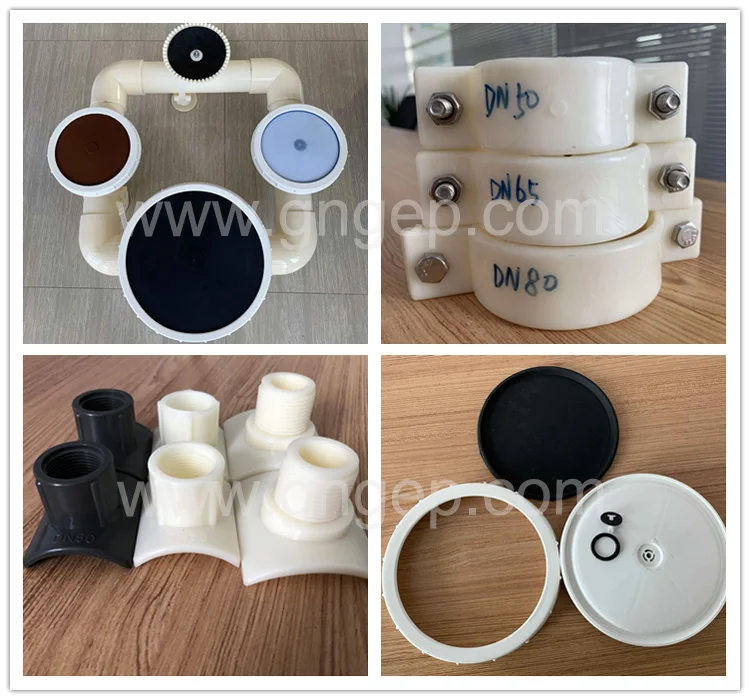

Component Display

Application

  • Municipal wastewater treatment
  • Industrial wastewater treatment
  • Clean water treatment
  • Sludge stabilization
  • Wastewater ozone diffusion
  • Aeration of fish ponds
  • Aeration of streams and lakes



Packaging & Shipping

 Bubble pack and five- layer hard carton package



Company Information

Our Company

Jiangsu Guonong Environmental Protection Co., Ltd is the professional water treatment R&D manufacturer. It is located in Yixing city, Jiangsu Province, China.

Our products include Fine Bubble Disc Diffuser, MBBR Media, Sludge Dewatering Machine, Automatic Chemica Dosing System. Dissolved Air Flotation(DAF), Drum Filter Screen, Screens and Fine Screens, Grit-water separator, Screw Conveyor, Nano Bubble Generator, etc.

After years of exploration and practice, our company has developed into a comprehensive service system.

Now, more than 80% of our products are exported to Southeast Asia, The Middle East, Europe, North America, Latin America , and so on. We also have many agents in Southeast Asia, North America and Latin America.

We insist on "Quality first, Reputation Foremost", our mission is" To be the best integrated water treatment supplier Worldwide"

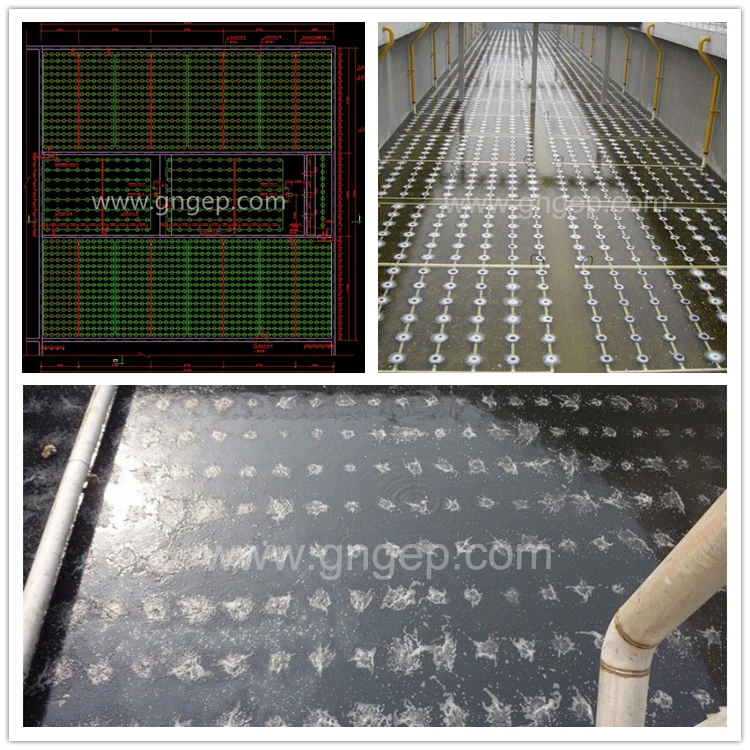

Customer Site

Customers and Fairs

Related products



            Sludge Dewatering Machine                                      Rotary Drum Filter Screen





       Dissolved Air Floation(DAF)                                         Bio Filter Media



FAQ

Q: Whether your company is factory or trading company?
A: Our company has its own workshop, so we can provide the the best quality and the lowest price for you.



Q: Whats the material of your membrane?

A: We can provide three kinds of membrane materials, including EPDM, PTFE and Silicone. The raw materials are 100% imported from Germany.



Q: whats the material of support dish?

A: Strengthened PP+glass fiber.



Q: What about the slit quantity of membrane?

A: 8 inch(≥6500), 9 inch(≥8500), 12 inch(≥11000).



Q: What about the MOQ?

A: 1 piece.



Q: What are the accessories of fine bubble diffuser?

A: Aerator pipe, Horizontal regulating support, Connector, saddle, etc.



Q:Any samples can be provided?
A: Yes. Samples within 2 pieces can be provided for free.



Q: What is your terms of delivery?

A: Normally within 10~20 days against down payment.
