GLW passive signal isolator 4-20mA current signal isolation

Supplier: Anhui Qidian Automation Technology Co., Ltd
Region: Anhui, China
Contact: Ms Esther Wong
Price: $14.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Delivery Detail:	Shipped in 3 days after payment;	Voltage Drop:	3V,TYP,(Input 20mA,power supply by input side);
Place of Origin:	Anhui China (Mainland);	Input Signal:	0-10mA;4-20mA;0-20mA;
Brand Name:	Qidian;	Input Resistance:	≤150Ω;
Accuracy:	≤0.2% F.S.;	Port:	Shanghai;
Payment Terms:	L/C,D/P,T/T,Western Union;	Packaging Detail:	Each unit has original individual box,all boxes are packed in standard packages.;
Model Number:	GLW-W1-A3-O3-P1;	Supply Ability:	1000 Unit/Units per Day;
Certificate:	CE ISO9001;	Output Signal:	0-10mA;4-20mA;0-20mA;

GLW passive signal isolator 4-20mA current signal isolation

Introduction

<1>. Without external power supply, the GLW series isolator input side power intakes.This isolator outputs the signals by interference suppression of the 4-20mA DC power signal from various equipment in industrial field.

<2>. With the advantage of high transmission precision.Standard 35mm DIN rail independent mounting,Parameter customizable.

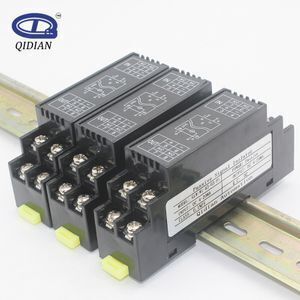

Product Display

Technical Parameters

Input
Input Signal	0-10mA;4-20mA;0-20mA;Customizable
Voltage Drop	3V,TYP,(Input 20mA,power supply by input side)
Input Resistance	≤150Ω; ≤100Ω
Output
Output Signal	0-10mA;4-20mA;0-20mA;Customizable
Output Load Resistance	RL≤350Ω RL≥500Ω
Other Parameters
Power Supply	Without external power supply
Accuracy	≤0.2%F.S.
Respond Time	≤10mS(0-90%) (TYP)
Temperature Drift	0.005%F.S./℃ (-20℃~+55℃)
Isolation Intensity	2000V AC/1min(between input-ouput-power)
Insulation Resistance	≥100MΩ(between input-ouput-power)
EMC	Complies with GB/T 18268(IEC61326-1)
Applicable Equipment	Current source,2-wires transmitter
Working Temperature & Humidity	-20℃~+55℃/<80%humidity(non condensing state)

Selection of GLW passive signal isolator

Diagram

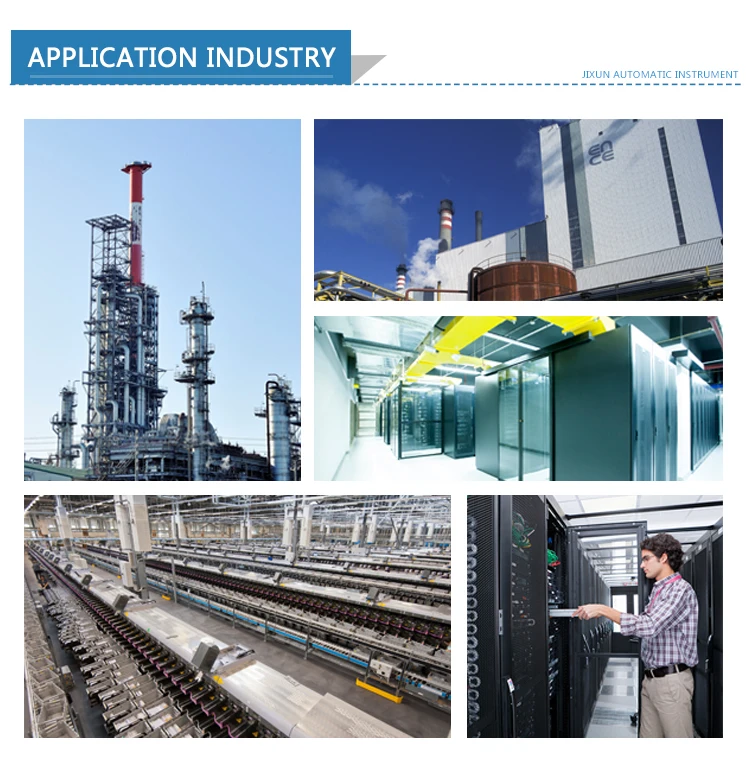

Application Industry

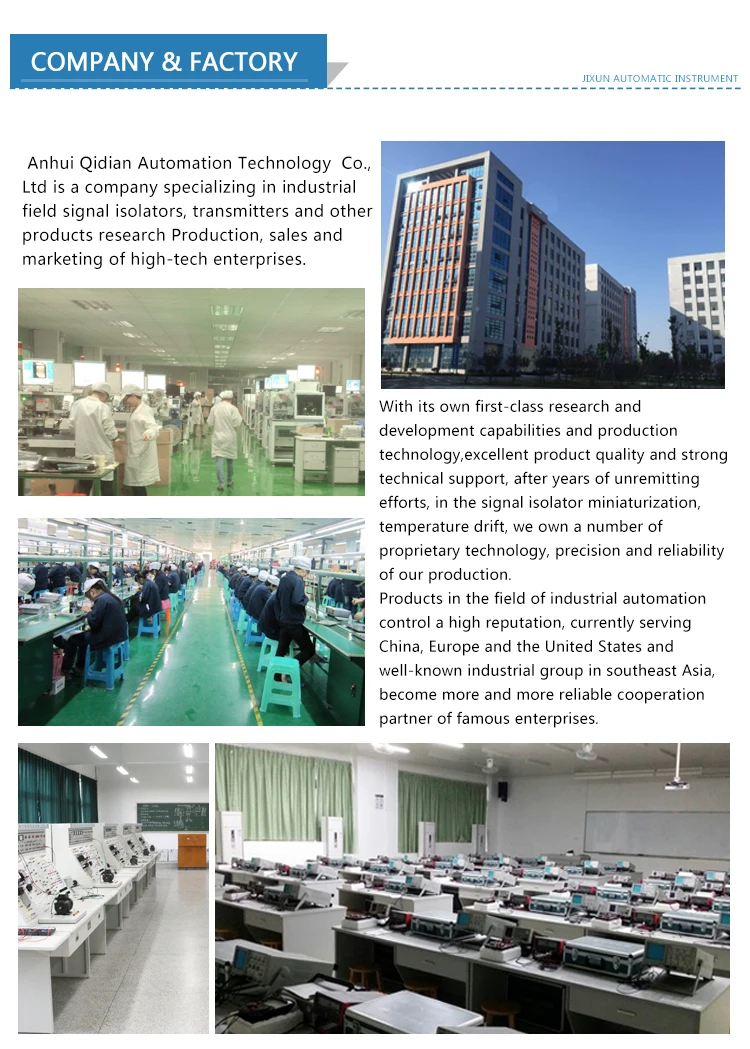

Company& Factory

Certificates

Shipping&Payment
