Printing Slotting Die Cutting Machine for Carton Box in China

Product details
Type:Printer Slotter Die Cutter;Packaging Material:Transparent plastic-film;
After-sales Service Provided:Engineers available to service machinery overseas;Packaging Detail:Package/piling: Good hard steel pallet strengthen and fixed, packing with transparent plastic-film, class and numbering, cannot extrusion and stacker. Printing Slotting Die Cutting Machine for Carton Box in China;
Certification:CE, ISO9001;Thickness of Stand Printing Plate:7.2mm;
Name:Printing Slotting Die Cutting Machine for Carton Box in China;Max. thickness of board:12mm;
Material:Iron;Port:Guangzhou/Shenzhen;
Colors Unit:1~7 colors;Payment Terms:L/C,T/T,Printing Slotting Die Cutting Machine for Carton Box in China;
Warranty:12 Months;Characteristic:Top&bottom printing;
Supply Ability:150 Set/Sets per Year Printing Slotting Die Cutting Machine for Carton Box in China;
Product Description

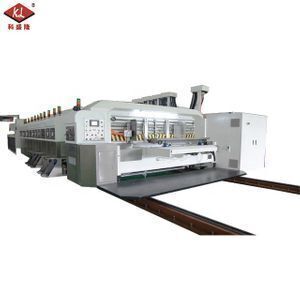

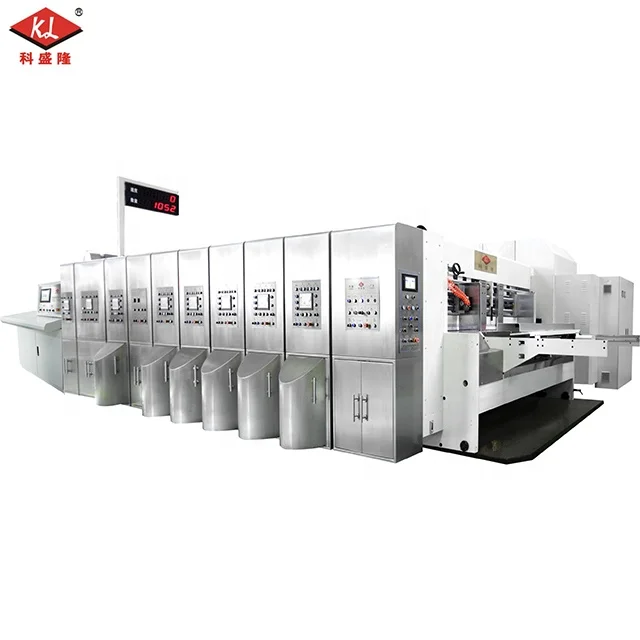

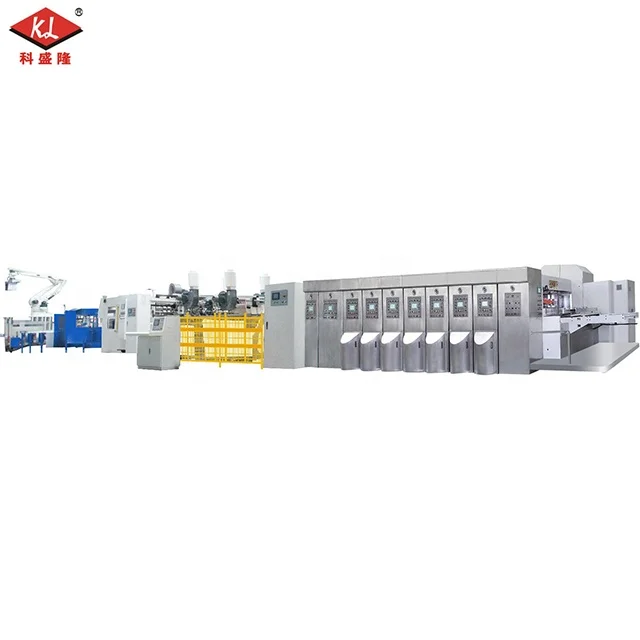

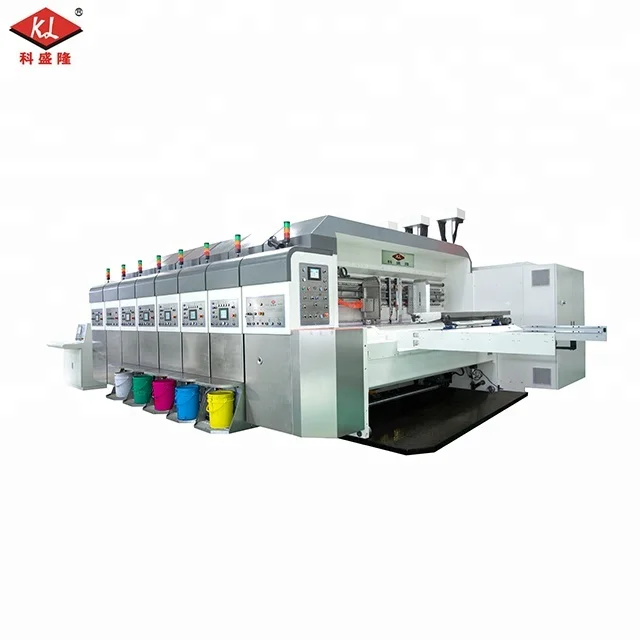

Printing Slotting Die Cutting Machine for Carton Box in China

Data/Model
900×2000
1200×2000
1200×2400
1400×2400
1600×2800
Max. mechanic speed(pcs/min)
250
250
250
220
180
Max. feeding size(mm)
880×2000
1180×2000
1180×2400
1380×2400
1570×2800
Min. feeding size(mm)
300×650
350×750
350×750
380×750
450×850
Skip feeding(mm)
1100×2000
1500×2000
1500×2400
1700×2400
1900×2800
Max. printing area(mm)
800×2000
1150×2000
1150×2400
1320×2400
1540×2800
Max. thickness of board(mm)
7.2
7.2
7.2
7.2
7.2
Min.slotting space(mm) slotting type L(mm)

240×80×240×80

250×90×250×90

250×90×250×90

260×90×260×90

260×100×260×100
Max. slot depth(mm)
250
320
320
320
560
Max. thickness of board(mm)
12
12
12
12
12
Dimension(L×W×H)(mm)T
F
11659×4240×3200
12079×4240×3200
13015×4800×3500
13550×4400×3500
13015×4800×3500
13550×4800×3500
13570×4820×3500
14208×4820×3500
14021×5220×3500
14701×5220×3500

Main Features:

1.This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
2.Auto high quality materials and parts.
3.Well hardened and ground transmission gears, hardness more than 60(HRC).
4.Auto zero return and auto reset.
5.All gaps between cylinders and rollers are computerized and/or motorized control.
6.Vacuum transfer system used in all printing sections.
7.Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
8.All cylinders and rollers are chromed plated for ideal hardness.
9.PLC control system with touch screen control.
10.Able to save order,speed up the order shift.
11.All electronic and pneumatic components are with European standards.
12.Able to facilitate the production management.

Machine Advantage:
1.CNC control system (Intelligent Control)
2.Environmental Protection and Energy Saving, use washable ink;
3.Satisfy the needs for exquisite printing in both sides, also be able to die-cut at the same time. It's specially suit for products that have personalized or anti-fake requirements.
Corrugated Box Samples:

Process & Packaging

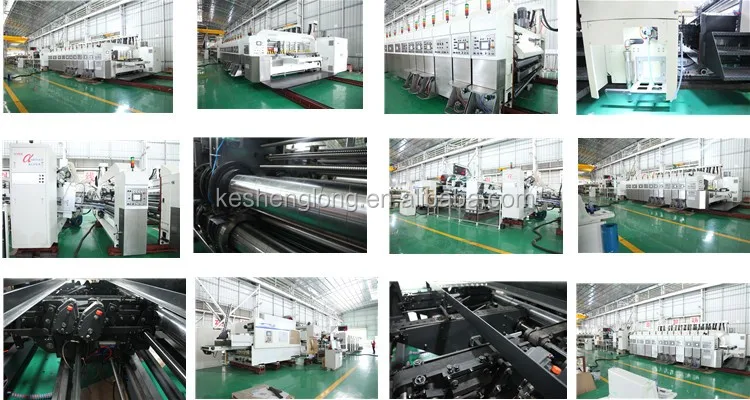

Manufacturing Process:

Machine Packaging:

Our Company

Guangzhou Keshenglong Carton Packing Machine Co.,Ltd., is one of the leading manufacturers in China, specialized in manufacturing of carton printing and packaging machinery. Registered fund at RMB 80 million, fixed asset at RMB 185 million.

Meanwhile, our products have been exported to more than 70 countries, including Germany, Poland, Spain, Greece, U.K., U.S.A., Canada, Mexico, Brazil, Australia, New Zealand, U.A.E., Iran, Turkey, Singapore, Indonesia, India, Thailand, Vietnam, South Africa, Nigeria, Congo etc..

For the time being, we have more than 300 employees in our team, and have our own R&D, manufacturing, sales and after-sales service department, with our strict production and experienced construction team, taking the professional route and providing one-stop service for our customers.

Why Choose Us?
1.More than 23 years professional experience in designing and manufacturing.
2.Accept customized design according to customers' requirements.
3.High levels of performance,quality and reliability of all equipment.
4.Reliable quality proven by customers both at home and abroad.
5.Reasonable prices.
6.Promptness in both equipment delivery and technical support.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Installation, training how to use the machine and technical support.
* Engineers available to service machinery overseas.

Our Exhibitions
Related Products
Certifications
FAQ

Q1: What's the MOQ?
Re: The MOQ of machinery is 1 set.
Q2: What's delivery time?
Re: The general delivery time is 3~5 months after order confirmed, it depends on the order quantity.
Q3: Can you send the video to show how the machine works?
Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.
Q4: What's your payment terms?
Re: 30% in advance, and 70% before shipment.
Q5: What's the payment method?
Re: We accept T/T and L/C payment.
