75KW new type industrial air chlling machine air cooled chiller
- 10000.00 set
| Local Service Location: | None; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Farms,Printing Shops,Construction works ; |
| Dimension(L*W*H): | 2300*835*1750mm; | Certification: | CE; |
| Package Type: | standard wooden case; | Certification: | CE; |
| voltage: | 380V/50HZ/3PH; | usage: | industrial refrigeration; |
| Key Selling Points: | Sustainable; | Showroom Location: | None; |
| Selling Units: | Single item; | Condenser type: | Finned copper tube+ low noise outer rotor fan; |
| Single package size: | 2400X935X1850 cm; | Place of Origin: | China; |
| Brand Name: | Lechang; | cooling capacity: | 75kw; |
| Product name: | 25HP air cooled chiller; | Power(W): | 75KW; |
| After-sales Service Provided: | Video technical support,Online support; | Weight: | 900KG; |
| Voltage: | 380V/50HZ/3PH; | Fan power: | 0.7KW*2; |
| Evaporator type: | shell & tube; | Single gross weight: | 920 KG; |
| Refrigerant: | R22/R407C/R134A/R410A; | After Warranty Service: | Online support; |
| Type: | Air-Cooled; | Warranty: | 1 year; |
| Condition: | NEW; | compressor: | copeland; |
25HP Air cooled chiller
Model
Item | LC-25A |
Band | |
Power supply | 380V/3PH/50HZ |
| |
Nominal cooling capacity | Kcal/h | 58050 |
|
kw | 75 |
| |
Refrigerant
| Name | R22(or R407C/R404A) | Import of high quality refrigerant
|
Control method | Thermostatic expansion valve | ||
Compressor
| Type | Scroll compressor | Copeland(America)
|
Power(HP) | 12.5*2 | ||
Condenser
| Type | Finned copper tube+low noise outer rotor fan | High efficiency Finned copper tube heat exchanger
|
Cooling air flow(m3/h) | 27000 | ||
Power(kw) | 0.7*2 | ||
Environment Temp(dissipate heat | ≤45℃ | ||
Evaporator
| Type | Shell tube | Shell tube
|
Chilled water flow (L/min) | 360 | ||
Inlet/out pipe caliber | 21/2″ | ||
Water pump
| Power(HP) | 3 | Muchuan
|
Lift(m) | 16 | ||
Safety protection
| Control pane | Compressor overheating protection,over-current protection,high and low pressure protection,over temperature protection, flow switch protection,phase sequence or missing phase protection, exhaust overheating protection,antifreezing protection. | Punp |
High/low pressure gauge | JAVE(Taiwan) | ||
Filter | ALCO(America) | ||
Relay | Schneider(France) | ||
Contactor | Schneider(France) | ||
Power switch | Chint | ||
Dimension
| weight(kg) | 900 | Wooden case |
LxWxH(mm) | 2300*835*1750 |
| |
| Surface treatment | Mainboard :2mm, closingboard: 1.5mm | Baking varnish |
Remark:
1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C
2.range of work:Chilled water(Temp range):5℃-35℃;inlet and outlet water(temp range) :3℃-8℃.working environment: ≤35℃(condensation Temp)
3.Conversion of units:1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW

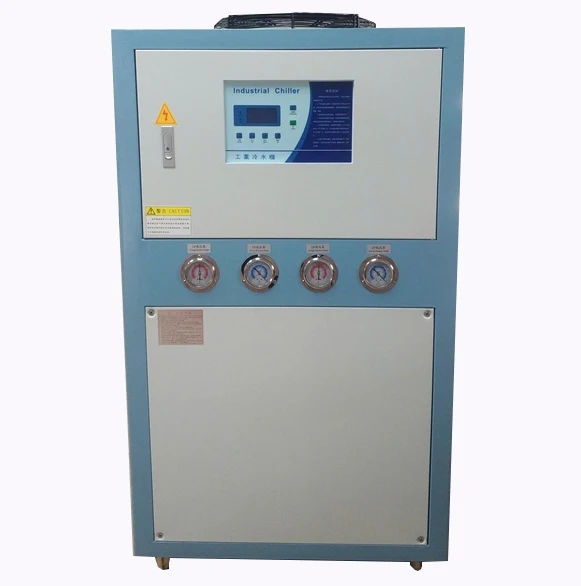

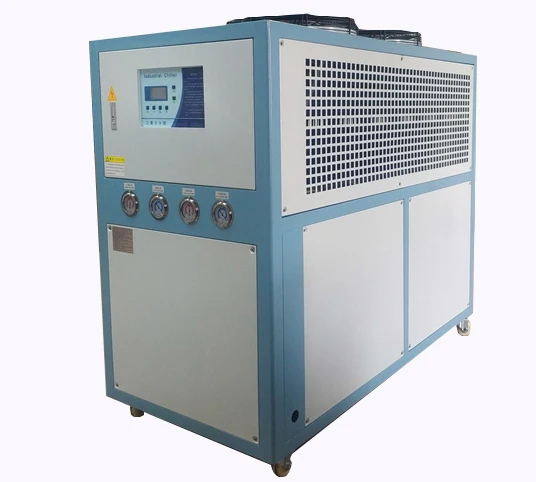

PRODUCT PICTURES
OUR FACTORY
OUR CERTIFICATE
