Factory direct supplier air cooled industrial water chiller hot sale.

Supplier: Dongguan Lechang Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Lung
Price: $3200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Selling Units:	Single item;	Place of Origin:	Guangdong China;
Warranty:	1 Year;	After-sales Service Provided:	Video technical support,Online support;
Single gross weight:	670 KG;	Weight:	650KG;
cooling capacity:	45kw;	Application:	industrial refrigeration;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms,Printing Shops,Construction works ;	Package Preview:	https://sc02.alicdn.com/kf/Hec452c0a7fa74451af4727ec7e229080l.png_640x640.png;
Single package size:	1780X930X1770 cm;	Certification:	CE;
Power(W):	45KW;	Evaporator type:	Tank;
Filter:	ALCO;	Product name:	15HP air cooled chiller;
Dimension(LWH):	16808301670mm;	Condition:	NEW;
Type:	Air-Cooled;	Condenser type:	Finned copper tube+ low noise outer rotor fan;
Color:	Blue + White;	Voltage:	380V/50HZ/3PH;
voltage:	380V/50HZ/3PH;	Brand Name:	Lechang;
Refrigerant:	R22/R407C/R134A/R410A;	Package Type:	standard wooden case;
compressor:	Copeland Scroll Compressor;

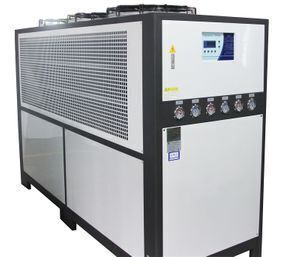

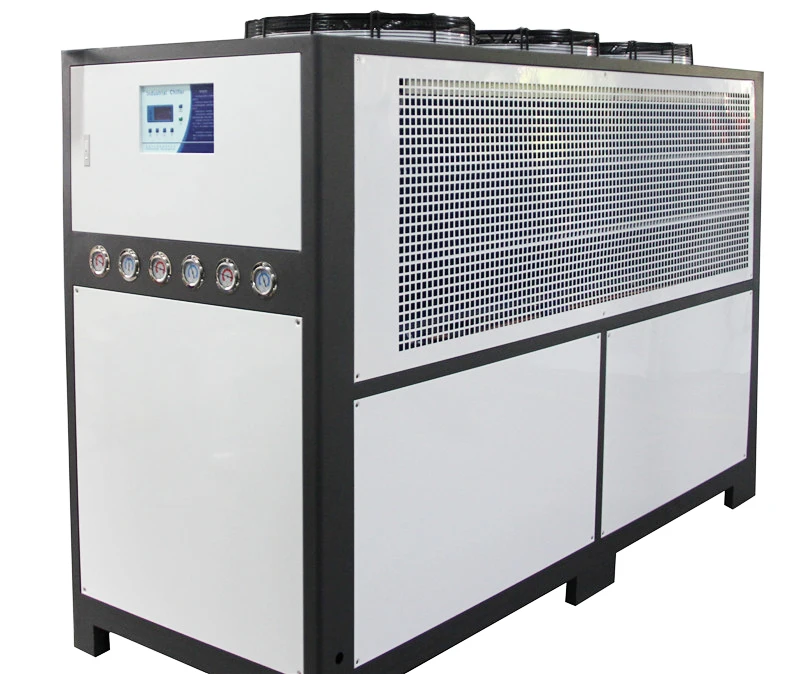

15HP Air cooled chiller

Model Item		LC-15A	Band
Power supply		380V/3PH/50HZ
Nominal cooling capacity	Kcal/h	38565
Nominal cooling capacity	kw	45
Refrigerant	Name	R22(or R407C/R404A)	Import of high quality refrigerant
	Control method	capillary	Import of high quality refrigerant
Compressor	Type	Scroll compressor	Copeland(America)
Compressor	Power(HP)	5*3	Copeland(America)
Condenser	Type	Finned copper tube+low noise outer rotor fan	High efficiency Finned copper tube heat exchanger
	Cooling air flow(m3/h)	15240
	power(kw)	0.38*2
	Environment Temp(dissipate heat	≤45℃
Evaporator	Type	Water tank with coil	Water tank with coil
	Chilled water flow (L/min)	360
	Thank volume(L)	200
	Inlet/out pipe caliber	2″
Water pump	Power(HP)	2	Muchuan
Water pump	Lift(m)	15	Muchuan
Safety protection	Control pane	Compressor overheating protection,over-current protection,high and low pressure protection,over temperature protection, flow switch protection,phase sequence or missing phase protection, exhaust overheating protection,antifreezing protection.	Punp
	High/low pressure gauge		JAVE(Taiwan)
	Filter		ALCO(America)
	Relay		Schneider(France)
	Contactor		Schneider(France)
	Power switch		Chint
Dimension	weight(kg)	650	Wooden case
Dimension	LxWxH(mm)	16808301670
	Surface treatment	Mainboard :2mm, closingboard: 1.5mm	Baking varnish

1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C
Remark:

2.range of work:Chilled water(Temp range):5℃-35℃;inlet and outlet water(temp range) :3℃-8℃.working environment: ≤35℃(condensation Temp)

3.Conversion of units:1kw cooling capacity=860kcal/hr

1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW

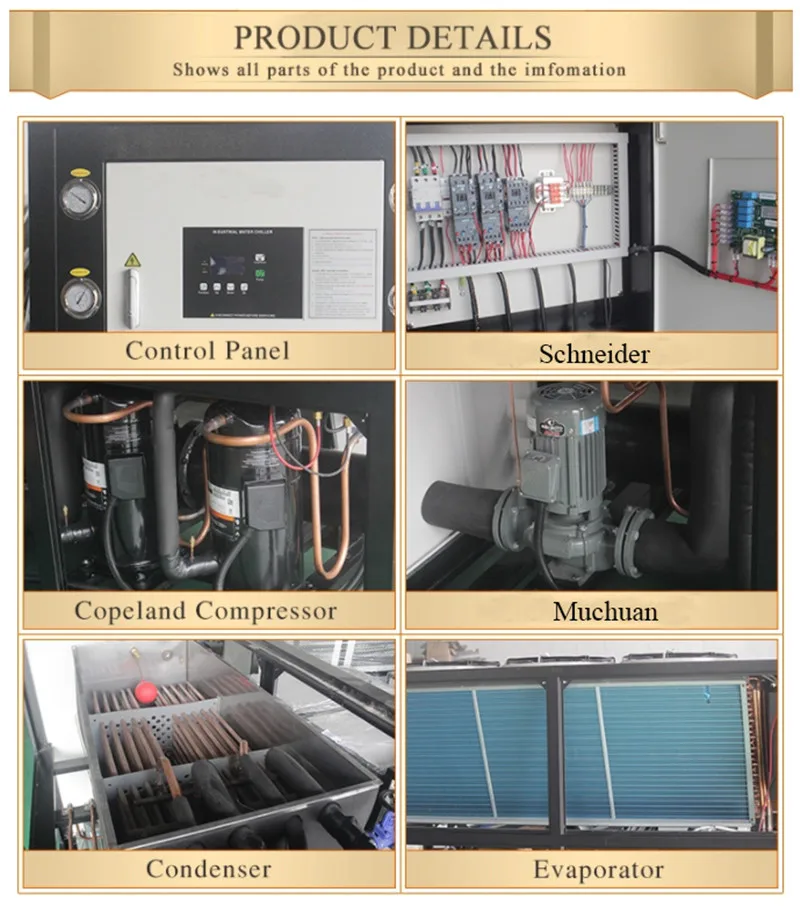

PRODUCT PICTURES
