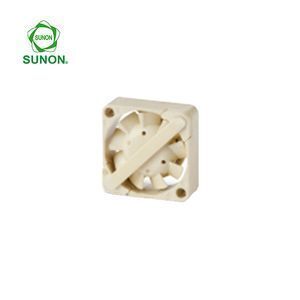

Mighty Mini SUNON UF3A3-500 3V DC Micro Axial Flow Fan 1003 10x3 10mm 10x10 10x10x3 10x10x3mm

Supplier: INVNI TECH DEVELOPING CORP.
Region: Taiwan, China
Contact: Ms Debby Chen
Price: $4.40 /piece
Min. Order: 1 piece

Click here to contact

Product details

Air Volume:	3.43 (l/min);	Protection:	Automatic Restart;
Place of Origin:	Taiwan;	Warranty:	1 year;
Speed:	17000 RPM;	Port:	Taiwan;
Certification:	CE,ROHS,ISO 9001;	Packaging Detail:	1000 pieces per carton;
Operation Temperature:	-10°C to 70°C;	Model Number:	UF3A3-500;
Power:	0.29 WATTS;	Product type:	Brushless Cooling Fan;
Mounting:	Free Standing;	Brand Name:	SUNON;
Electric Current Type:	DC;	Payment Terms:	D/A,T/T,Paypal;
Blade Material:	Plastic;	After-sales Service Provided:	Online support;
Type:	Axial Flow Fan;	Electric Current Type:	DC;
Supply Ability:	30000 Piece/Pieces per Month;	Type:	Axial Flow Fan;
Voltage:	3V;

Mighty Mini SUNON UF3A3-500 3V DC Micro Axial Flow Fan 1003 10x3 10mm 10x10 10x10x3 10x10x3mm

Product Description

Model		Bearing	Rating Voltage	Power Current	Power Consumption	Speed	Air Flow	Static Pressure	Noise	Weight
		V:VAPO	(VDC)	(mA)	(WATTS)	(RPM)	(l/min)	(Pa)	(dB(A))	(g)
10x10x3mm	UF3A3-500	V	3	96	0.29	17000	3.43	10.44	14.7	0.56
	UF3A3-700
12x2x3mm	UF3C3-500	V	3	97	0.3	16500	5.95	18.91	14	0.7
	UF3C3-700
15x15x3mm	UF3F3-500	V	3	36	0.1	14500	8.75	20.36	19.3	1.17
	UF3F3-700
17x17x3mm	UF3H3-500	V	3	37	0.1	13000	16.27	21.21	21.8	1.27
	UF3H3-700

*Lead Wire: -500(3 Wires) ; -700(2 Wires)

Application Industry

Related Products

Standard DC Axial Flow Fan Series (17x17x8 ~ 140x140x51mm)

Size (mm)	Air Flow (CFM)	Size (mm)	Air Flow (CFM)
17x17x8	0.7 ~ 0.9	60x60x15	10.8 ~ 21.0
20x20x8	1.3 ~ 1.6	60x60x20	16.0 ~ 30.5
20x20x10	1.5 ~ 1.9	60x60x25	13.8 ~ 40.0
25x25x6	2.2 ~ 3.0	60x60x38	41.5 ~ 75.2
25x25x10	3.0 ~ 3.5	70x70x10	14.5 ~ 20.5
25x25x15	2.2 ~ 3.1	70x70x15	19.0 ~ 27.0
30x30x6	3.7 ~ 4.9	70x70x20	23.5 ~ 43.0
30x30x10	3.5 ~ 5.5	70x70x25	40.0 ~ 49.0
30x30x15	4.8 ~ 6.0	80x80x15	30.0 ~ 37.0
35x35x10	6.5 ~ 7.0	80x80x20	29.0 ~ 53.0
38x38x28	11.3 ~ 23	80x80x25	23.7 ~ 60.0
40x40x6	5.5 ~ 5.9	80x80x32	50.3 ~ 59.4
40x40x10	5.3 ~ 9.9	80x80x38	59.5 ~ 141.9
40x40x20	5.5 ~ 10.8	92x92x25	28.1 ~ 75.0
40x40x28	12.8 ~ 31.3	92x92x38	91.7 ~ 182.4
40x40x56	26.9 ~ 31.7	120x120x25	55.0 ~ 150.0
45x45x10	9.2 ~ 11.0	120x120x38	170.0~ 190.0
50x50x10	11.0 ~ 13.8	140x140x38	238.5 ~ 297.9
50x50x15	7.7 ~ 17.0	140x140x51	250.3
60x60x10	11.7 ~ 16.0

Mighty Mini DC Axial Flow Fan Series (10x10x3 ~ 17x17x3mm)

Size (mm)	Air Flow (l/min)	Size (mm)	Air Flow (l/min)
10x10x3	3.43	15x15x3	8.75
12x12x3	5.95	17x17x3	16.27

Standard DC Blower Fan Series (50x50x15 ~ 120x120x32mm)

Size (mm)	Air Flow (CFM)	Size (mm)	Air Flow (CFM)
50x50x15	2.6 ~ 5.4	97x94x33	22.4 ~ 30.5
50x50x20	4.8 ~ 5.7	97x95x33	44.2 ~ 54.7
60x60x15	3.9 ~ 5.7	120x120x32	31.4 ~ 35.9
75x75x30	7.5 ~ 13.6

Mighty Mini DC Blower Fan Series (9x9x3 ~ 30x30x3mm)

Size (mm)	Air Flow (l/min)	Size (mm)	Air Flow (l/min)
9x9x3	1.17	17x17x3	6.5
12x12x3	2.67	30x30xx3	18
15x15x3	4.53

Standard AC Axial Flow Fan Series (60x60x25 ~ 176x176x89mm ; Φ171x51 ~ Φ254x89mm)

Size (mm)	Air Flow (CFM)	Size (mm)	Air Flow (CFM)
60x60x25	17.5 ~ 18	120x120x38	70 ~ 124
70x70x25	28 ~ 29	171x151x51	80 ~ 239
80x80x25	40 ~ 41	176x176x89	315 ~ 335
80x80x38	23 ~ 31	Φ171x51	203 ~ 239
92x92x25	21 ~ 54	Φ254x89	425 ~ 870
120x120x25	46 ~ 80

Standard AC Blower Fan Series (120x120x31mm)

Size (mm)	Air Flow (CFM)	Size (mm)	Air Flow (CFM)
120x120x31	20 ~ 22

IP 68 Dustproof & Waterproof

Super Silence

Temperature Controlled

New Products

Please contact us if you cannot find the size you want.

Packaging & Shipping

Most of the order(s) will be dispatched within 4-6 weeks.
We work 5 days per week from Monday to Friday only. Saturday, Sunday order may send on coming working day.
Payment must be cleared before ship.

Company Information

Office and Sidelights

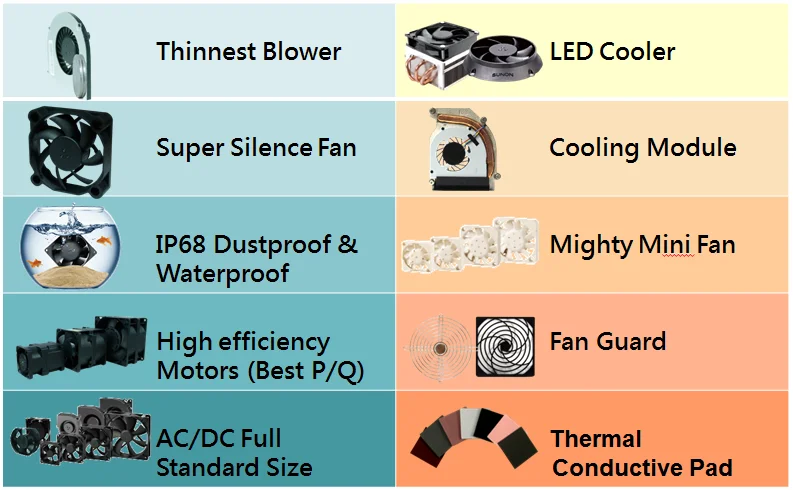

INVNI Products Overview

Thermal Total Solution

Thermal Module
Fan Accessories
Development
Other invest in Restaurant Business

Application

Desktop, PC
Telecommunication
Mobile Device
Autotronics
Server Application
Medical Appliance
Commercial Device
Household Device

Manufacturing Bases

Hefei Factory, Anhui
Foshan Factory, Guangdong
Beihai Factory, Guangxi
Kunshan Factory, Jiangsu
Kaohsiung Factory, Taiwan

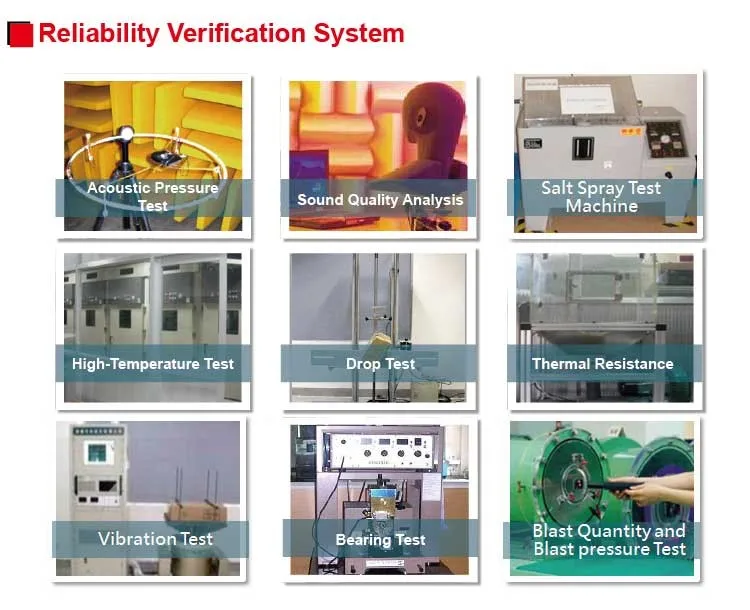

Reliability Verification System

Acoustic Pressure Test
Sound Quality Test
Salt Spray Test
High Temperature Test
Drop Test
Thermal Resistance Test
Vibration Test
Bearing Test
Air Flow/ Air Pressure Test

Thermal Integration

Thermo-fluid Simulation and Analysis
Sound Renovation
Air Flow Optimization
Heat Pipe
Thermal Total Solution
Cooling Fan
Heatsink
Thermal Grease
Module

Thermal Module Machine

Automated 3D solder paste printing machine
Thermal function tester
IR Reflow machine
Function tester
Solder paste blender

Our Services

Sample Policy: Free Sample with Freight Charge
Sample Lead Time: 2-4 weeks
Connector Processing
- For urgent order (3 days), we have professional team to process connector and do 100% quality control on the goods to ensure the product quality.
- Arrange the production line for customer’s assembly requests and delivery goods with 100% quality control.

Why Choose INVNI?

Over 20 Years of thermal experience, provide Thermal Total Solution.
Complete product line, provide All in One integration service.
Affirmative by customers, your trusty partner.
Povide business service of receive order and delivery goods in both of Taiwan and China.
Fast delivery time and good quality.

FAQ

Help us to provide right product fan for you:

Fan Type, DC/AC
Case Size (Dimensions)
Speed
Air Flow
Noise
Rating Voltage, 3V/5V/12V/48V/115V/220-240V
Bearing, Sleeve/2Ball/VAPO
Wire, 2 lead wires/3 lead wires/4 lead wires
Wire Length
Connector or not
Target Price
