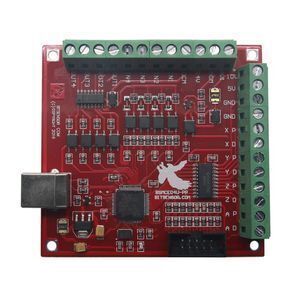

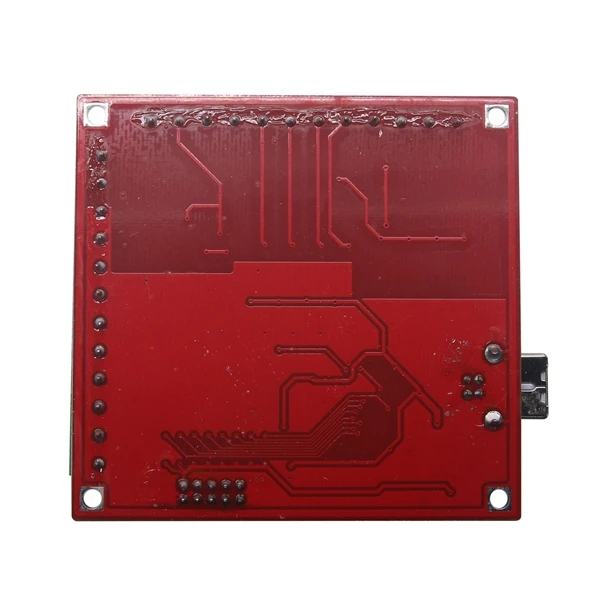

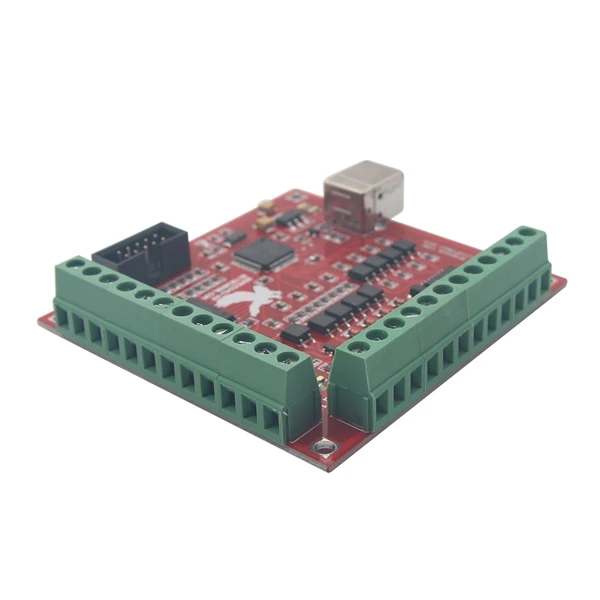

CNC USB MACH3 100Khz Breakout Board 4 Axis Interface Driver Motion Controller

Supplier: Shenzhen Tianzhongtian Trading Co., Ltd.
Region: Guangdong, China
Contact: Ms Song Song
Price: $11.00 / >=3 pieces
Min. Order: 3 pieces

Click here to contact

Product details

Single package size:	8X7X5 cm;	CPU:	ARM(32bits)+DSP+FPGA;
Selling Units:	Single item;	Package Type:	1 x USB CNC Controller Card 1 x USB cable 1 x CD CNC USB MACH3 100Khz Breakout Board 4 Axis Interface Driver Motion Controller;
Product Name:	CNC Motion Control Card;	Dimension(LWH):	8x7.7cm/3.15x3.03inch;
Speed:	60m/min;	Single gross weight:	0.3 KG;
Brand Name:	TZT;	Displayer:	8 Inch Real Color LCD;
Dimension for hole of subpanel:	390*130;	Weight:	0.3kg;
Condition:	New;	Showroom Location:	None;
Certification:	CE /ISO 9001;	Port:	USB Port;
Interface:	USB+RS232 Communction Port;	After Warranty Service:	Online support;
System:	Mach3;	Function:	PLC+ATC;
Warranty:	1 year;	Applicable Industries:	Motion Controller;
Axis:	4 Axis;	After-sales Service Provided:	Online support;
Place of Origin:	Guangdong China;	Local Service Location:	None;

CNC USB MACH3 100Khz Breakout Board 4 Axis Interface Driver Motion Controller

Product Description

Description:

    100% brand new and high quality.
    Description:
    1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;
    2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;
    3. Support automatic probe tool
    4. Support Emergency input
    5. Support for limit switch
    6. Support for connecting electronic handwheel
    7. Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable
    8. Have 0-10V output port, you can use mach3 software to control the spindle motor speed.
    9. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
    10. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device
    11. 1 status LED, indicate connection status on the board

    Size: 8x7.7cm/3.15x3.03inch
    Quantity: 1 Set
    Note:
    1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
    2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x USB CNC Controller Card
    1 x USB cable
    1 x CD
