sugar powder production line sugar powder making machine

Supplier: Jiangyin Baoli Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Mr TAO TAO
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	China;	Weight:	Different;
Brand Name:	BOLIMILL;	Certification:	CE,ISO;
Model Number:	JB-15/20/30/60/80/100;	After-sales Service Provided:	Engineers available to service machinery overseas;
After-sales Service Provided:	Field installation, commissioning and training;	Warranty:	1 year;
Usage:	Sugar;	Port:	Shanghai China;
Packaging Detail:	wooden packing sugar powder production line sugar powder making machine;	Condition:	New;
Supply Ability:	36 Set/Sets per Month;	Type:	Sugar Mill;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Food & Beverage Shops;	Voltage:	220-480V;
Power(W):	13.5-183KW;	Dimension(LWH):	Different;
Payment Terms:	L/C,T/T,Western Union;

sugar powder production line sugar powder making machine

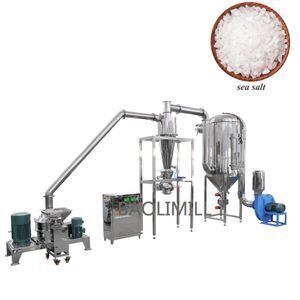

This machine is made up of three parts: main machine, auxiliary machine and electric control box.

It has properties of wind selection, having no sieve or net, and an even granularity of the processed material.

The production process going on continuously and the machine can undertake grinding of chemical products, foodstuff, medicine, medicament, cosmetics, plastic, dyestuff, resin, grain, etc.

Working Method

The material enters the grinding chamber via the funnel and spiral conveyor where it is sheared and broken by the fastrotating blades. The power passes the guide ring and enters the classification chamber. As the classification wheel is in revolution, both the air force and centrifugal force act on the powder.

As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a great mass, they are thrown back into the grinding chamber to be ground again, while the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bagtype collector via the material exit pipe be means of negative pressure wind conveyance.The discharge material meets the requirement for the product.

Technical Data

Model	Main Structural Dimensions(mm)							Capacity	Input Particle Size	Output Particle Size	Speed	Machine weight	Total power
Model	L1	L2	H1	H2	H3	H4	W1	Kg/H	mm	mm	rpm	Kg	KW
JB-15	3950	——	2640	850	650	350	1450	10-150	<6	60-320	1100	600	13.5
JB-20	4300	5900	2800	850	650	350	1450	15-200	<10	60-320	1300	5400	21
JB-30	5250	7050	3200	950	650	350	1550	50-600	<12	60-320	2000	3800	46
JB-60	6100	8100	3700	1050	650	400	2000	100-1000	<15	60-320	3800	2900	84
JB-80	7200	9200	4250	1150	650	400	2300	120-1800	<15	60-320	5100	2500	123
JB-100	7900	10100	4500	1250	650	400	2500	150-2000	<20	60-320	7400	2000	183
